Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 6 illustrations

Illustrations

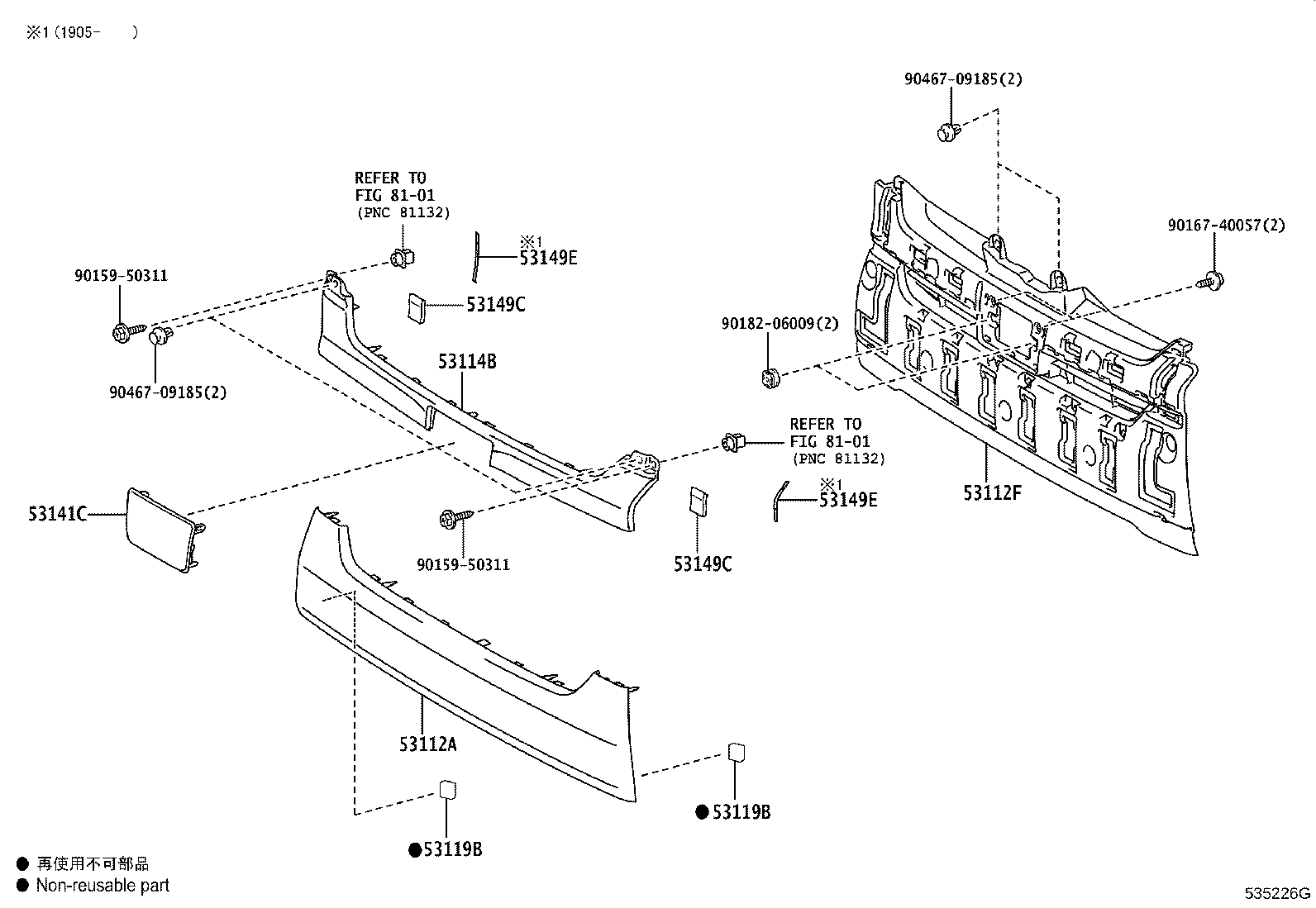

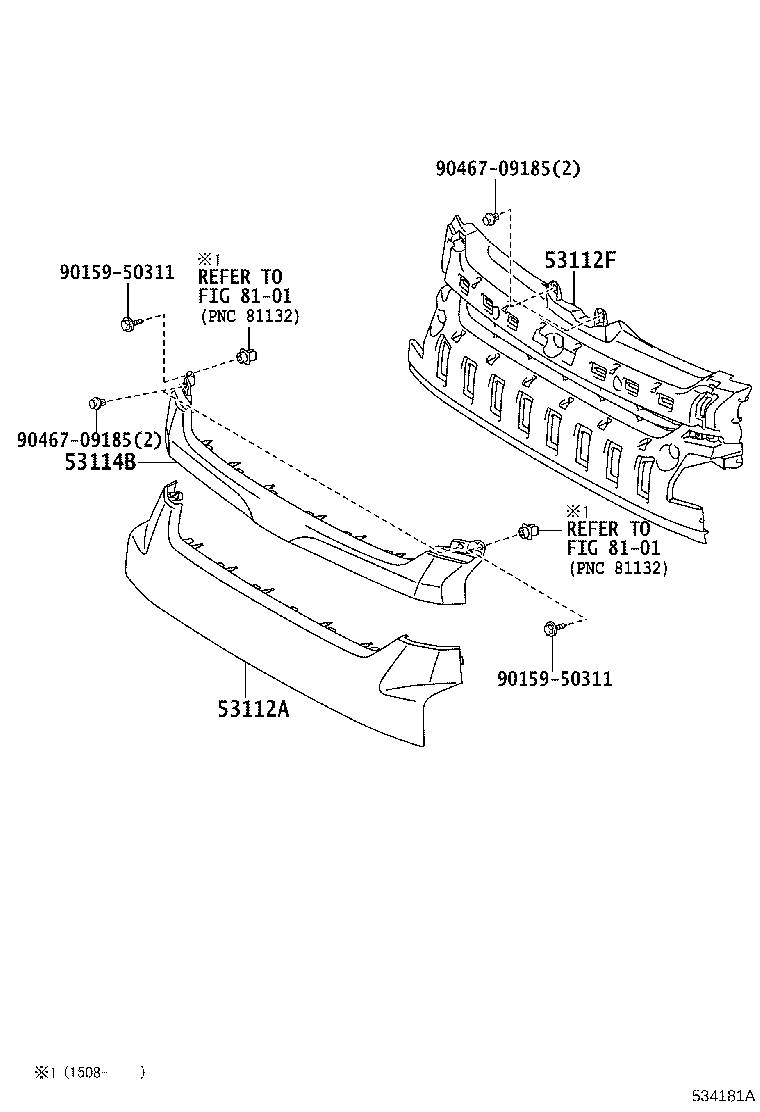

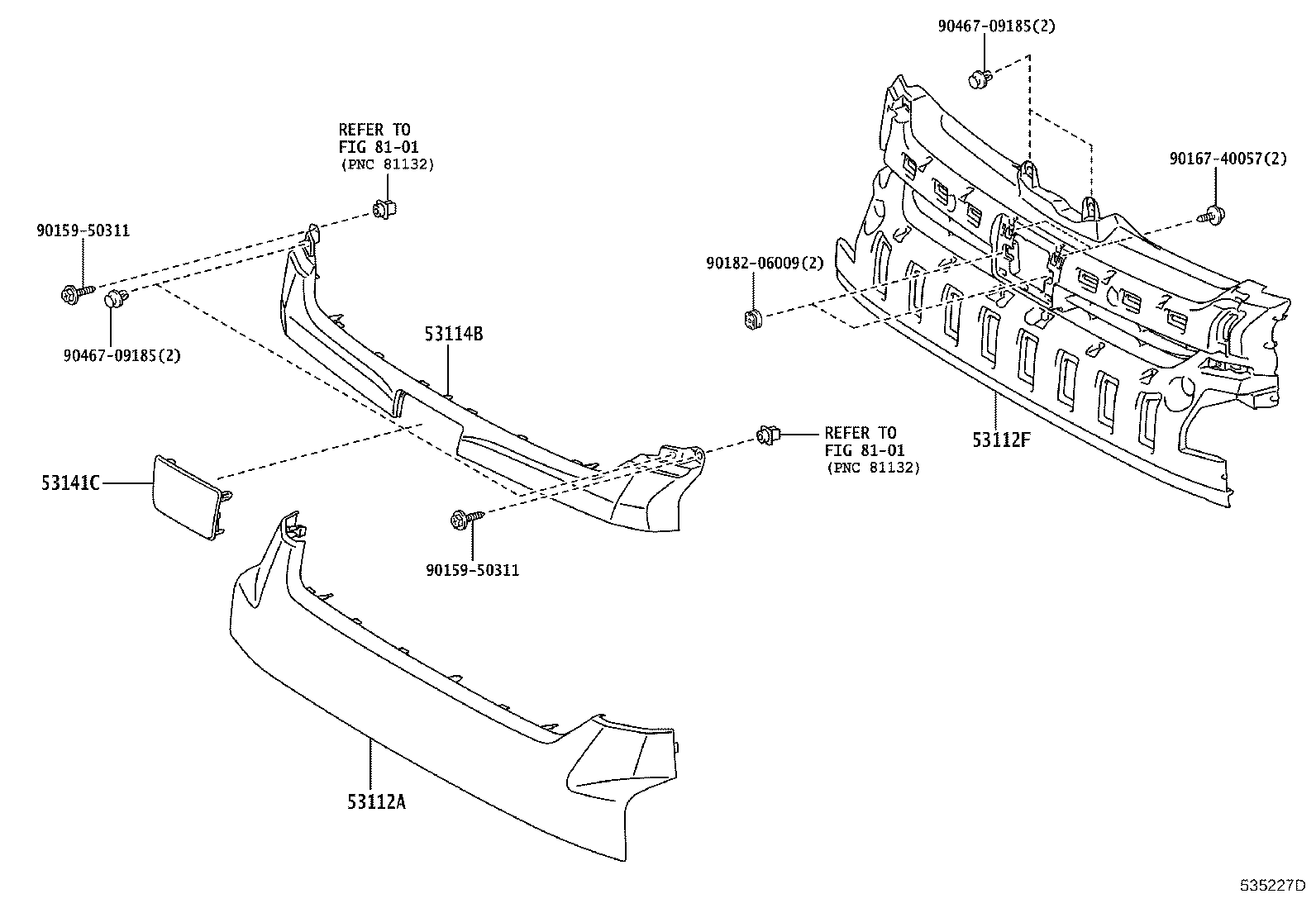

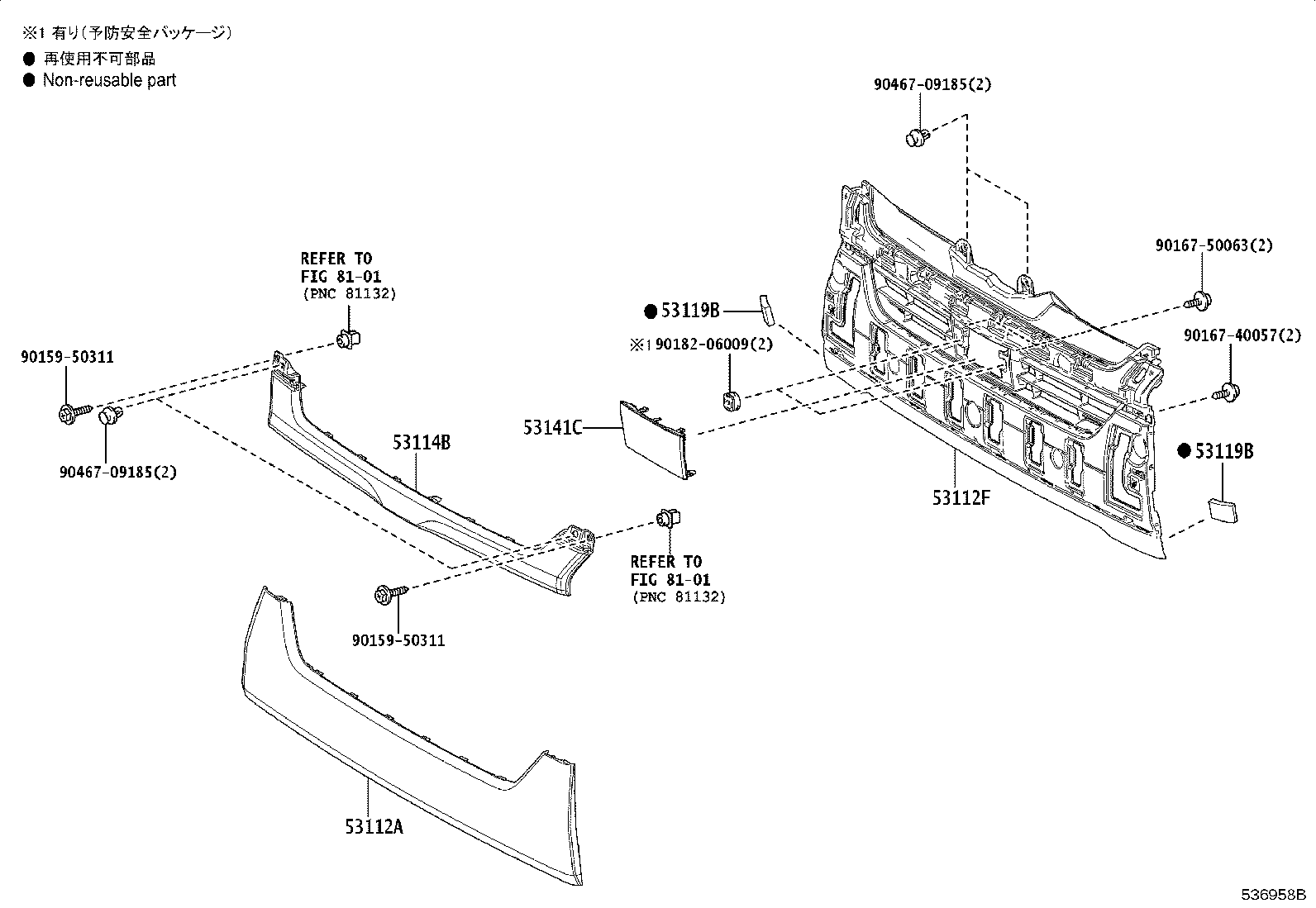

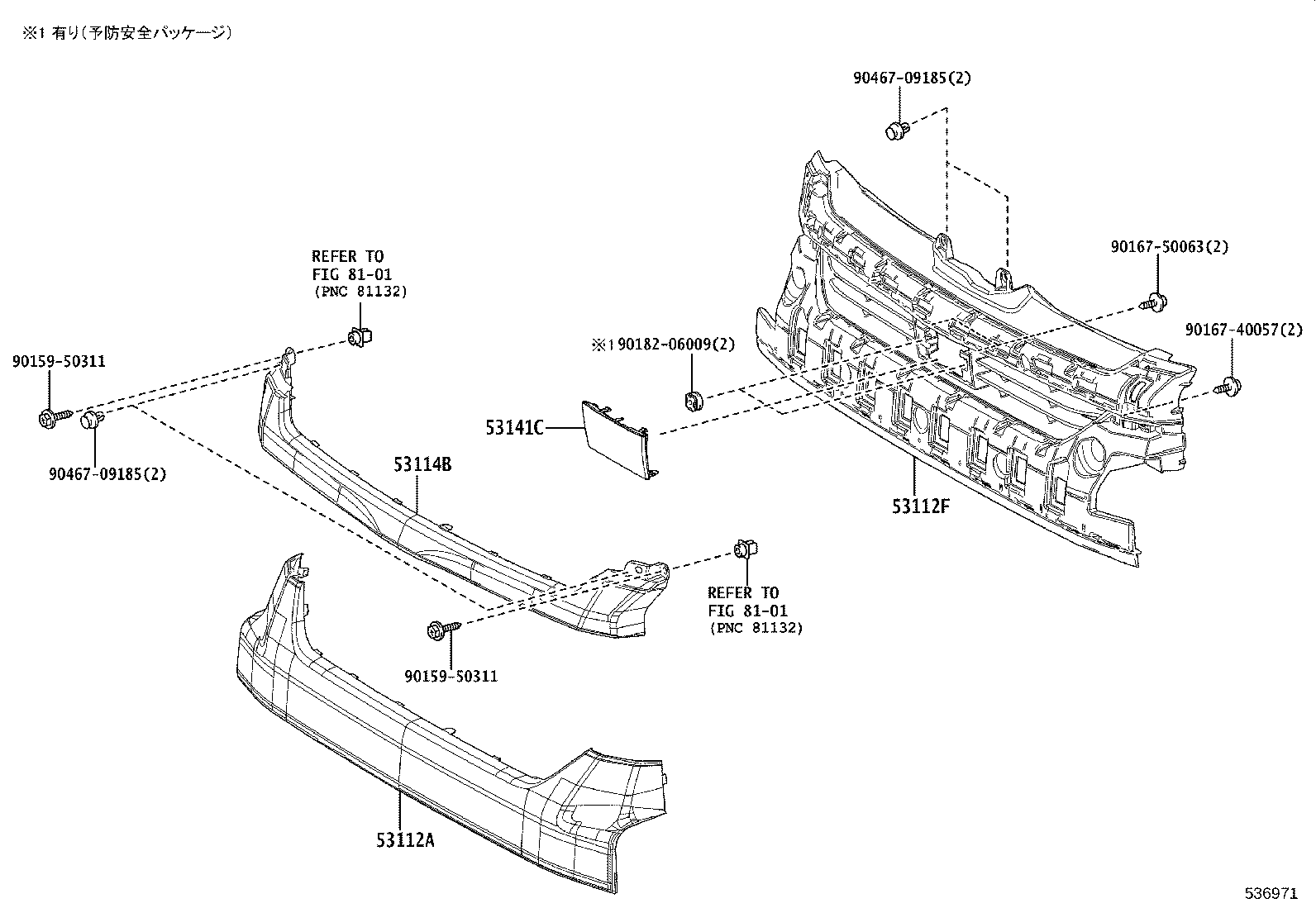

Figure 534170C 534170C 2013-12 → 2020-05 Figure 534181A 534181A 2013-12 → 2020-05 Figure 535226G 535226G 2017-12 → 2020-05 Figure 535227D 535227D 2017-12 → 2020-05 Figure 536958B 536958B 2020-05 → — Figure 536971 536971 2020-05 → —

Part groups

PNCDescription
53112A Grille, Radiator, Lower
53112F Grille, Radiator, Inside
53114B Grille, Radiator, Upper
53119B Protector, Radiator Grille
53141C Garnish, Radiator Grille
53149C Protector, Radiator Grille, NO.2
53149E Protector, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
