Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

48 part groups · 7 illustrations

Illustrations

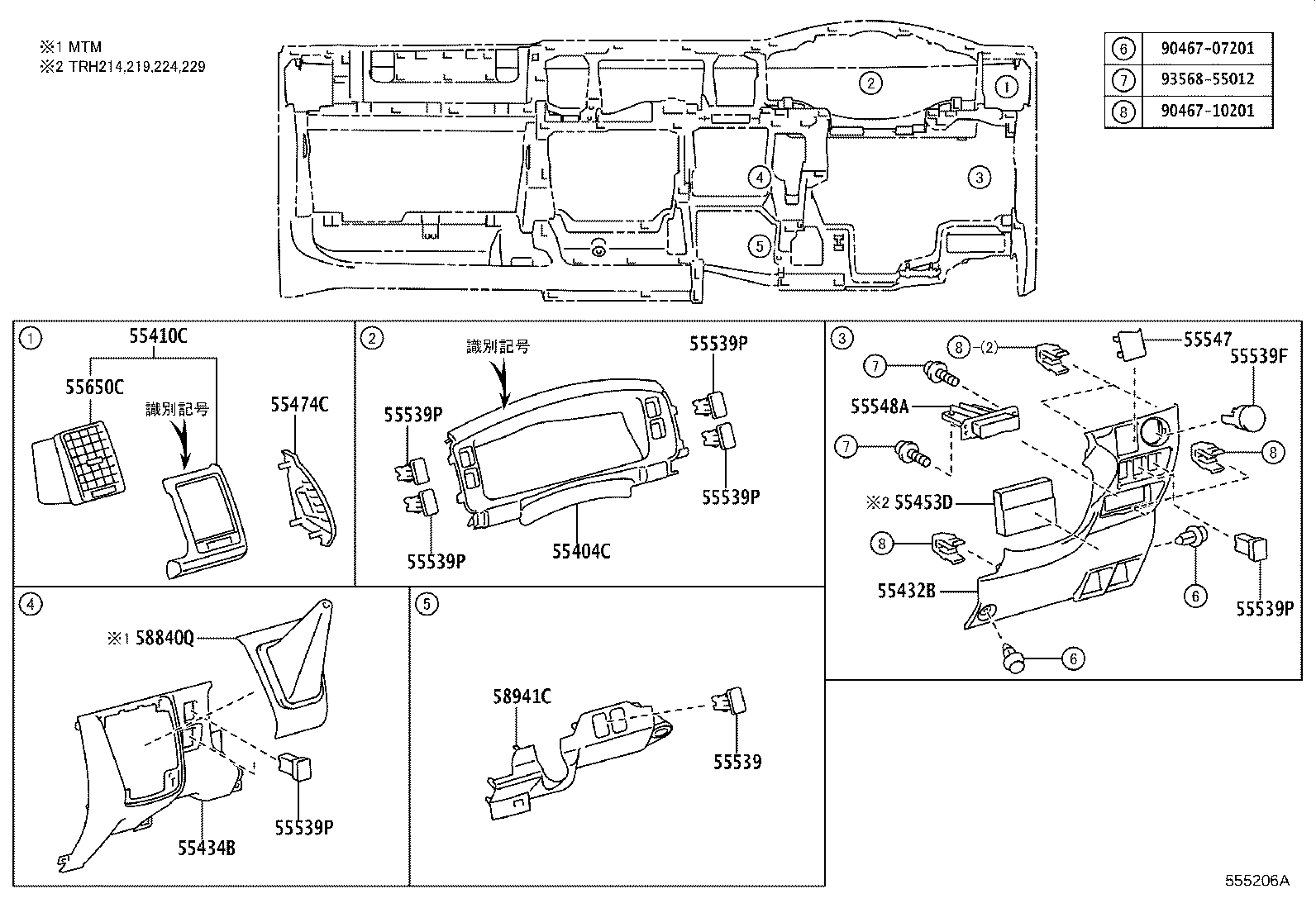

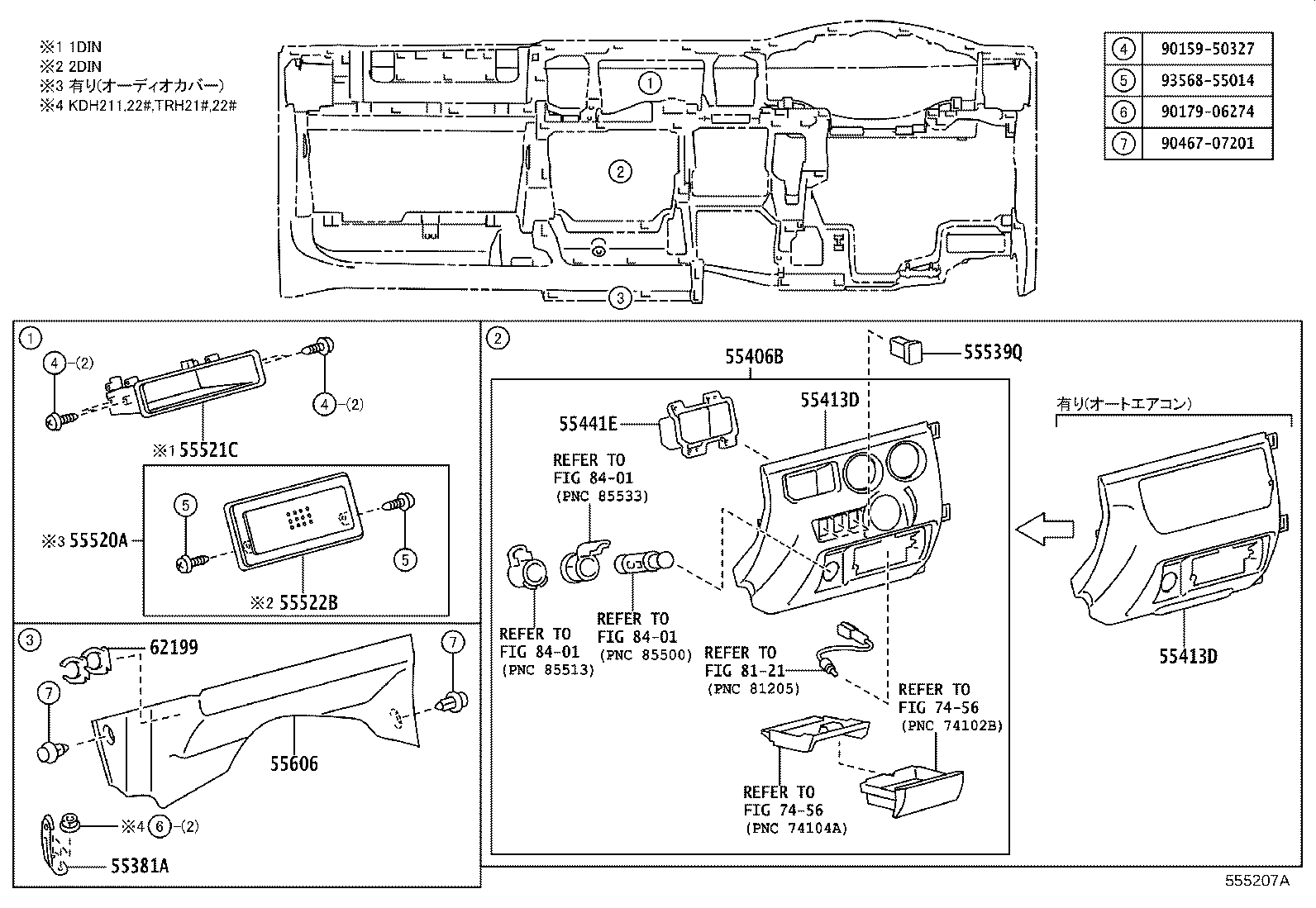

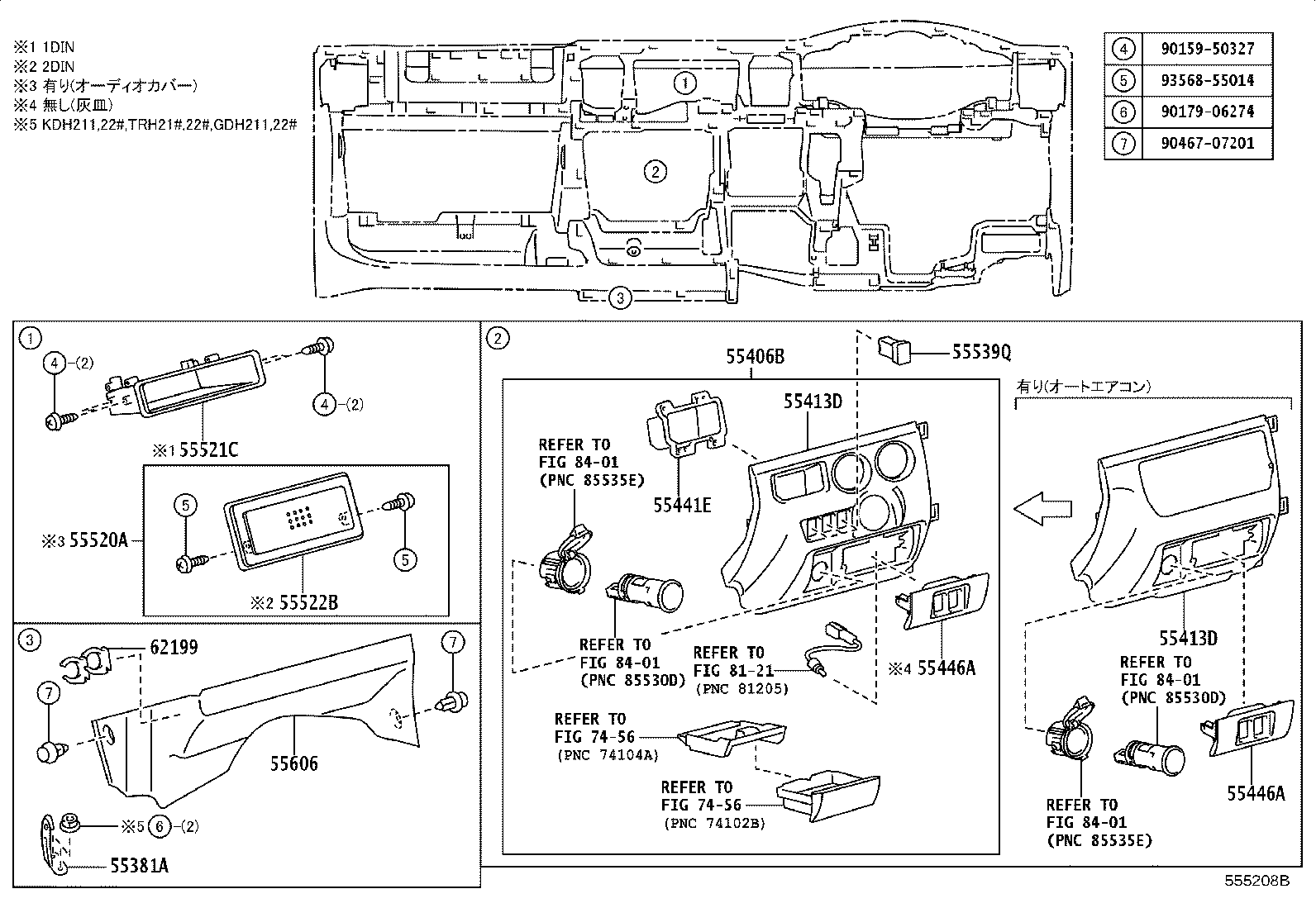

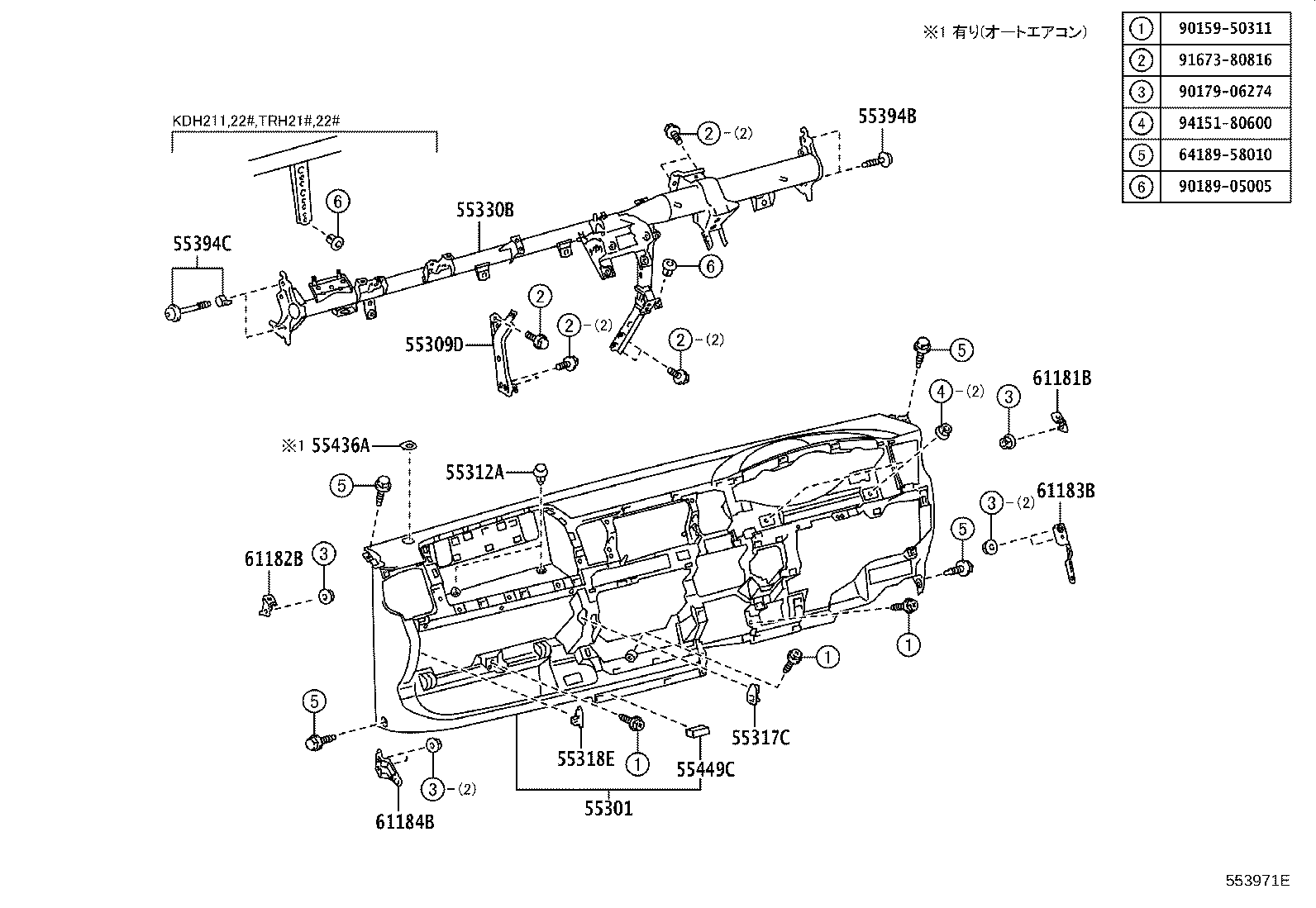

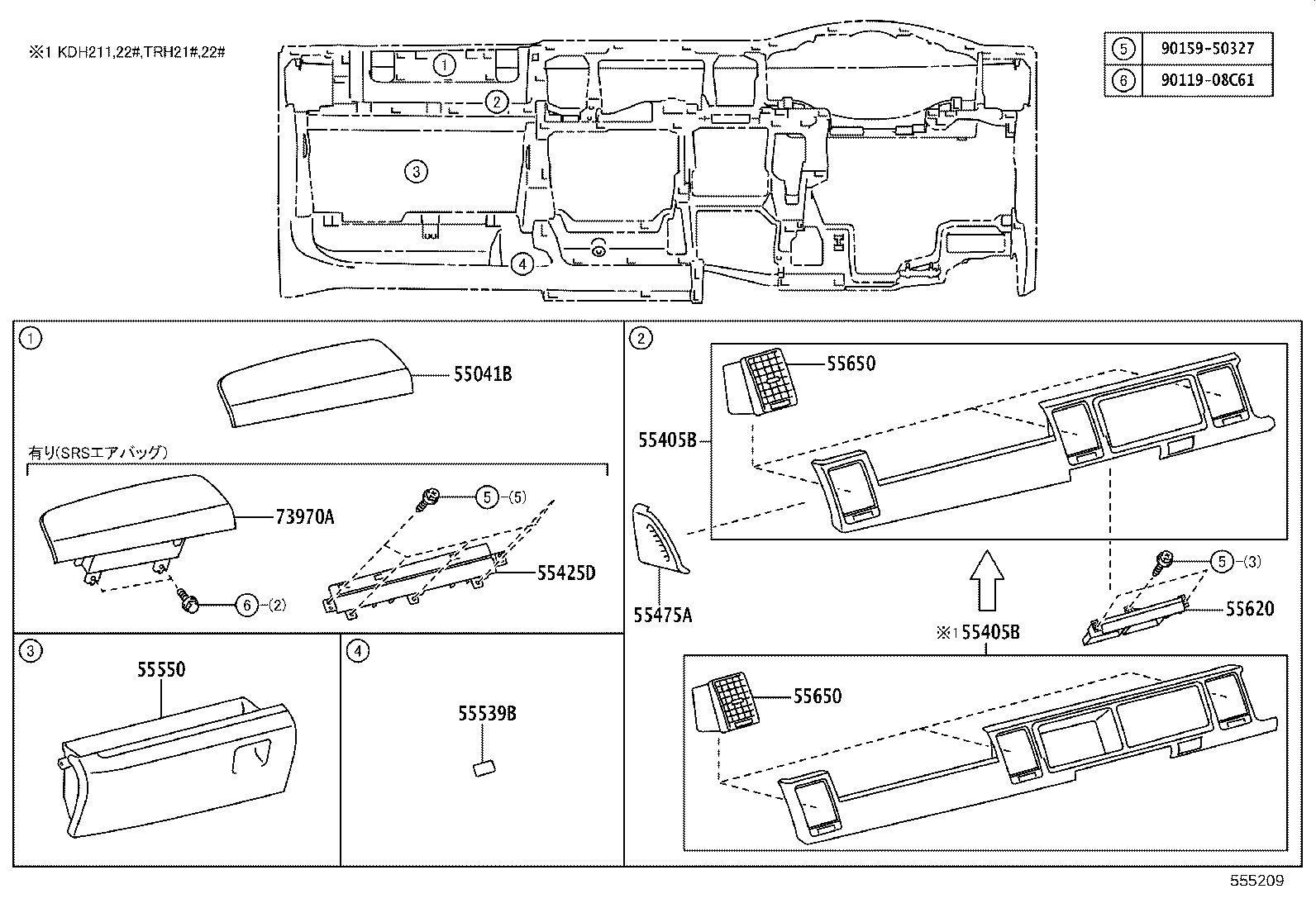

Figure 553220E 553220E 2013-12 → 2016-06 Figure 553971E 553971E 2016-06 → — Figure 555206A 555206A 2013-12 → — Figure 555207A 555207A 2013-12 → 2016-06 Figure 555208B 555208B 2016-06 → — Figure 555209 555209 2013-12 → 2016-06 Figure 555210 555210 2016-06 → —

Part groups

PNCDescription
55041B Door Sub-assy, Instrument Panel Box, NO.1
55301 Panel Sub-assy, Instrument
55309D Brace Sub-assy, Instrument Panel TO Floor
55312A Clip, Instrument Panel
55317C Patch, Instrument Side, Lower RH
55318E Patch, Instrument Side, Lower LH
55330B Reinforcement Assy, Instrument Panel
55381A Bracket, Finish Panel Mounting
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55410C Panel Assy, Instrument Cluster Finish
55413D Panel, Instrument Cluster Finish, Center Lower
55425D Base, Airbag Passenger Mounting
55432B Panel, Instrument Panel Finish, Lower
55434B Panel, Instrument Panel Finish, Lower Center
55436A Panel, Instrument Panel Finish, End LH
55441E Box, Instrument Panel
55446A Base, Switch Hole, NO.1
55449C Cushion, Instrument Panel Finish Panel, NO.2
55453D Pad, Instrument Panel Safety, NO.1
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55520A Cover Assy, Stereo Opening
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55539F Cover, Spare Switch Hole
55539P Cover, Spare Switch Hole
55539Q Cover, Spare Switch Hole
55547 Cover, Remote Control Mirror Hole
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55620 Holder Assy, Instrument Panel Cup
55650 Register Assy, Instrument Panel, NO.1
55650C Register Assy, Instrument Panel, NO.1
58840Q Cover Assy, Shifting Hole
58941C Cover, Parking Brake Hole
61181B Bracket, Instrument Panel Side, NO.1 RH
61182B Bracket, Instrument Panel Side, NO.1 LH
61183B Bracket, Instrument Panel Side, NO.2 RH
61184B Bracket, Instrument Panel Side, NO.2 LH
62199 Holder, Fusee
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
