Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

12 part groups · 2 illustrations

Illustrations

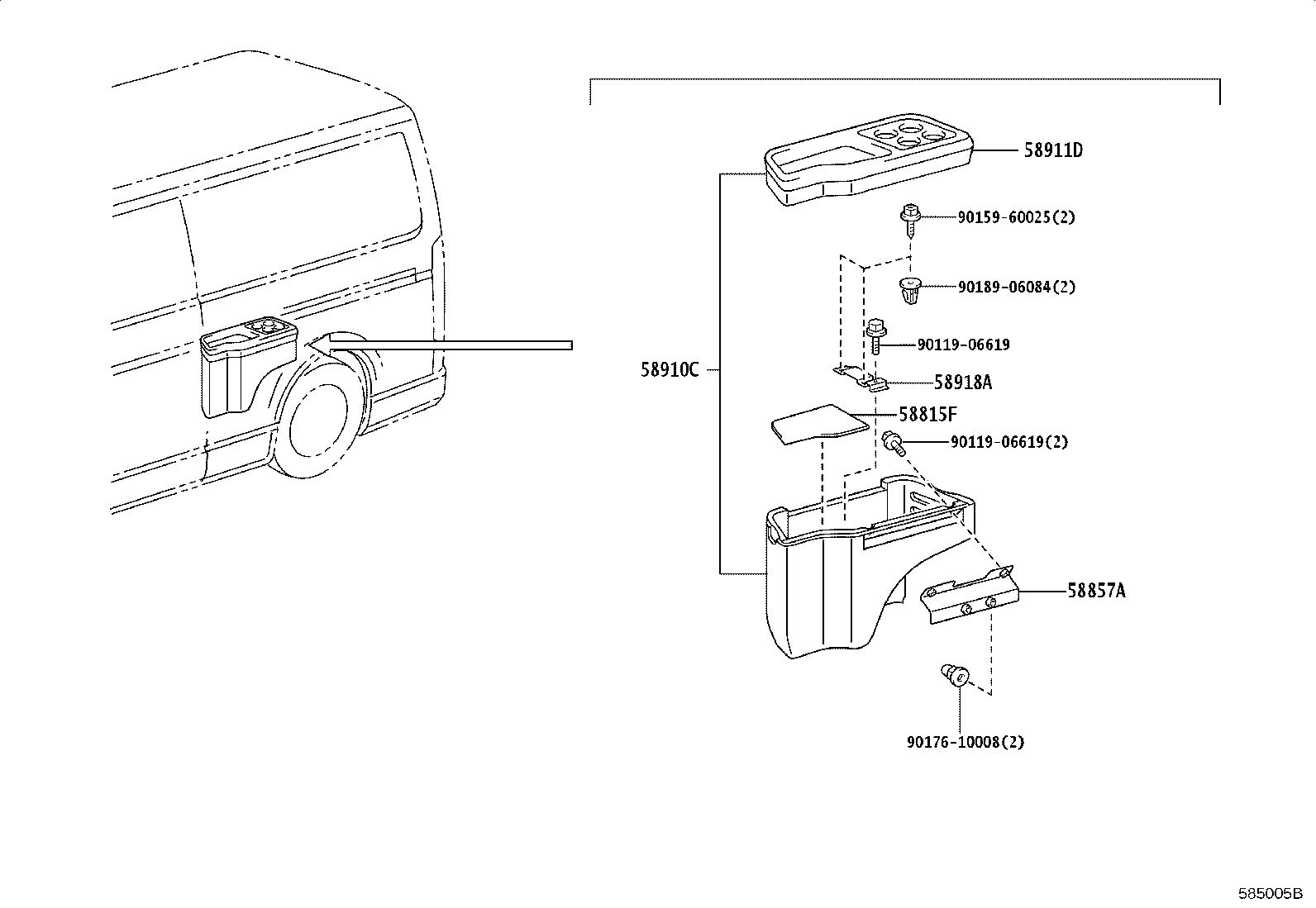

Figure 585004B 585004B 2013-12 → — Figure 585005B 585005B 2013-12 → —

Part groups

PNCDescription
58810J Box Assy, Console
58815A Carpet, Console Box
58815B Carpet, Console Box
58815F Carpet, Console Box
58839A Cover, Console Box Hole
58857A Bracket, Console Support, Upper NO.1
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58911D Box, Rear Console, Upper
58918A Bracket, Box Support
58959B Cushion, Console Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
