Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

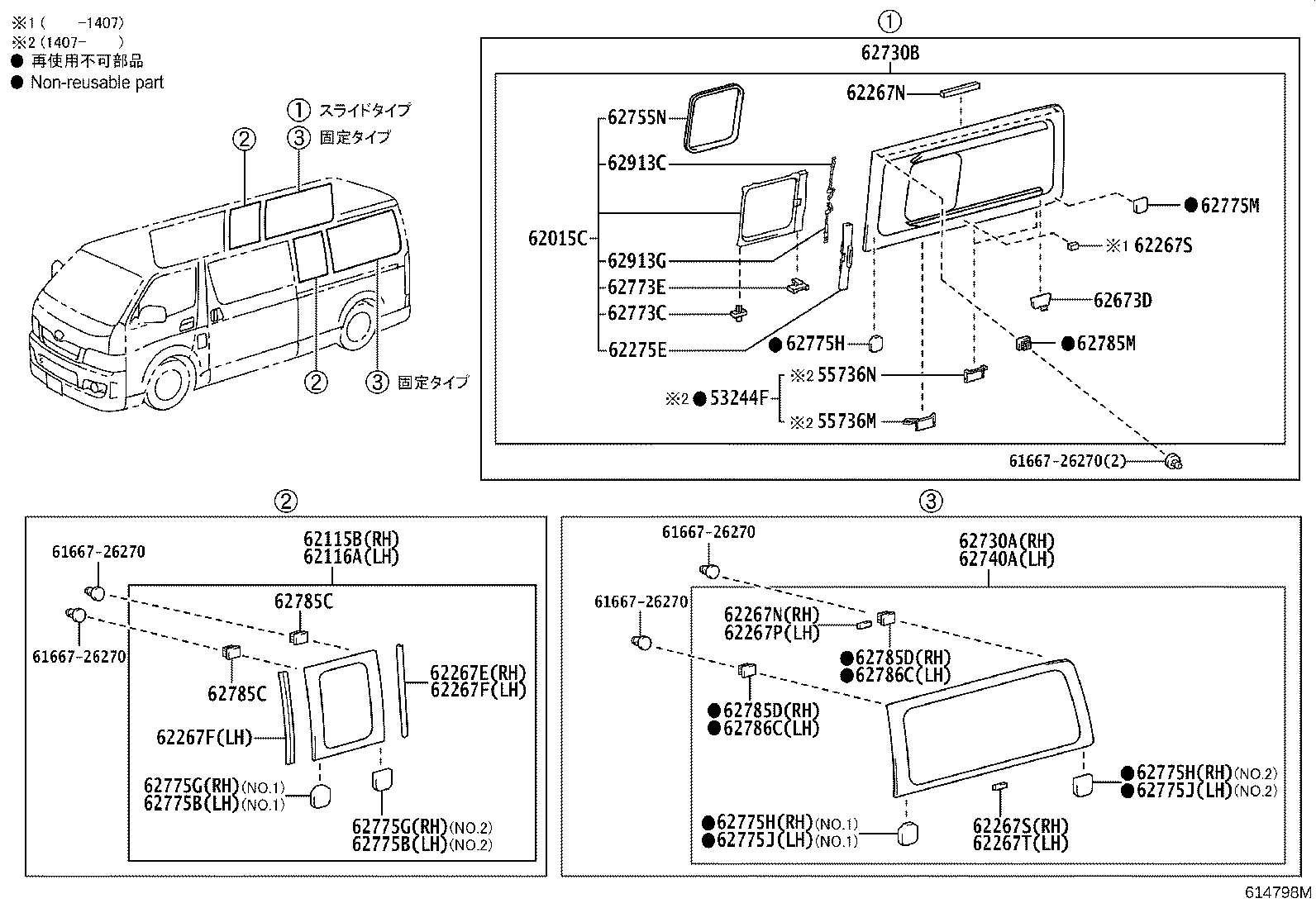

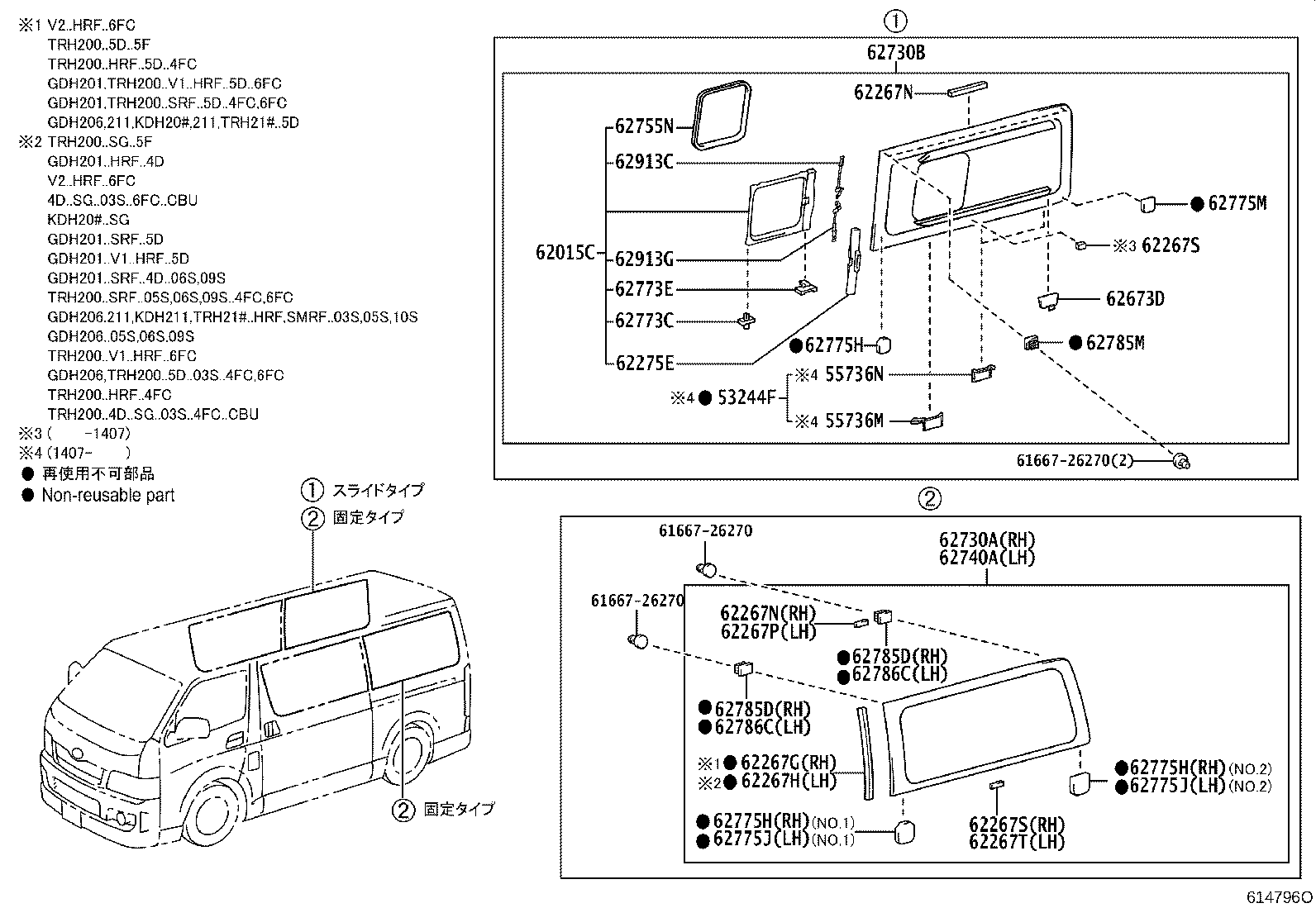

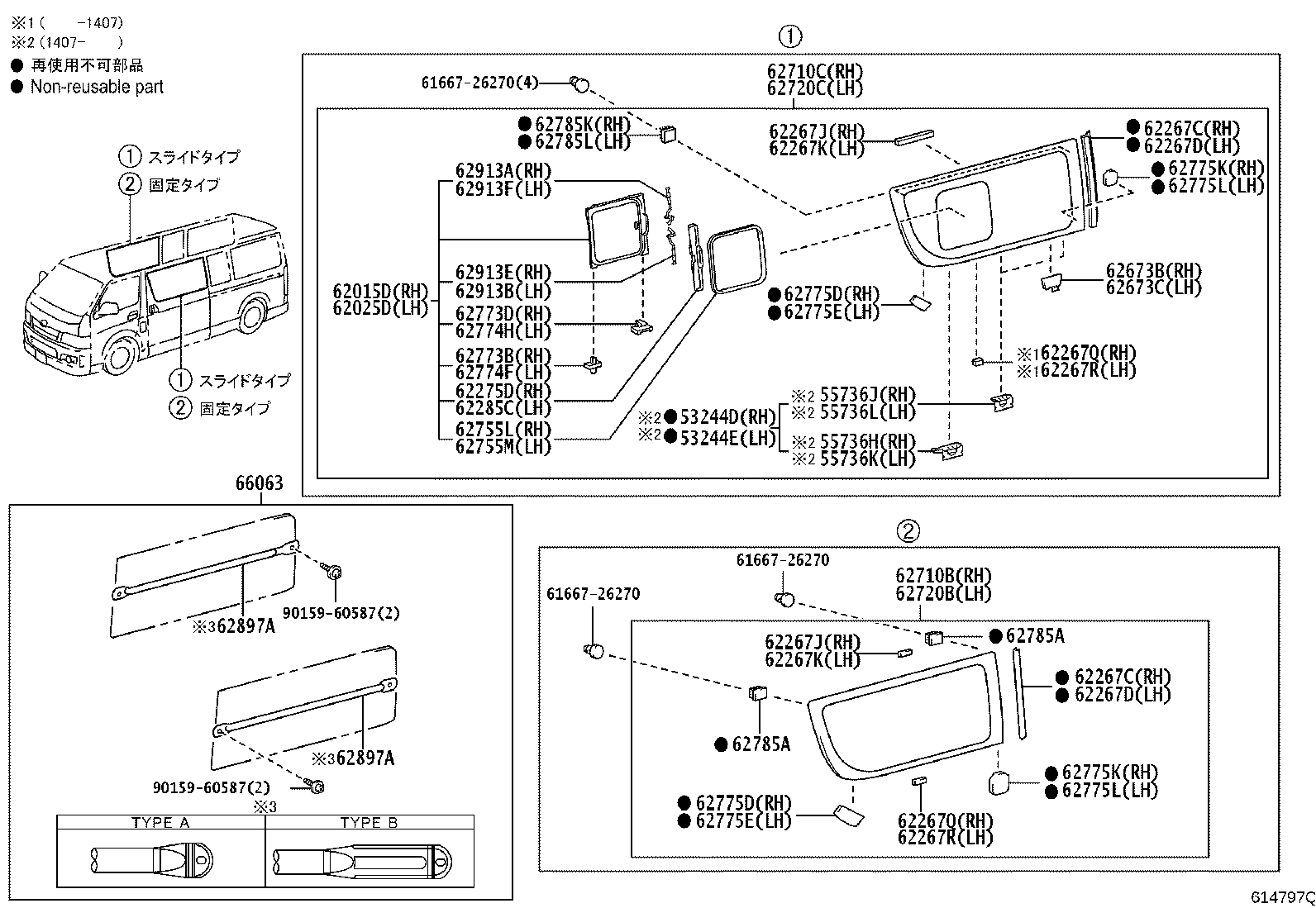

Side Window
75 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53244D | Plate, Front Side Window Seal Set, RH |
| 53244E | Plate, Front Side Window Seal Set, LH |
| 53244F | Plate, Rear Side Window Seal Set, RH |
| 55736H | Plate, Front Side Window Water Guide, NO.1 RH |
| 55736J | Plate, Front Side Window Water Guide, NO.2 RH |
| 55736K | Plate, Front Side Window Water Guide, NO.1 LH |
| 55736L | Plate, Front Side Window Water Guide, NO.2 LH |
| 55736M | Plate, Rear Side Window Water Guide, NO.1 RH |
| 55736N | Plate, Rear Side Window Water Guide, NO.2 RH |
| 62015C | Frame Sub-assy, Rear Side Window, RH |
| 62015D | Frame Sub-assy, Front Side Window, RH |
| 62025D | Frame Sub-assy, Front Side Window, LH |
| 62115B | Glass, Rear Side Window, Front RH |
| 62116A | Glass, Reart Side Window, Front LH |
| 62267C | Dam, Front Side Window Adhesive, NO.1 RH |
| 62267D | Dam, Front Side Window Adhesive, NO.1 LH |
| 62267E | Dam, Quarter Window Adhesive, NO.1 RH |
| 62267F | Dam, Quarter Window Adhesive, NO.1 LH |
| 62267G | Dam, Rear Side Window Adhesive, NO.1 RH |
| 62267H | Dam, Rear Side Window Adhesive, NO.1 LH |
| 62267J | Dam, Front Side Window Adhesive, NO.2 RH |
| 62267K | Dam, Front Side Window Adhesive, NO.2 LH |
| 62267N | Dam, Rear Side Window Adhesive, NO.2 RH |
| 62267P | Dam, Rear Side Window Adhesive, NO.2 LH |
| 62267Q | Dam, Front Side Window Adhesive, NO.3 RH |
| 62267R | Dam, Front Side Window Adhesive, NO.3 LH |
| 62267S | Dam, Rear Side Window Adhesive, NO.3 RH |
| 62267T | Dam, Rear Side Window Adhesive, NO.3 LH |
| 62275D | Cover, Front Side Window, RH |
| 62275E | Cover, Rear Side Window, RH |
| 62285C | Cover, Front Side Window, LH |
| 62673B | Cover, Front Side Window Rail, RH |
| 62673C | Cover, Front Side Window Rail, LH |
| 62673D | Cover, Rear Side Window Rail, RH |
| 62710B | Window Assy, Side, Front RH |
| 62710C | Glass Sub-assy, Side Front Window, RH |
| 62720B | Window Assy, Side, Front LH |
| 62720C | Glass Sub-assy, Side Front Window, LH |
| 62730A | Window Assy, Side, Rear RH |
| 62730B | Window Assy, Quarter, Rear RH |
| 62740A | Window Assy, Side, Rear LH |
| 62755L | Run, Front Side Window, RH |
| 62755M | Run, Front Side Window, LH |
| 62755N | Run, Rear Side Window, RH |
| 62773B | Slider, Front Side Window, RH |
| 62773C | Slider, Rear Side Window, RH |
| 62773D | Slider, Front Side Window, RH |
| 62773E | Slider, Rear Side Window, RH |
| 62774F | Slider, Front Side Window, LH |
| 62774H | Slider, Front Side Window, LH |
| 62775B | Clip, Quarter Window, LH |
| 62775D | Clip, Front Side Window, RH |
| 62775E | Clip, Front Side Window, LH |
| 62775G | Clip, Quarter Window, RH |
| 62775H | Clip, Rear Side Window, RH |
| 62775J | Clip, Rear Side Window, LH |
| 62775K | Clip, Front Side Window, RH |
| 62775L | Clip, Front Side Window, LH |
| 62775M | Clip, Rear Side Window, RH |
| 62785A | Spacer, Quarter Window Glass |
| 62785C | Spacer, Quarter Window Glass |
| 62785D | Spacer, Quarter Window Glass |
| 62785K | Spacer, Front Side Window Glass, RH |
| 62785L | Spacer, Front Side Window Glass, LH |
| 62785M | Spacer, Rear Side Window Glass, RH |
| 62786C | Spacer, Quarter Window Glass, LH |
| 62897A | Bar, Side Window Guard |
| 62897B | Bar, Side Window Guard |
| 62913A | Link, Front Side Window Lock, RH |
| 62913B | Link, Front Side Window Lock, LH |
| 62913C | Link, Rear Side Window Lock, RH |
| 62913E | Link, Front Side Window Lock, RH |
| 62913F | Link, Front Side Window Lock, LH |
| 62913G | Link, Rear Side Window Lock, RH |
| 66063 | Guard Sub-assy, Side Window |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
