Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

39 part groups · 19 illustrations

Illustrations

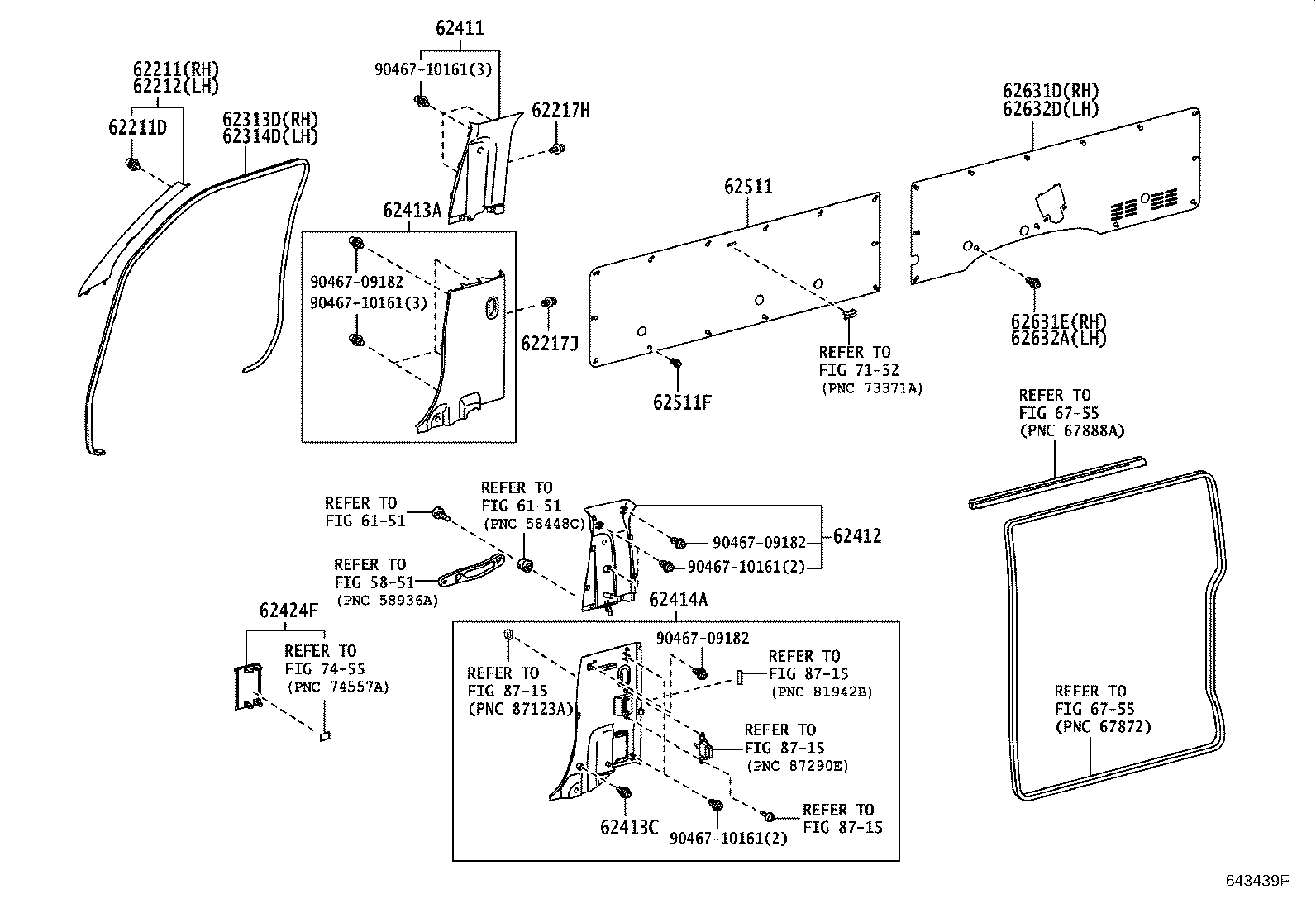

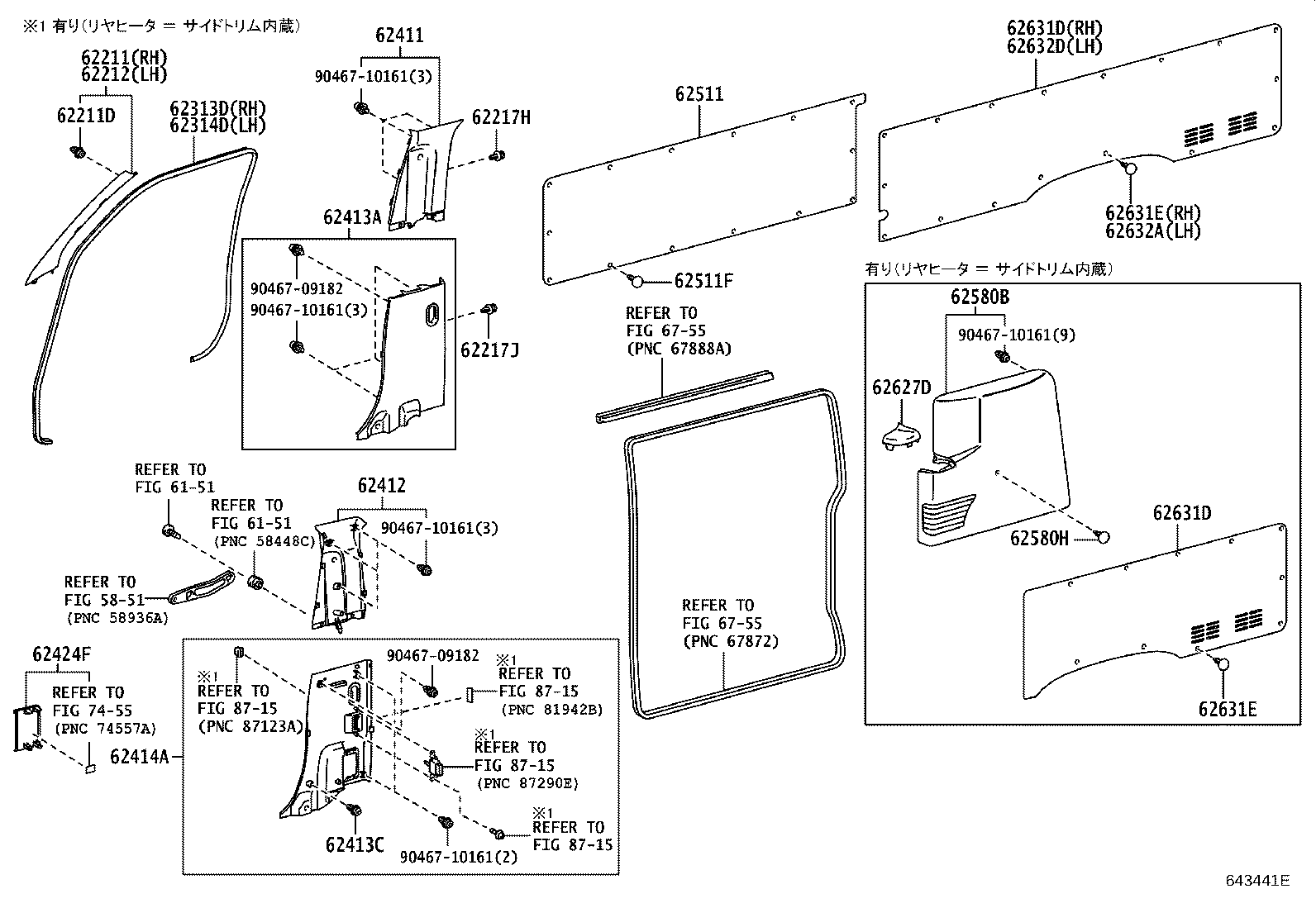

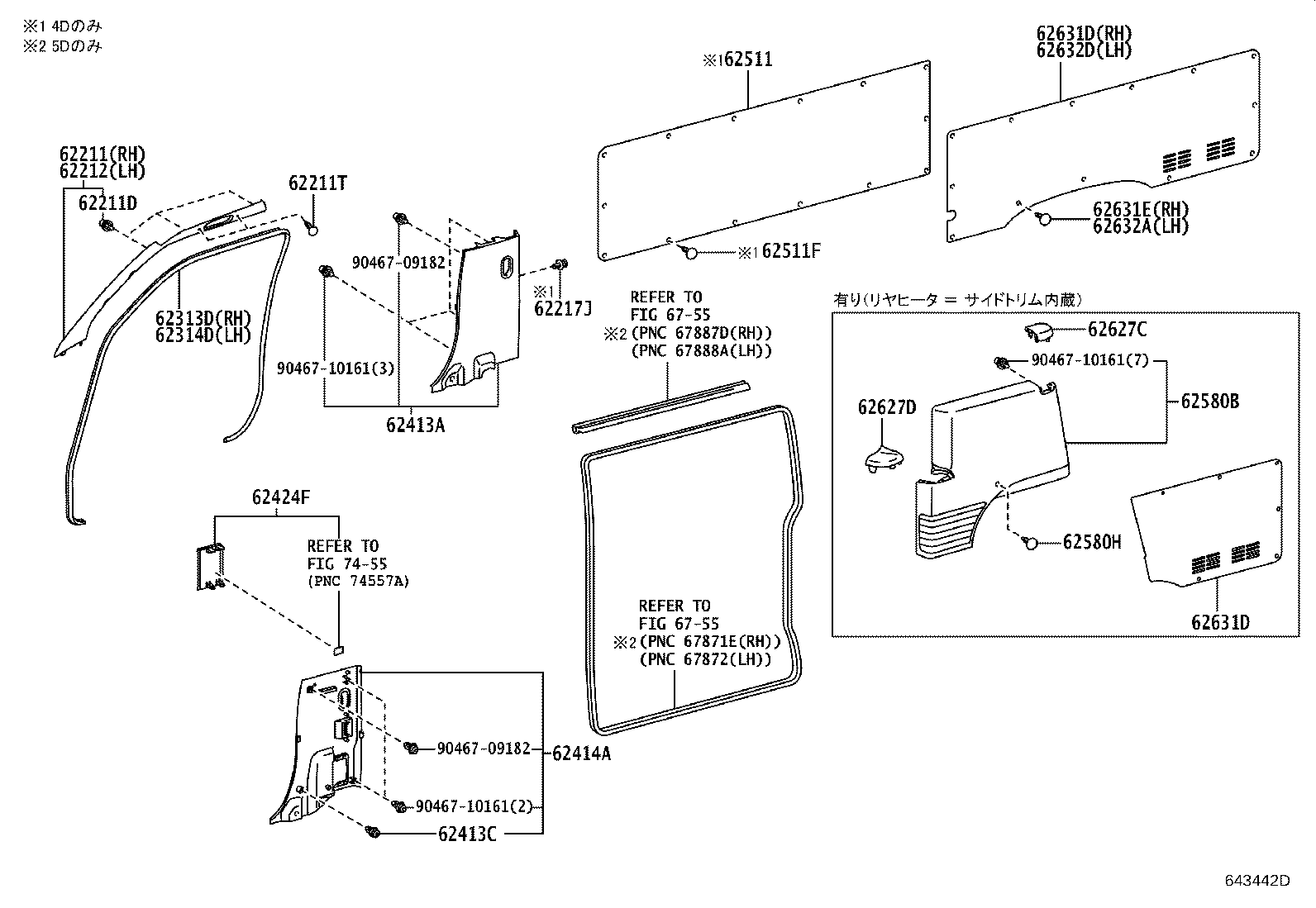

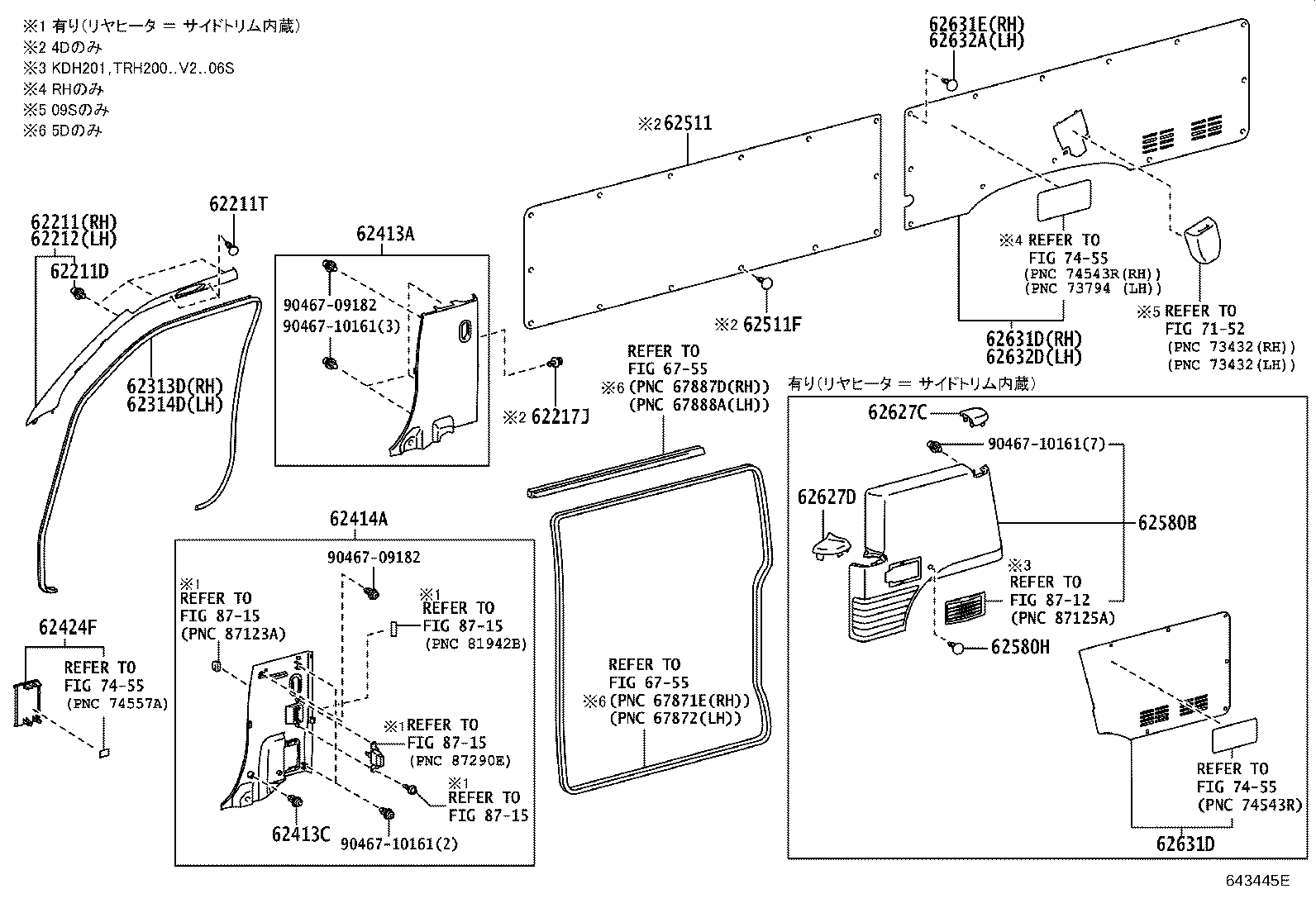

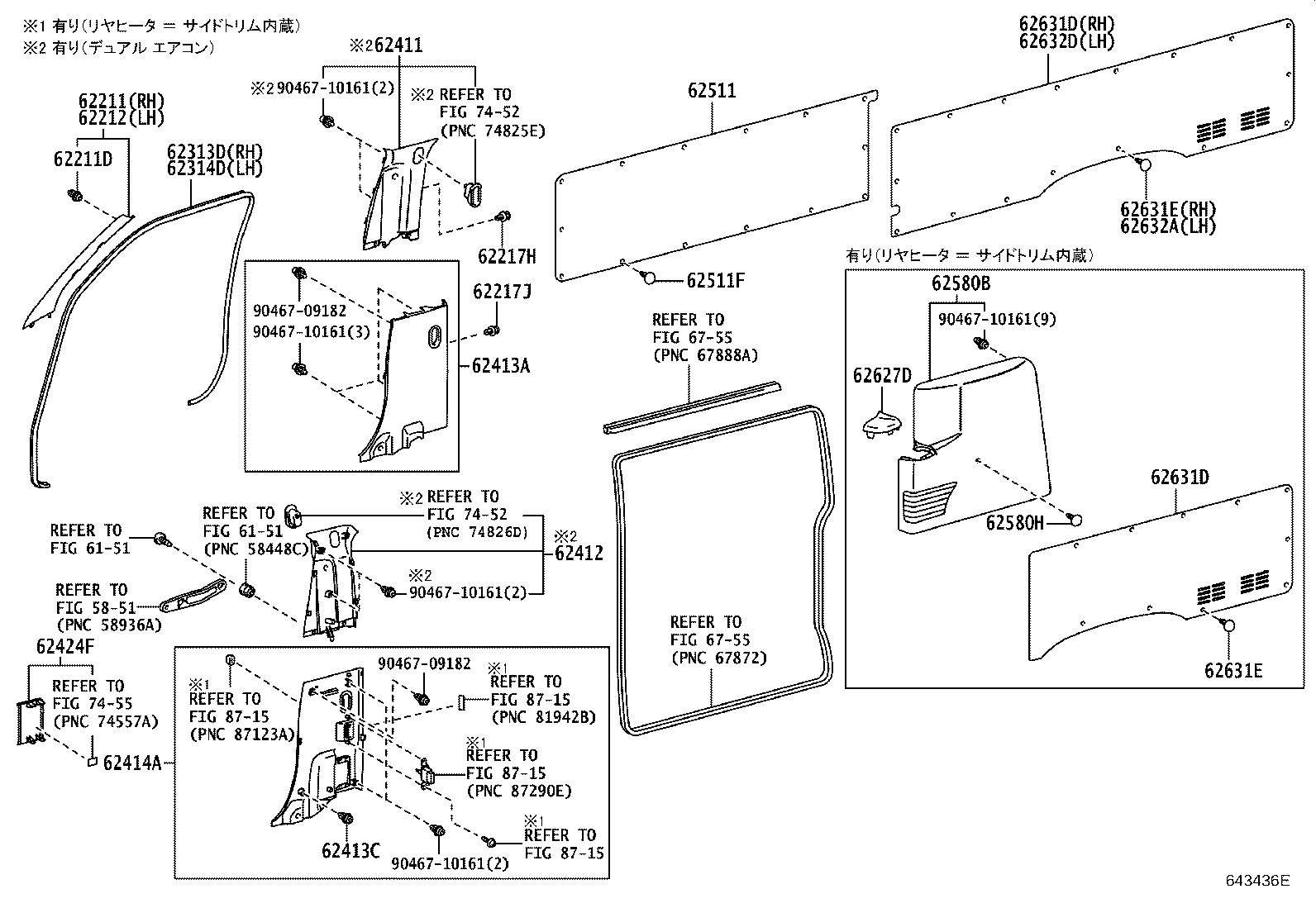

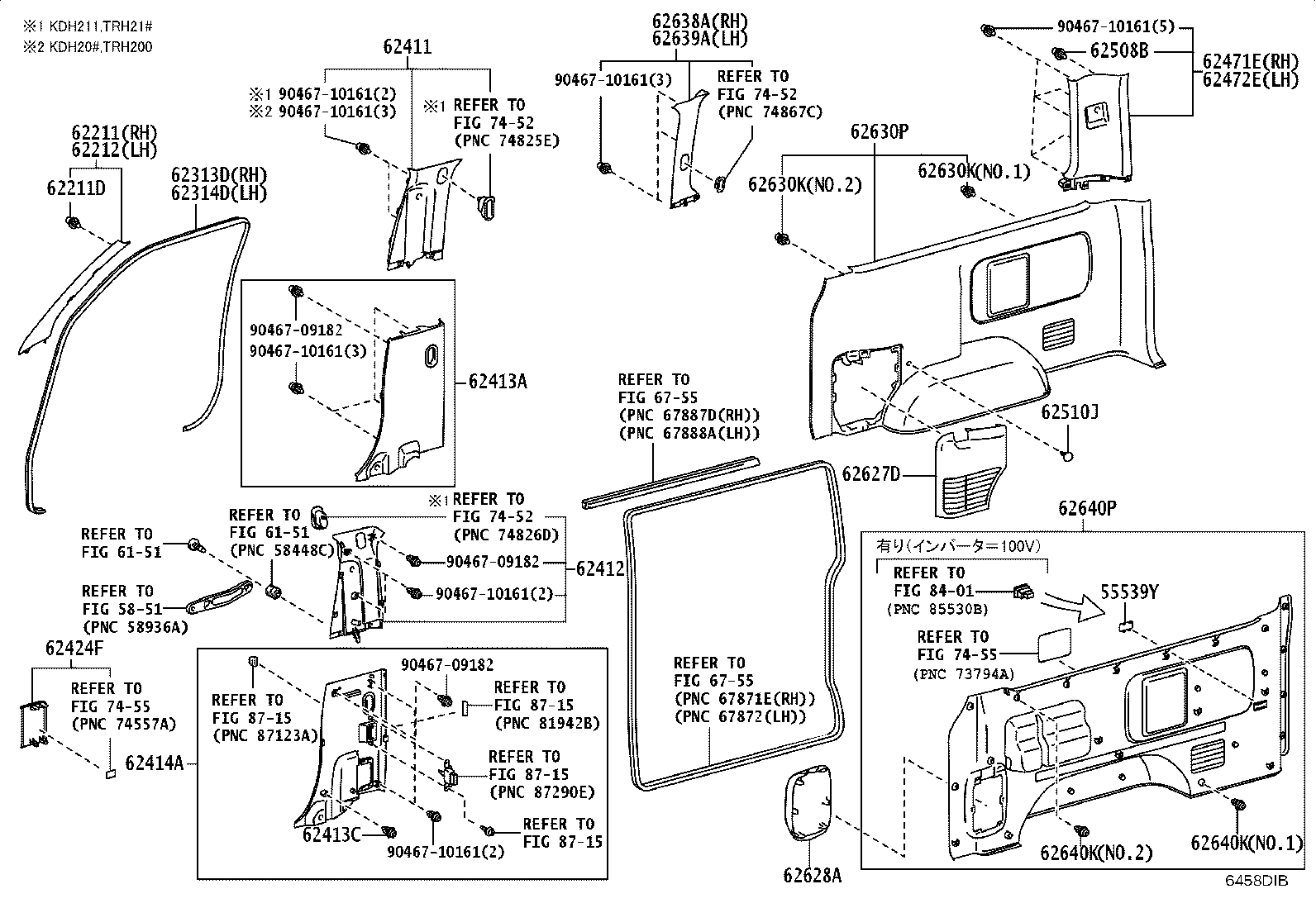

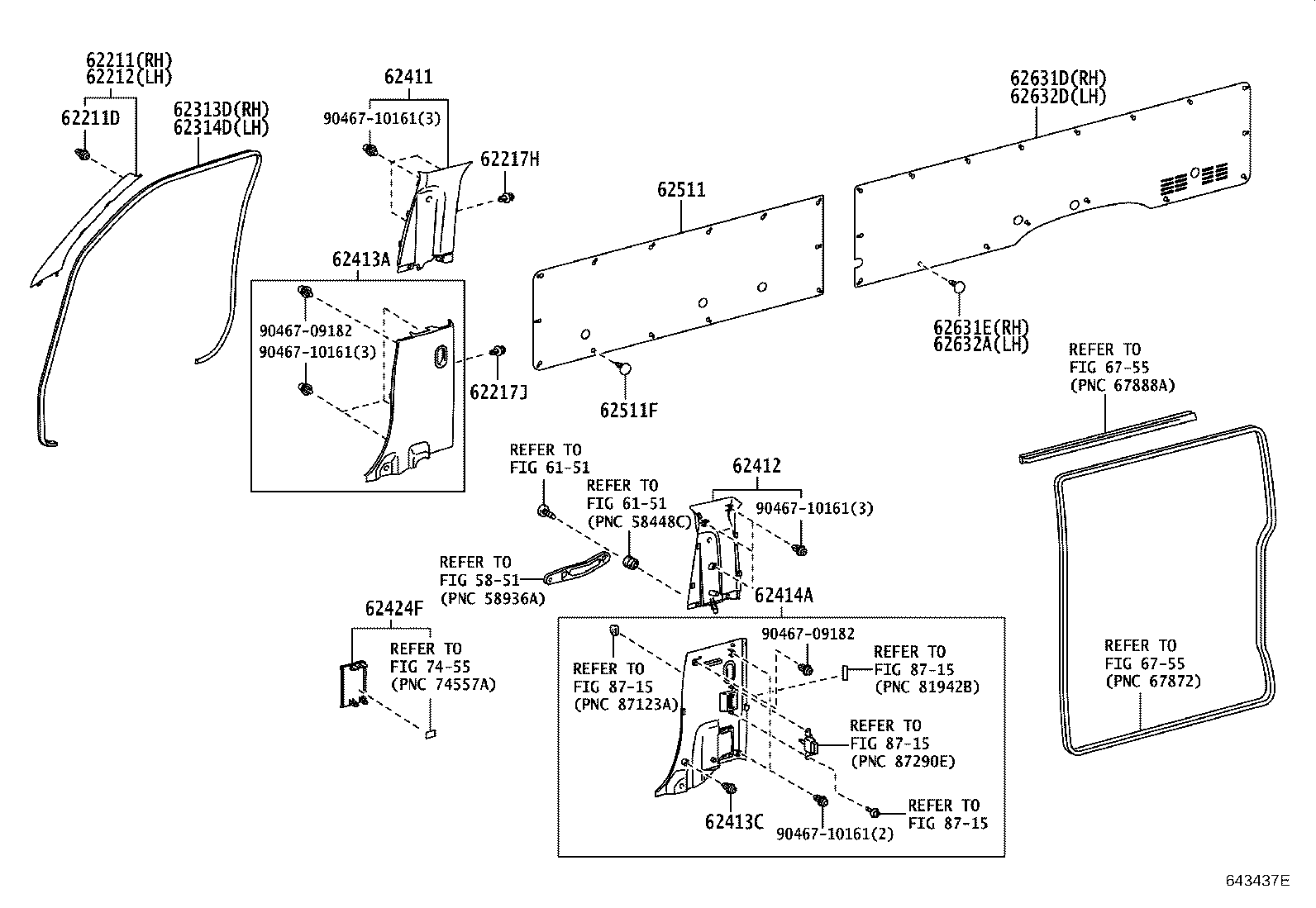

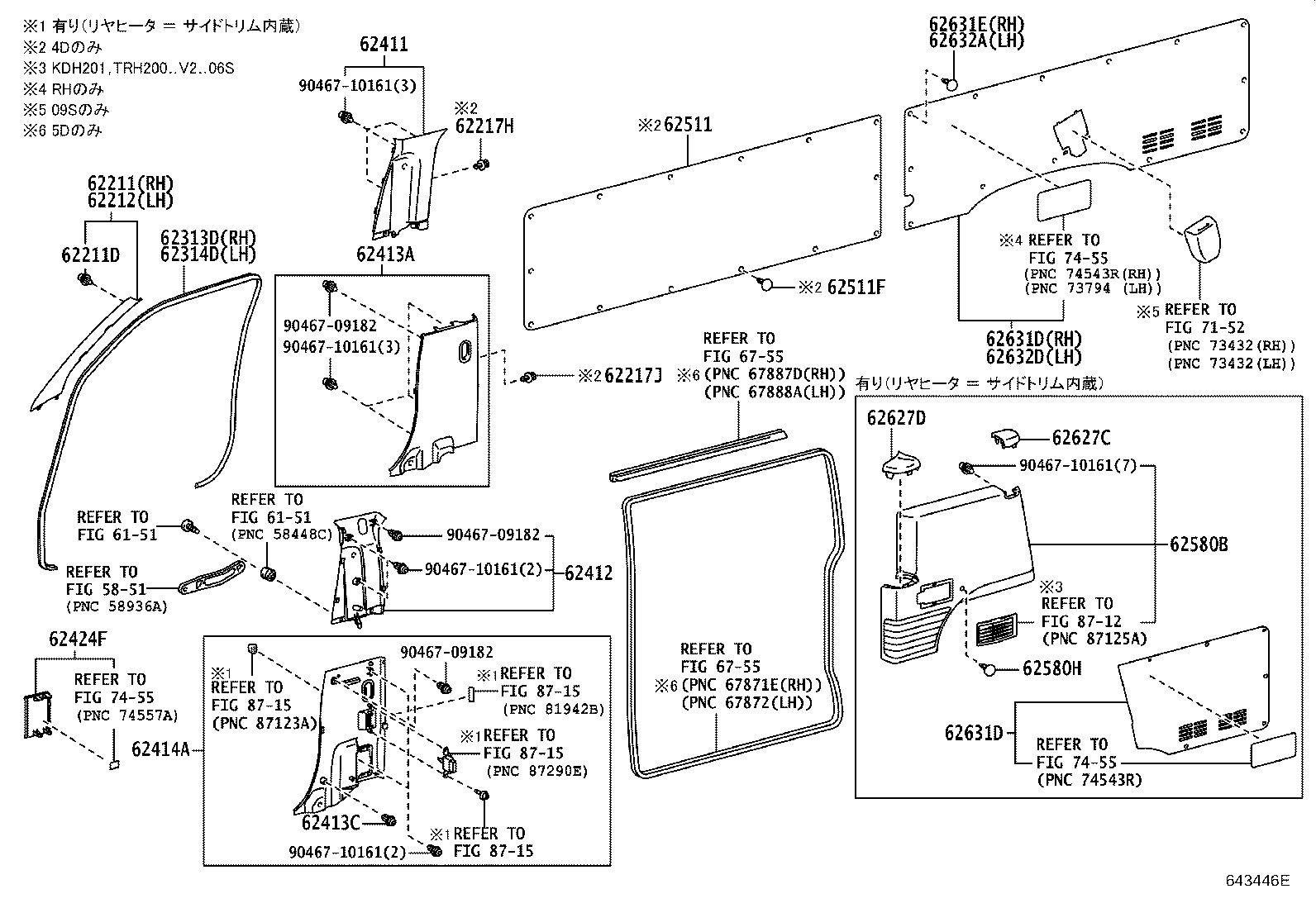

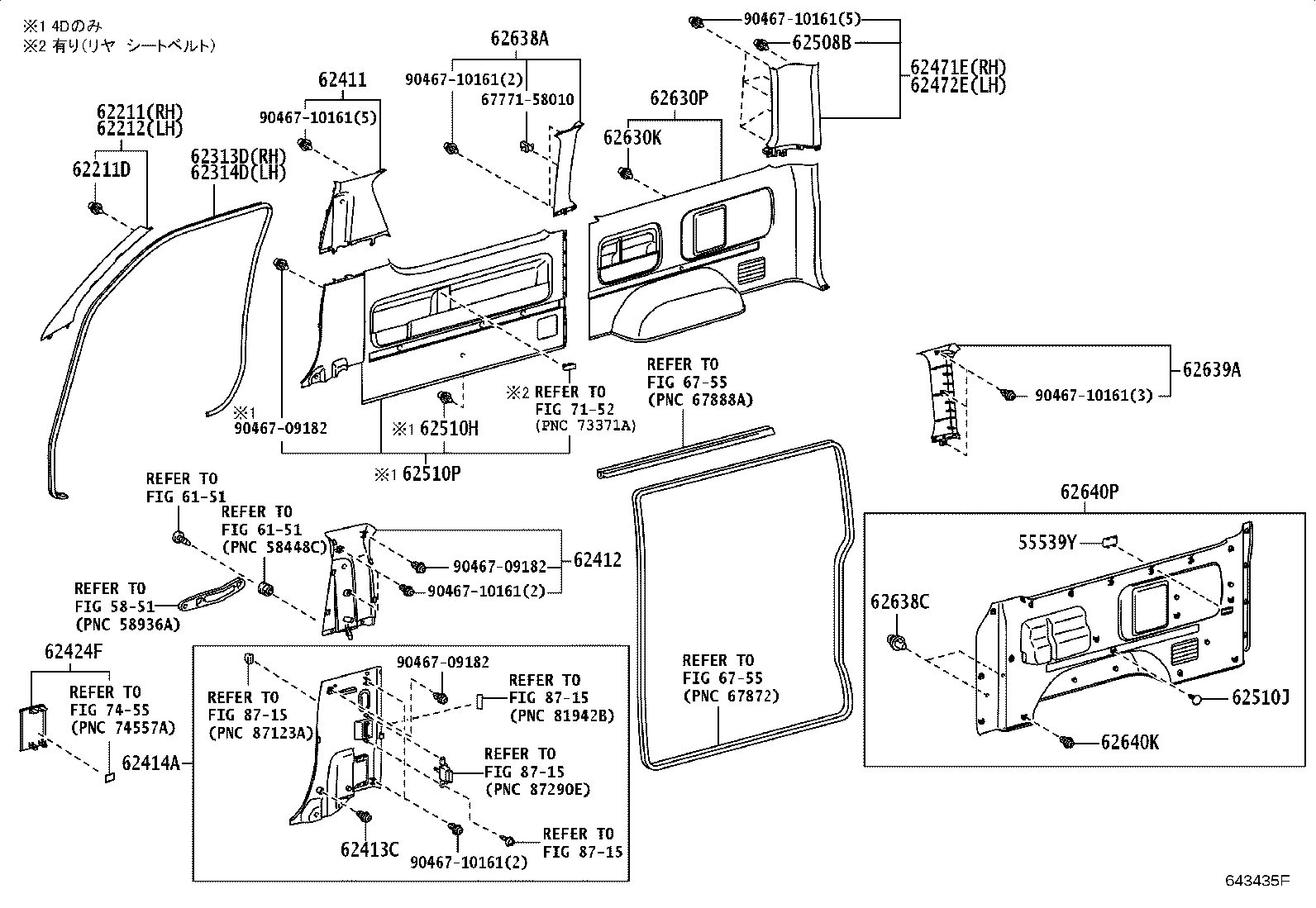

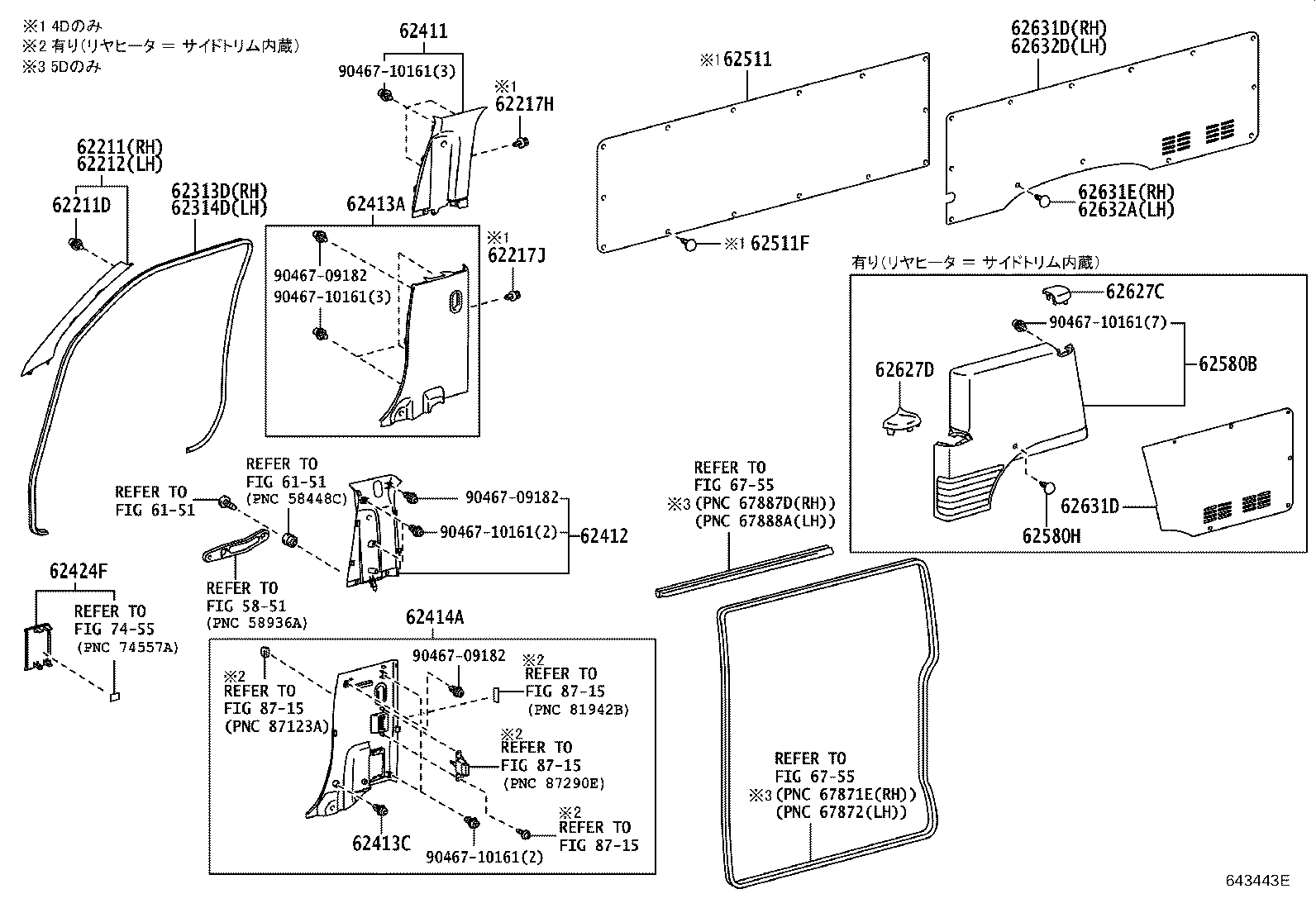

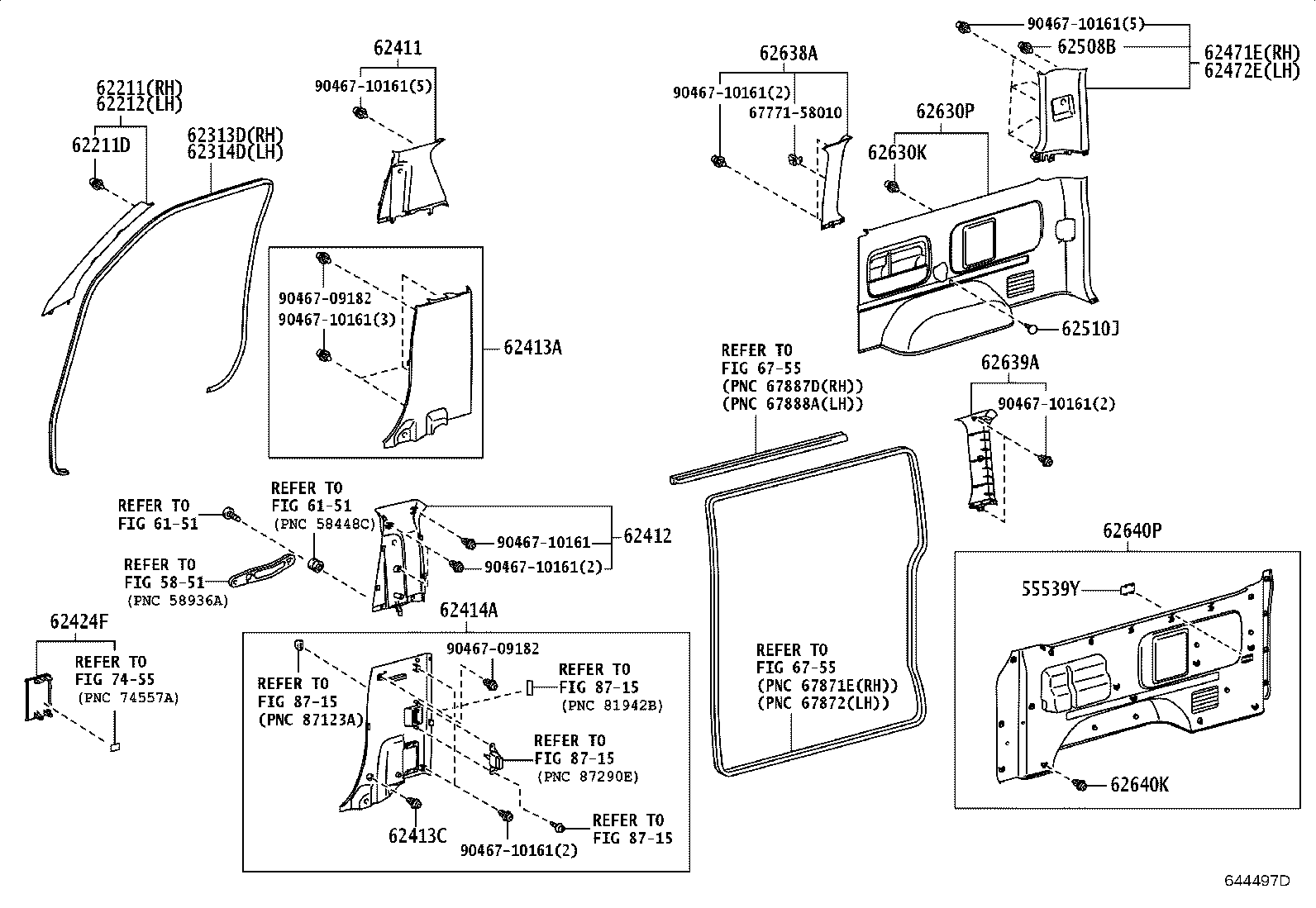

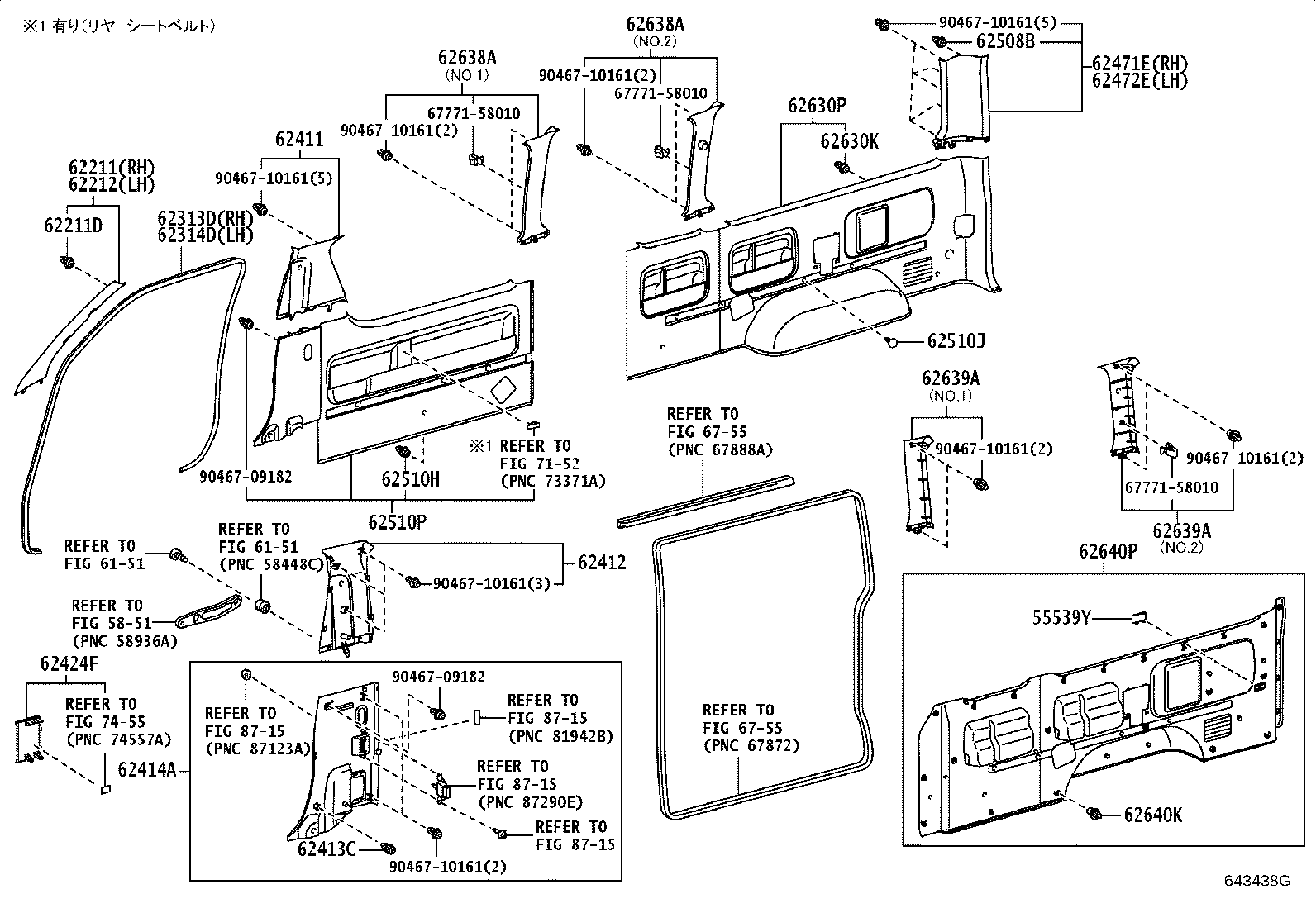

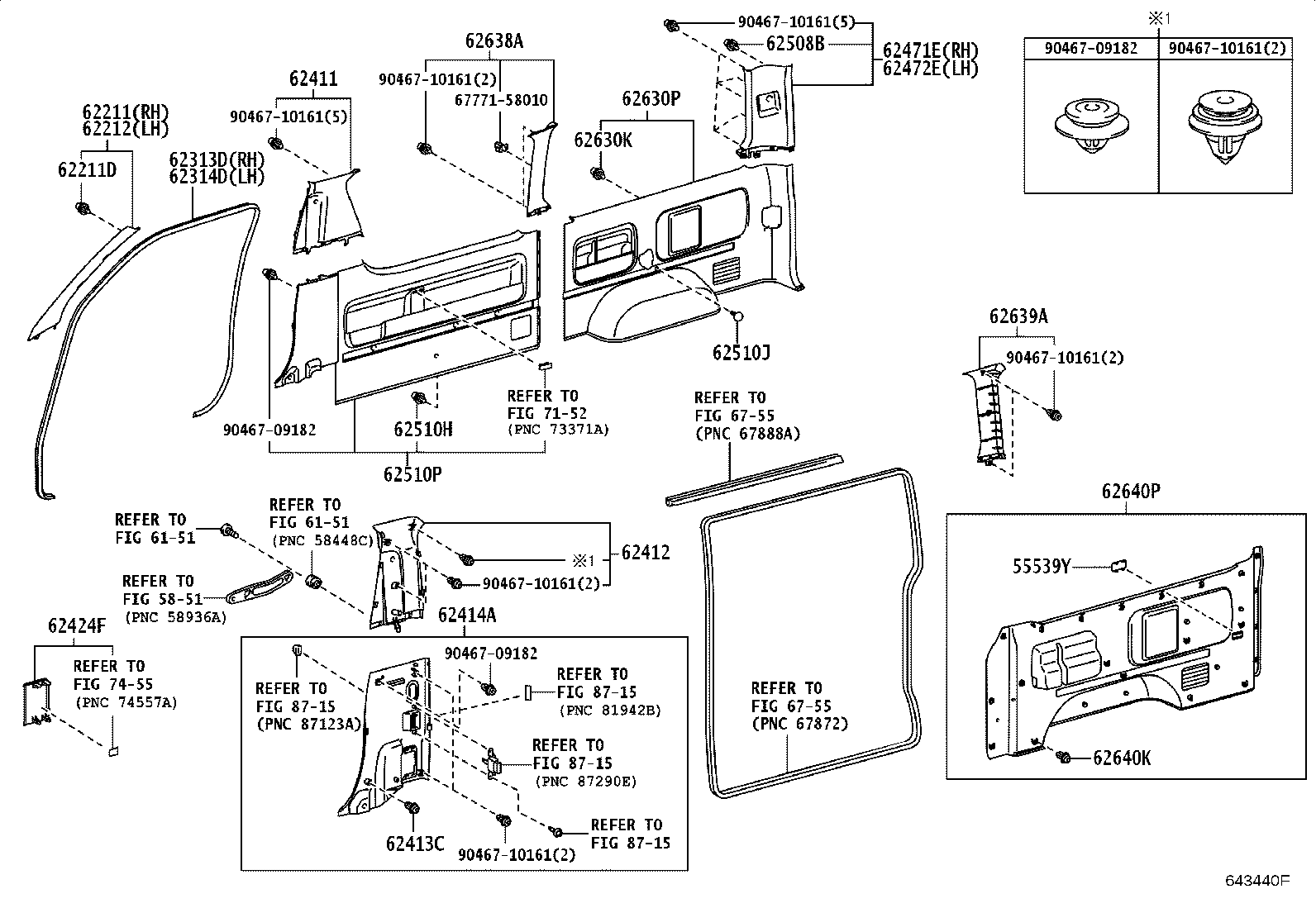

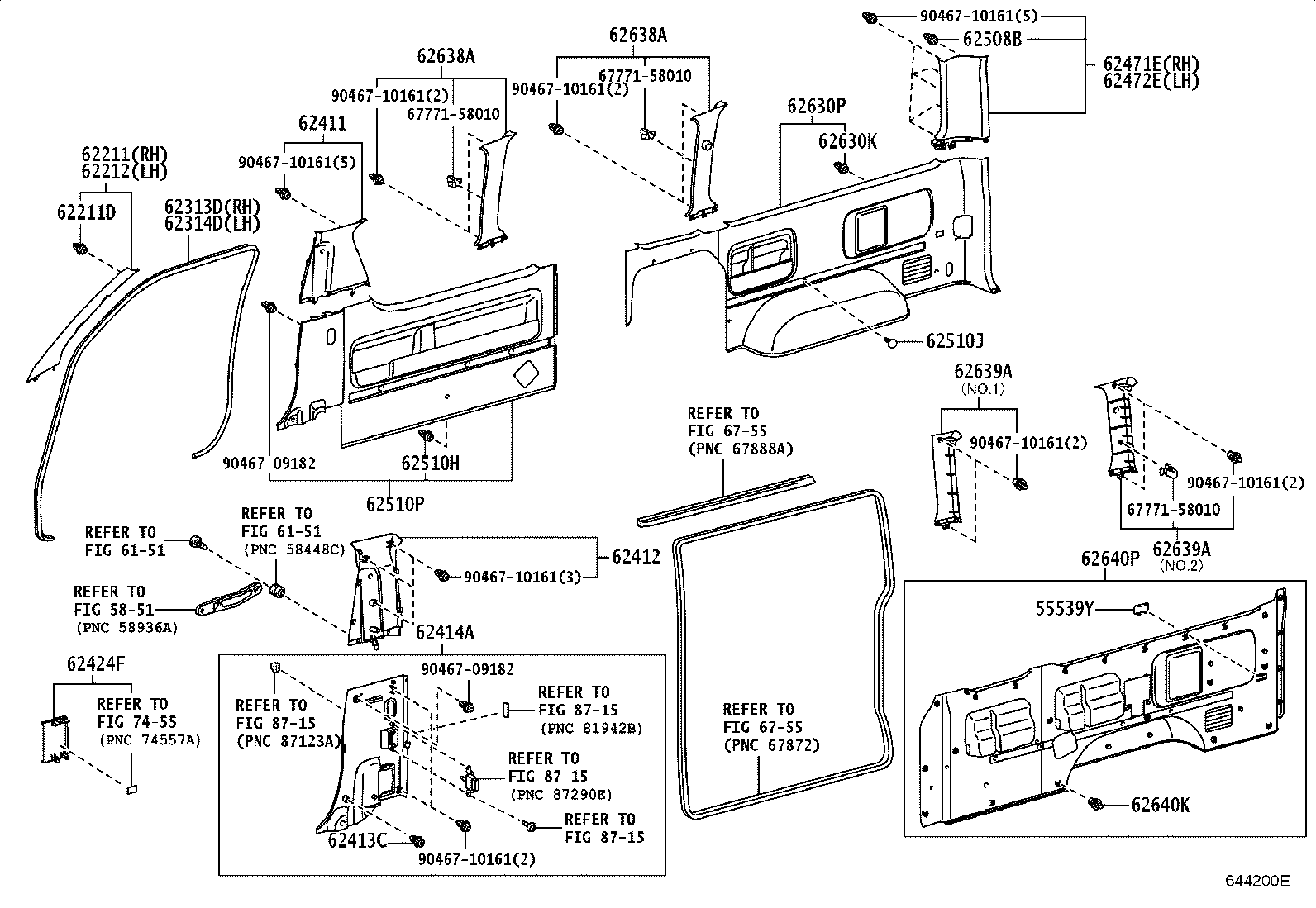

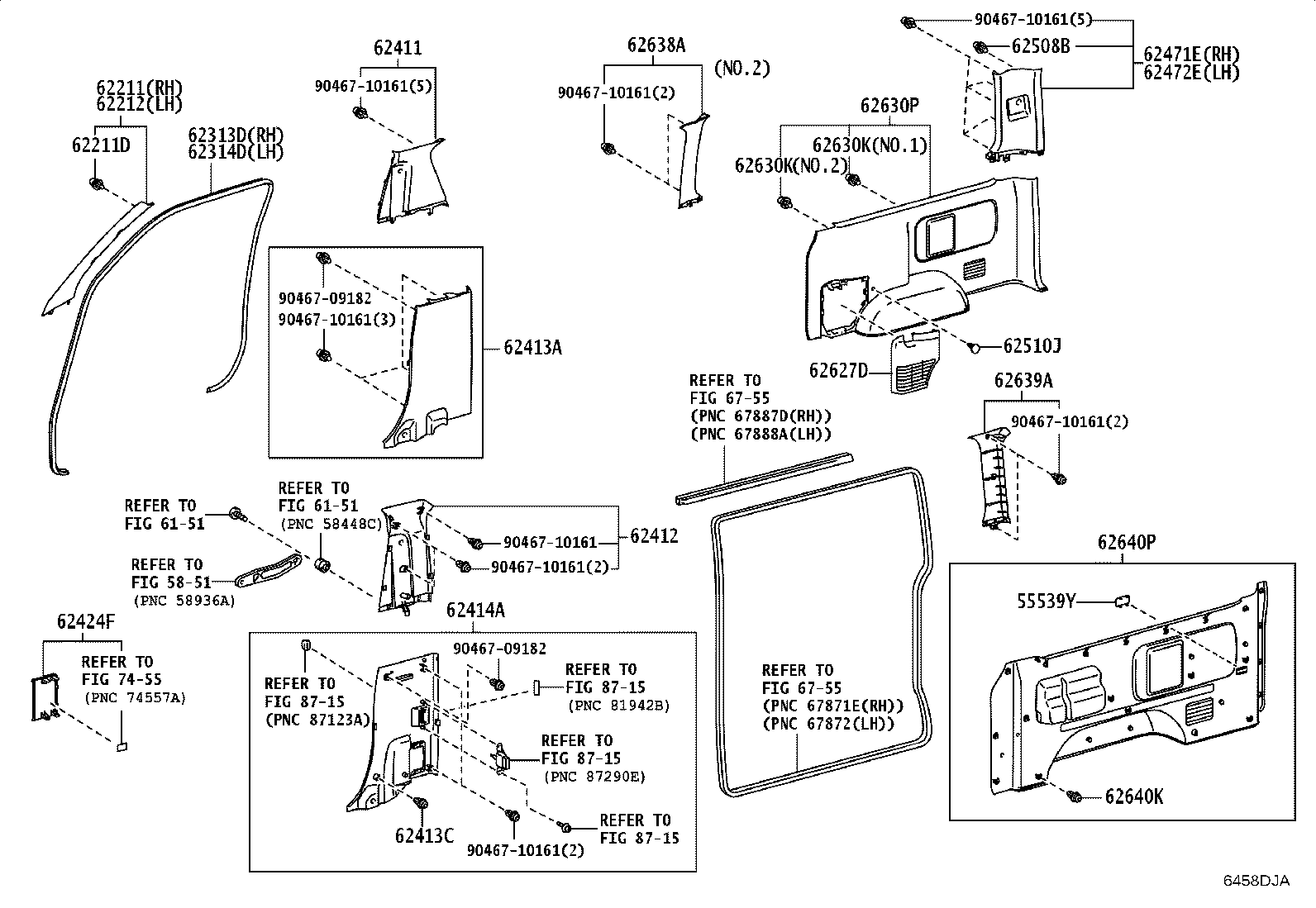

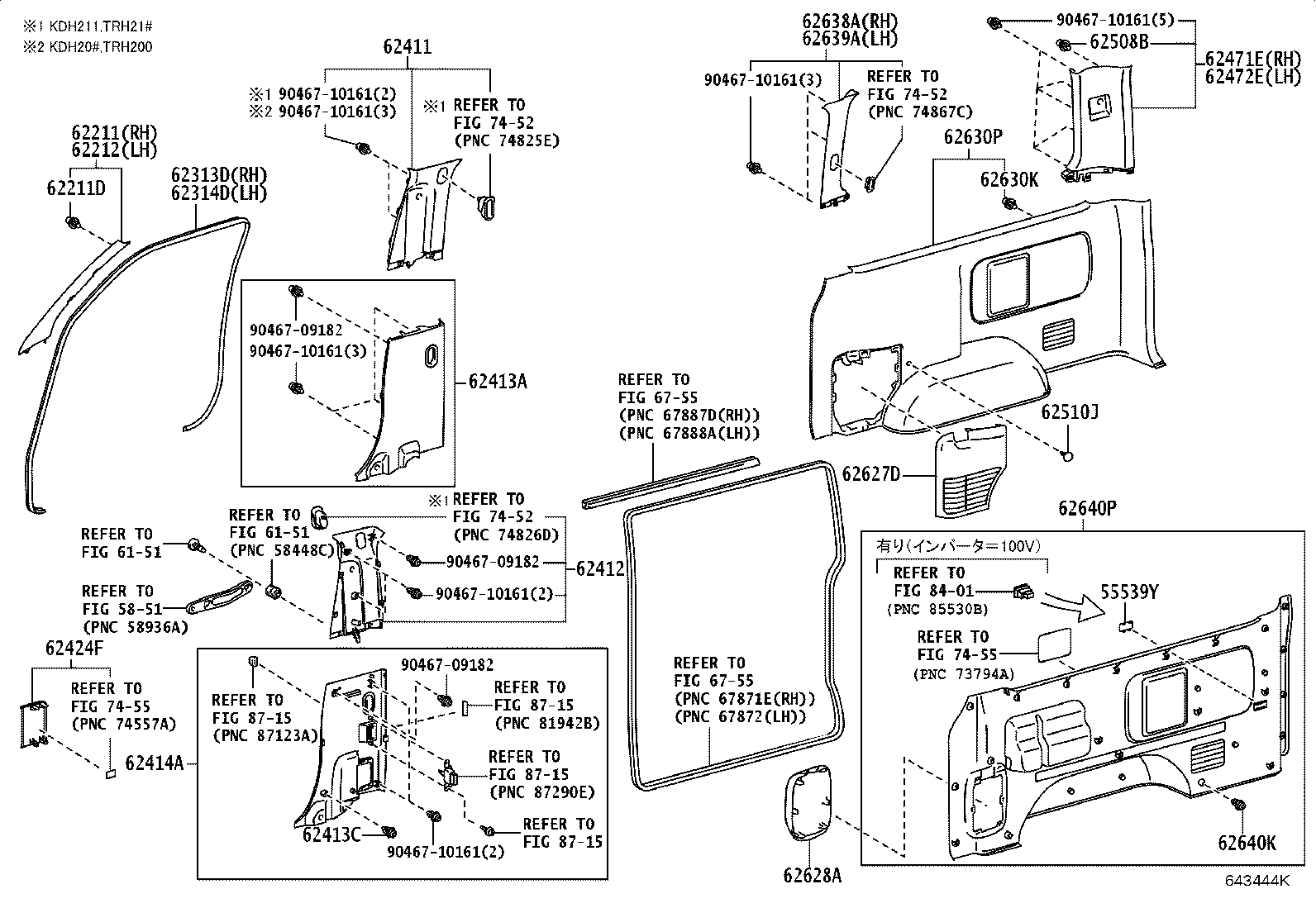

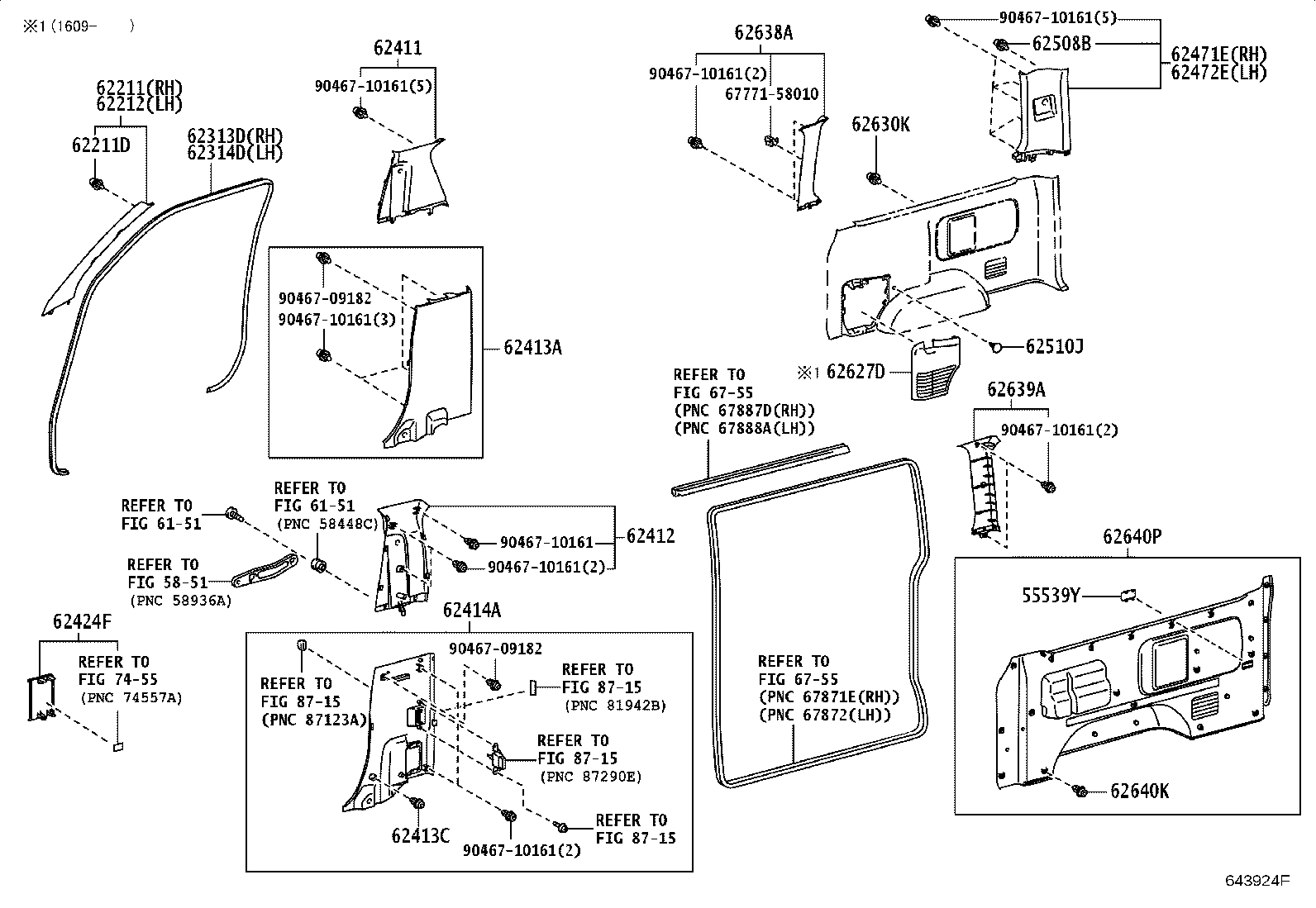

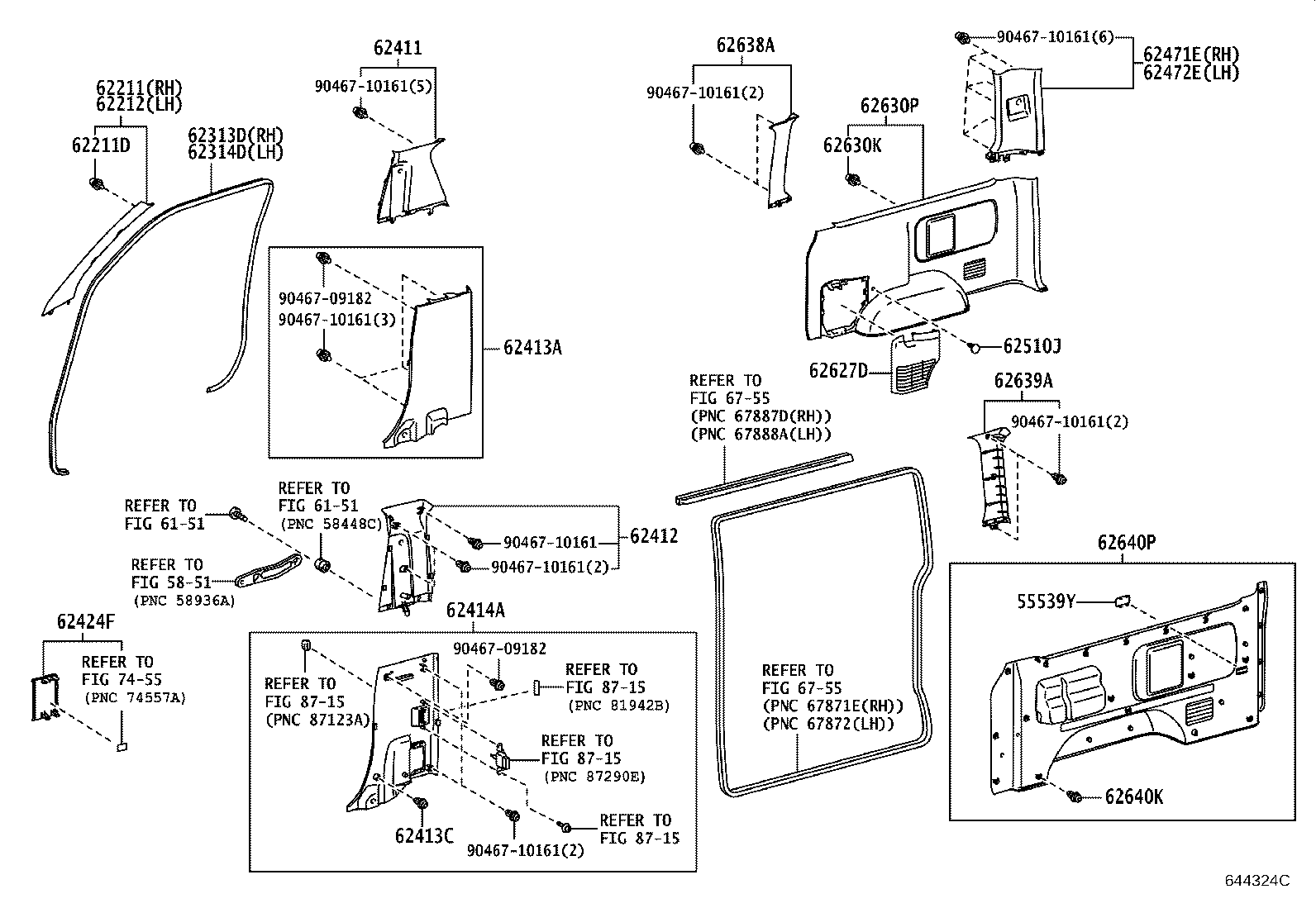

Figure 643434E 643434E 2013-12 → — Figure 643435F 643435F 2013-12 → — Figure 643436E 643436E 2013-12 → — Figure 643437E 643437E 2013-12 → — Figure 643438G 643438G 2013-12 → — Figure 643439F 643439F 2013-12 → — Figure 643440F 643440F 2013-12 → — Figure 643441E 643441E 2013-12 → — Figure 643442D 643442D 2013-12 → — Figure 643443E 643443E 2013-12 → — Figure 643444K 643444K 2013-12 → 2024-02 Figure 6458DIB 6458DIB 2024-02 → — Figure 643445E 643445E 2013-12 → — Figure 643446E 643446E 2013-12 → — Figure 644497D 644497D 2014-04 → — Figure 643924F 643924F 2015-03 → — Figure 644324C 644324C 2017-12 → 2024-02 Figure 6458DJA 6458DJA 2024-02 → — Figure 644200E 644200E 2017-12 → —

Part groups

PNCDescription
55539Y Cover, Spare Switch Hole
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62217H Clip, Center Piller Garnish
62217J Clip, Center Piller Garnish
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62424F Cover, Center Pillar Garnish, Lower LH
62471E Garnish, Roof Side, Inner Upper RH
62472E Garnish, Roof Side, Inner Upper LH
62508B Clip
62510H Clip(FOR QUARTER TRIM FRONT PANEL)
62510J Retainer, Quarter Trim
62510P Panel Assy, Quarter Trim, Front RH
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62580B Board Assy, Side Heater Cover, RH
62580H Retainer, Side Heater Cover, RH
62627C Cover, Side Trim, NO.1
62627D Cover, Side Trim, RH
62628A Cover, Side Trim, LH
62630K Clip(FOR QUARTER TRIM REAR PANEL)
62630P Panel Assy, Quarter Trim, Rear RH
62631D Board, Quarter Trim, Rear RH
62631E Retainer, Quater Trim
62632A Retainer(FOR QUARTER INSIDE TRIM BOARD)
62632D Board, Quarter Trim, Rear LH
62638A Garnish, Quarter Pillar, RH
62638C Fastener(FOR QUARTER PILLAR GARNISH)
62639A Garnish, Quarter Pillar, LH
62640K Clip(FOR QUARTER TRIM REAR PANEL)
62640P Panel Assy, Quarter Trim, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
