Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05
Seat Belt
36 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 62627A | Cover, Side Trim Cover, RH |
| 62628 | Cover, Side Trim Cover, LH |
| 73115 | Clip, Belt Comfort NO.1 |
| 73139B | Cover, Seat Belt Anchor |
| 73150 | Belt Assy, Front Seat Lap Type, Center |
| 73160A | Seat Belt Assy, Front Center, RH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73310 | Belt Assy, Rear Seat 3 Point Type, RH |
| 73320 | Belt Assy, Rear Seat 3 Point Type, LH |
| 73320C | Belt Assy, Rear Seat 3 Point Type |

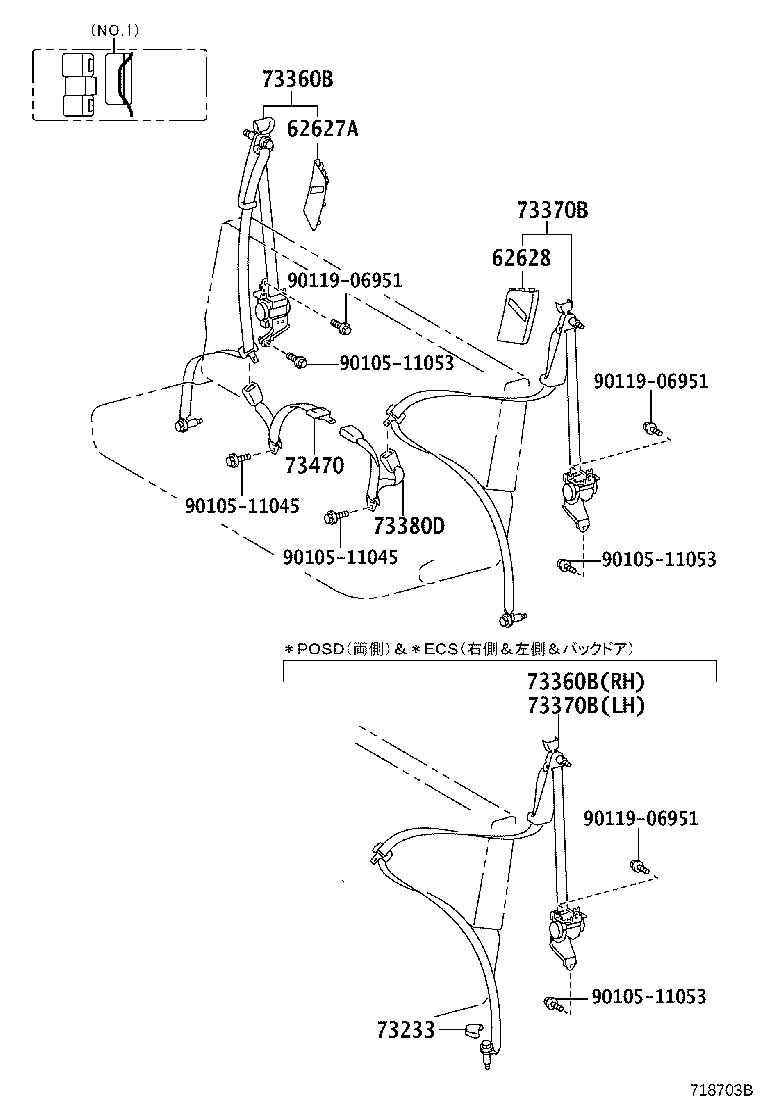

| 73360B | Belt Assy, Rear Seat, Outer |
| 73370B | Belt Assy, Rear Seat, Outer |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73380D | Belt Assy, Rear Seat, Inner |
| 73380E | Belt Assy, RR Seat, Inner |
| 73380F | Belt Assy, RR Seat, Inner |
| 73380G | Belt Assy, RR Seat, Inner |
| 73431 | Cover, Rear Seat Belt Retractor, RH |
| 73432 | Cover, Rear Seat Belt Retractor, LH |
| 73470 | Belt Assy, Rear Seat, Outer |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73560A | Belt Assy, NO.3 Seat, Outer RH |

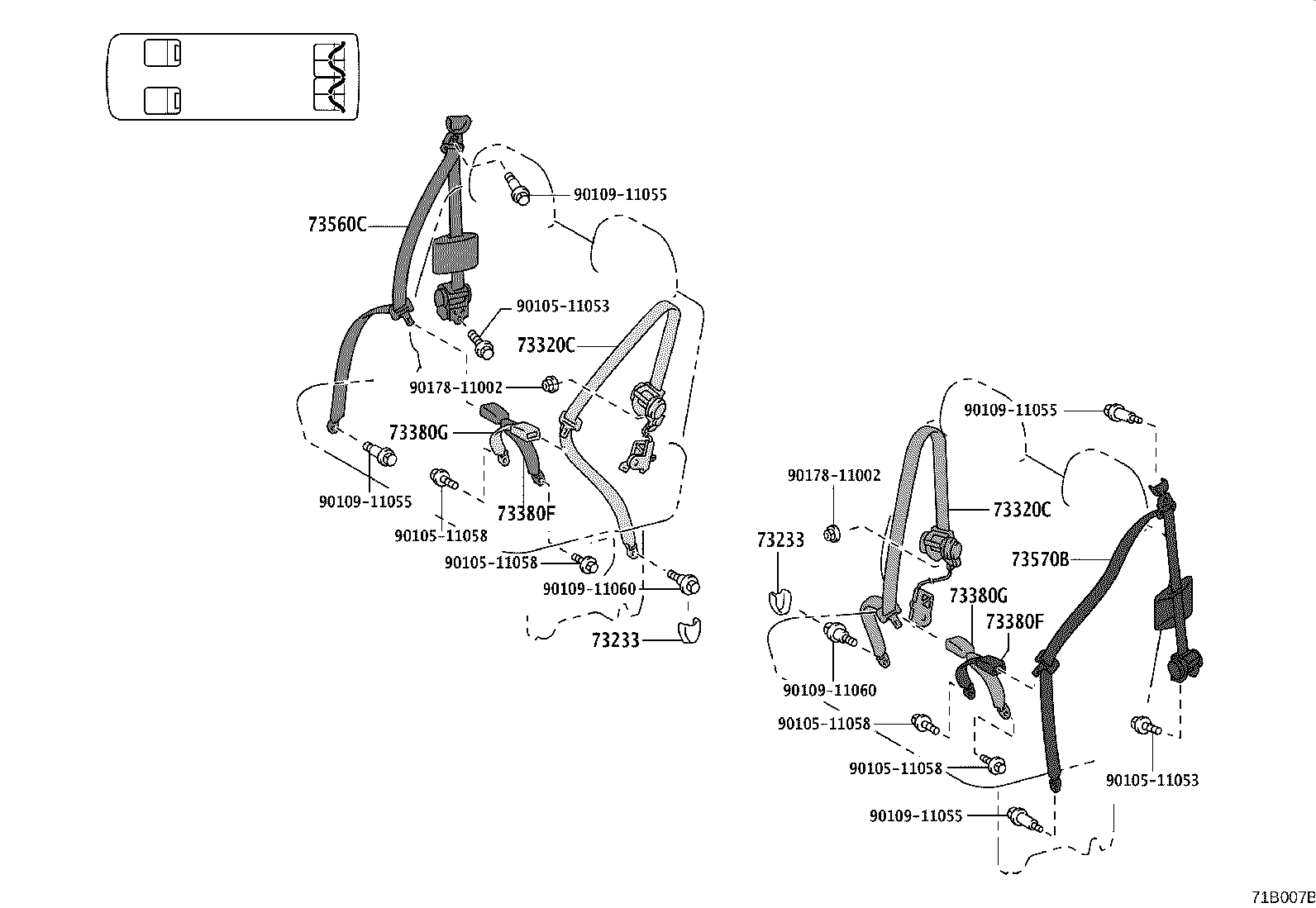

| 73560C | Belt Assy, Rear NO.4 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73570A | Belt Assy, NO.3 Seat, Outer LH |
| 73570B | Belt Assy, Rear Seat, Outer |
| 73605 | Plate Sub-assy, Rear Seat Belt Inner Anchor, RH |
| 73670A | Bracket Assy, Rear Seat Belt Outer Anchor, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
