Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

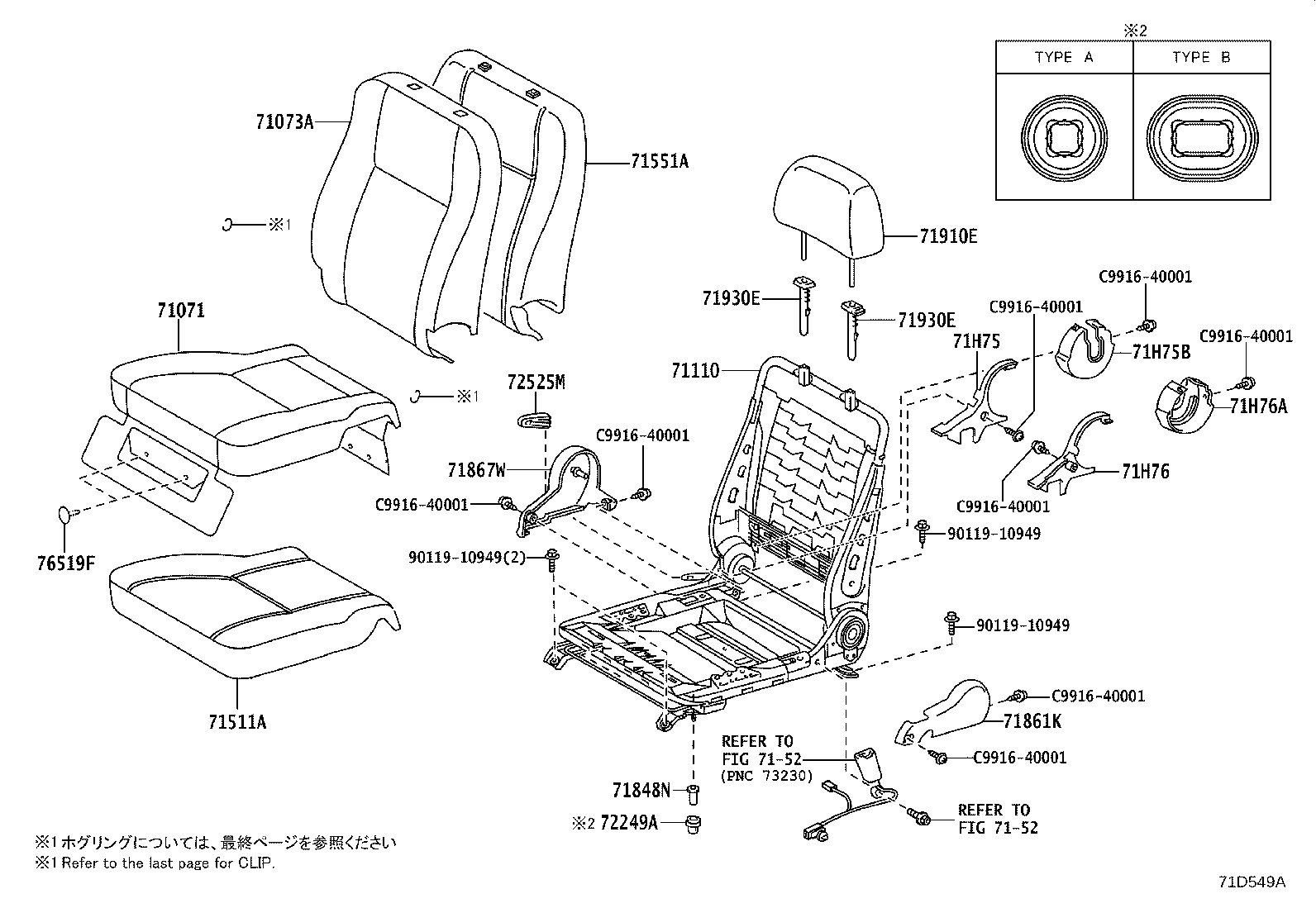

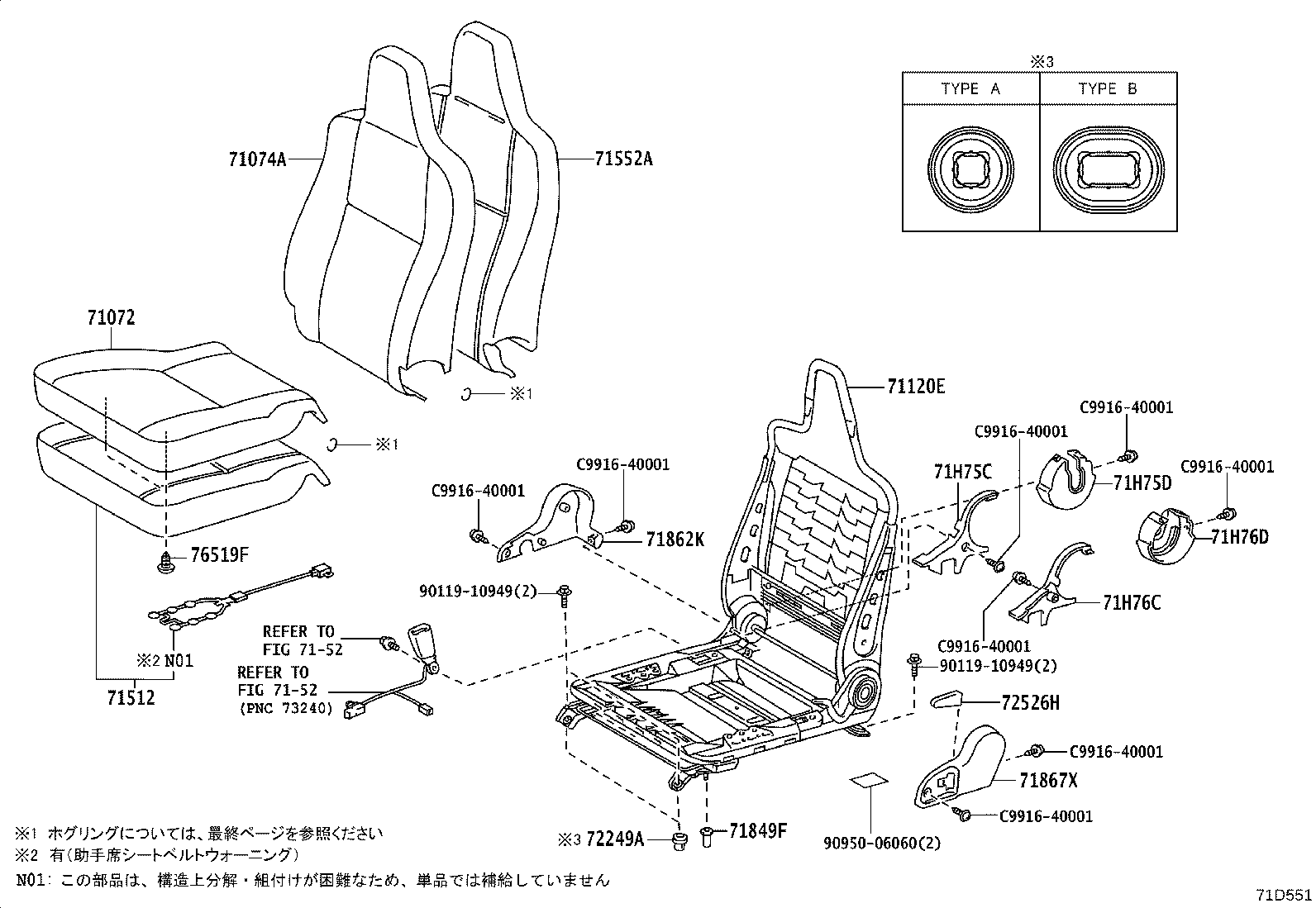

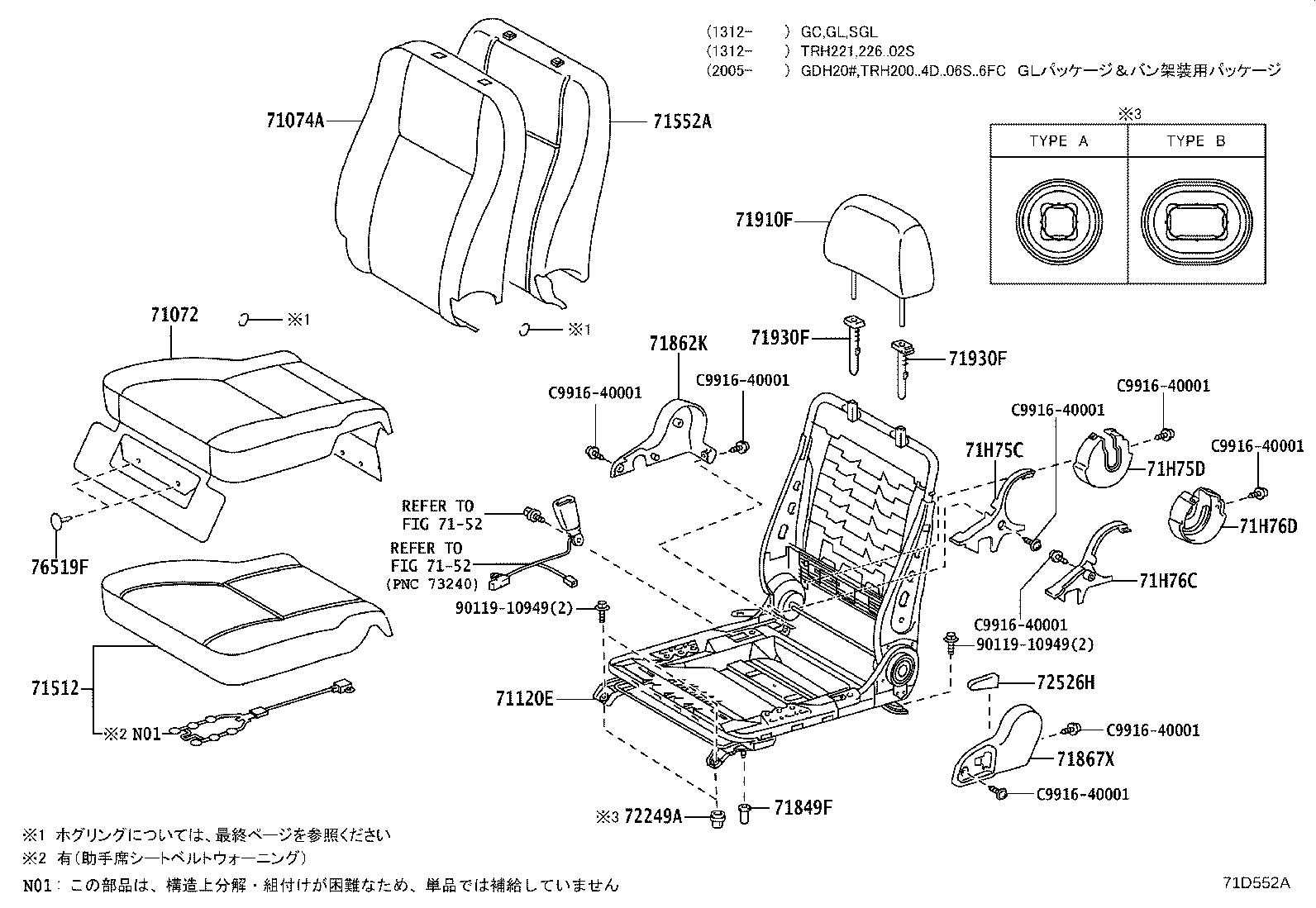

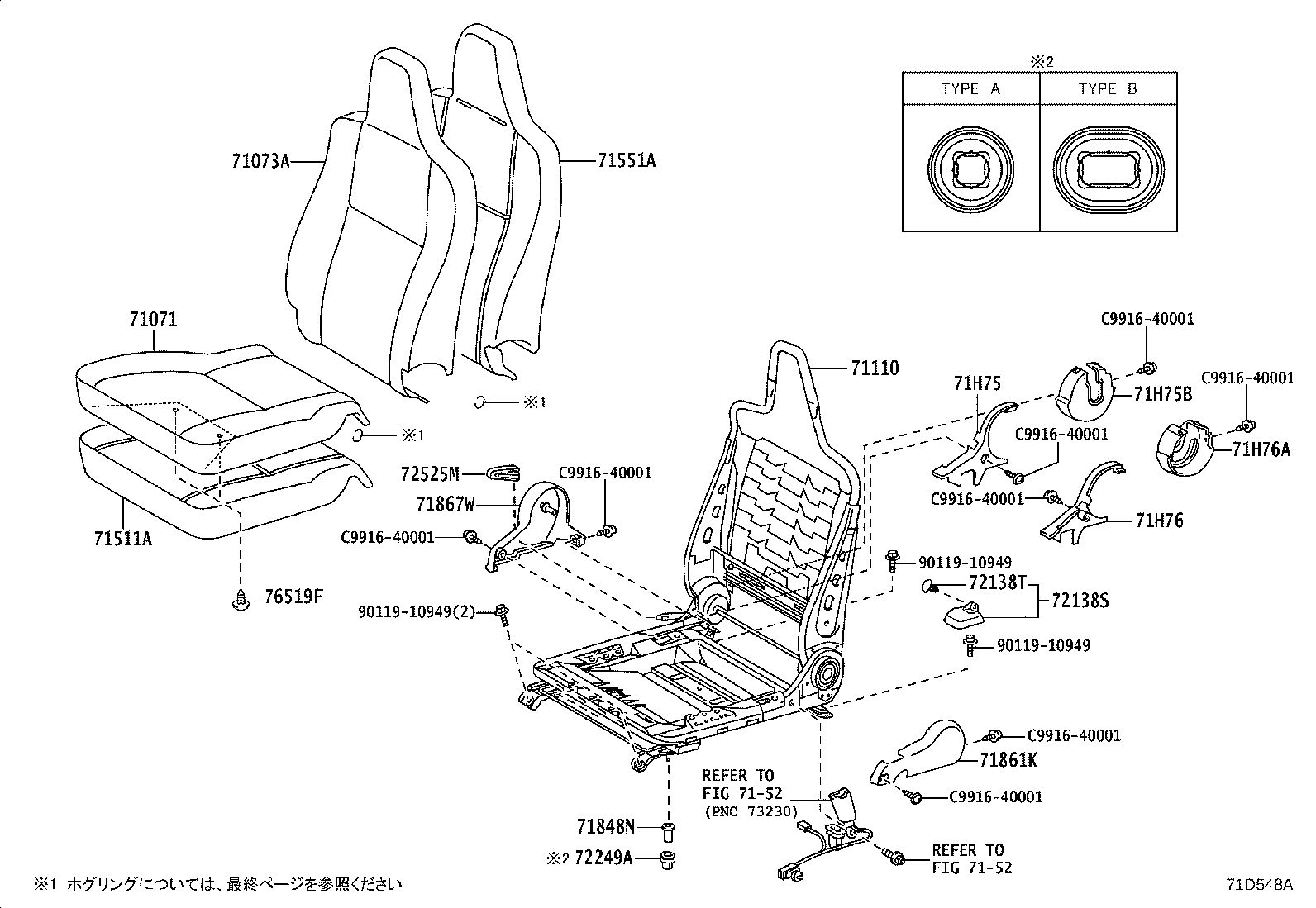

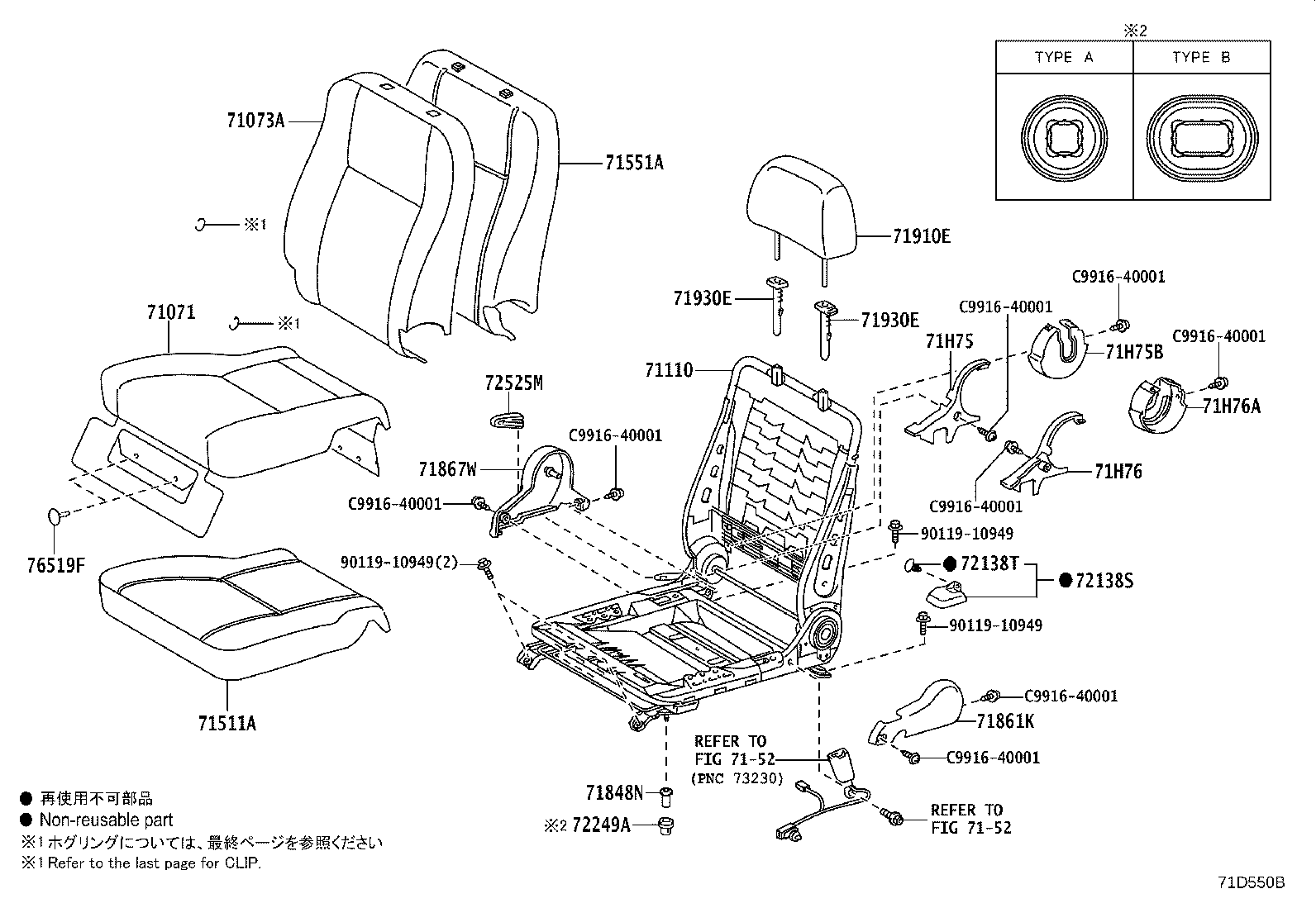

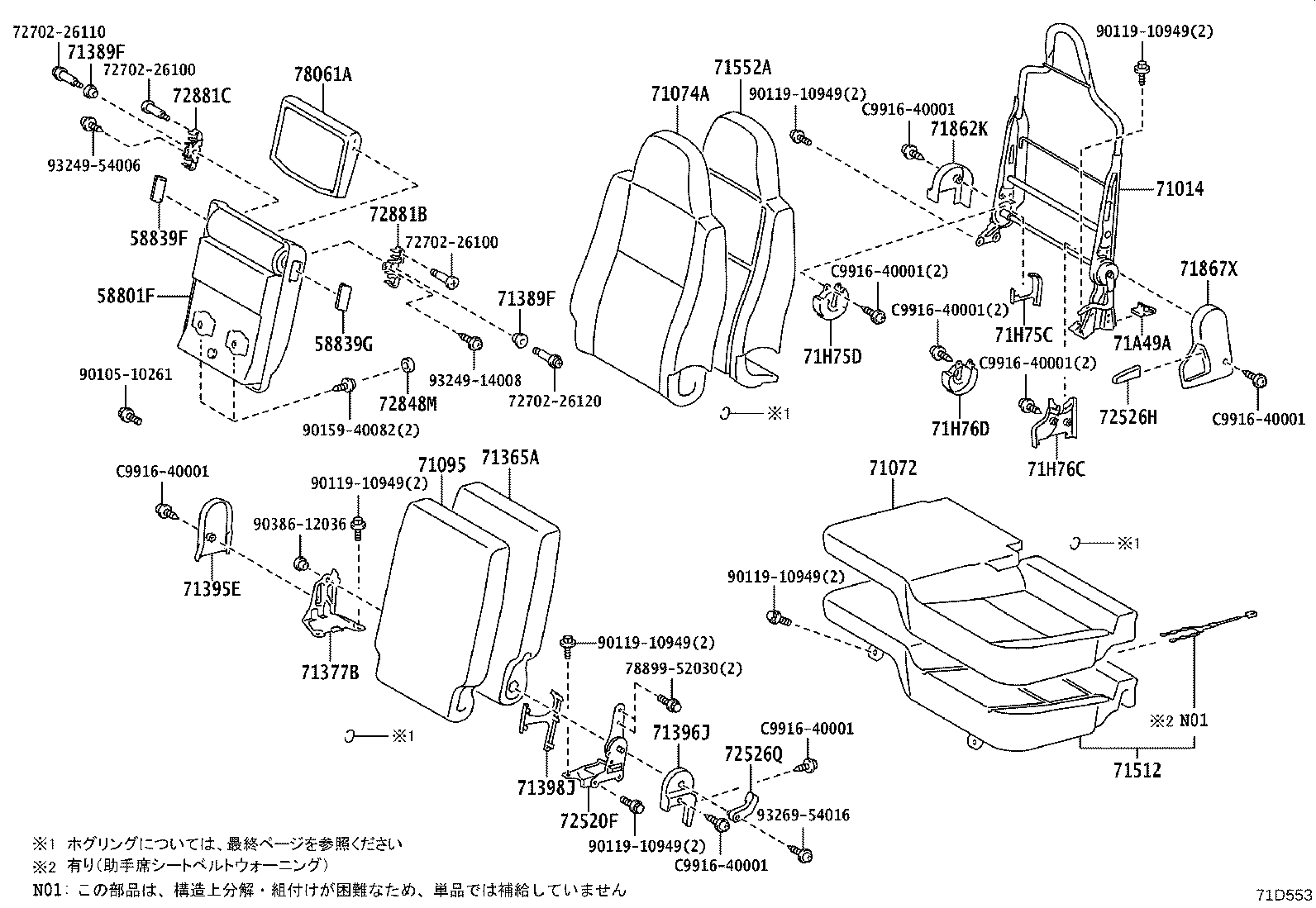

Front Seat & Seat Track
52 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 58801F | Box Sub-assy, Console |
| 58839F | Cover, Console Box Hole, NO.1 |
| 58839G | Cover, Console Box Hole, NO.2 |
| 71014 | Frame Sub-assy, Front Seatback, LH |
| 71071 | Cover Sub-assy, Front Seat Cushion, RH |
| 71072 | Cover Sub-assy, Front Seat Cushion, LH |
| 71073A | Cover Sub-assy, Front Seatback, RH |
| 71074A | Cover Sub-assy, Front Seatback, LH |
| 71095 | Cover Sub-assy, Center Seatback |
| 71110 | Frame Assy, Front Seat W/Adjuster, RH |
| 71120E | Frame Assy, Front Seat W/Adjuster, LH |
| 71365A | Pad, Center Seatback |
| 71377B | Plate, Center Seat Hinge, RH |
| 71389F | Spacer, Center Seat Hinge |
| 71395E | Cover, Center Seat Hinge, RH |
| 71396J | Cushion, Front Seat Support, Rear LH |
| 71398J | Cover, Center Seat Hinge, Upper LH |
| 71511A | Pad, Front Seat Cushion, RH |
| 71512 | Pad, Front Seat Cushion, LH |
| 71551A | Pad, Front Seatback, RH |
| 71552A | Pad, Front Seatback, LH |
| 71848N | Cap, Front Seat Adjuster Cover, RH NO.1 |
| 71849F | Cap, Seat Adjuster Cover, LH(FOR LH SEAT) |
| 71861K | Shield, Front Seat Cushion, Inner RH |
| 71862K | Shield, Front Seat Cushion, Inner LH |
| 71867W | Shield, Front Seat Cushion, Front RH |
| 71867X | Shield, Front Seat Cushion, Front LH |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71930E | Support Assy, Front Seat Headrest, RH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71A49A | Cover, Front Seat Leg(FOR LH SEAT) |
| 71H75 | Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT) |
| 71H75B | Cover, Reclining Adjuster Inside, RH(FOR RH SEATBACK FRAME) |
| 71H75C | Cover, Reclining Adjuster Inside, RH(FOR LH SEAT) |
| 71H75D | Cover, Reclining Adjuster Inside, RH(FOR LH SEATBACK FRAME) |
| 71H76 | Cover, Reclining Adjuster Inside, LH(FOR RH SEAT) |
| 71H76A | Cover, Reclining Adjuster Inside, LH(FOR RH SEATBACK FRAME) |
| 71H76C | Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT) |
| 71H76D | Cover, Reclining Adjuster Inside, LH(FOR LH SEATBACK FRAME) |
| 72138S | Cover, Seat Track, LH |
| 72138T | Clip, Seat Track Cover |
| 72249A | Guide, Seat Track Locking |
| 72520F | Lock Assy, Front Seatback, LH |
| 72525M | Handle, Reclining Adjuster Release, RH |
| 72526H | Handle, Reclining Adjuster Release, LH |
| 72526Q | Handle, Reclining Adjuster Release, LH NO.2 |
| 72848M | Cap, Seat Armrest, NO.1 |
| 72881B | Support, Seat Center Armrest NO.1 |
| 72881C | Support, Seat Center Armrest NO.2 |
| 76519F | Clip, Front Seat Cushion Cover |
| 78061A | Table Sub-assy, Front Seat Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
