Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

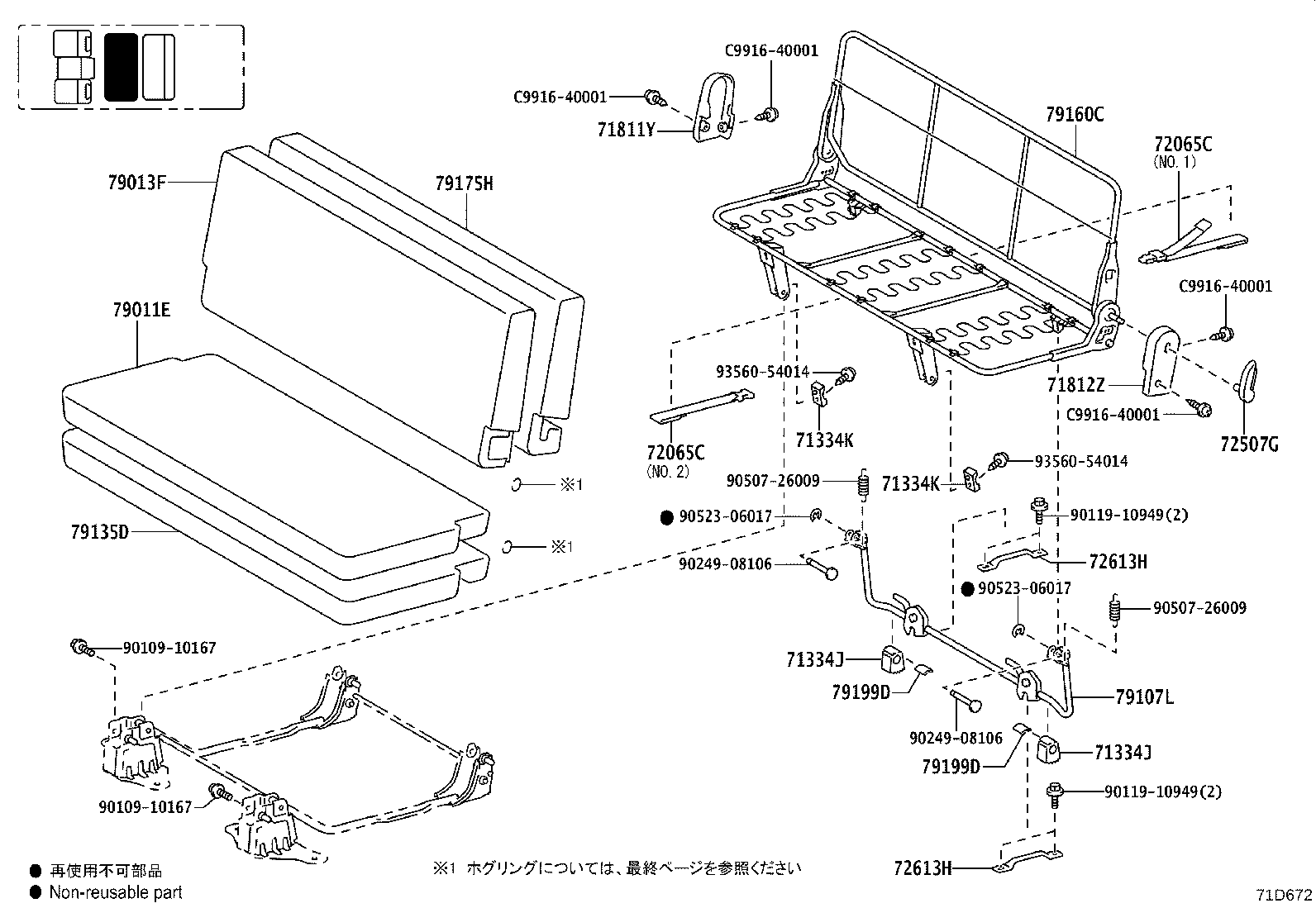

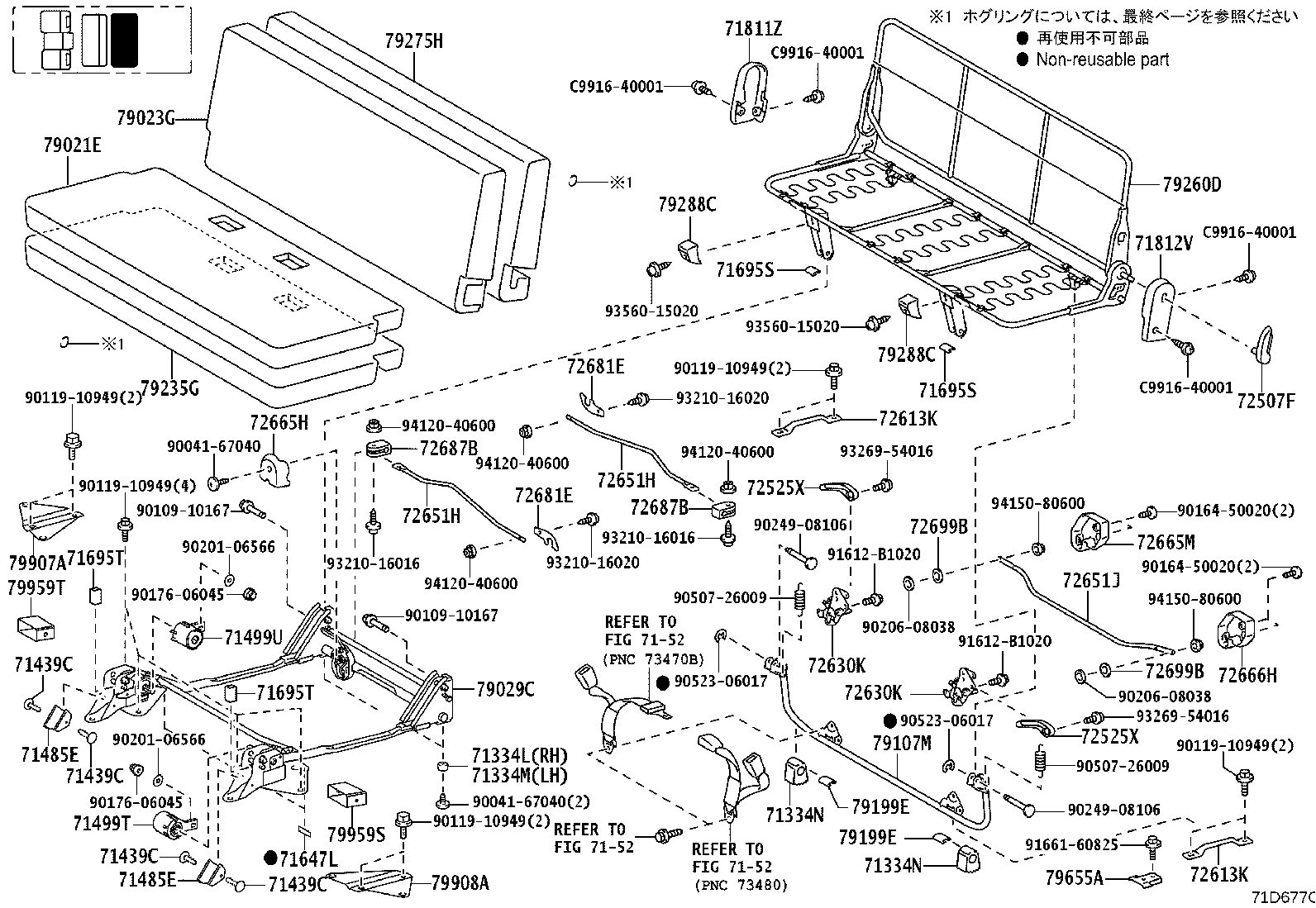

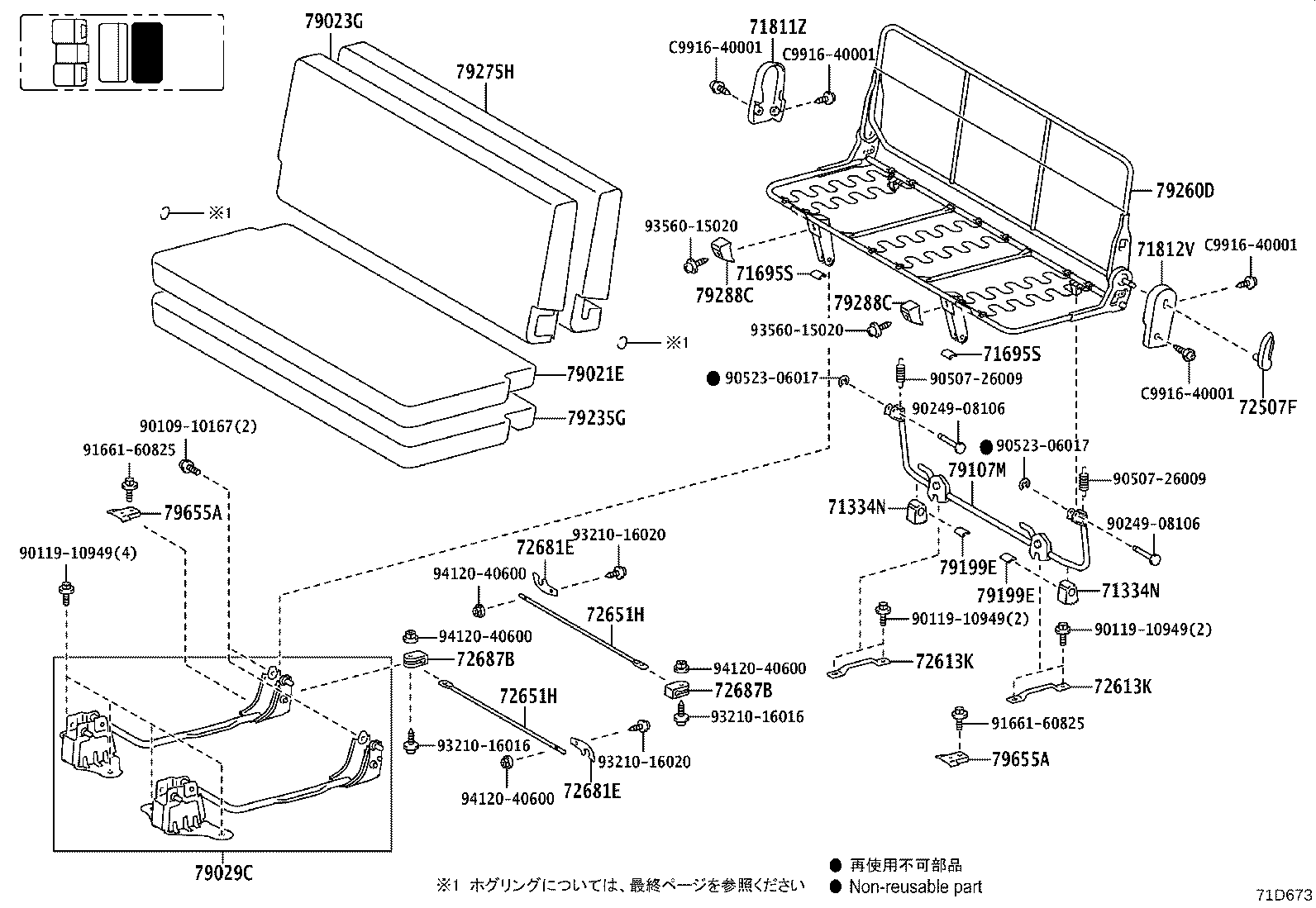

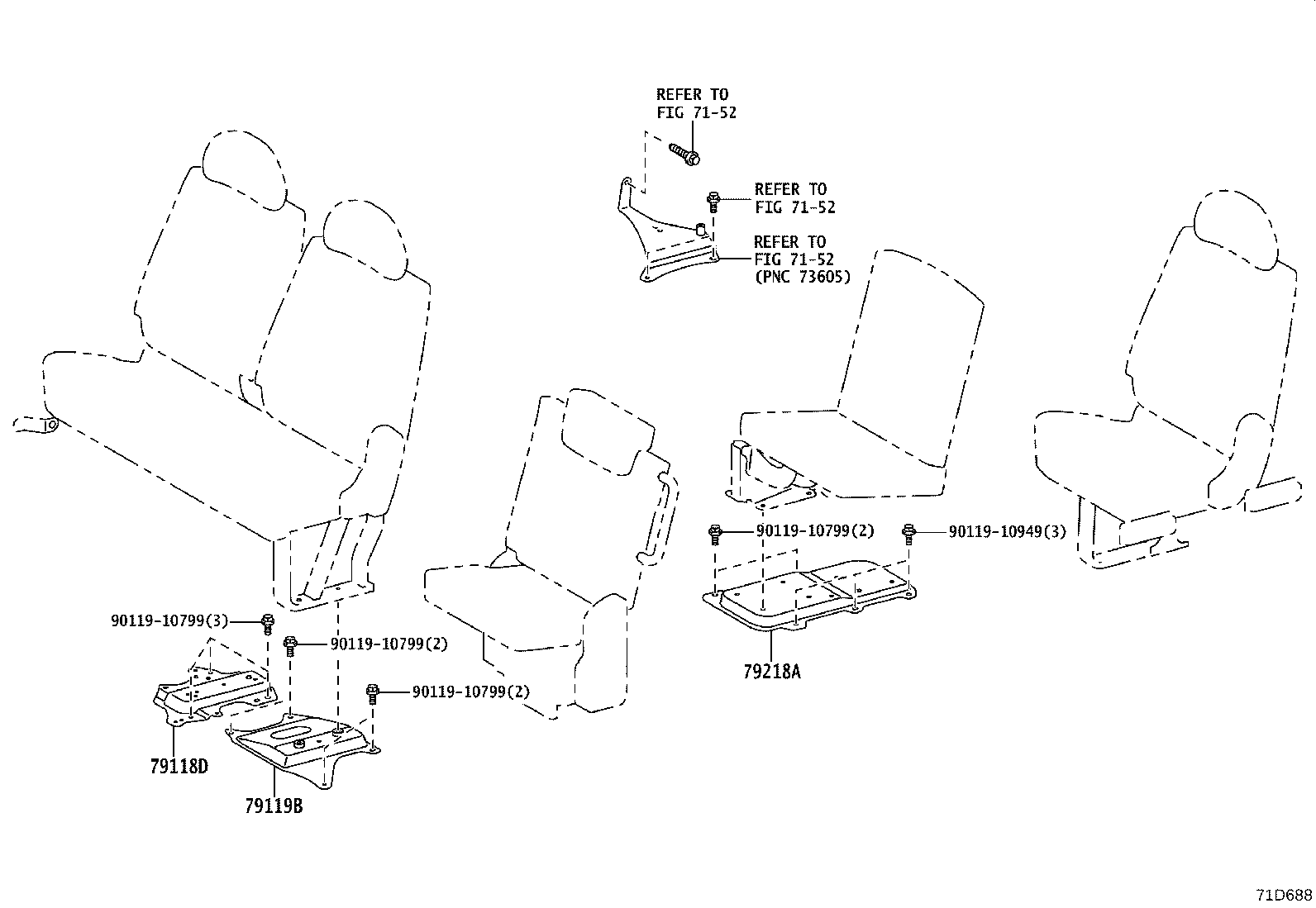

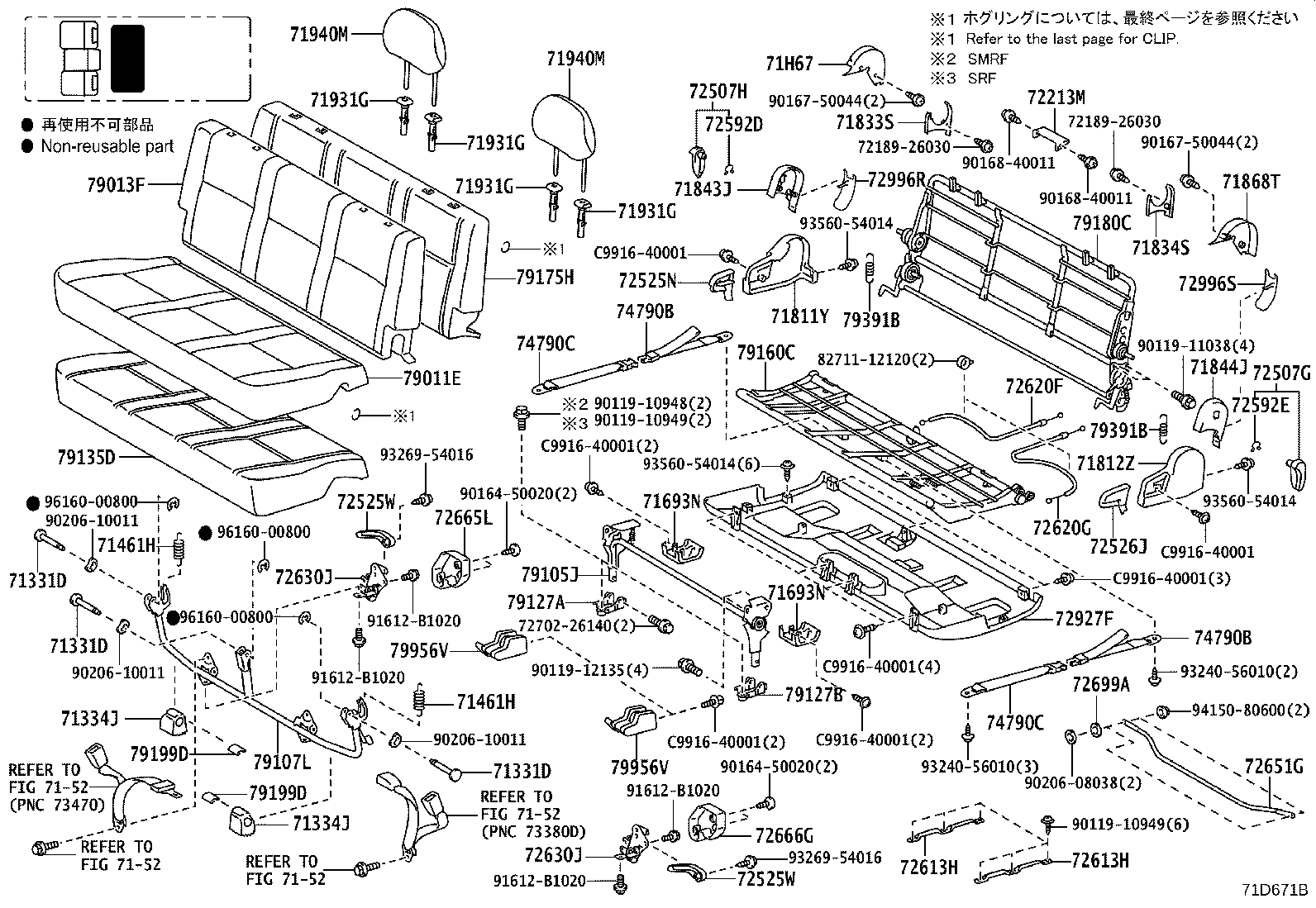

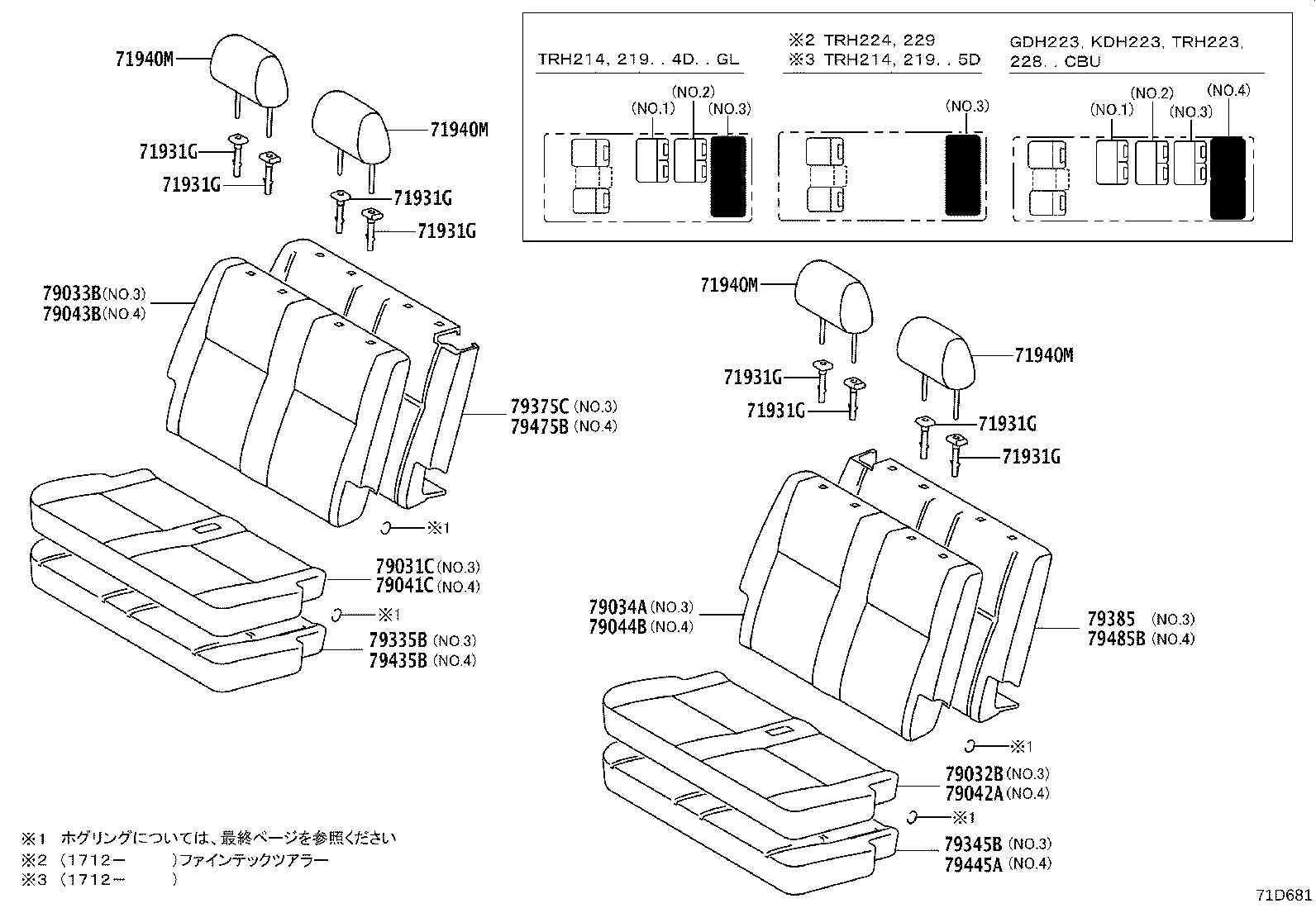

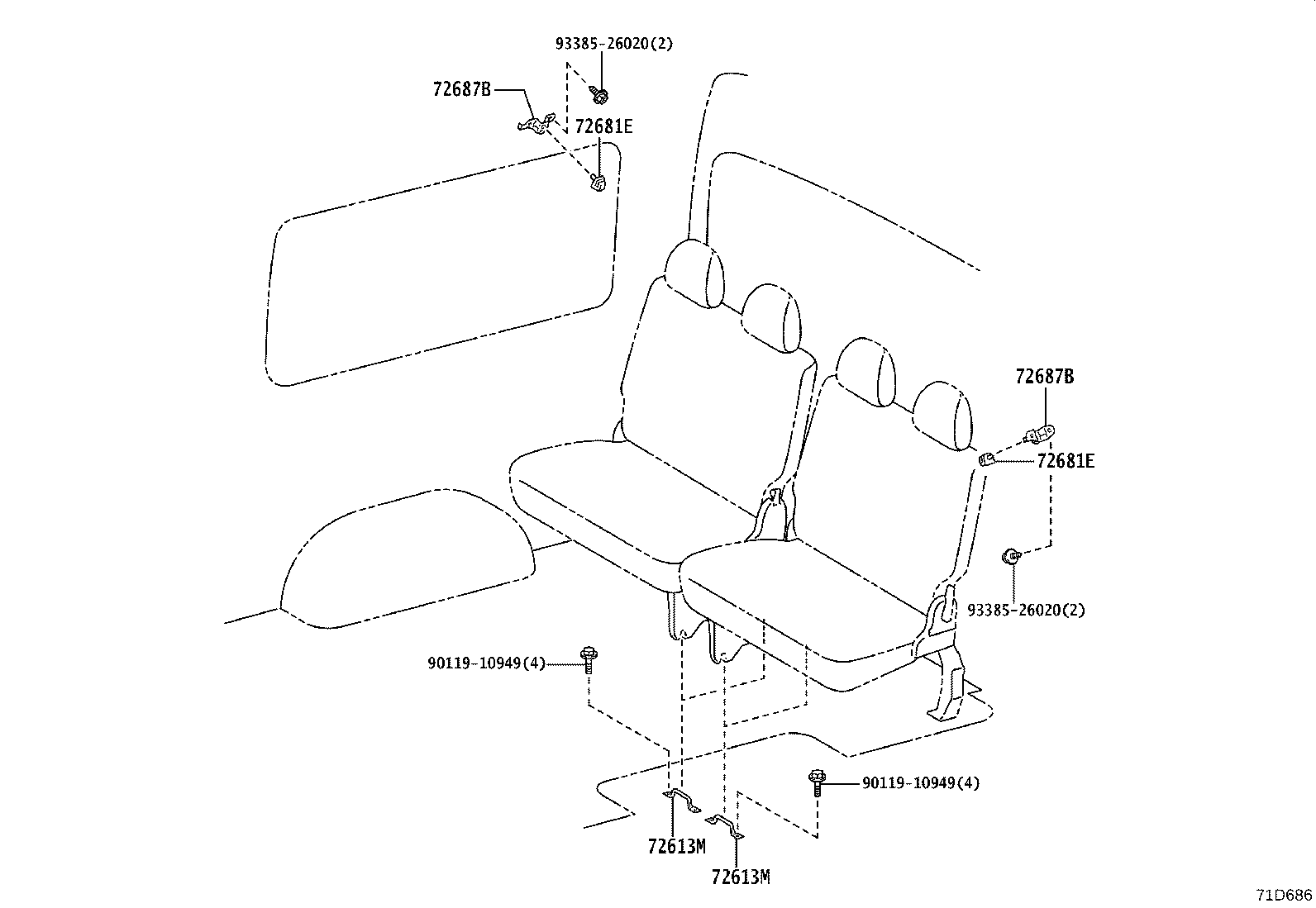

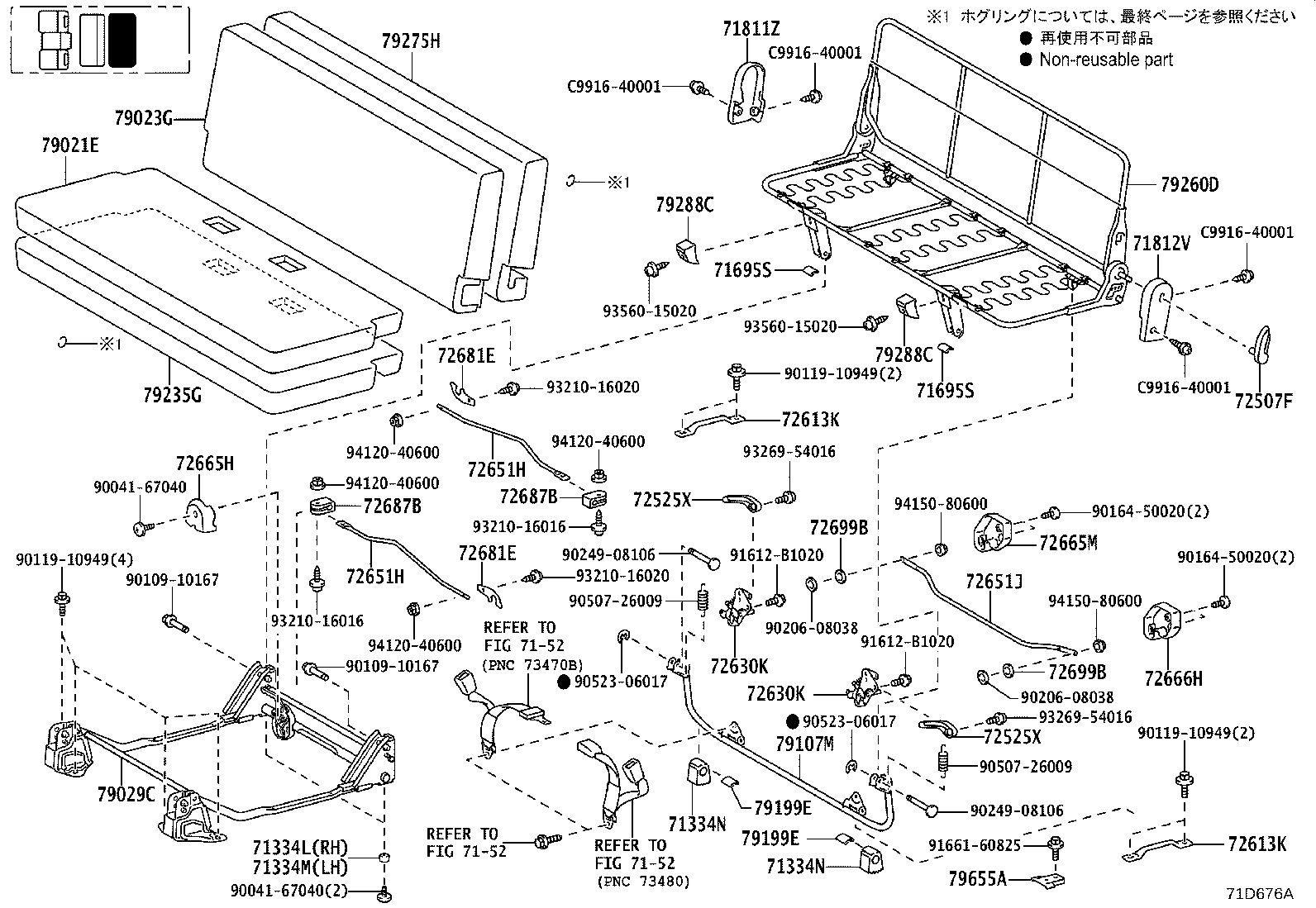

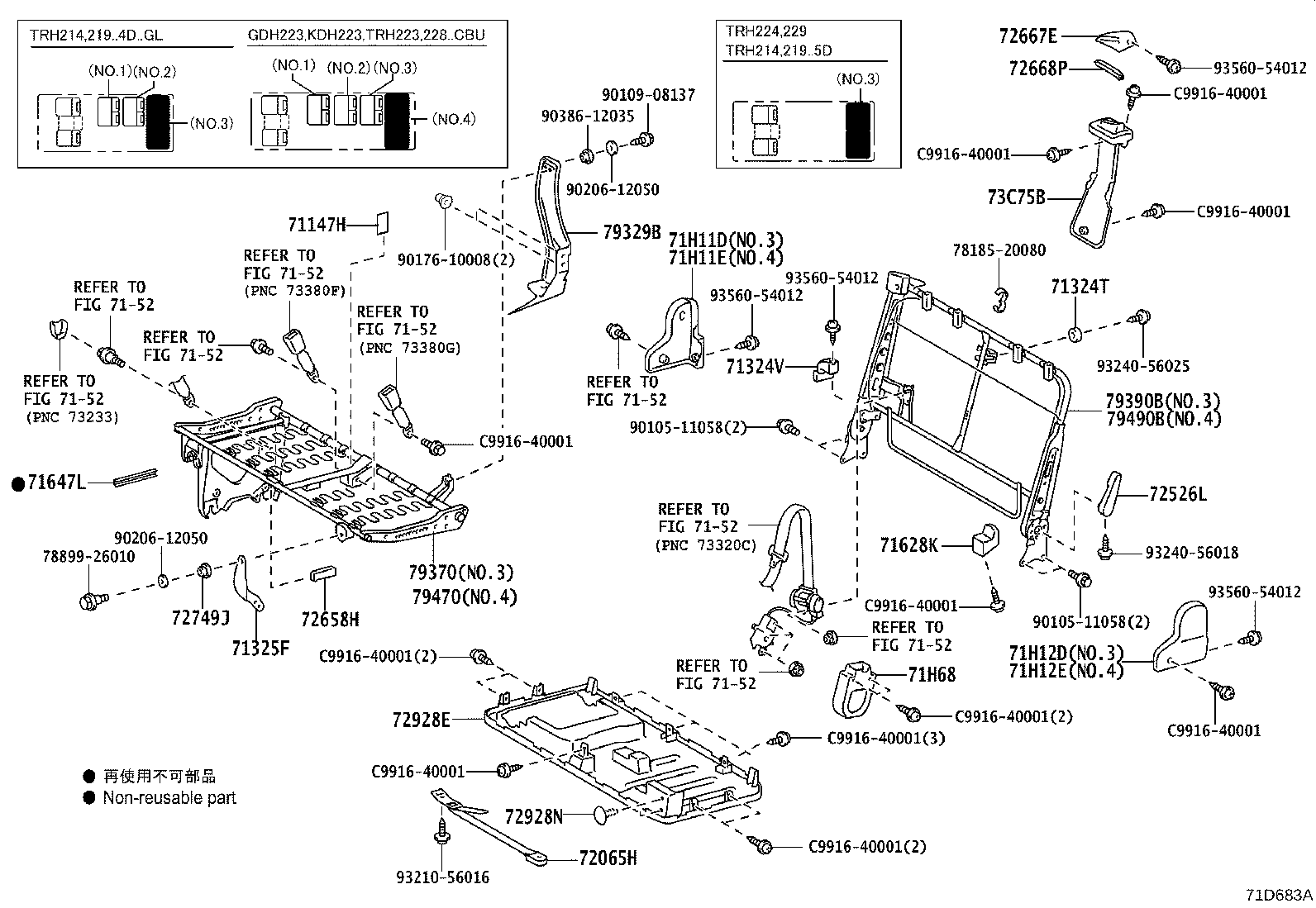

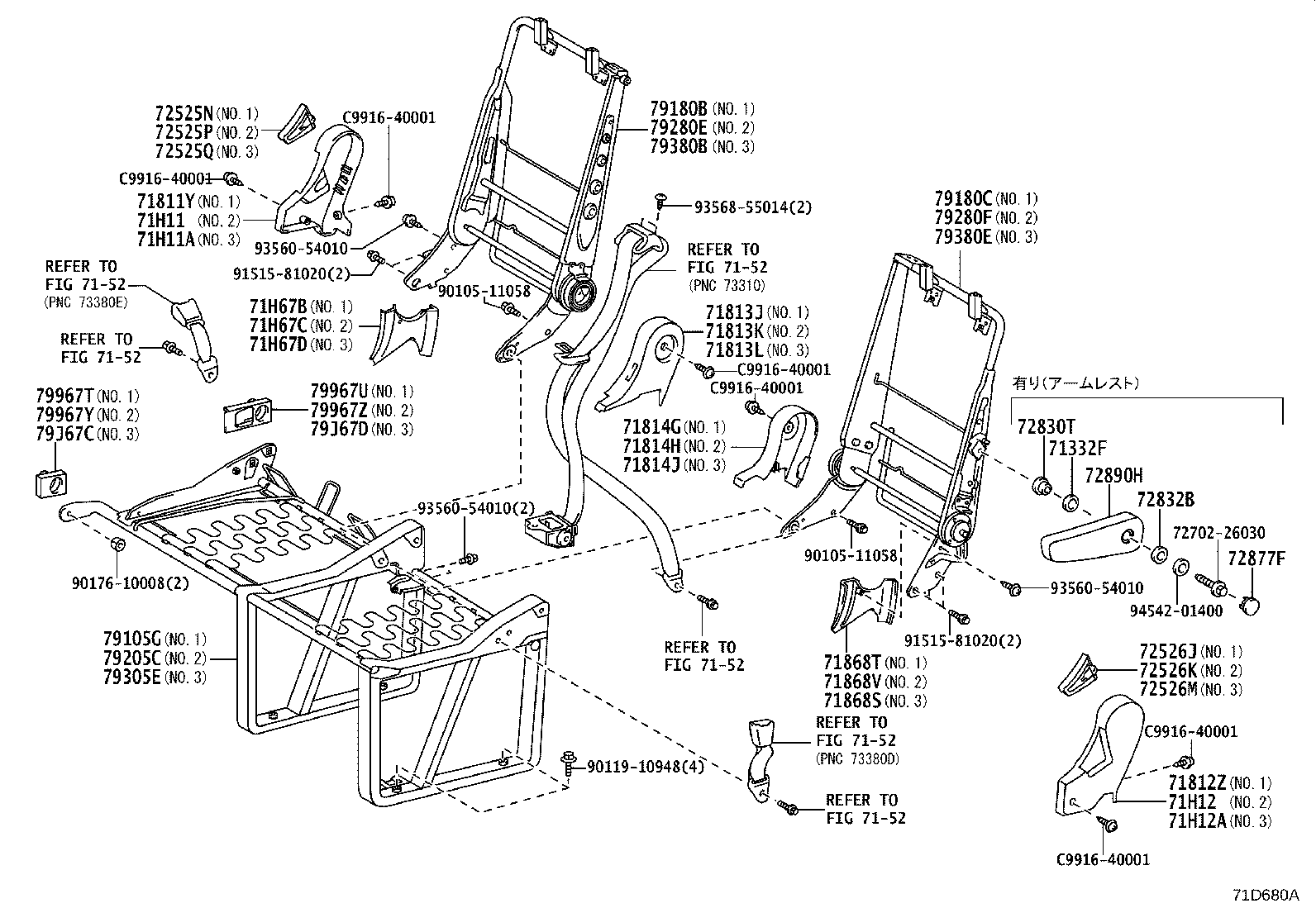

Rear Seat & Seat Track
224 part groups · 26 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 71147H | Silencer, Seat Spring |
| 71324T | Cushion, Rear Seat |
| 71324U | Cushion, Rear Seat, RH |
| 71324V | Cushion, Rear Seat, LH |
| 71325E | Hinge, Rear Seat Cushion Leg, RH |
| 71325F | Hinge, Rear Seat Cushion Leg, LH |
| 71331D | Pin, Rear Seat Hinge |
| 71332F | Spacer, Rear Seatback Hinge |
| 71334J | Stopper, Rear Seat Leg |
| 71334K | Stopper, Rear Seat Leg, NO.2 |
| 71334L | Stopper, Rear Seat Leg, RH |
| 71334M | Stopper, Rear Seat Leg, LH |
| 71334N | Stopper, Rear Seat Leg, NO.2 |
| 71383E | Bracket, Rear Seat Cushion Set, Rear RH |
| 71384C | Bracket, Rear Seat Cushion Set, Rear LH |
| 71398K | Cup Holder, Rear Seatback |
| 71439C | Clip |
| 71461H | Spring, Rear Seat Cushion |
| 71485E | Cover, Rear Seat Hinge |
| 71499T | Damper, Seat Cushion Spring, RH |
| 71499U | Damper, Seat Cushion Spring, LH |
| 71628K | Spacer, Rear Seat Cushion |
| 71629G | Cover, Rear Seat Cushion Hinge |
| 71647L | Protector, Rear Seat Cushion Edge |
| 71693N | Cover, Rear Seat Cushion Hinge, Lower |
| 71695S | Protector, Rear Seat, NO.1 |
| 71695T | Protector, Rear Seat, NO.2 |
| 71701D | Board Sub-assy, Rear Seatback |
| 71702D | Board Sub-assy, Rear Seatback, LH |
| 71769Q | Clip, Rear Seatback Board |
| 71811Y | Cover, Reclining Adjuster, RH |
| 71811Z | Shield, Rear Seat Cushion, RH |
| 71812V | Shield, Rear Seat Cushion, LH |
| 71812Z | Cover, Reclining Adjuster, LH |
| 71813J | Shield, Rear Seatback, RH |
| 71813K | Shield, Rear Seatback, RH |
| 71813L | Shield, Rear Seatback, RH |
| 71814G | Shield, Rear Seatback, LH |
| 71814H | Shield, Rear Seatback, LH |
| 71814J | Shield, Rear Seatback, LH |
| 71833S | Cover, Rear Seat Reclining, NO.1 RH |
| 71834S | Cover, Rear Seat Reclining, NO.1 LH |
| 71843J | Cover, Rear NO.1 Seat Reclining, NO.2 RH |
| 71844J | Cover, Rear NO.1 Seat Reclining, NO.2 LH |
| 71868S | Shield, NO.3 Seat Cushion, Inner NO.1 LH |
| 71868T | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868V | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868W | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868X | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71931G | Support Assy, Rear Seat Headrest |
| 71940M | Headrest Assy, Rear Seat |
| 71H11 | Cover, Reclining Adjuster, RH |
| 71H11A | Cover, Reclining Adjuster, RH |
| 71H11B | Cover, Reclining Adjuster, RH |
| 71H11C | Cover, Reclining Adjuster, RH |
| 71H11D | Cover, Reclining Adjuster, RH |
| 71H11E | Cover, Reclining Adjuster, RH |
| 71H12 | Cover, Reclining Adjuster, LH |
| 71H12A | Cover, Reclining Adjuster, LH |
| 71H12B | Cover, Reclining Adjuster, LH |
| 71H12C | Cover, Reclining Adjuster, LH |
| 71H12D | Cover, Reclining Adjuster, LH |
| 71H12E | Cover, Reclining Adjuster, LH |
| 71H67 | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67B | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67C | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67D | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67E | Shield,Rear Seat Cushion, Inner NO.1 RH |
| 71H67F | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H68 | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 72065C | Belt Sub-assy, Rear Seat Hook |
| 72065G | Hook Sub-assy,Rear Seat Cushion Lock,RH |
| 72065H | Hook Sub-assy,Rear Seat Cushion Lock,LH |
| 72213M | Knob, Seat Track Adjusting Handle |
| 72507F | Handle Sub-assy, Rear Seat Reclining Release |
| 72507G | Handle Sub-assy, Reclining Release, LH |
| 72507H | Handle Sub-assy, Reclining Release, RH |
| 72525N | Handle, NO.1 Seat Reclining Adjuster Release, RH |
| 72525P | Handle, NO.2 Seat Reclining Adjuster Release, RH |
| 72525Q | Handle, NO.3 Seat Reclining Adjuster Release, RH |
| 72525R | Handle, Reclining Adjuster Release, RH |
| 72525W | Handle, Reclining Adjuster Release, NO.1 |
| 72525X | Handle, Reclining Adjuster Release, NO.2 |
| 72525Y | Handle, Reclining Adjuster Release, NO.2 RH |
| 72525Z | Handle, Reclining Adjuster Release, NO.3 RH |
| 72526J | Handle, NO.1 Seat Reclining Adjuster Release, LH |
| 72526K | Handle, NO.2 Seat Reclining Adjuster Release, LH |
| 72526L | Handle, Reclining Adjuster Release, LH |
| 72526M | Handle, NO.3 Seat Reclining Adjuster Release, LH |
| 72592D | Ring, Shaft Snap |
| 72592E | Ring, Shaft Snap, NO.2 |
| 72613H | Striker, Rear Seat Lock |
| 72613K | Striker, Rear Seat Lock, NO.2 |
| 72613M | Striker, Rear Seat Lock, NO.3 |
| 72620F | Cable Assy, Rear Seat Lock, RH |
| 72620G | Cable Assy, Rear Seat Lock, LH |
| 72630J | Lock Assy, Rear NO.1 Seat |
| 72630K | Lock Assy, Rear NO.2 Seat |
| 72651G | Rod, Rear Seat Lock, NO.1 |
| 72651H | Rod, Rear Seat Lock, NO.2 |
| 72651J | Rod, Rear Seat Lock, NO.3 |
| 72658G | Knob, Rear Seat Lock Handle, RH |
| 72658H | Knob, Rear Seat Lock Handle, LH |
| 72665H | Cover, Rear Seatback Lock |
| 72665L | Cover, Rear Seatback Lock, RH |
| 72665M | Cover, Rear Seatback Lock, RH NO.2 |
| 72666G | Cover, Rear Seatback Lock, LH |
| 72666H | Cover, Rear Seatback Lock, LH NO.2 |
| 72667E | Bezel, Rear Seatback Lock, Upper |
| 72668P | Bezel, Rear Seatback Lock, Lower |
| 72681E | Hook, Rear Seat |
| 72687B | Bracket, Rear Seat Hook |
| 72699A | Plate, Rear Seat Lock Release, NO.1 |
| 72699B | Plate, Rear Seat Lock Release, NO.2 |
| 72749J | Spacer, Rear Seat Reclining |
| 72830T | Bush (FOR REAR SEAT CENTER ARMREST) |
| 72832B | Plate, Rear Seat Armrest |
| 72877F | Cover, Seat Armrest |
| 72890H | Armrest Assy, Seat, C LH |
| 72927F | Cover, Rear Seat Cushion Under, RH |
| 72928E | Cover, Rear Seat Cushion Under, LH |
| 72928N | Clip (FOR REAR SEAT CUSHION UNDER COVER) |
| 72996R | Cover, Rear NO.1 Seatback, RH |
| 72996S | Cover, Rear NO.1 Seatback, LH |
| 72C45E | Cap, Seat Stand Frame |
| 73C73J | Cover, Rear Seat Shoulder Belt Hole |
| 73C75B | Cover, Rear Seat Shoulder Belt Hole, LH |
| 74610W | Grip Assy, Assist |
| 74790B | Holder Assy, Warning Reflector, NO.1 |
| 74790C | Holder Assy, Warning Reflector, NO.2 |
| 79011B | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79011E | Cover Sub-assy, NO.1 Seat Cushion |
| 79013D | Cover Sub-assy, NO.1 Seatback, RH |
| 79013F | Cover Sub-assy, NO.1 Seatback |
| 79020C | Leg Assy, NO.2 Seat |
| 79021D | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79021E | Cover Sub-assy, NO.2 Seat Cushion |
| 79022B | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023D | Cover Sub-assy, NO.2 Seatback, RH |
| 79023G | Cover Sub-assy, NO.2 Seatback |
| 79024D | Cover Sub-assy, NO.2 Seatback, LH |
| 79029C | Stay Sub-assy, NO.2 Seat |
| 79031C | Cover, Sub-assy, NO.3 Seat Cushion, RH |
| 79032B | Cover, Sub-assy, NO.3 Seat Cushion, LH |
| 79033B | Cover Sub-assy, NO.3 Seatback, RH |
| 79033D | Cover Sub-assy, NO.3 Seatback |
| 79034A | Cover Sub-assy, NO.3 Seatback, LH |
| 79041C | Cover Sub-assy, NO.4 Seat Cushion, RH |
| 79042A | Cover Sub-assy, NO.4 Seat Cushion, LH |
| 79043B | Cover Sub-assy, NO.4 Seatback, RH(FOR RH SEAT) |
| 79044B | Cover Sub-assy, NO.4 Seatback, LH(FOR LH SEAT) |
| 79105G | Leg Sub-assy, NO.1 Seat, RH |
| 79105J | Leg Sub-assy, NO.1 Seat |
| 79107L | Leg Sub-assy, NO.1 Seat, Rear |
| 79107M | Leg Sub-assy, NO.2 Seat, Rear |
| 79118D | Bracket, Rear NO.1 Seat Leg |
| 79119B | Bracket, NO.1 Seat Leg, NO.2 |
| 79127A | Bracket, NO.1 Seat Leg, Lower RH |
| 79127B | Bracket, NO.1 Seat Leg, Lower LH |
| 79135C | Pad, NO.1 Seat Cushion, RH |
| 79135D | Pad, NO.1 Seat Cushion |
| 79160C | Spring Assy, NO.1 Seat Cushion |
| 79175F | Pad, NO.1 Seatback, RH |
| 79175H | Pad, NO.1 Seatback |
| 79180B | Spring Assy, NO.1 Seatback, RH |
| 79180C | Spring Assy, NO.1 Seatback |
| 79199D | Holder, NO.1 Seat Leg Stopper |
| 79199E | Holder, NO.2 Seat Leg Stopper |
| 79205C | Leg Sub-assy, NO.2 Seat, RH |
| 79206D | Leg Sub-assy, NO.2 Seat, LH |
| 79218A | Bracket, NO.2 Seat Leg |
| 79228A | Bracket, NO.2 Seat Leg, LH |
| 79235F | Pad, NO.2 Seat Cushion, RH |
| 79235G | Pad, NO.2 Seat Cushion |
| 79245A | Pad, NO.2 Seat Cushion, LH |
| 79260D | Spring Assy, NO.2 Seat |
| 79275F | Pad, NO.2 Seatback, RH |
| 79275H | Pad, NO.2 Seatback |
| 79280E | Spring Assy, NO.2 Seatback RH |
| 79280F | Spring Assy, NO.2 Seatback RH |
| 79285C | Pad, NO.2 Seatback, LH |
| 79288C | Stopper, NO.2 Seat Cushion |
| 79290E | Spring Assy, NO.2 Seatback LH |
| 79305E | Leg Sub-assy, NO.3 Seat, RH |
| 79306A | Leg Sub-assy, NO.3 Seat, LH |
| 79319A | Bracket, Rear Seat Leg, Rear RH |
| 79329B | Bracket, Rear Seat Leg, Rear LH |
| 79335B | Pad, NO.3 Seat Cushion, RH |
| 79345B | Pad, NO.3 Seat Cushion, LH |
| 79360B | Spring Assy, NO.3 Seat Cushion, RH |
| 79370 | Spring Assy, NO.3 Seat Cushion, LH |
| 79375C | Pad, NO.3 Seatback, RH |
| 79375E | Pad, NO.3 Seatback |
| 79380B | Spring Assy, Rear Seatback, RH |
| 79380E | Spring Assy, NO.3 Seatback |
| 79385 | Pad, NO.3 Seatback, LH |
| 79390B | Spring Assy, NO.3 Seatback, LH |
| 79391B | Spring, Rear Seat Cushion |
| 79435B | Pad, NO.4 Seat Cushion, RH |
| 79445A | Pad, NO.4 Seat Cushion, LH |
| 79460B | Spring Assy, NO.4 Seat Cushion, RH |
| 79470 | Spring Assy, NO.4 Seat Cushion, LH |
| 79475B | Pad, NO.4 Seatback, RH(FOR RH SEAT) |
| 79480B | Spring Assy, NO.4 Seatback, RH(FOR RH SEAT) |
| 79485B | Pad, NO.4 Seatback, LH(FOR LH SEAT) |
| 79490B | Spring Assy, NO.4 Seatback, LH(FOR LH SEAT) |
| 79655A | Striker, NO.2 Seat Leg |
| 79907A | Plate Sub-assy, Seat Hinge, RH |
| 79908A | Plate Sub-assy, Seat Hinge, LH |
| 79956V | Cover, Rear Seat Leg Side, RH |
| 79957C | Cover, Rear Seat Rear Bracket, RH |
| 79958B | Cover, Rear Seat Rear Bracket, LH |
| 79959S | Cover, Rear Seat Leg, RH |
| 79959T | Cover, Rear Seat Leg, LH |
| 79967T | Cover, Rear NO.1 Seat Leg Side, NO.1 |
| 79967U | Cover, Rear NO.1 Seat Leg Side, NO.2 |
| 79967Y | Cover, Rear NO.2 Seat Leg Side, NO.1 |
| 79967Z | Cover, Rear NO.2 Seat Leg Side, NO.2 |
| 79977J | Felt, Seatback |
| 79978J | Clip, Rear Seat Leg Garnish Cover |
| 79J67C | Cover, Rear NO.3 Seat Leg Side, NO.1 |
| 79J67D | Cover, Rear NO.3 Seat Leg Side, NO.2 |
| 79J67E | Cover, Rear NO.3 Seat Leg Side, NO.3 |
| 79J67F | Cover, Rear NO.3 Seat Leg Side, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
