Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 2 illustrations

Illustrations

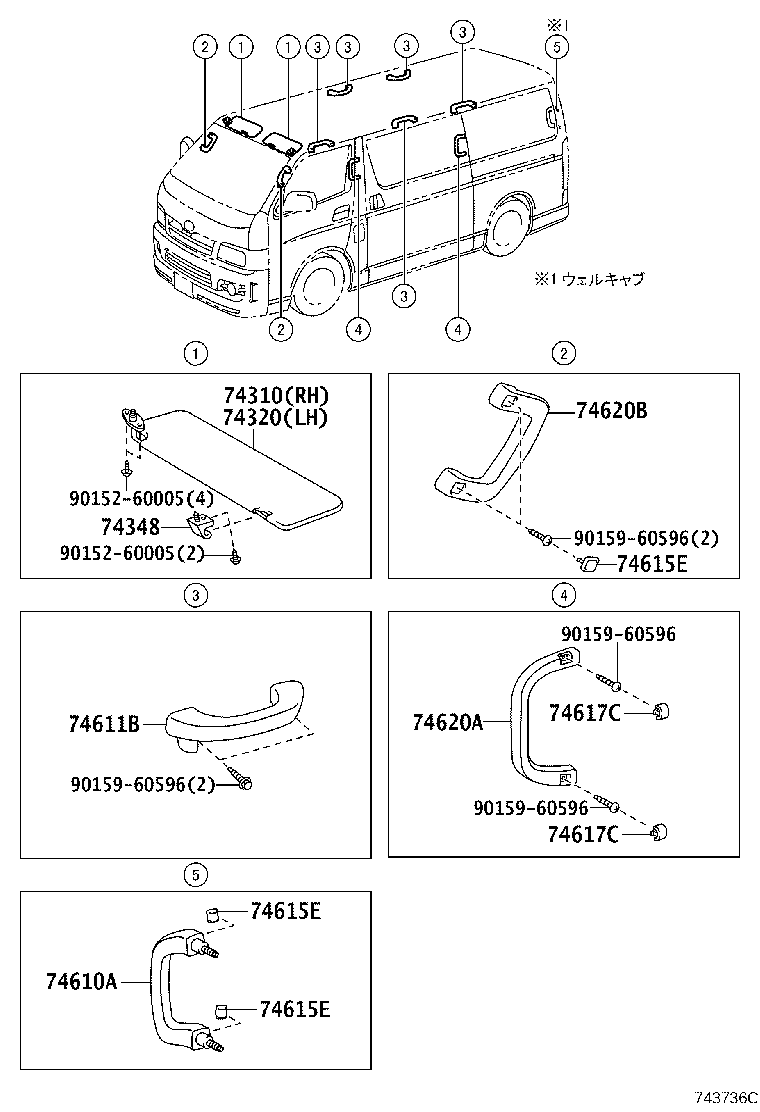

Figure 743734A 743734A 2013-12 → — Figure 743736C 743736C 2013-12 → —

Part groups

PNCDescription
58780B Band Assy, Tool Box
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74611B Grip, Assist
74615E Plug, Front Assist Grip, NO.1 RH
74617C Plug, Assist Grip
74620A Grip Assy, Assist, Rear
74620B Grip Assy, Assist, Rear
74710 Extinguisher Assy
74710A Bracket, Extinguisher
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
