Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

21 part groups · 7 illustrations

Illustrations

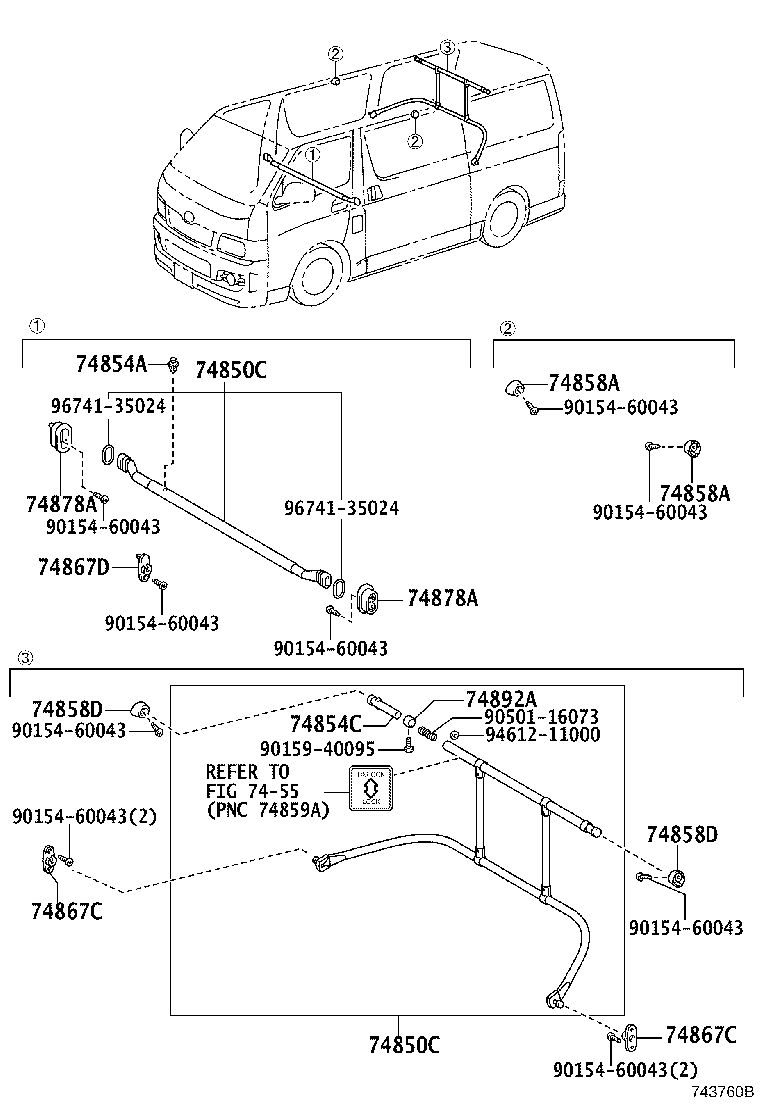

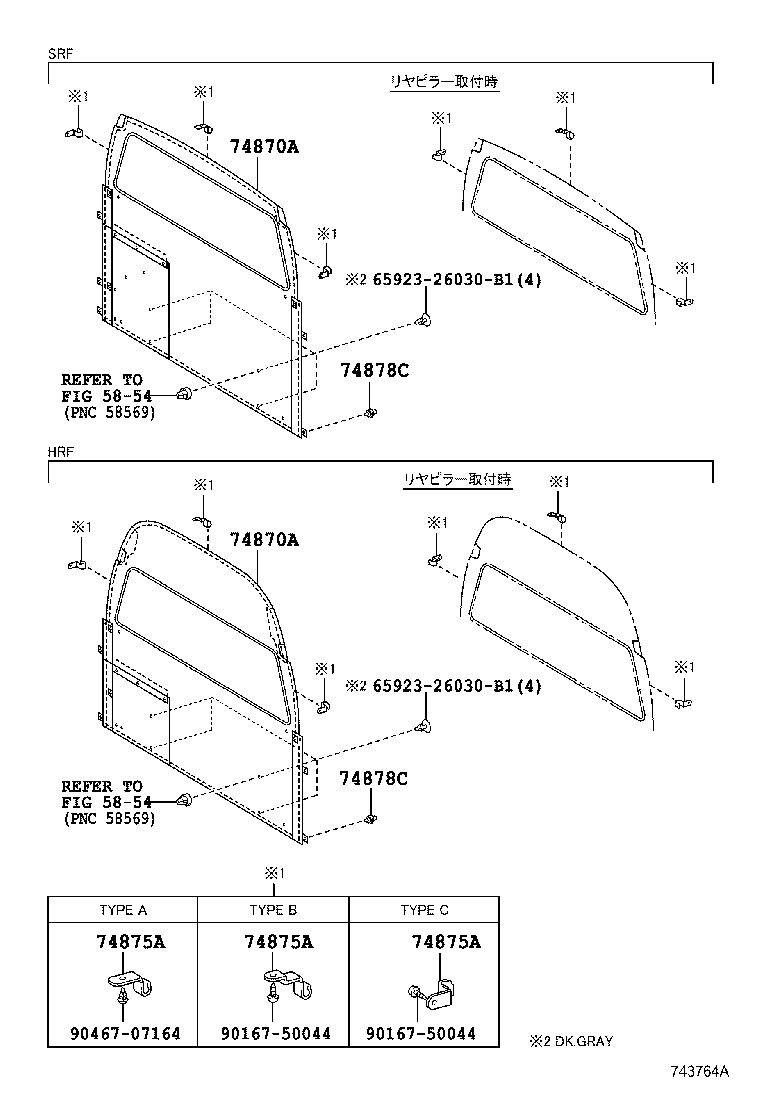

Figure 743758A 743758A 2013-12 → — Figure 743758A 743758A 2013-12 → — Figure 743758A 743758A 2013-12 → — Figure 743760B 743760B 2013-12 → — Figure 743763B 743763B 2013-12 → — Figure 743764A 743764A 2013-12 → — Figure 743764A 743764A 2013-12 → —

Part groups

PNCDescription
74658D Cover, Hand Rail
74810E Bar Assy, Separator
74813C Clip
74825E Bracket, Separator, RH
74826D Bracket, Separator, LH
74850C Bar Assy, Separator
74854A Stop, Separator
74854C Stop, Separator
74858A Bracket, Separator Bar, Upper
74858D Bracket, Rear Separator Bar, Upper
74867C Bracket, Separator Bar, Lower
74867D Bracket, Separator Bar, Lower
74870A Curtain Assy, Separator
74875A Plate, Curtain Rear Separator
74878A Bracket, Separator Bar, Lower
74878B Bracket, Separator Bar, Lower RH
74878C Fastener, Separator Curtain
74879B Bracket, Separator Bar, Lower LH
74892A Cover, Separator Bar, NO.2
74898 Pad, Separator Bar
C6390 Handlail Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
