Battery Carrier

4 part groups · 2 illustrations

Illustrations

Figure 743756A

743756A 2013-12 → 2015-01

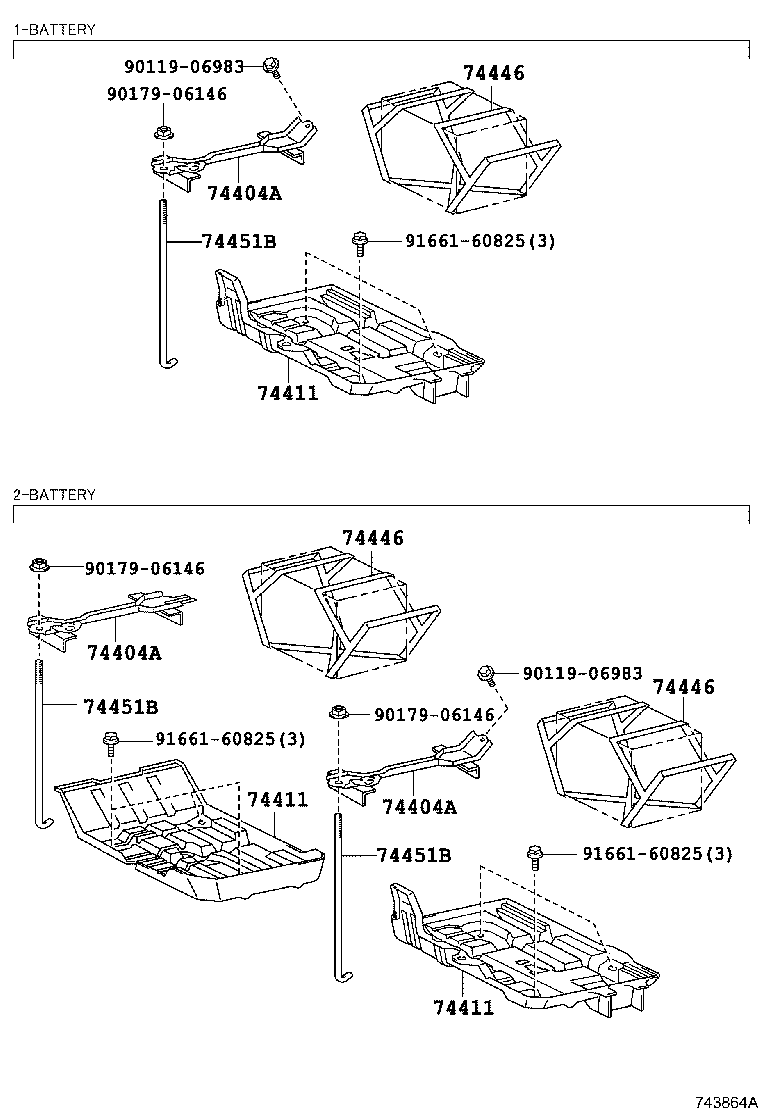

Figure 743864A

743864A 2015-01 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74411	Carrier, Battery
74446	Band, Battery
74451B	Bolt, Battery Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
