Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

31 part groups · 6 illustrations

Illustrations

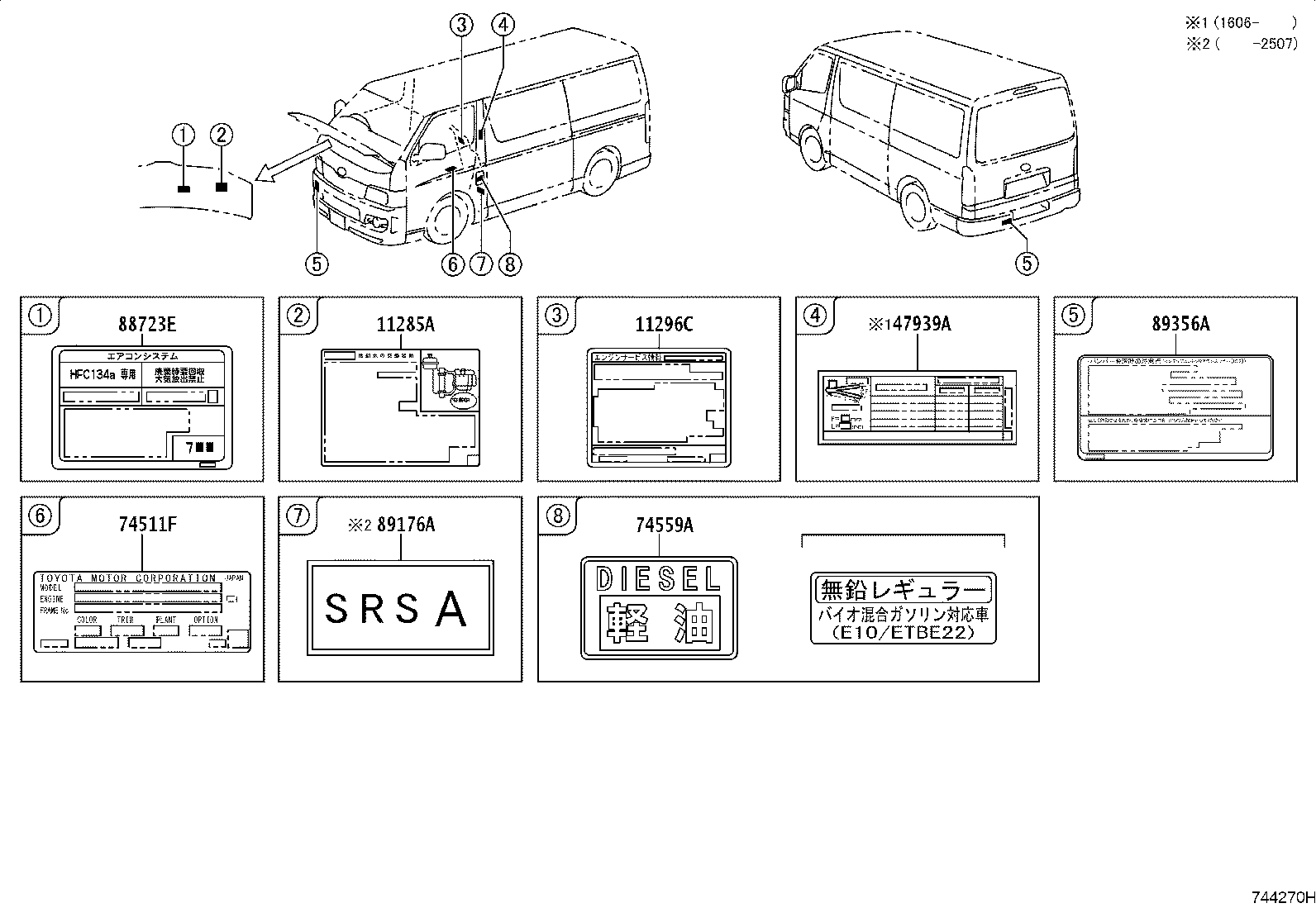

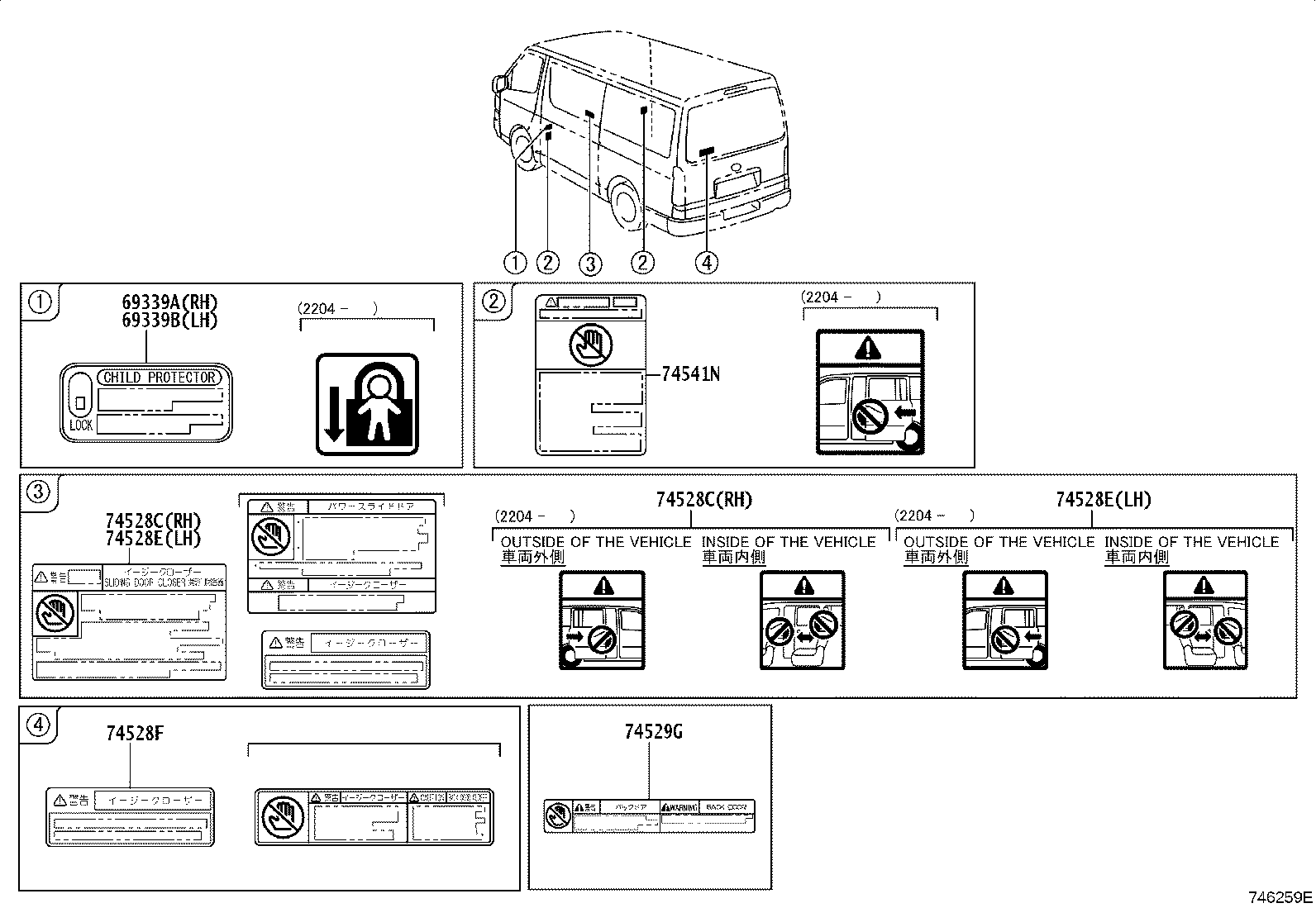

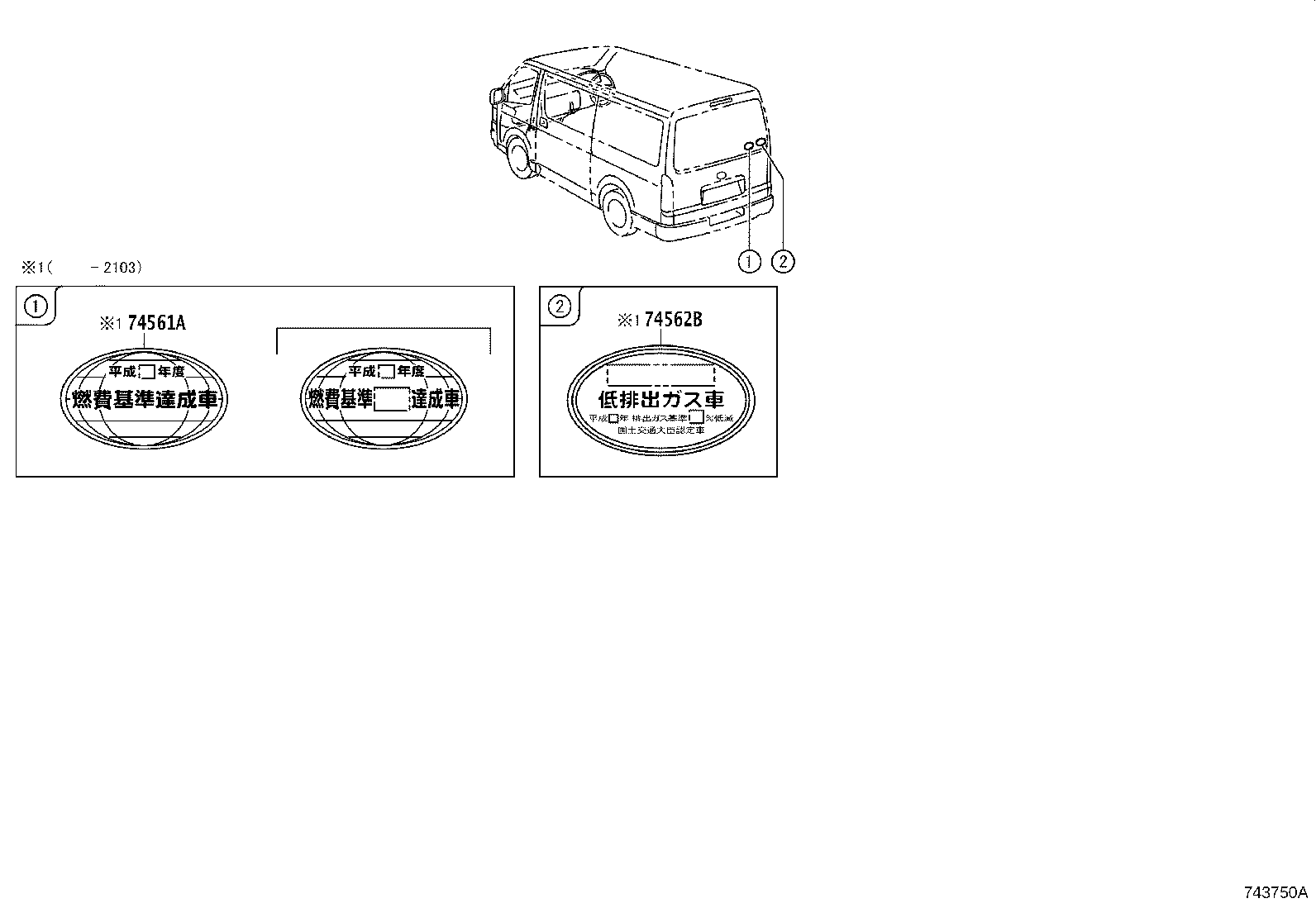

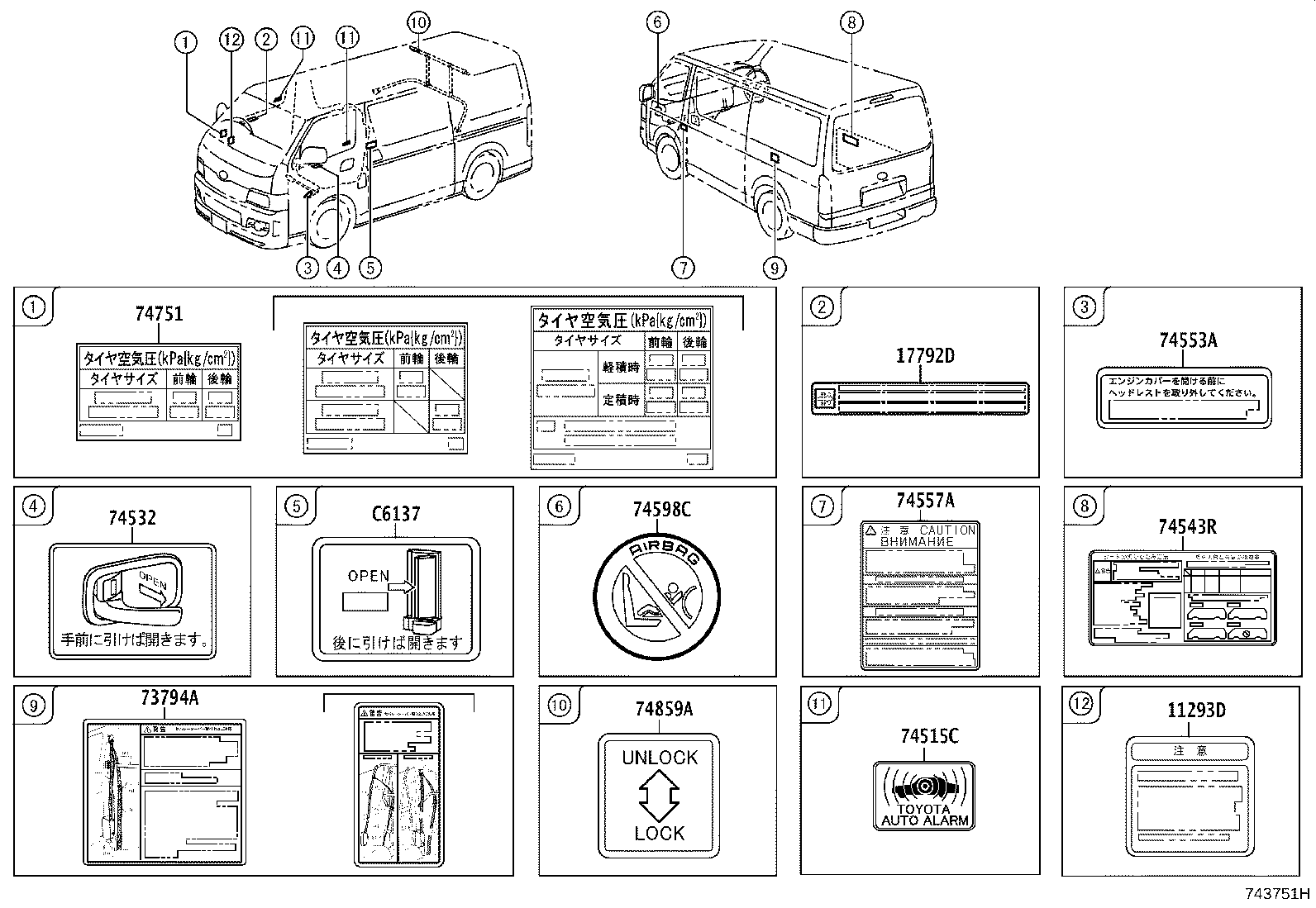

Figure 745378 745378 2013-12 → — Figure 744270H 744270H 2013-12 → — Figure 746259E 746259E 2013-12 → — Figure 743750A 743750A 2013-12 → — Figure 743751H 743751H 2013-12 → — Figure 744882 744882 2013-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
17791A Label, Maintenance Information
17792D Label, Emission Control Device Information
47939A Plate, Load Sensing Valve Marking
69339A Plate, Child Protector Lock Caution
69339B Plate, Child Protector Lock Caution
73794A Label, Rear Separator Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515C Label, Theft Warning Information
74528C Label, Power Slide Door Notice
74528E Label, Power Slide Door Notice
74528F Label, Door Closer Caution, RH
74532 Plate, Door Inside Handle Caution, LH
74541N Label, Body Caution
74543M Label, Rear Seat Caution, NO.2
74543R Label, Rear Seat Caution
74553A Plate, Front Seat Caution
74557A Plate, Engine Service Hole Cover Balance Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
74859A Plate, Caution, Rear Separator
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89356A Label, Clearance Warning Information
C6137 Label, Slide Door Handle Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
