Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

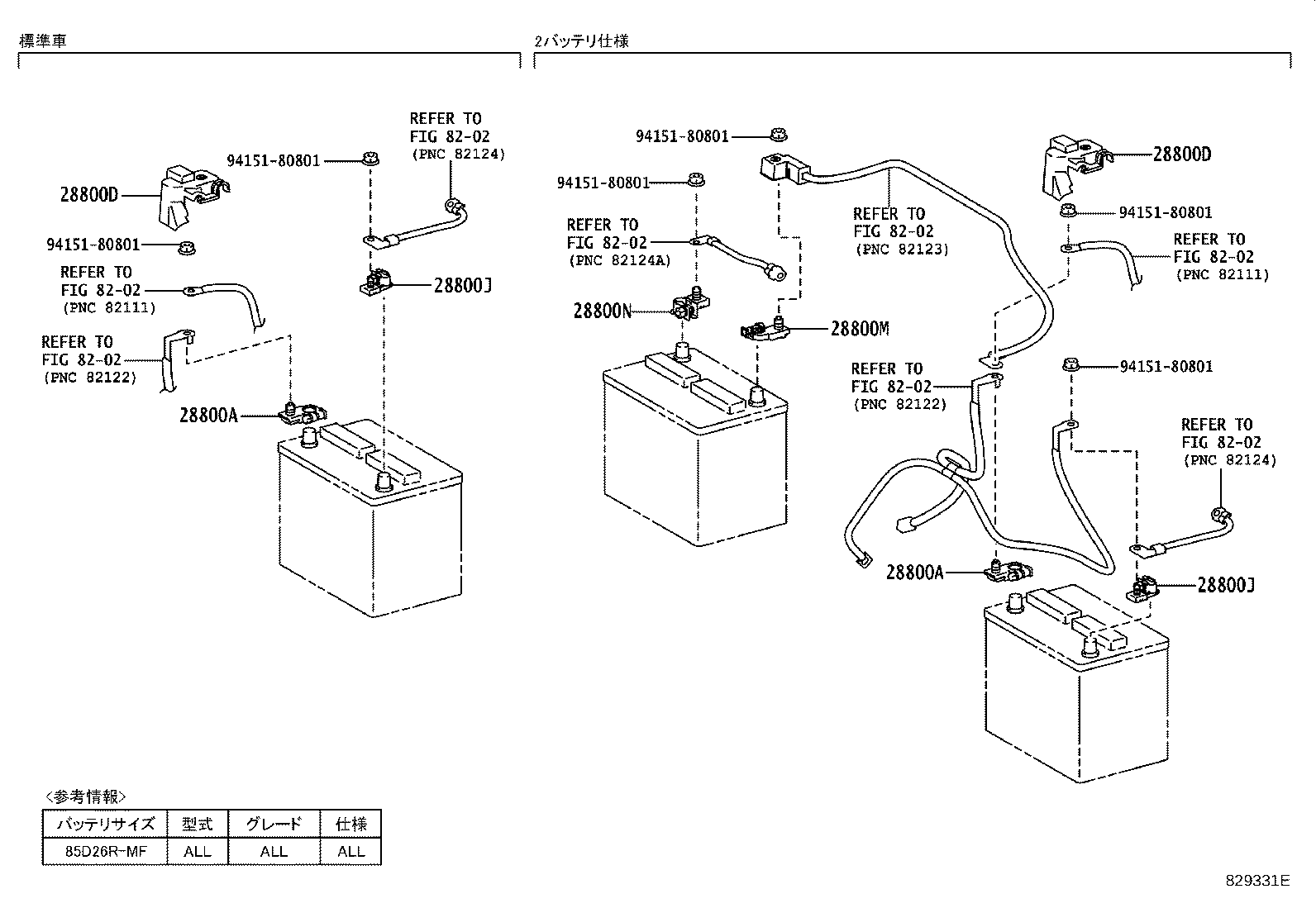

Battery & Battery Cable
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28800M | Terminal, Battery Positive |
| 28800N | Terminal, Battery Negative |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
