Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05
Overdrive & Electronic Controlled Transmission
10 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

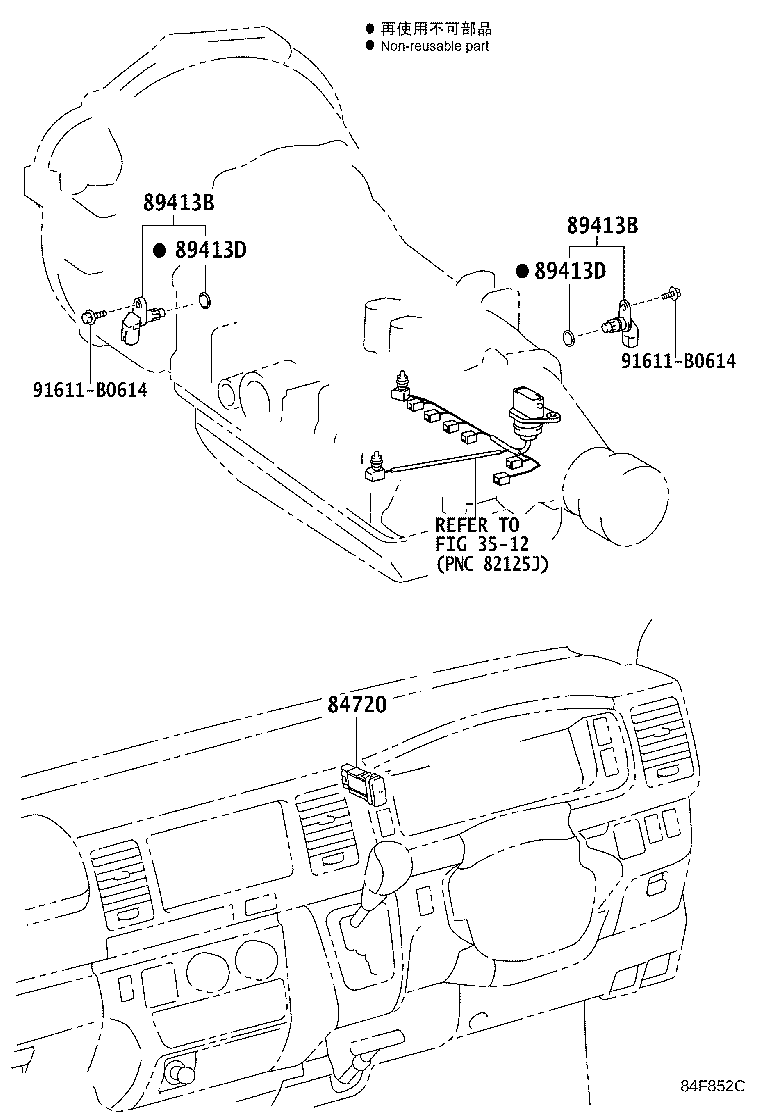

| 84720 | Switch Assy, Pattern Select |
| 85420H | Ring, O(FOR SPEED SENSOR) |

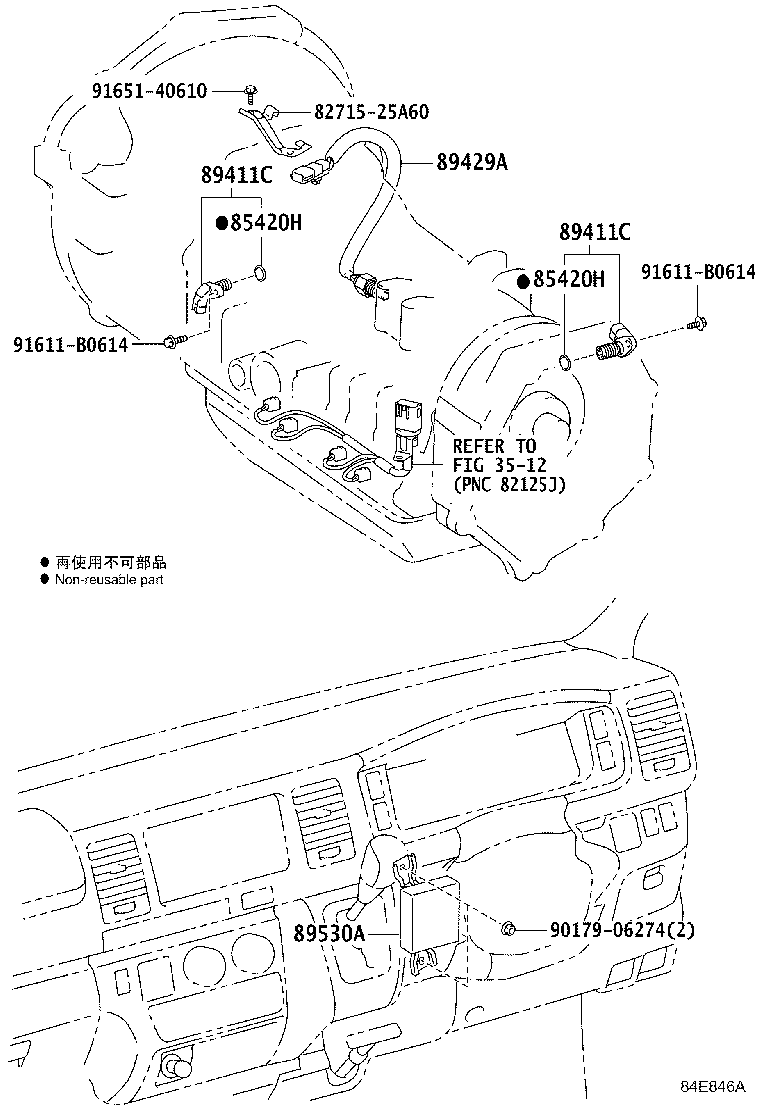

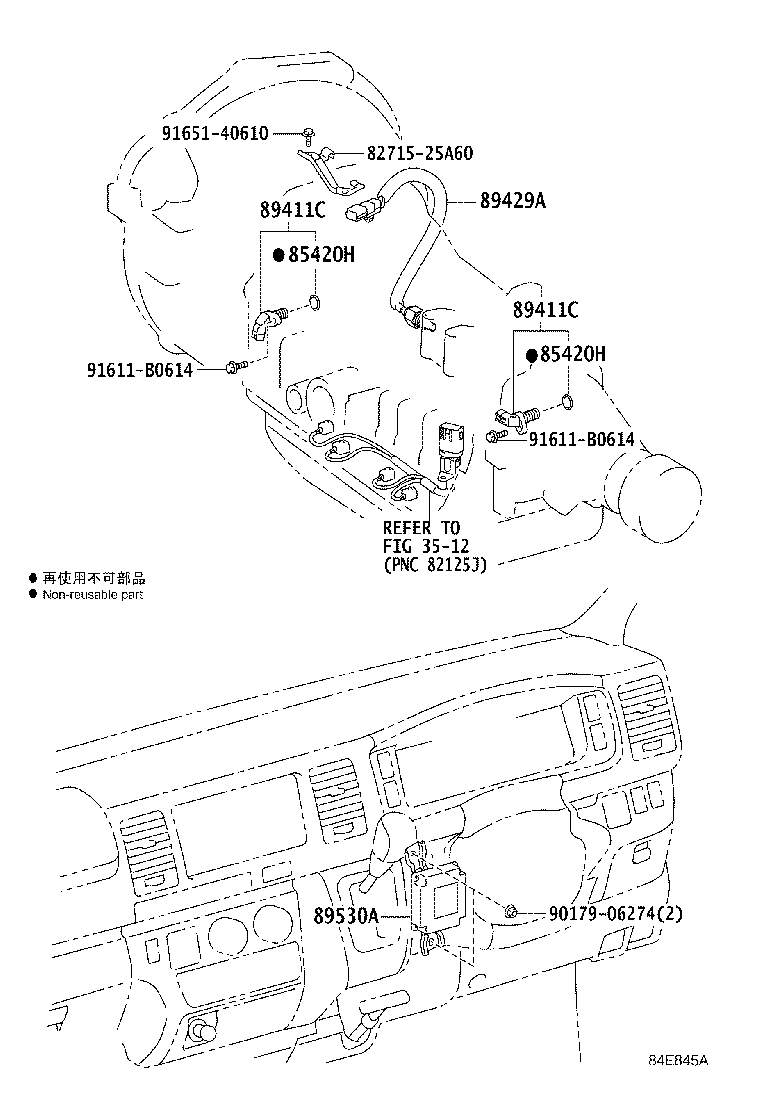

| 89411C | Sensor, Speed |

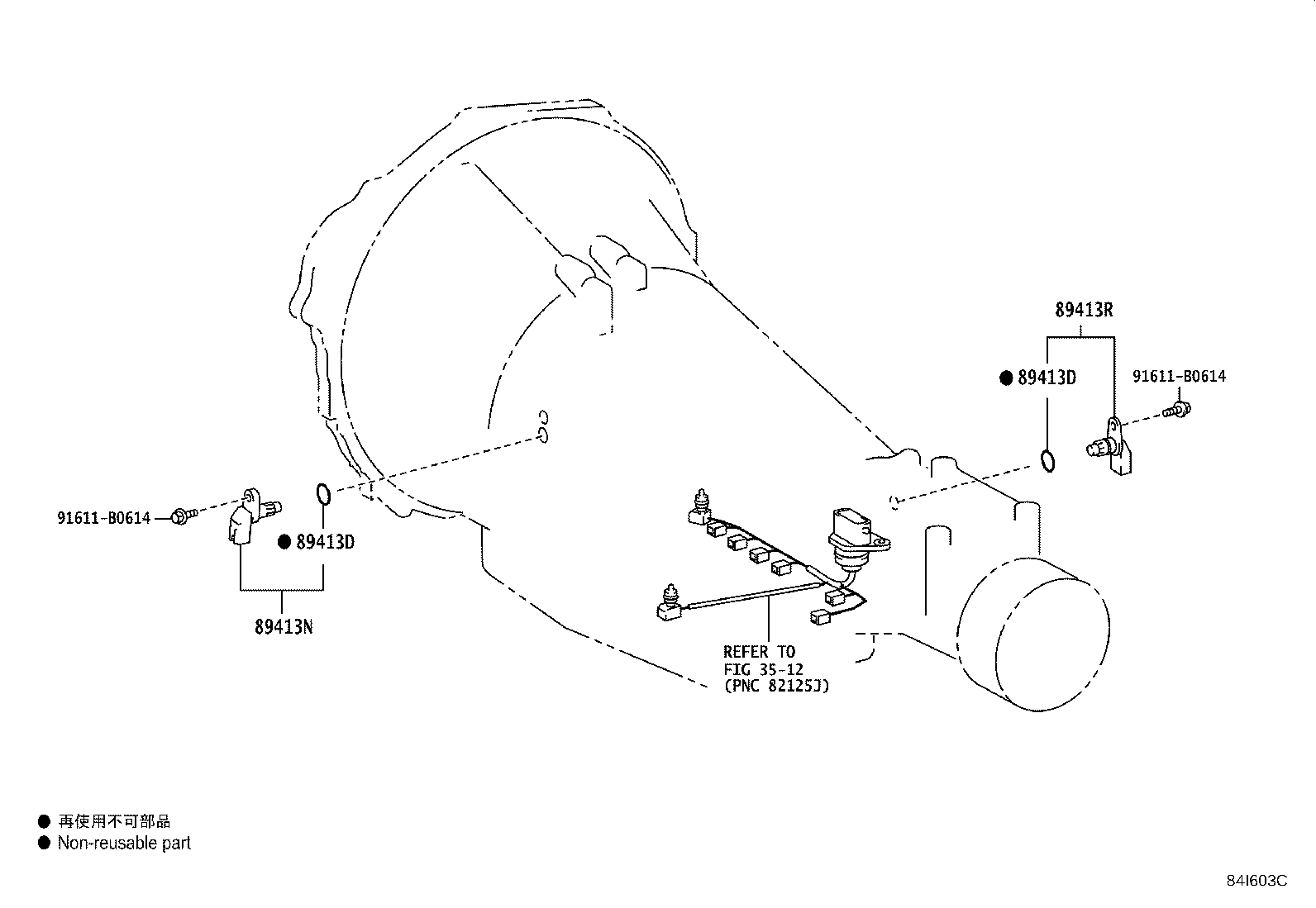

| 89413B | Sensor, Transmission Revolution |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
| 89413N | Sensor, Transmission Revolution, (NT) |
| 89413R | Sensor, Transmission Revolution (SP2) |
| 89429A | Sensor, Temperature |
| 89429D | Ring, O(FOR TEMPERATURE SENSOR) |
| 89530A | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
