Factory parts data · Europe

Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

Figure 84I961C

84I961C 2013-12 → —

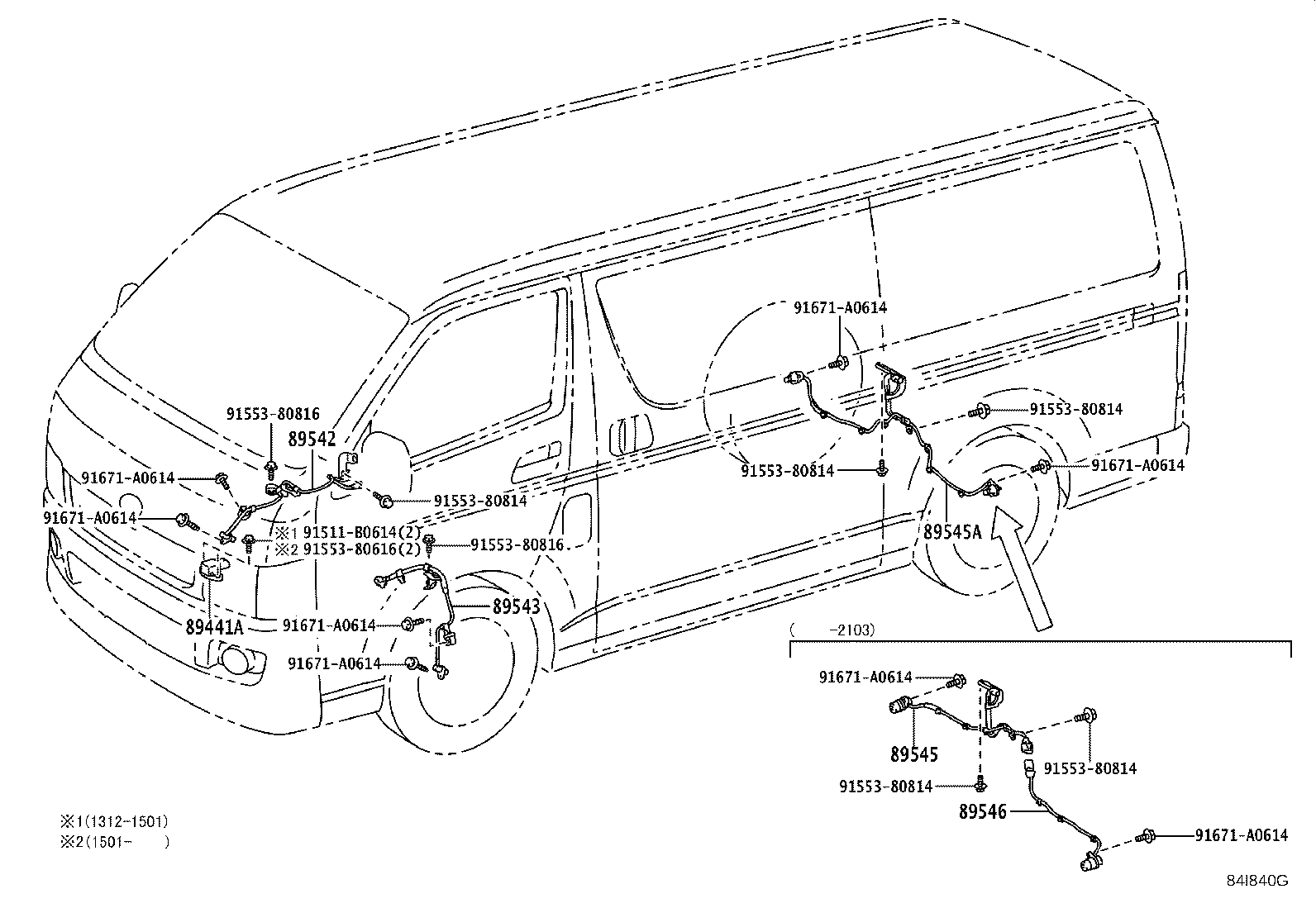

Figure 84E840G

84E840G 2013-12 → —

Part groups

PNC	Description
89441A	Sensor, Deceleration
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89545A	Sensor, Speed, Rear
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
