Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05
Wireless Door Lock

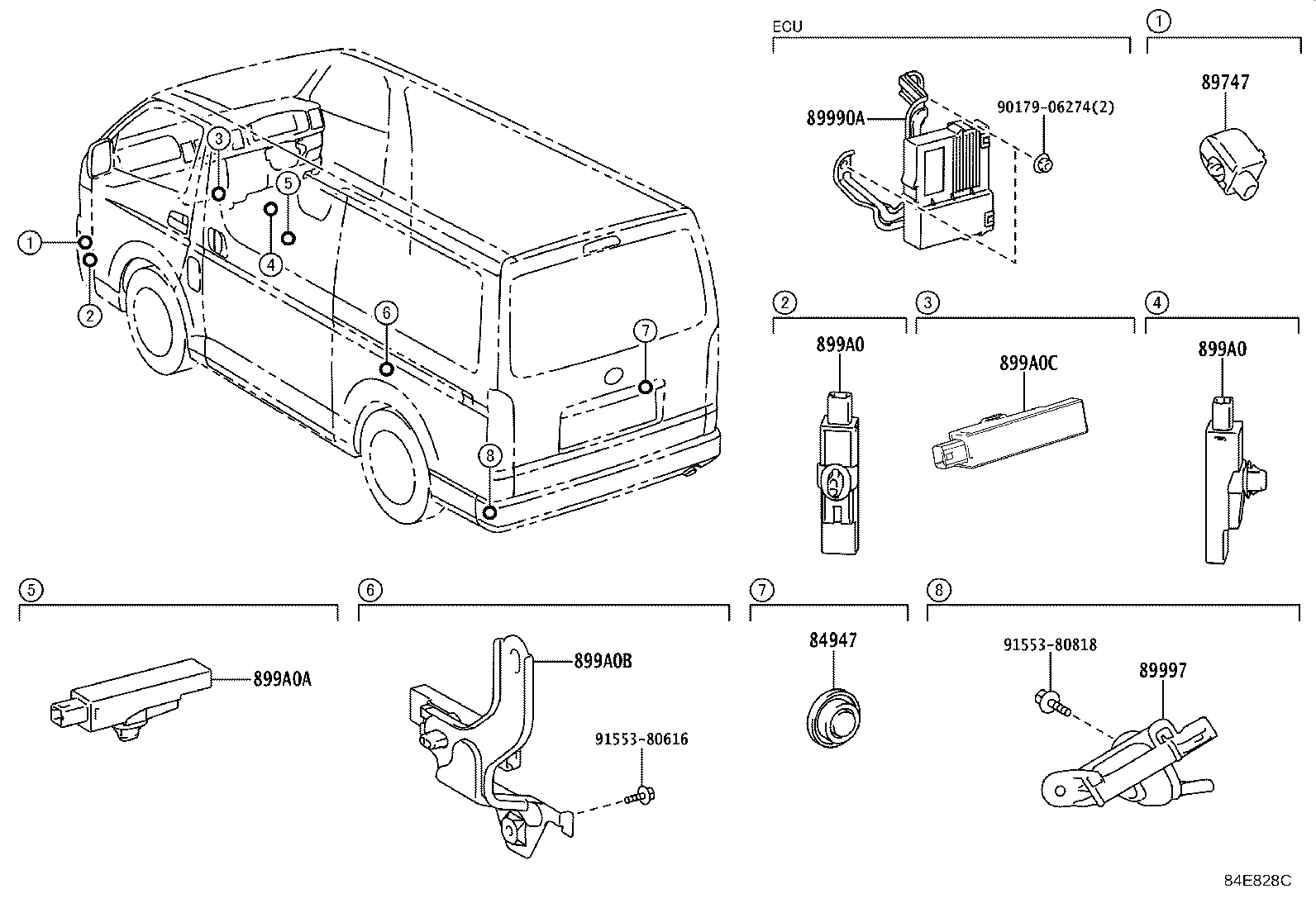

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84947 | Cover, Door Electrical Key Switch |
| 89741 | Receiver, Door Control |
| 89747 | Buzzer, Wireless Door Lock |
| 89990A | Computer Assy, Smart Key |
| 89997 | Antenna, Electrical Key |
| 899A0 | Antenna Assy, Indoor Electrical Key, NO.1 |
| 899A0A | Antenna Assy, Indoor Electrical Key, NO.2 |
| 899A0B | Antenna Assy, Indoor Electrical Key, NO.3 |
| 899A0C | Antenna Assy, Indoor Electrical Key, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
