Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

9 part groups · 2 illustrations

Illustrations

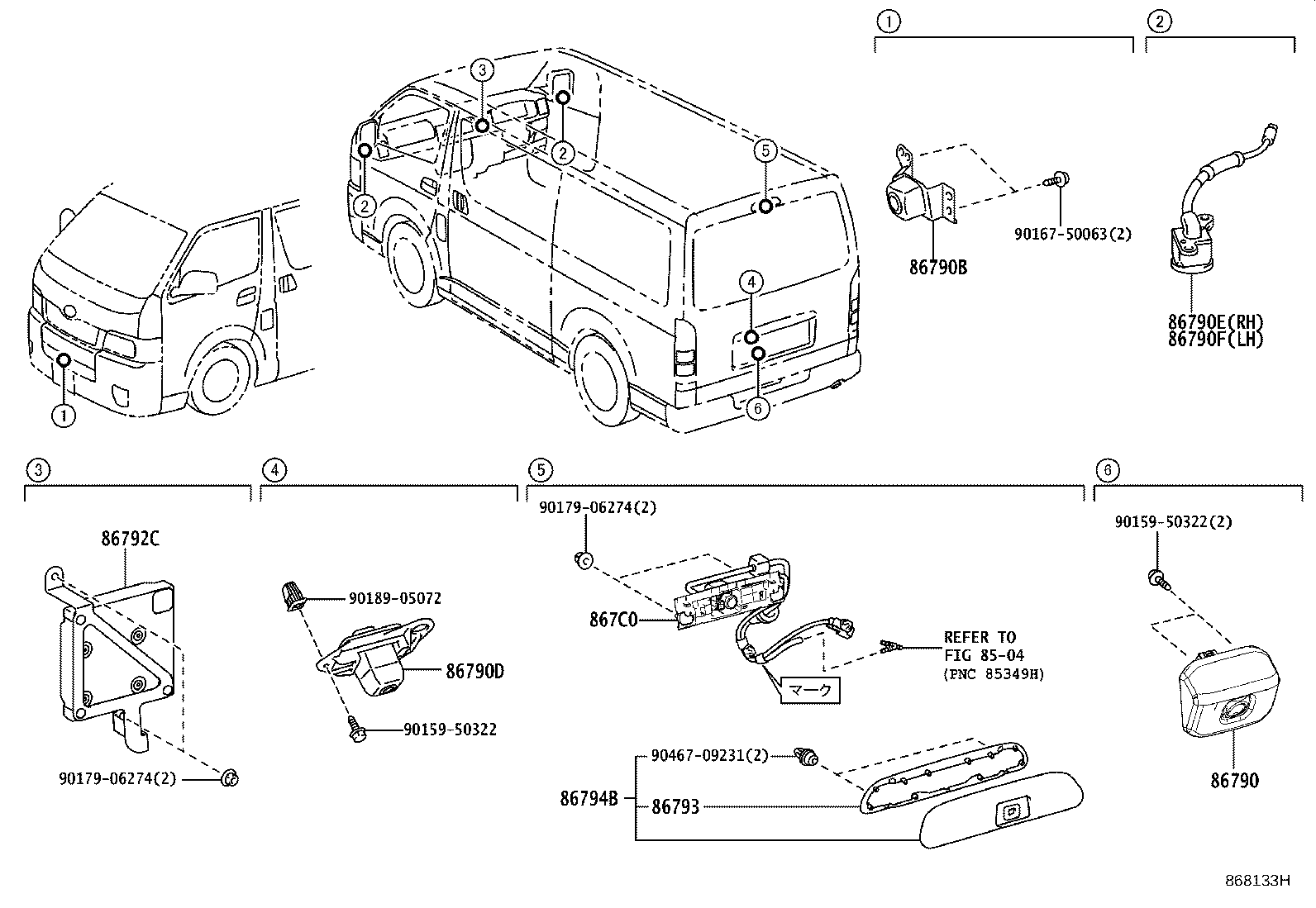

Figure 865651A 865651A 2013-12 → 2020-05 Figure 868133H 868133H 2020-05 → —

Part groups

PNCDescription
86790 Camera Assy, Television
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
86793 Spacer, Camera Bracket
86794B Cover, Television Camera
867C0 Camera Assy, Inner Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
