Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

17 part groups · 4 illustrations

Illustrations

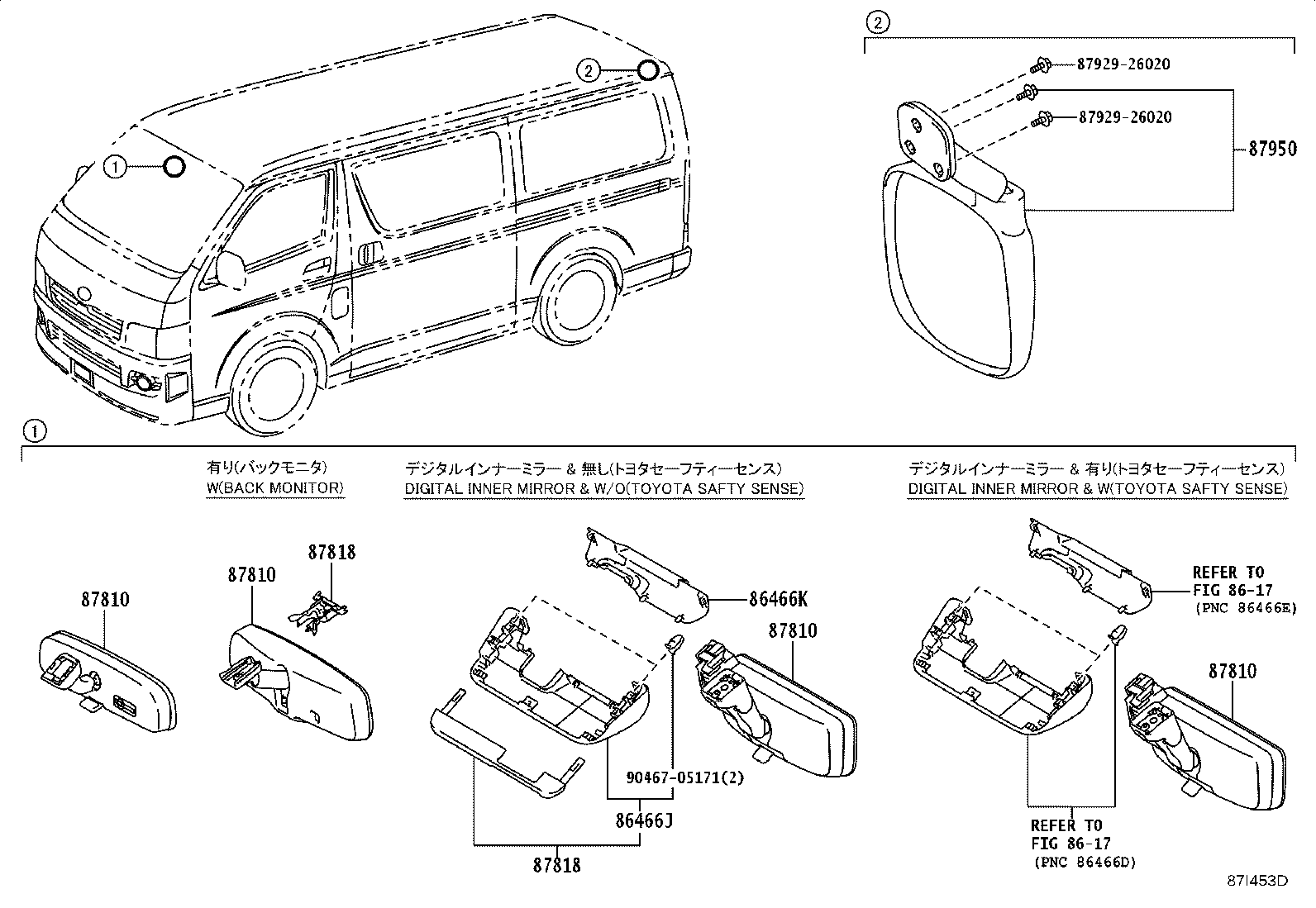

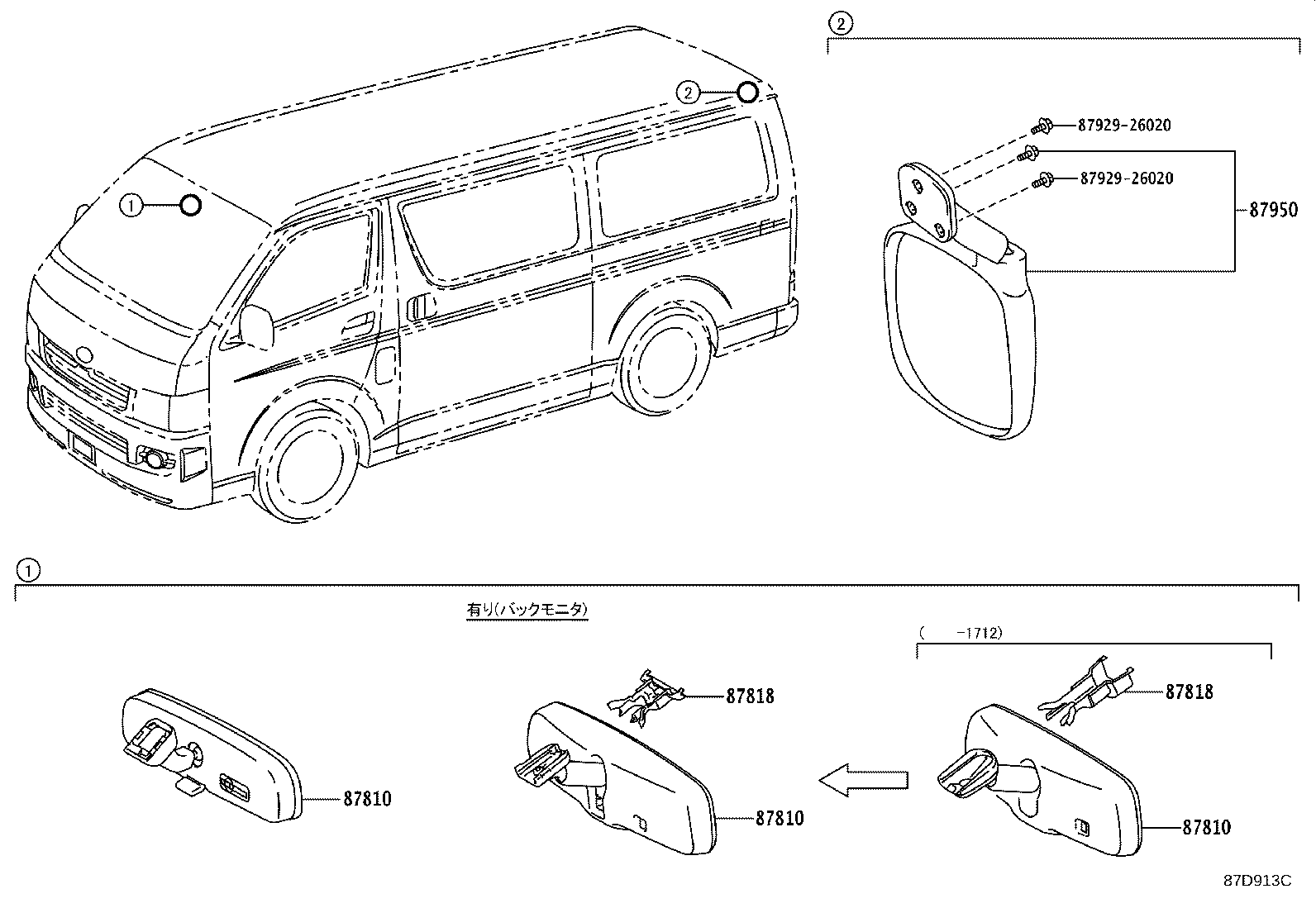

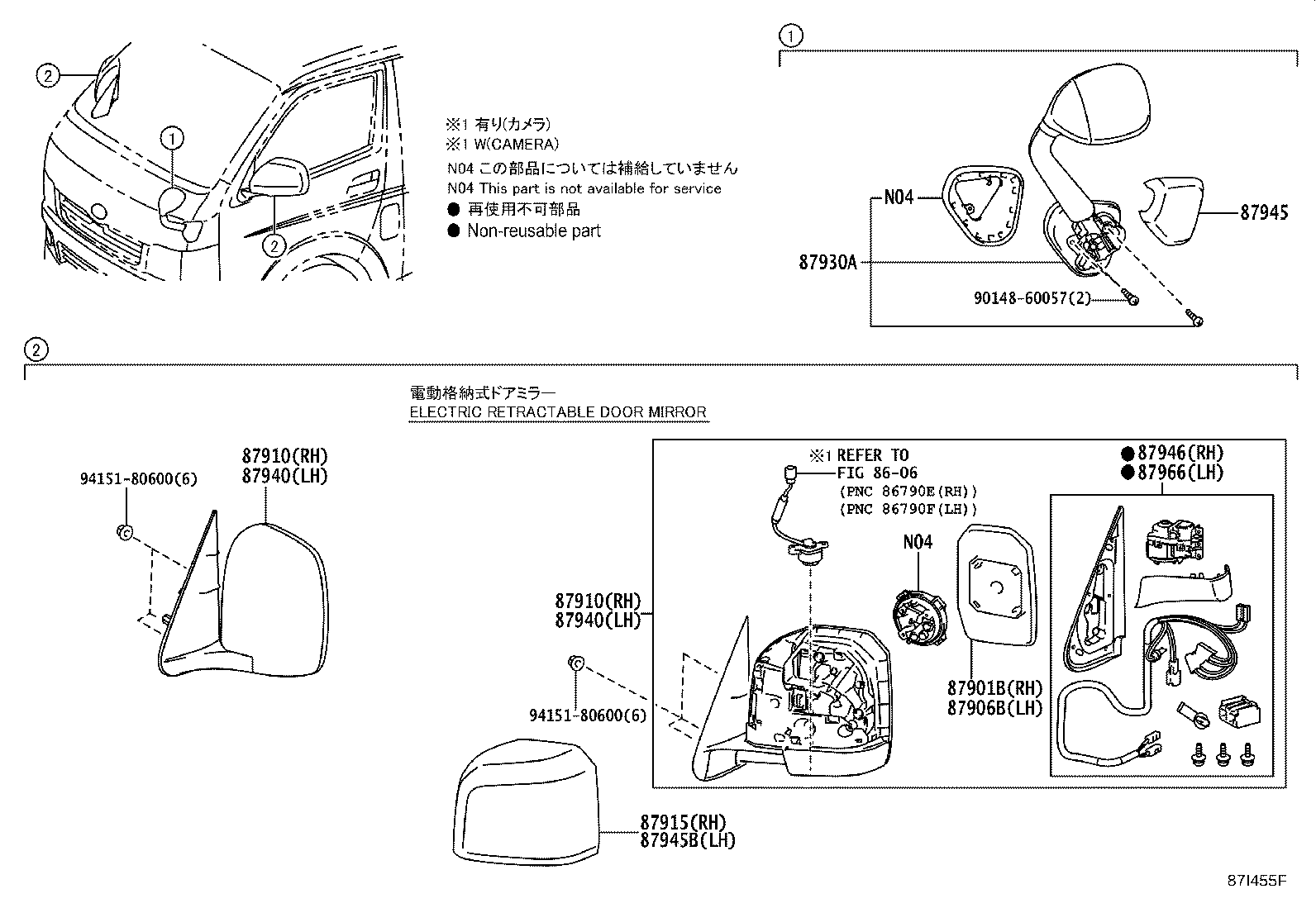

Figure 87D914M 87D914M 2013-12 → 2020-05 Figure 87I455F 87I455F 2020-05 → — Figure 87D913C 87D913C 2013-12 → 2020-05 Figure 87I453D 87I453D 2020-05 → —

Part groups

PNCDescription
86466J Cover, Forward Recognition, NO.1
86466K Cover, Forward Recognition, NO.2
87810 Mirror Assy, Inner Rear View
87818 Cover, Inner RR View Mirror
87901B Mirror Sub-assy, Outer Rear View, RH
87905A Arm Sub-assy, Outer Rear View Mirror, LH
87906B Mirror Sub-assy, Outer Rear View, LH
87907 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87930A Mirror Assy, Outer Under View
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87945B Cover, Outer Mirror, LH
87946 Retractor, Outer Mirror, RH
87950 Mirror Assy, Outer Under Rear View
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
