Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

29 part groups · 40 illustrations

Illustrations

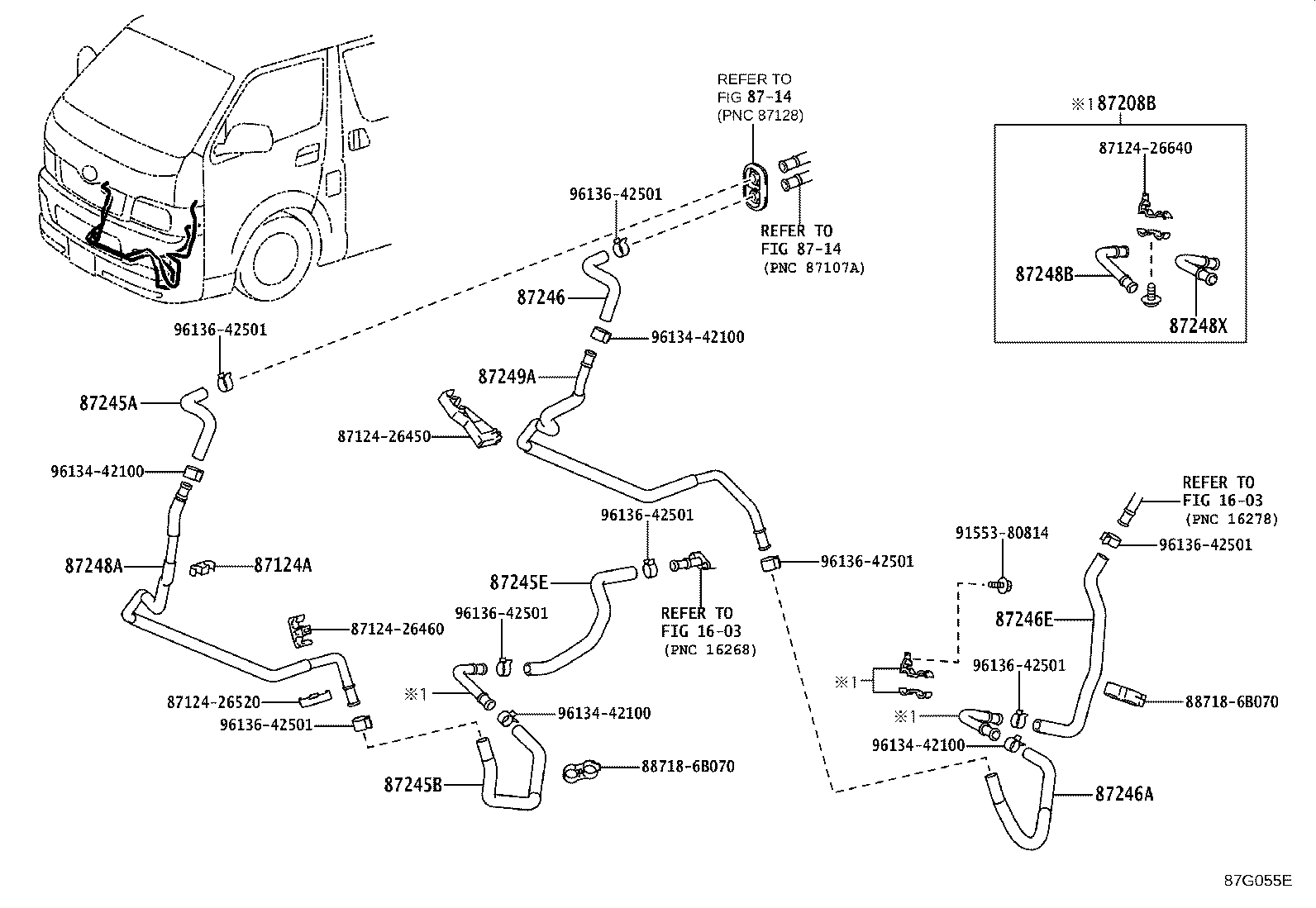

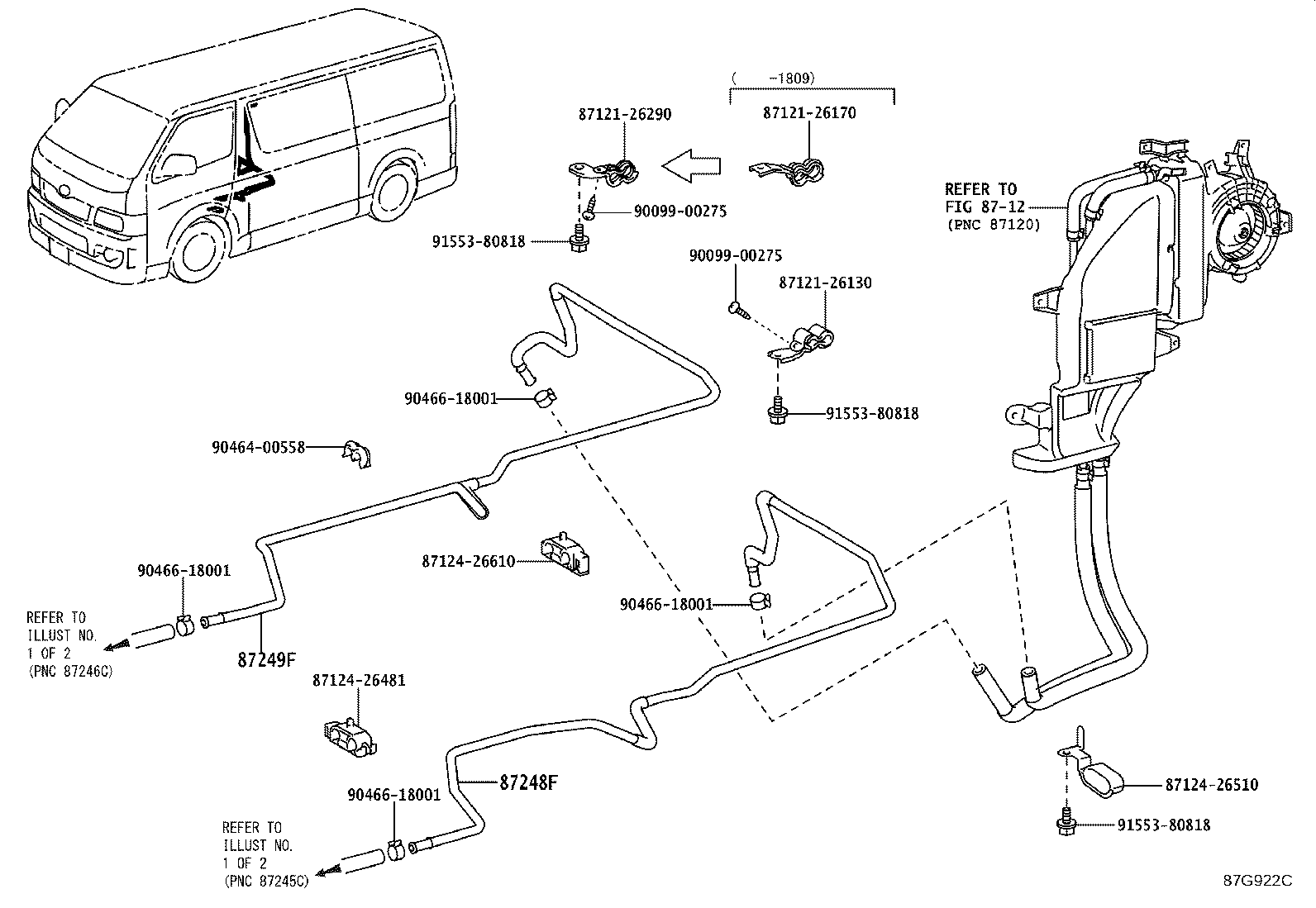

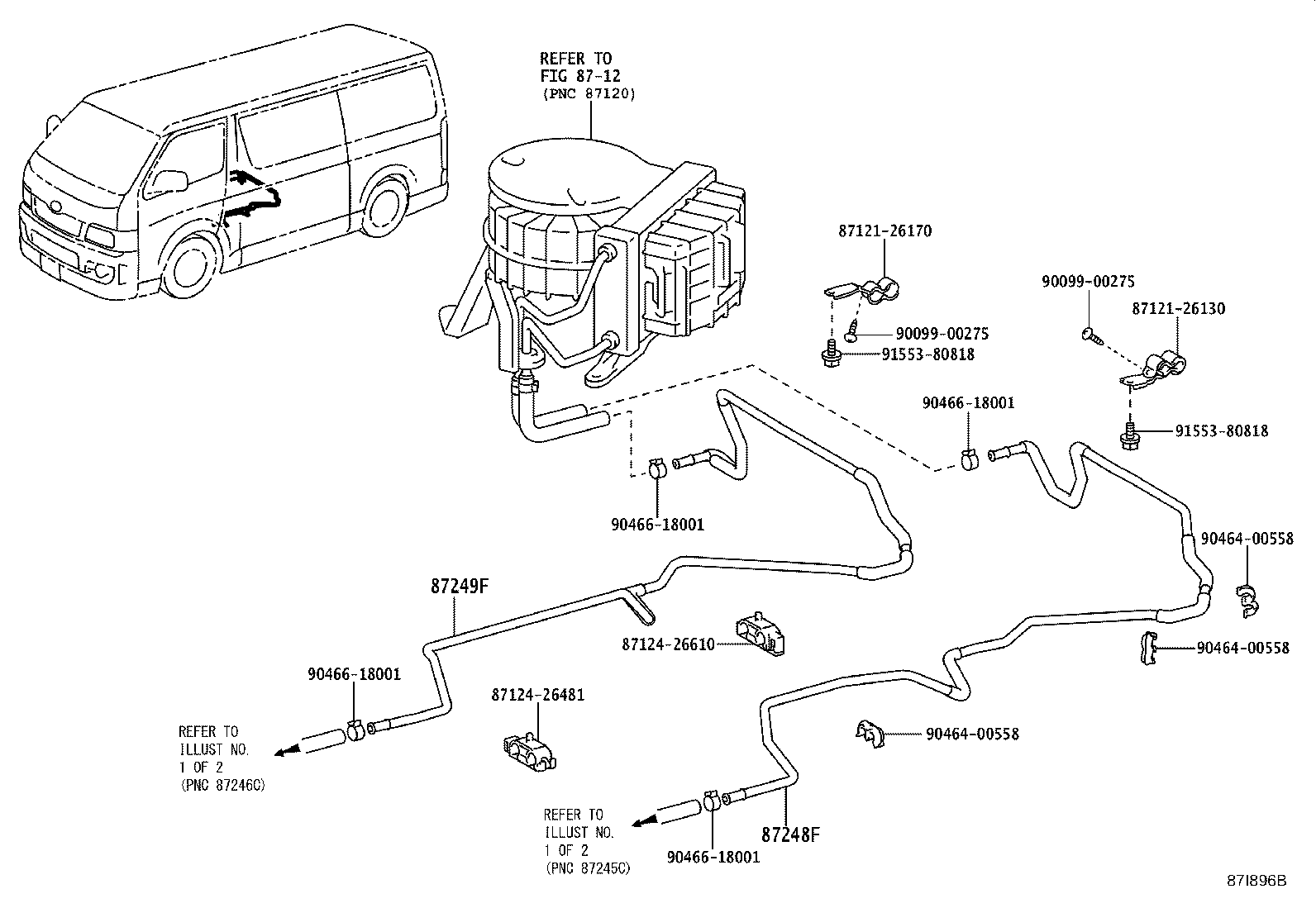

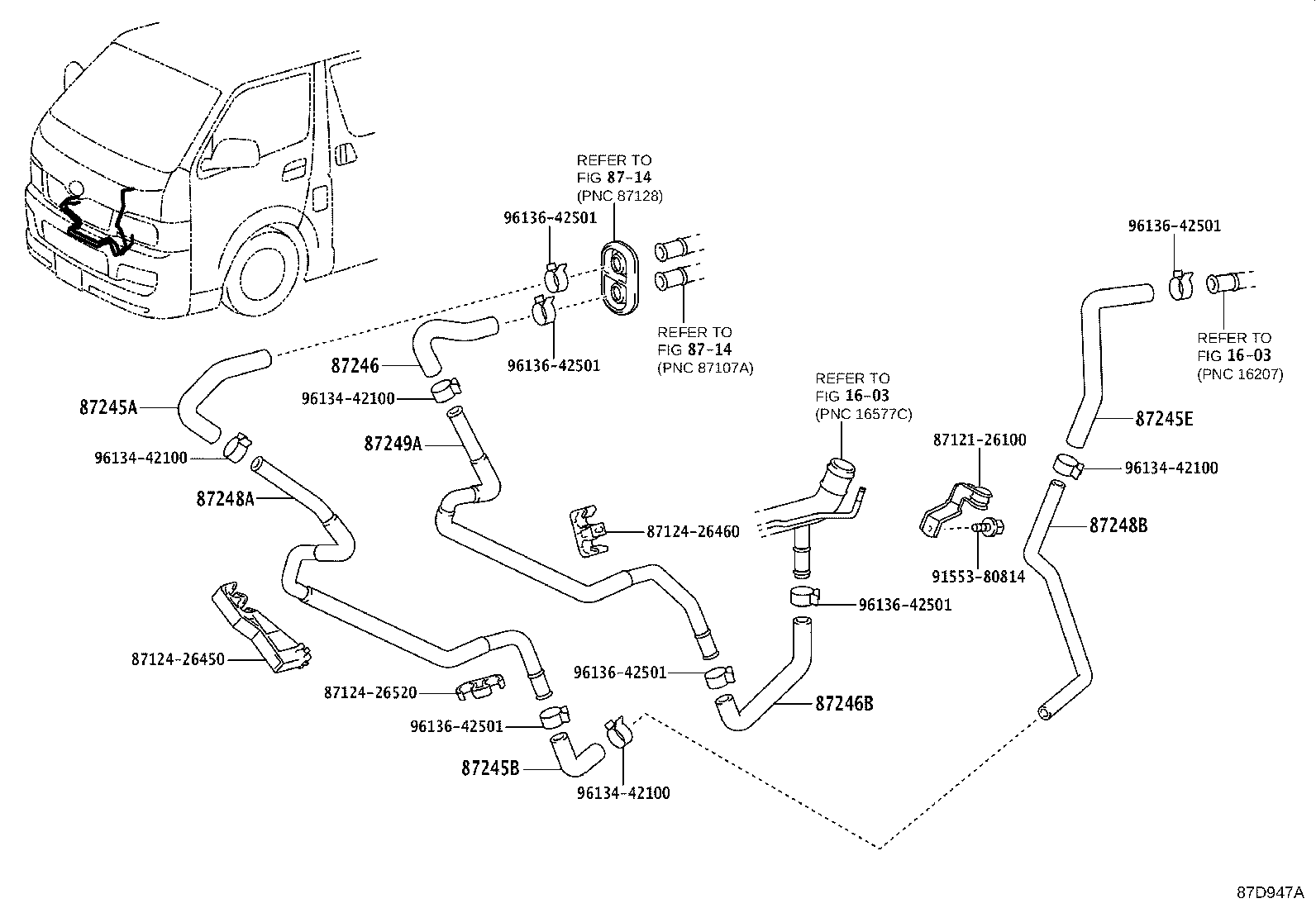

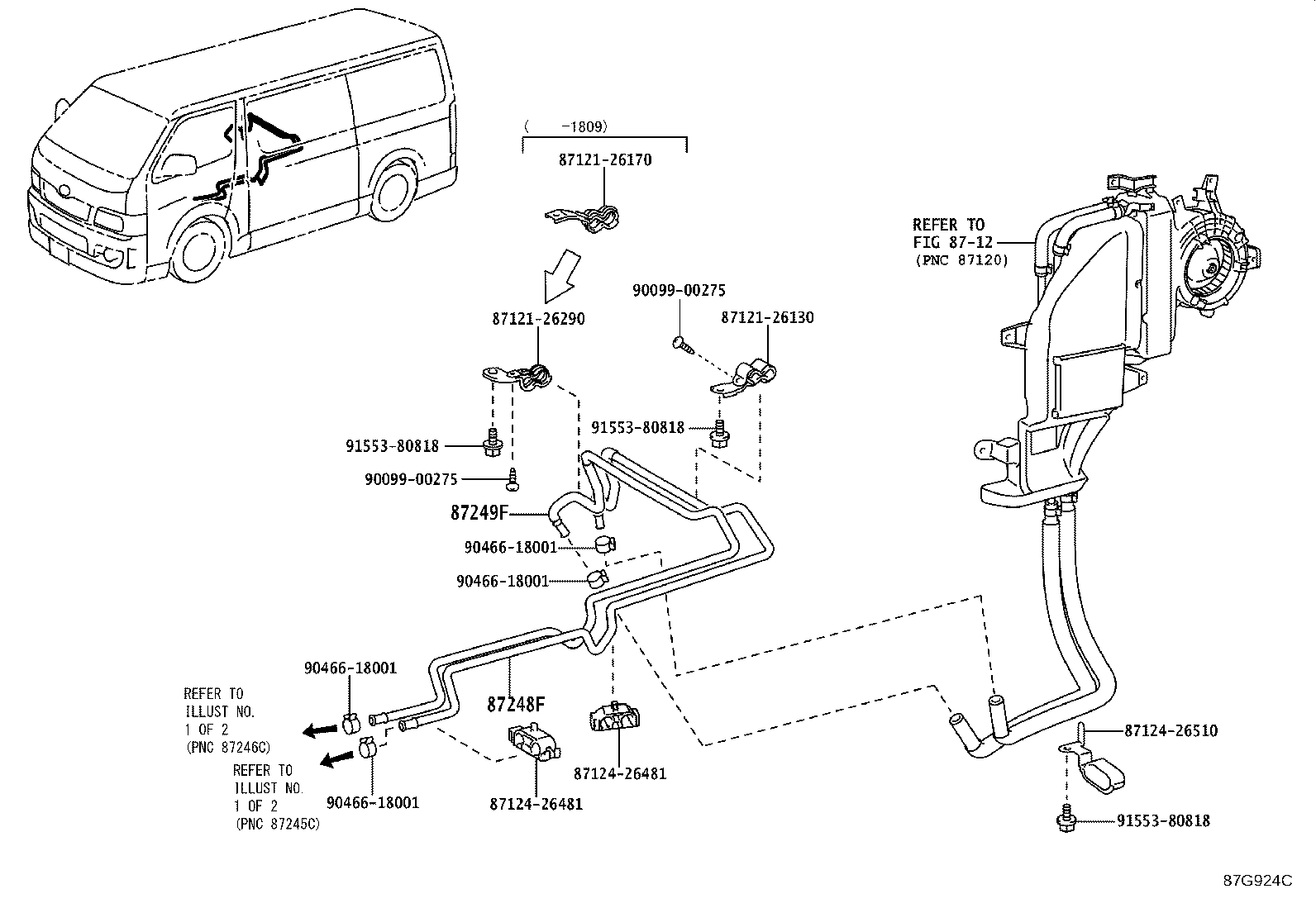

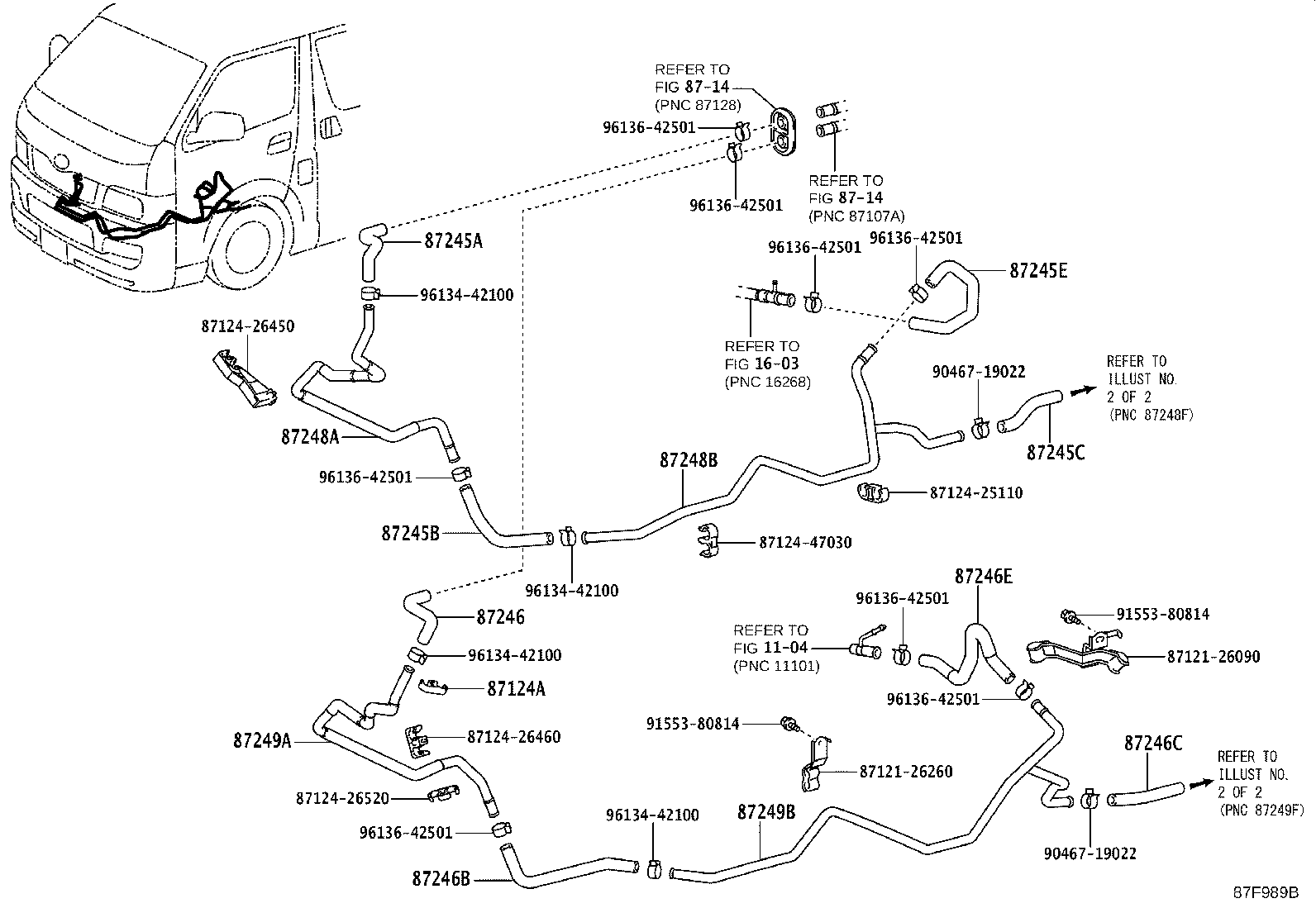

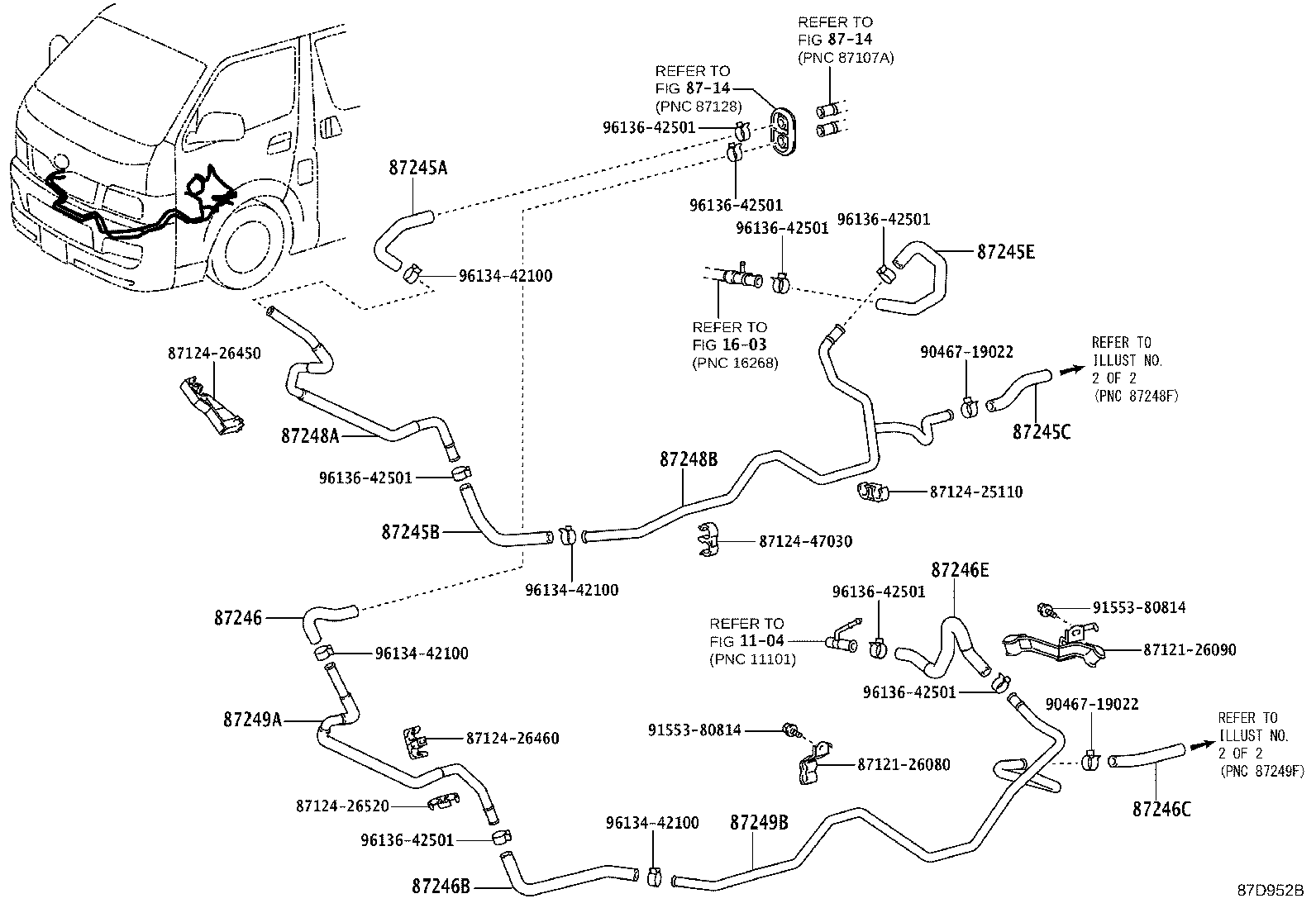

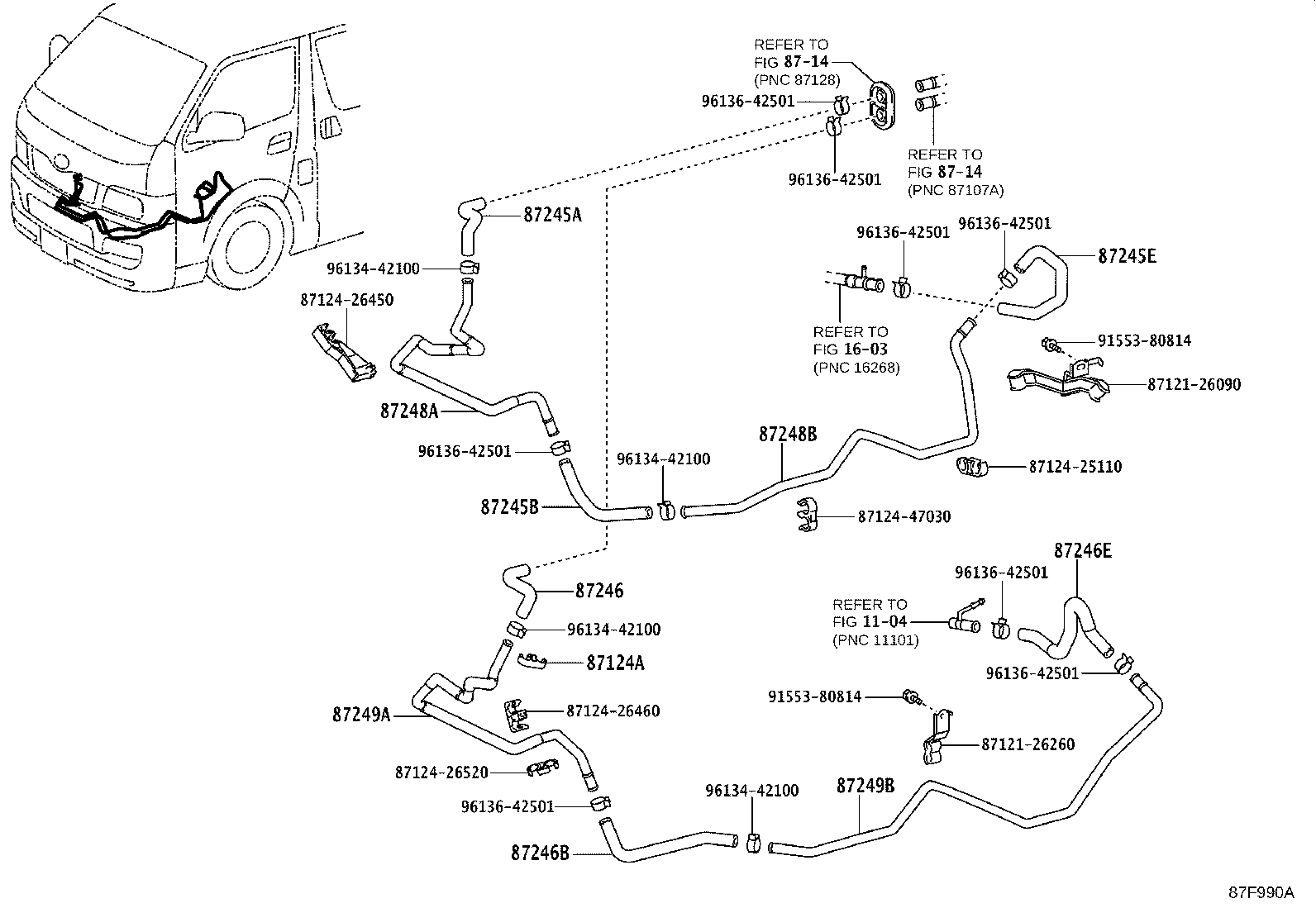

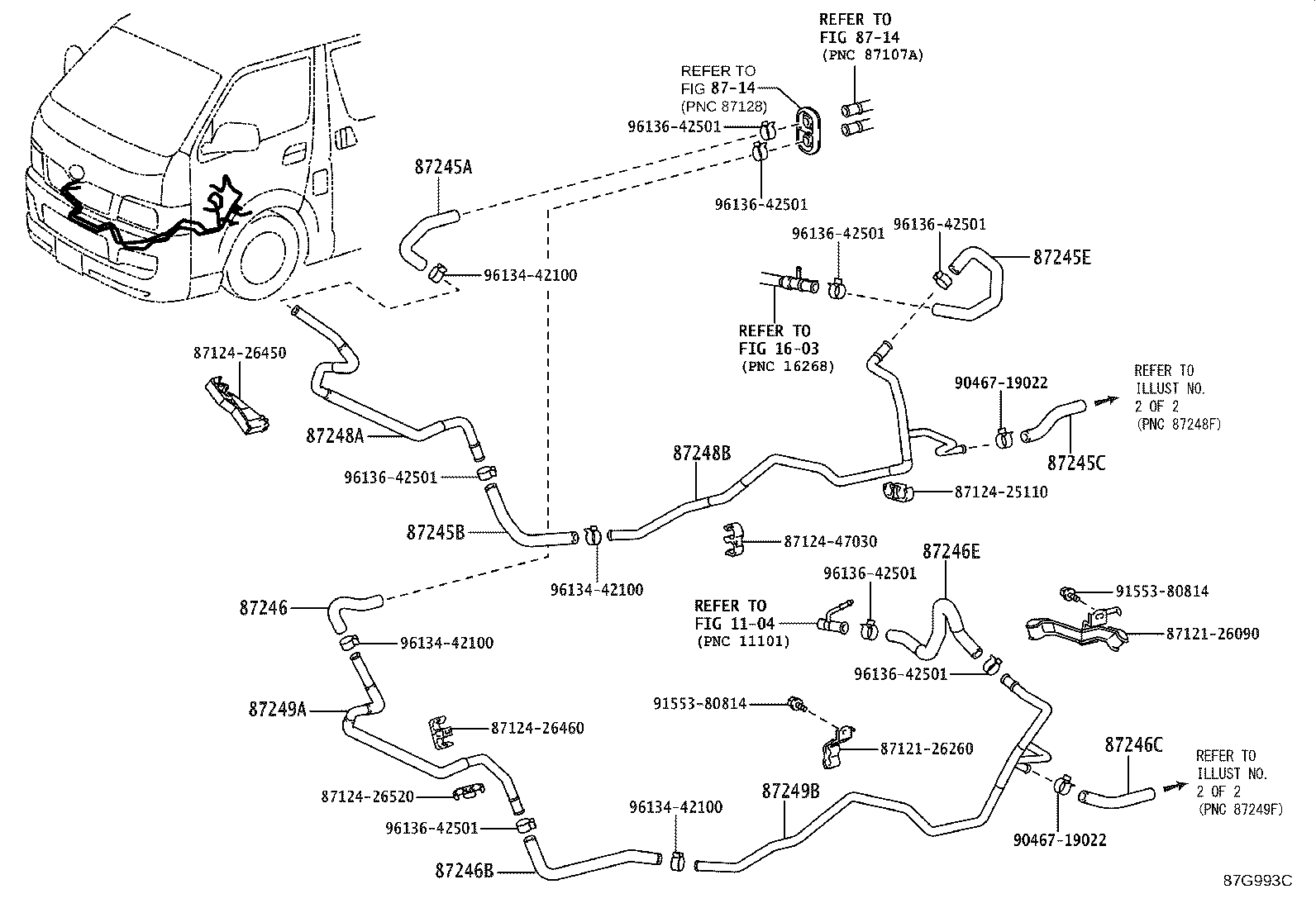

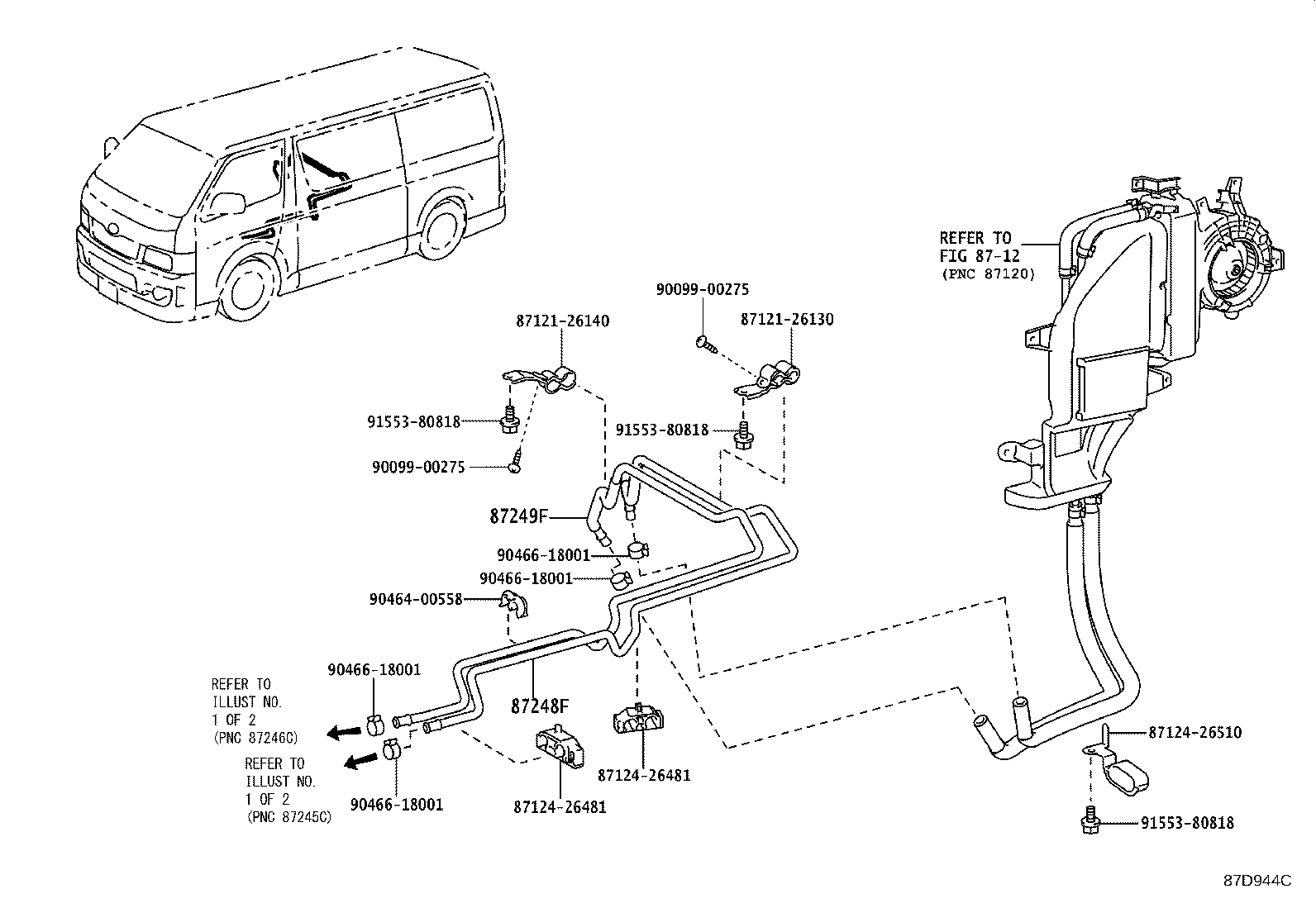

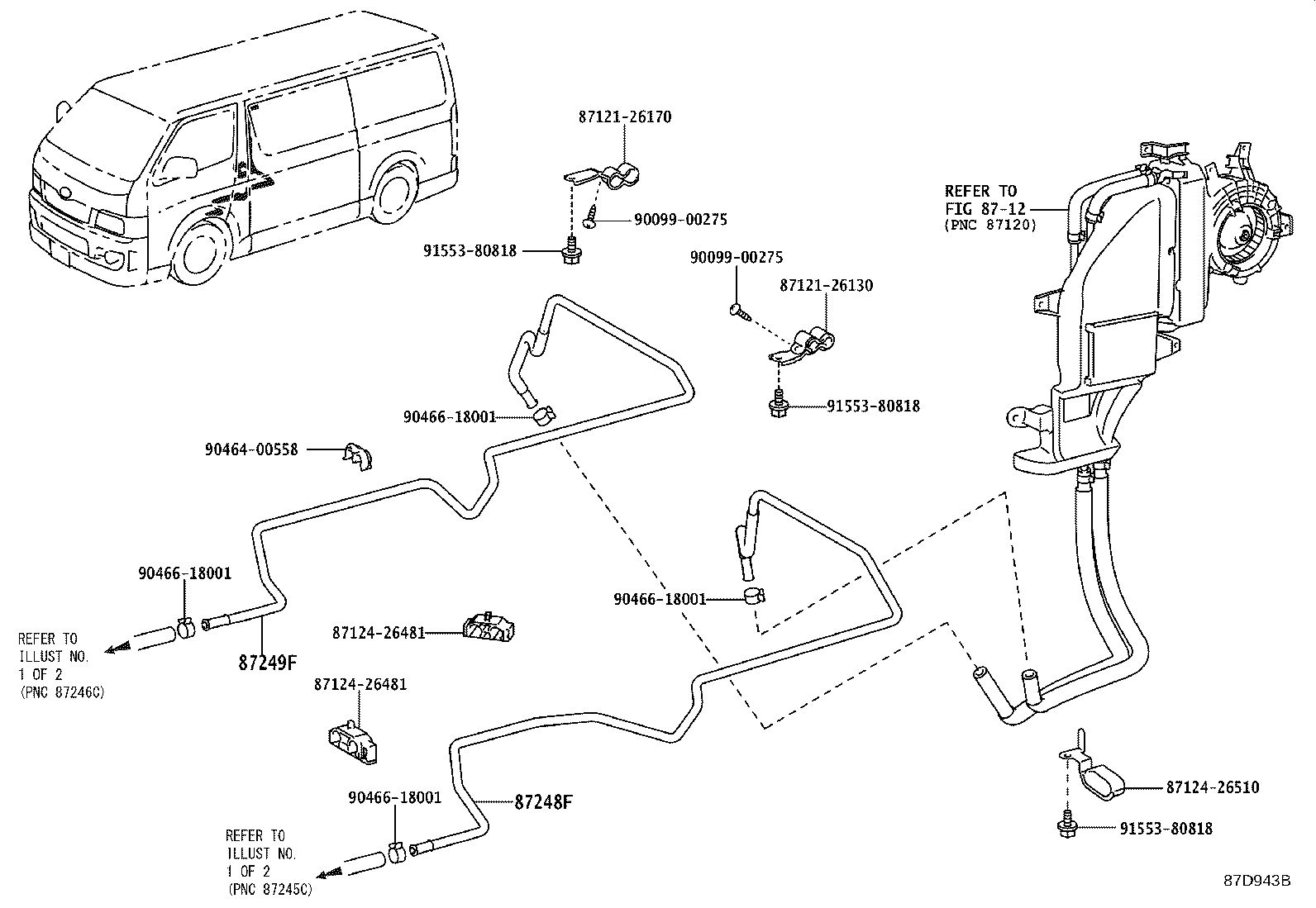

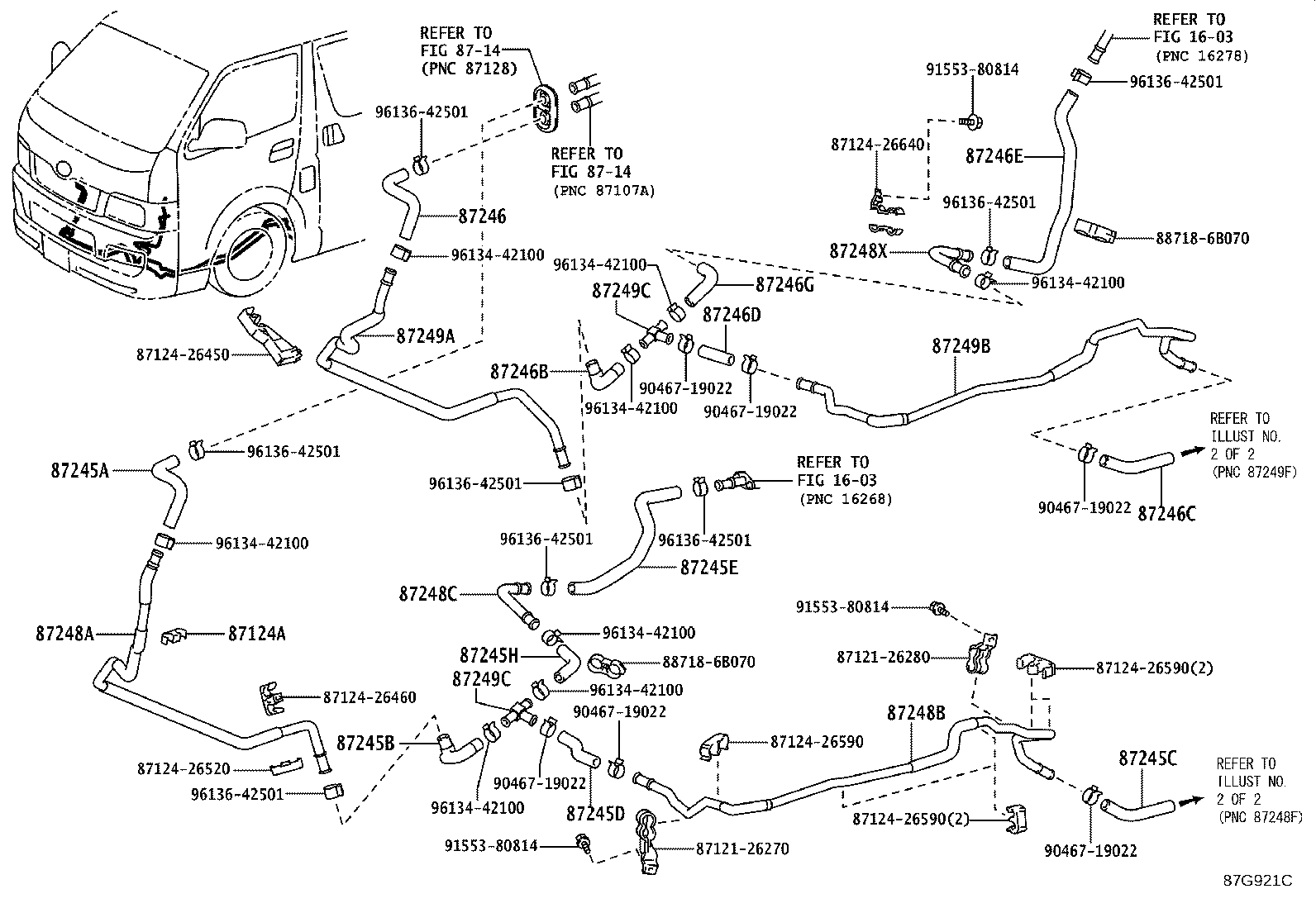

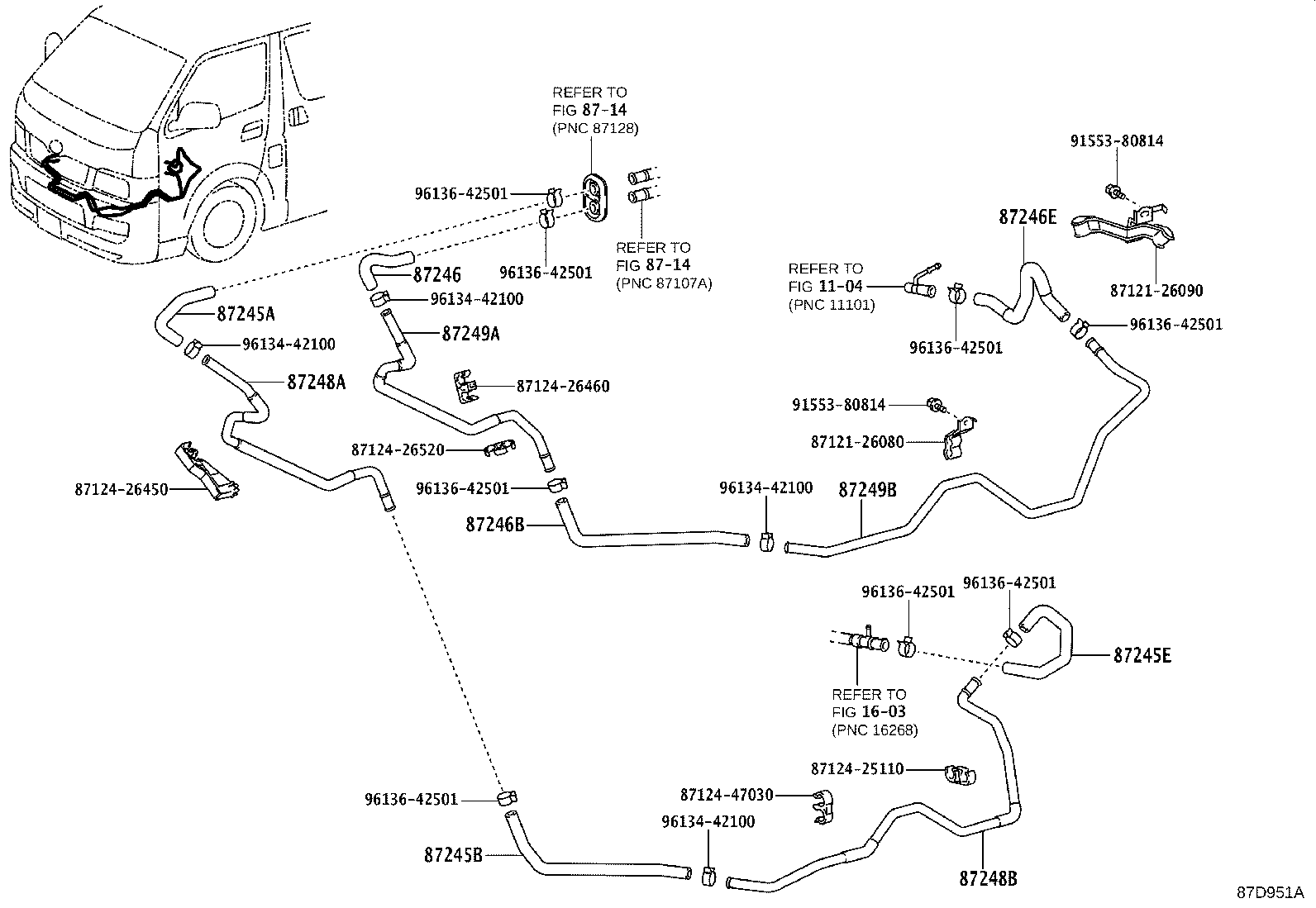

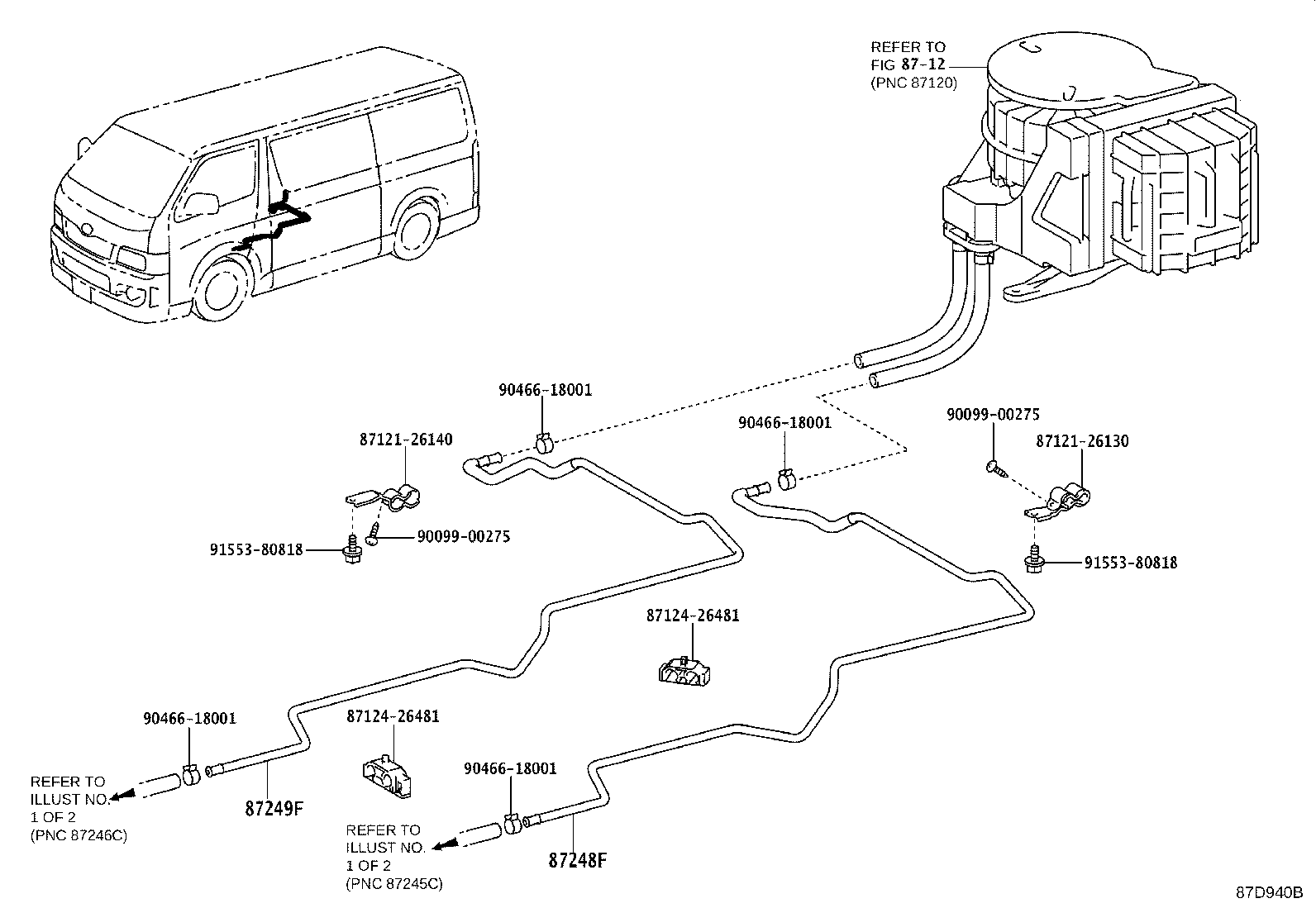

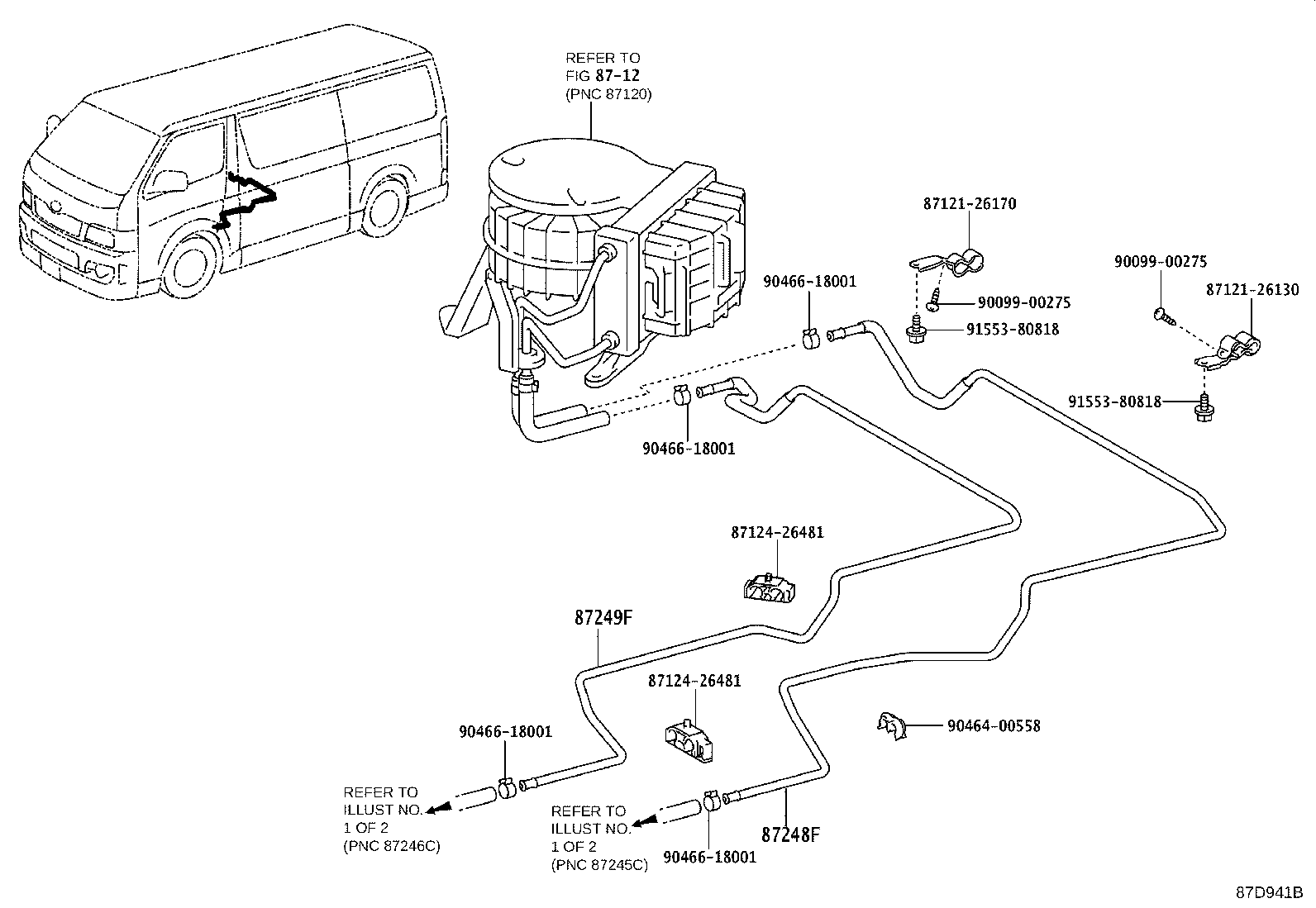

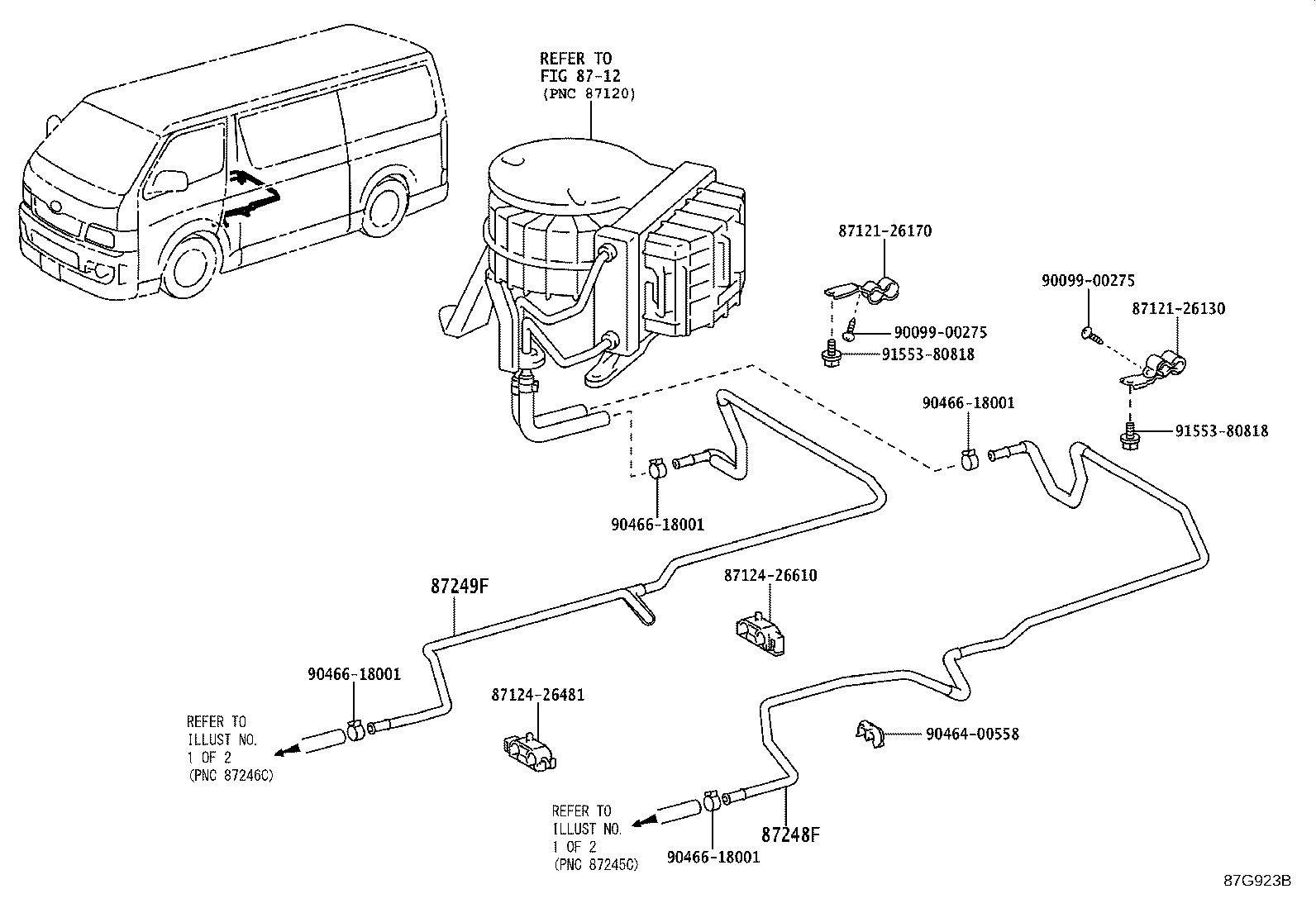

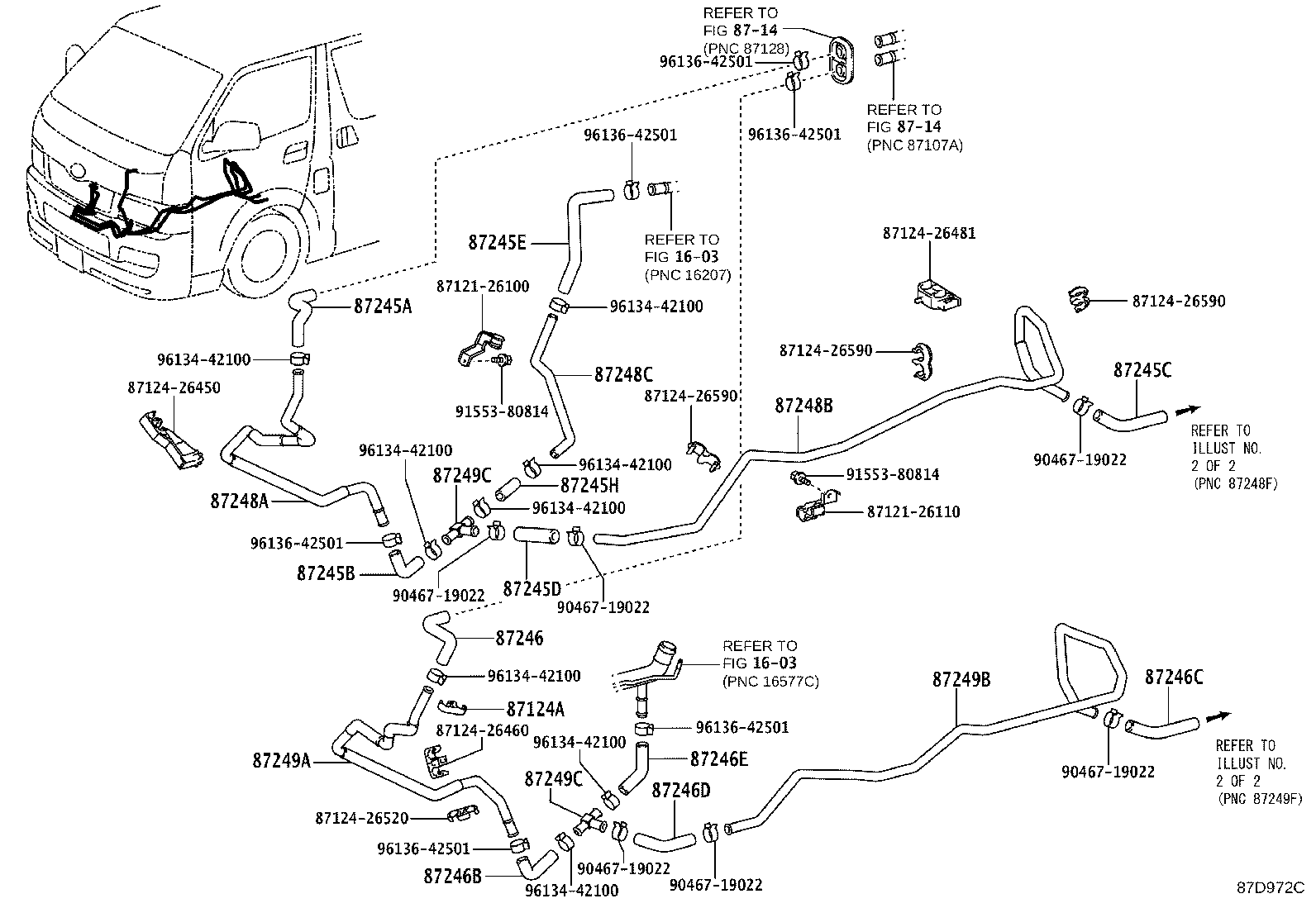

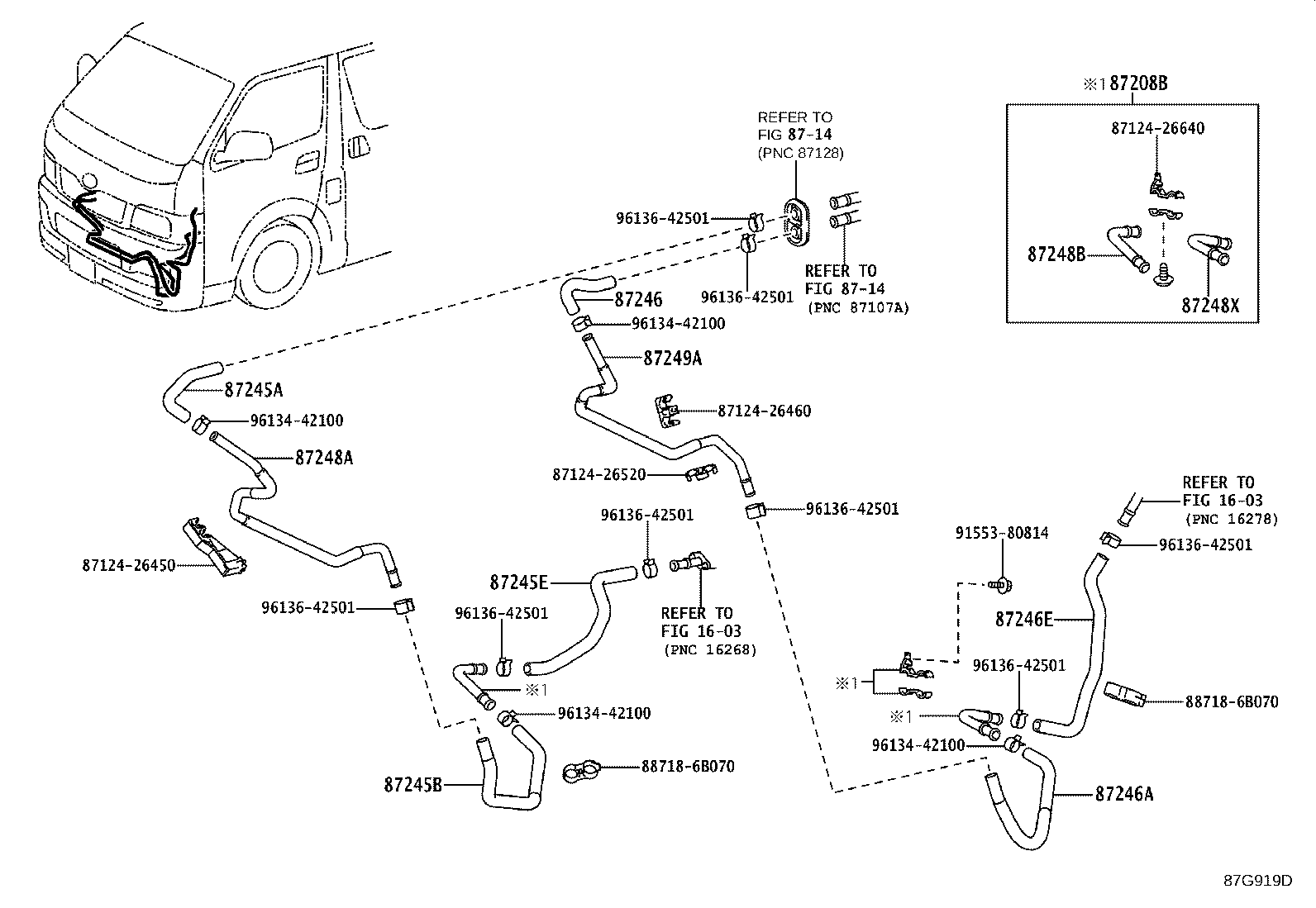

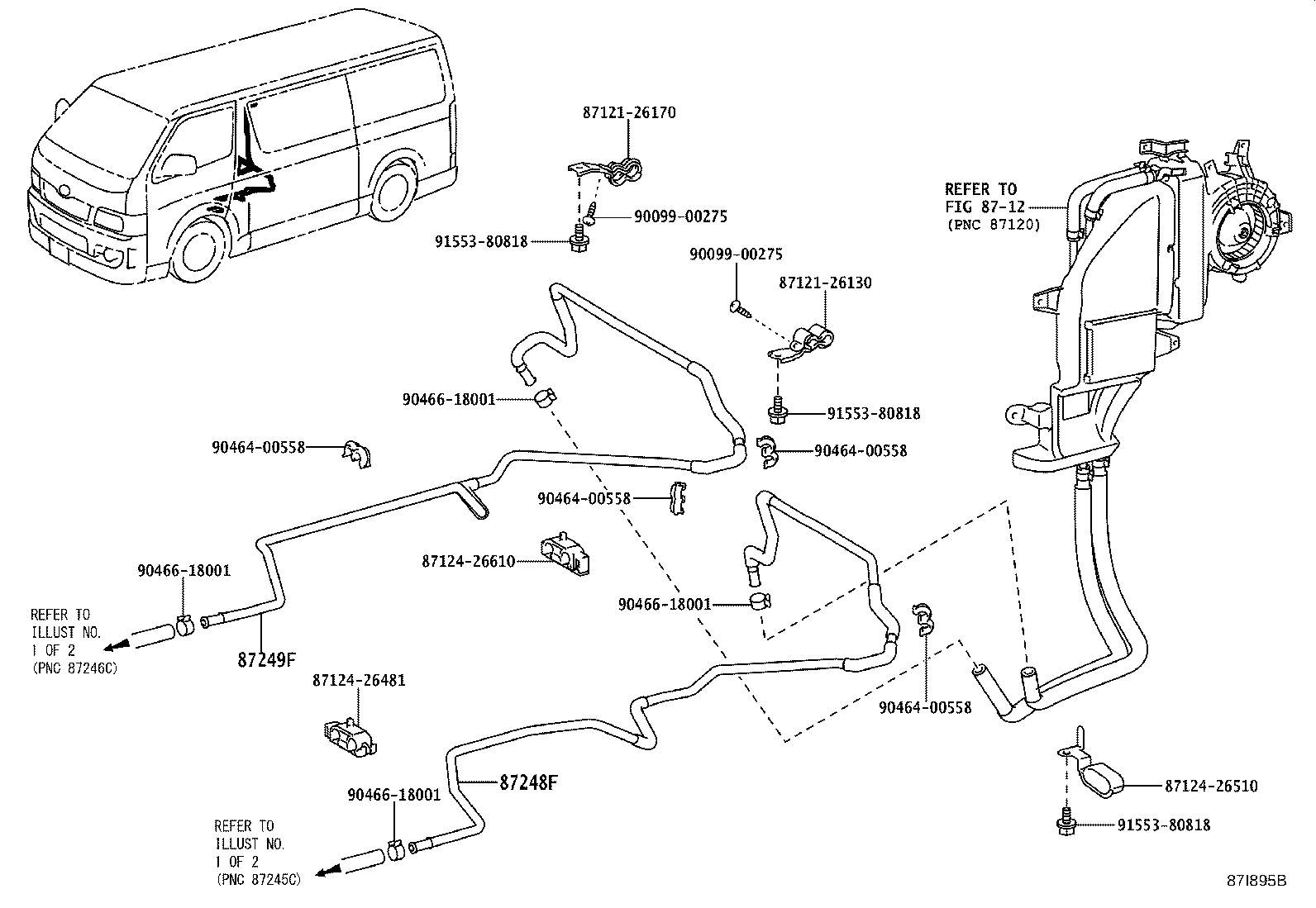

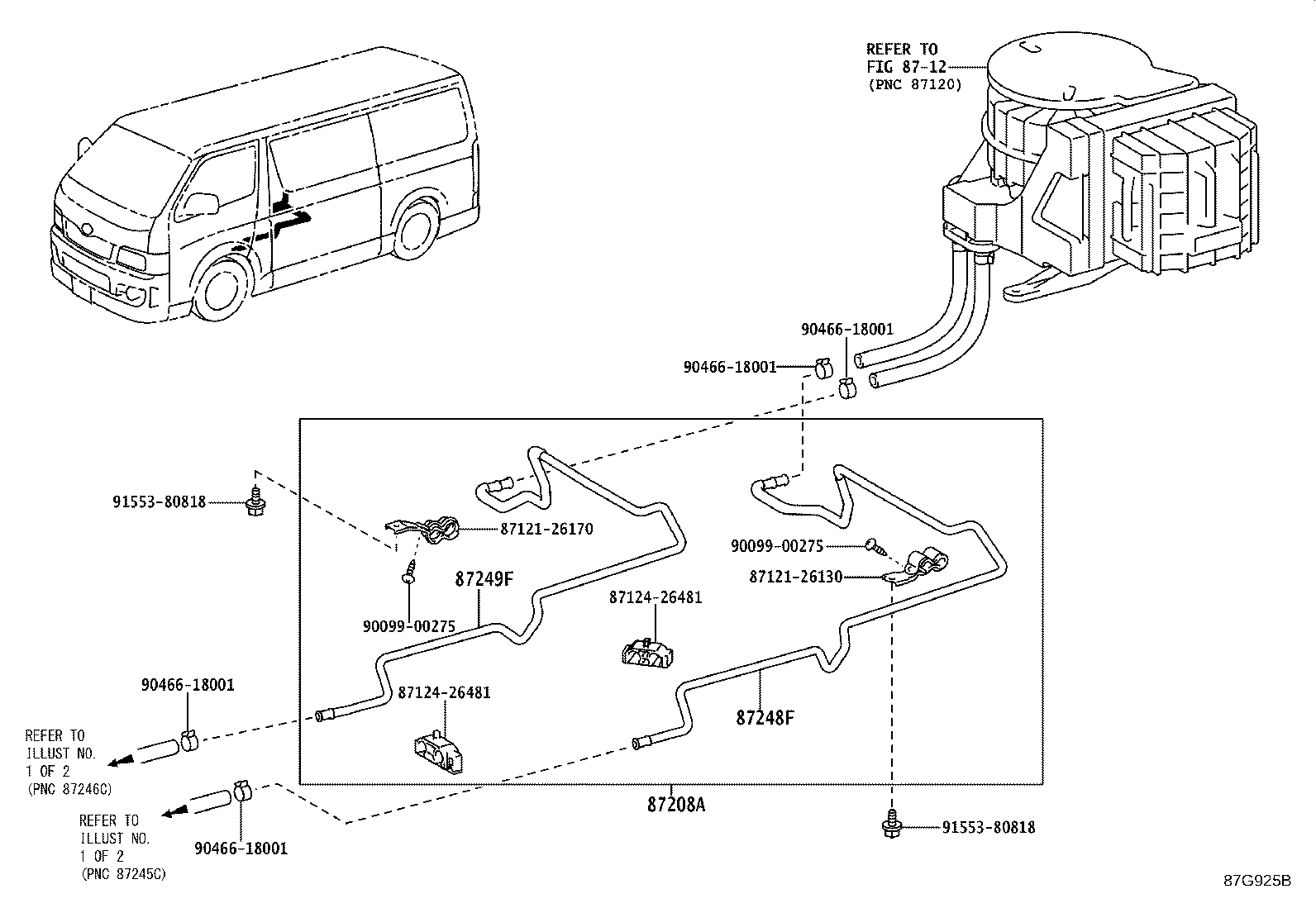

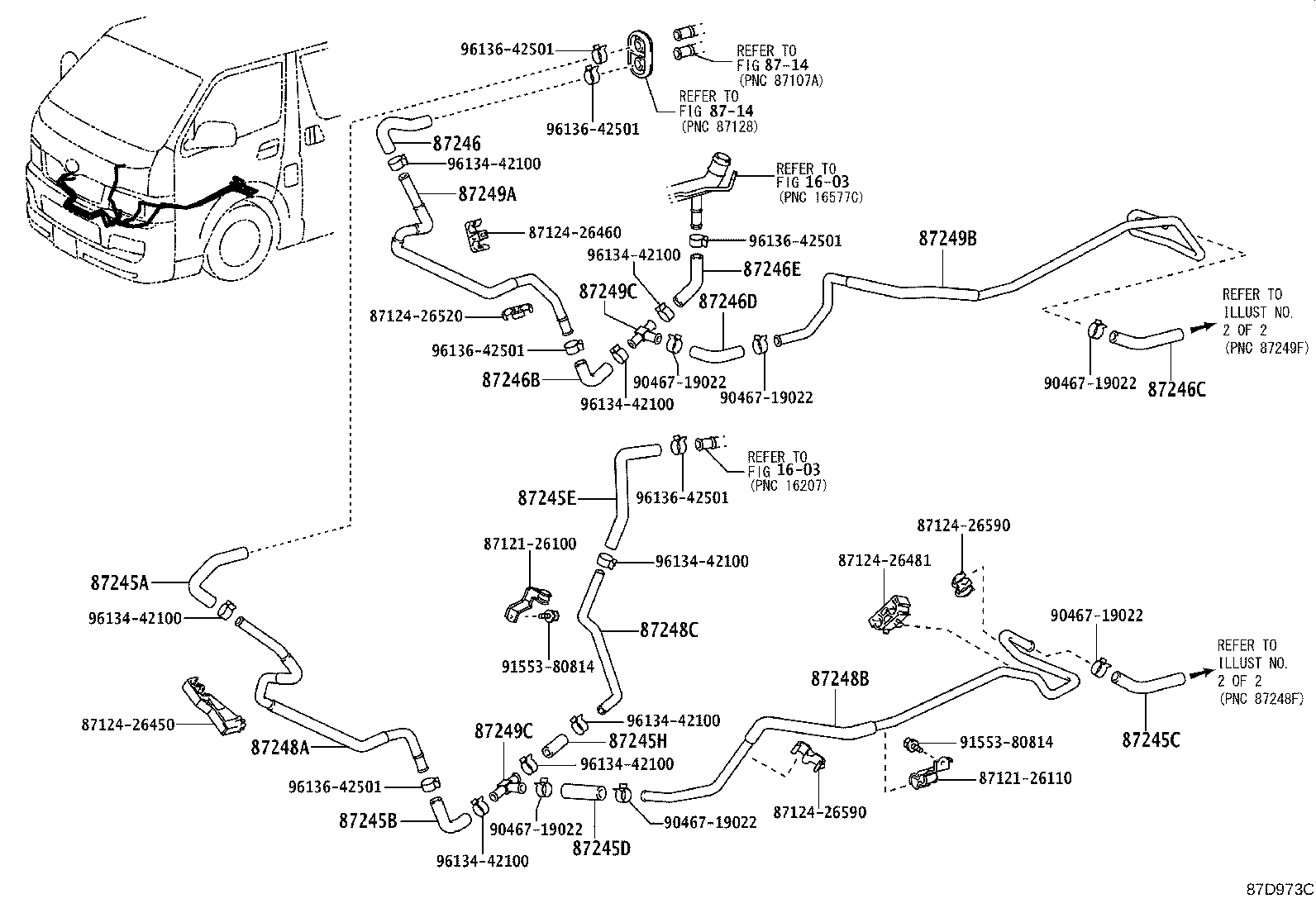

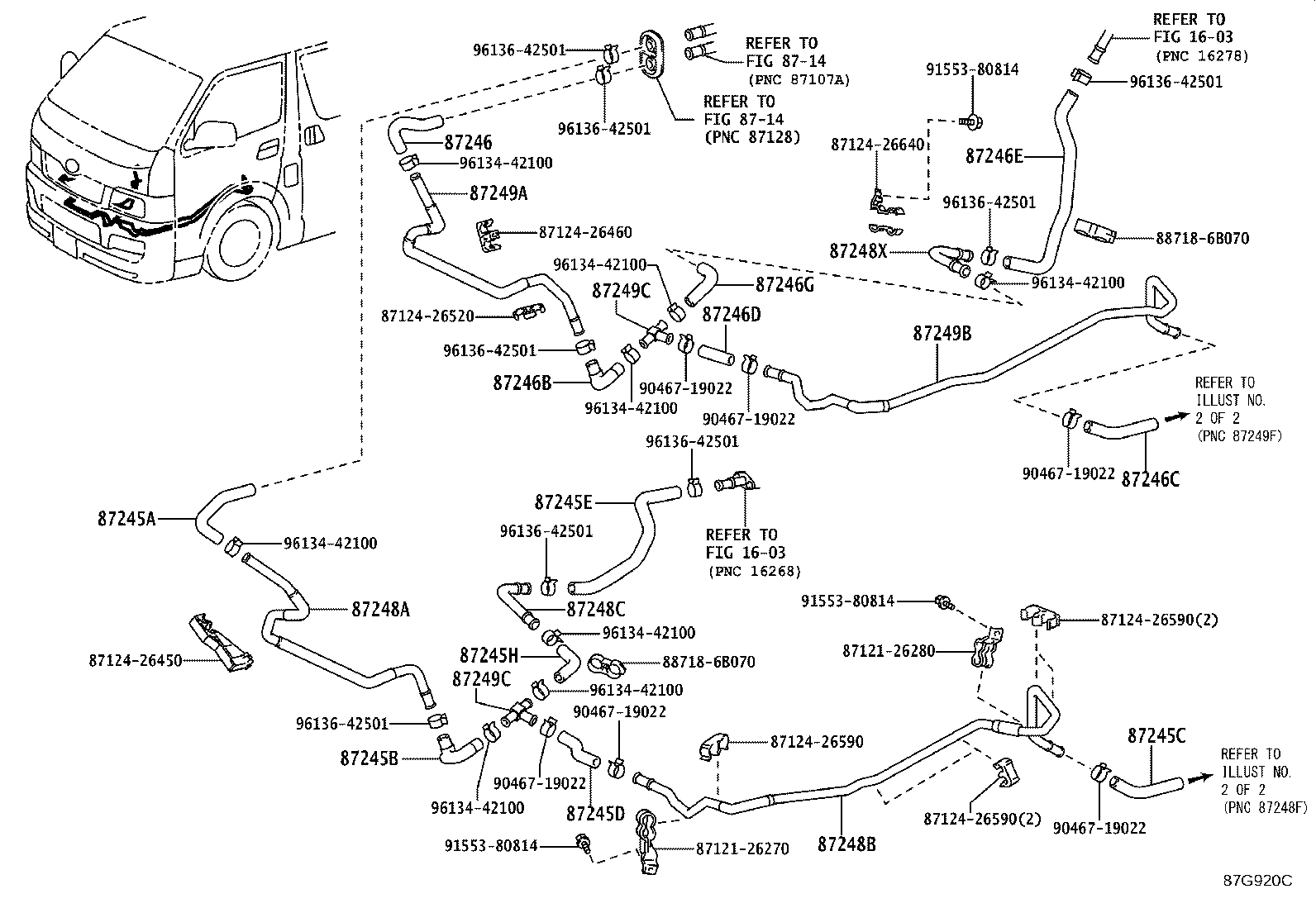

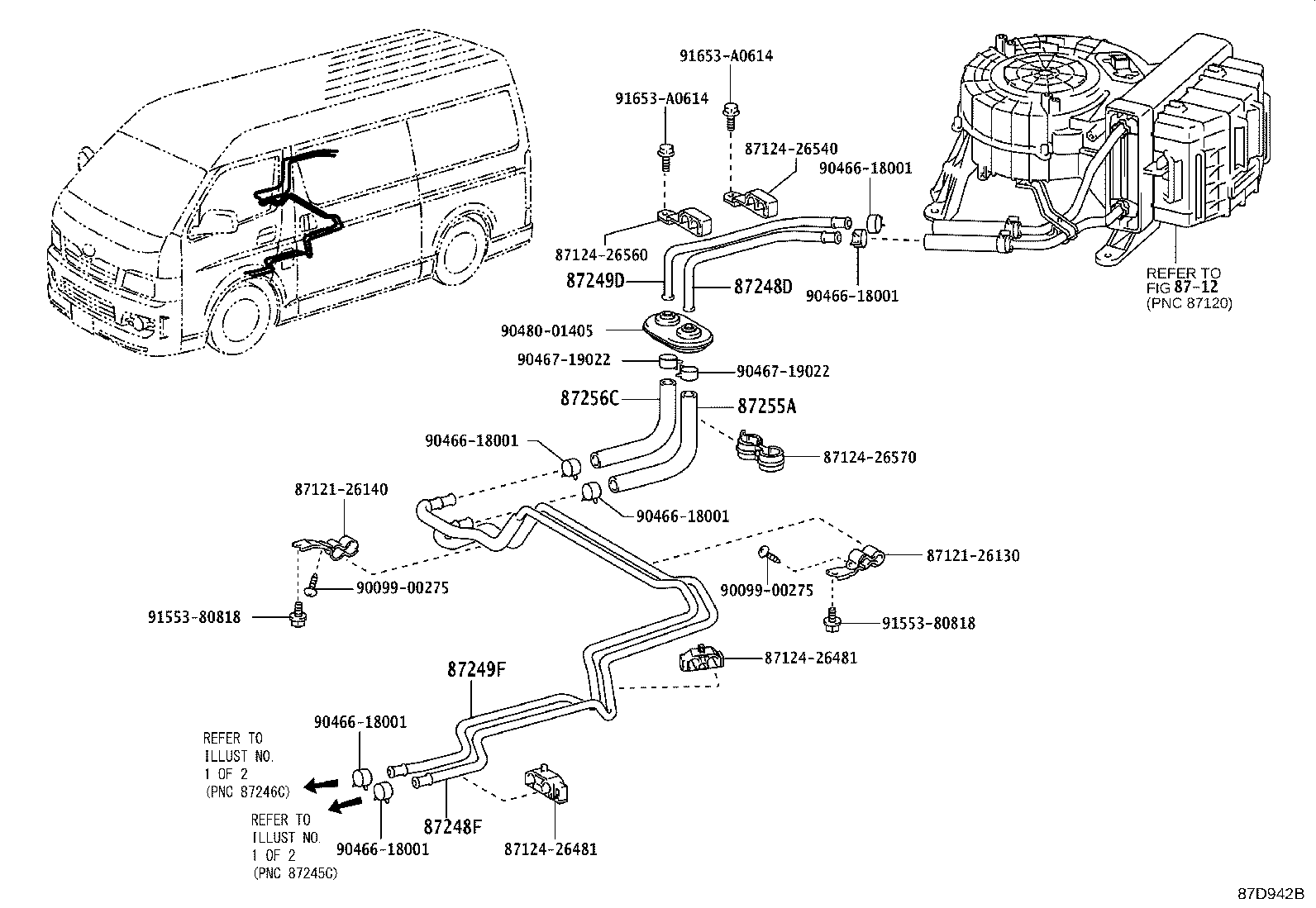

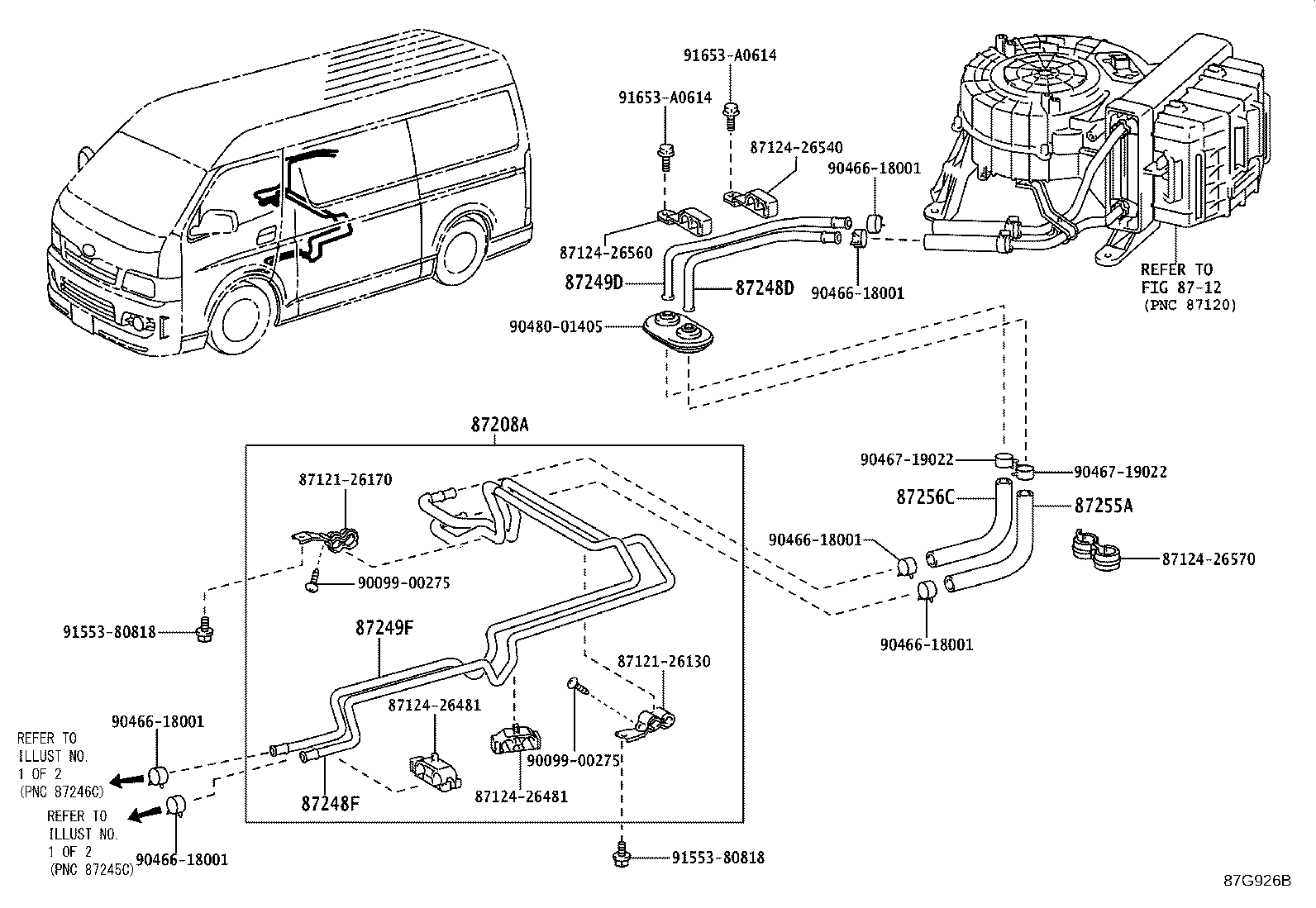

Figure 87D945A 87D945A 2013-12 → — Figure 87D972C 87D972C 2013-12 → — Figure 87D947A 87D947A 2013-12 → — Figure 87D973C 87D973C 2013-12 → — Figure 87D949A 87D949A 2013-12 → 2016-12 Figure 87D949A 87D949A 2015-01 → 2016-12 Figure 87F990A 87F990A 2016-12 → — Figure 87D950C 87D950C 2013-12 → 2016-12 Figure 87D950C 87D950C 2015-01 → 2016-12 Figure 87F989B 87F989B 2016-12 → — Figure 87D951A 87D951A 2013-12 → — Figure 87D951A 87D951A 2015-01 → — Figure 87D952B 87D952B 2013-12 → 2017-12 Figure 87D952B 87D952B 2015-01 → 2017-12 Figure 87G993C 87G993C 2017-12 → — Figure 87G055E 87G055E 2017-12 → — Figure 87G919D 87G919D 2017-12 → — Figure 87G920C 87G920C 2017-12 → — Figure 87G921C 87G921C 2017-12 → — Figure 87D943B 87D943B 2013-12 → 2017-12 Figure 87D943B 87D943B 2015-01 → 2017-12 Figure 87D943B 87D943B 2015-01 → 2017-12 Figure 87D944C 87D944C 2013-12 → 2017-12 Figure 87D944C 87D944C 2015-01 → 2017-12 Figure 87D944C 87D944C 2015-03 → 2017-12 Figure 87D940B 87D940B 2013-12 → 2017-12 Figure 87D940B 87D940B 2015-01 → 2017-12 Figure 87D941B 87D941B 2013-12 → 2017-12 Figure 87D941B 87D941B 2015-01 → 2017-12 Figure 87D942B 87D942B 2013-12 → 2017-12 Figure 87D942B 87D942B 2015-01 → 2017-12 Figure 87G922C 87G922C 2014-04 → — Figure 87G922C 87G922C 2016-09 → — Figure 87G922C 87G922C 2017-12 → 2020-05 Figure 87I895B 87I895B 2020-05 → — Figure 87G923B 87G923B 2017-12 → 2020-05 Figure 87I896B 87I896B 2020-05 → — Figure 87G924C 87G924C 2017-12 → — Figure 87G925B 87G925B 2017-12 → — Figure 87G926B 87G926B 2017-12 → —

Part groups

PNCDescription
87124A Clamp, Heater
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87256C Hose, Rear Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
