Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

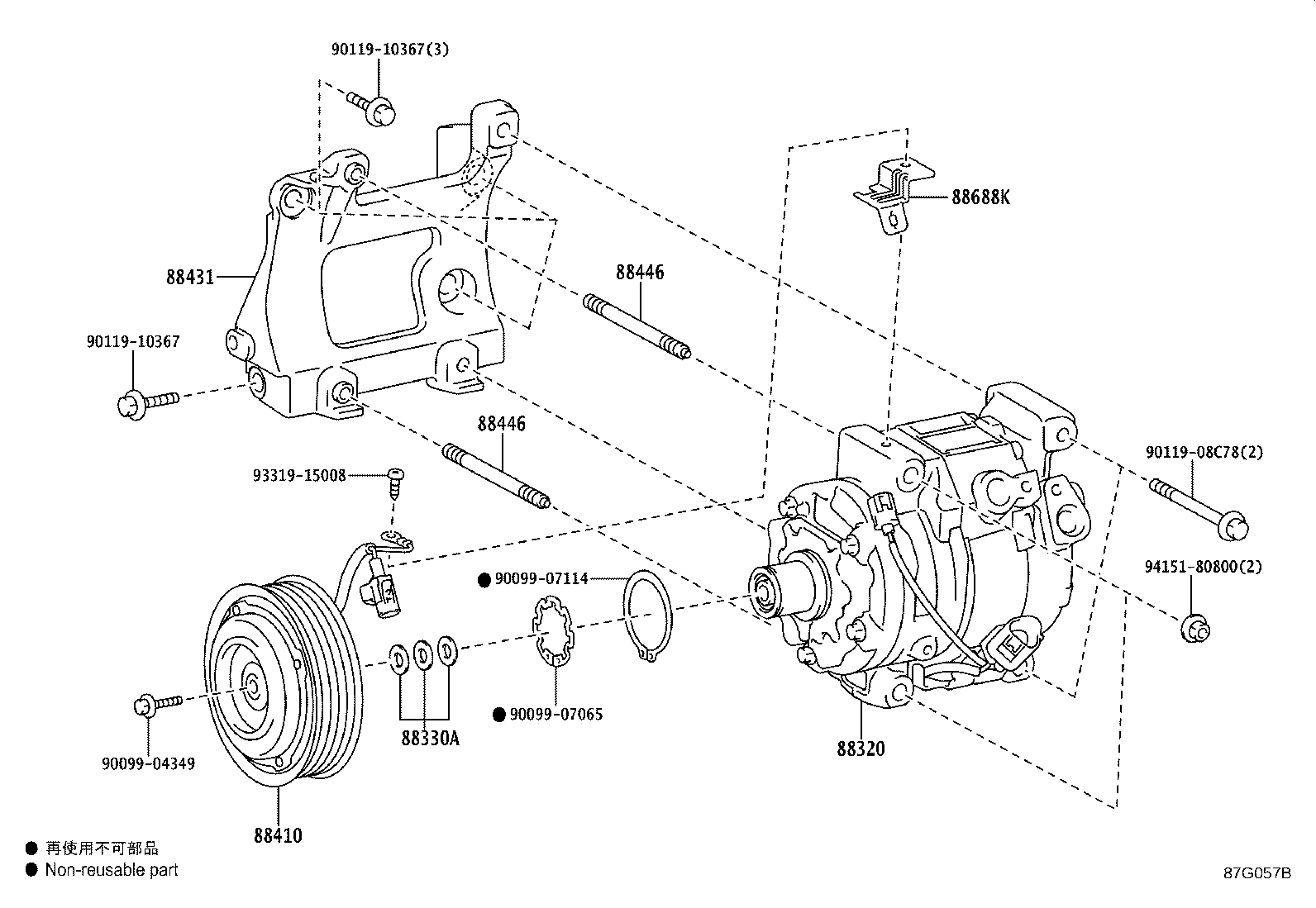

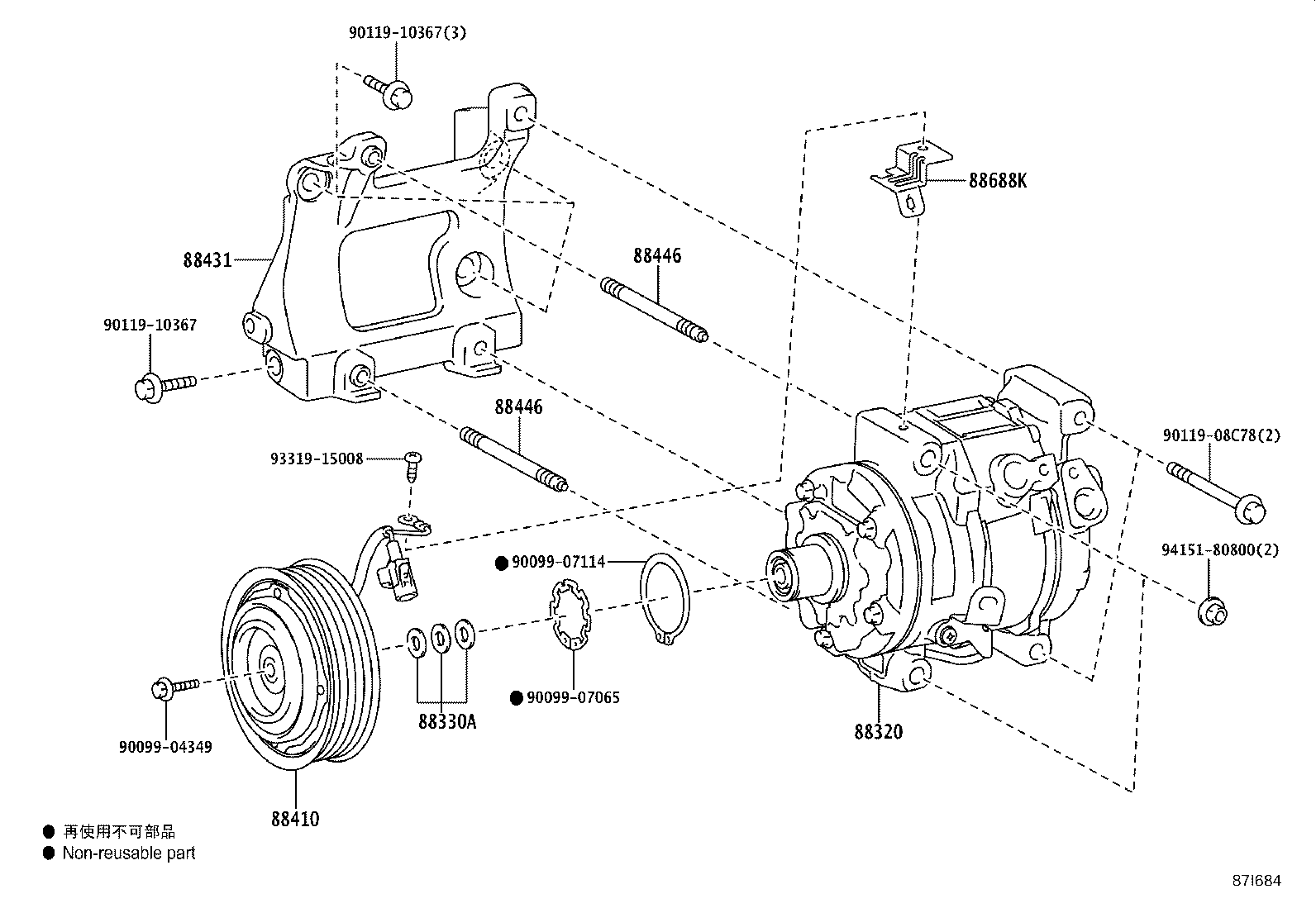

Heating & Air Conditioning - Compressor
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88310 | Compressor Assy, W/Pulley |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88440D | Pulley Assy, Idle NO.2 |
| 88446 | Bolt, Idle Pulley |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
