Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12
Radiator & Water Outlet

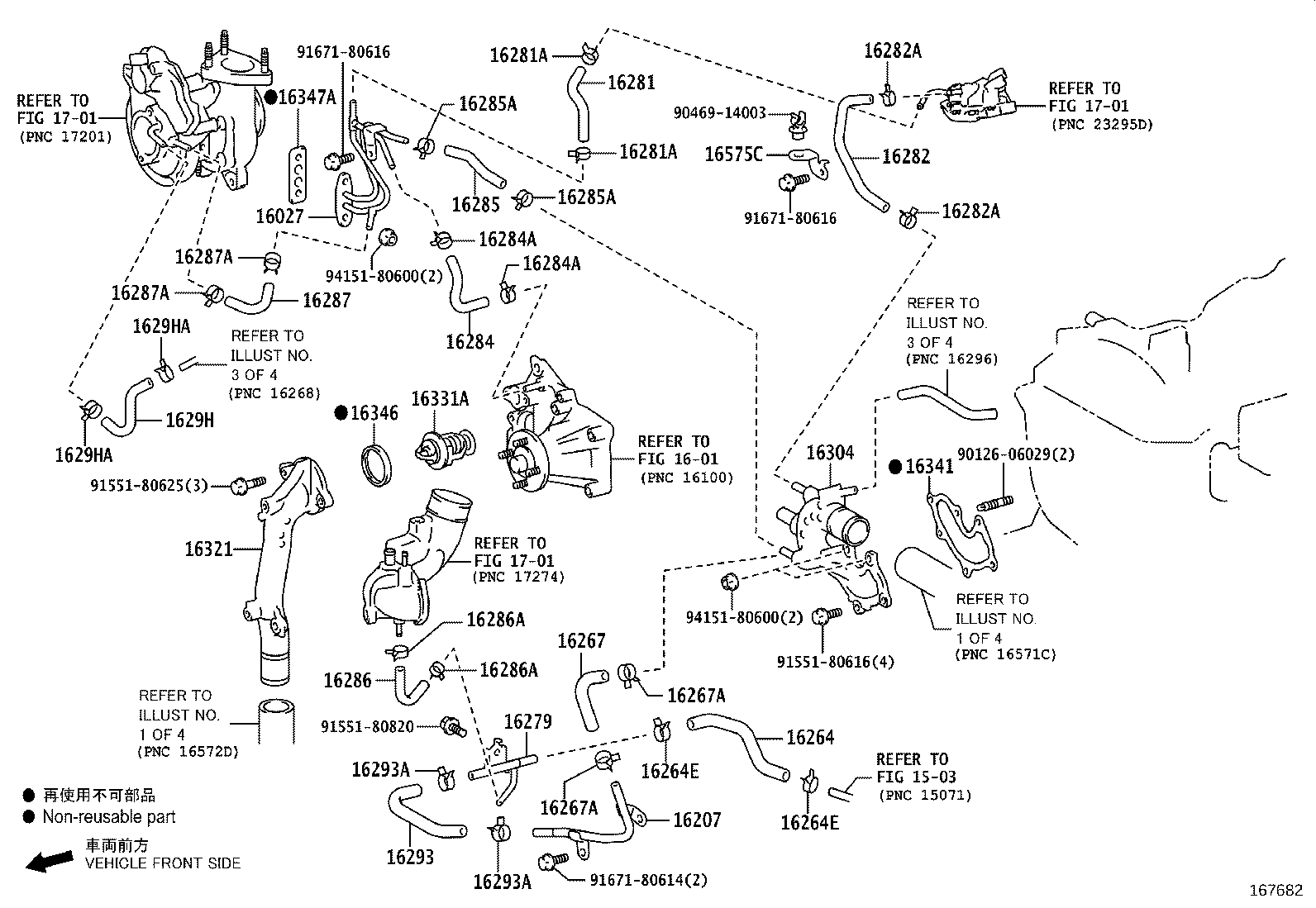

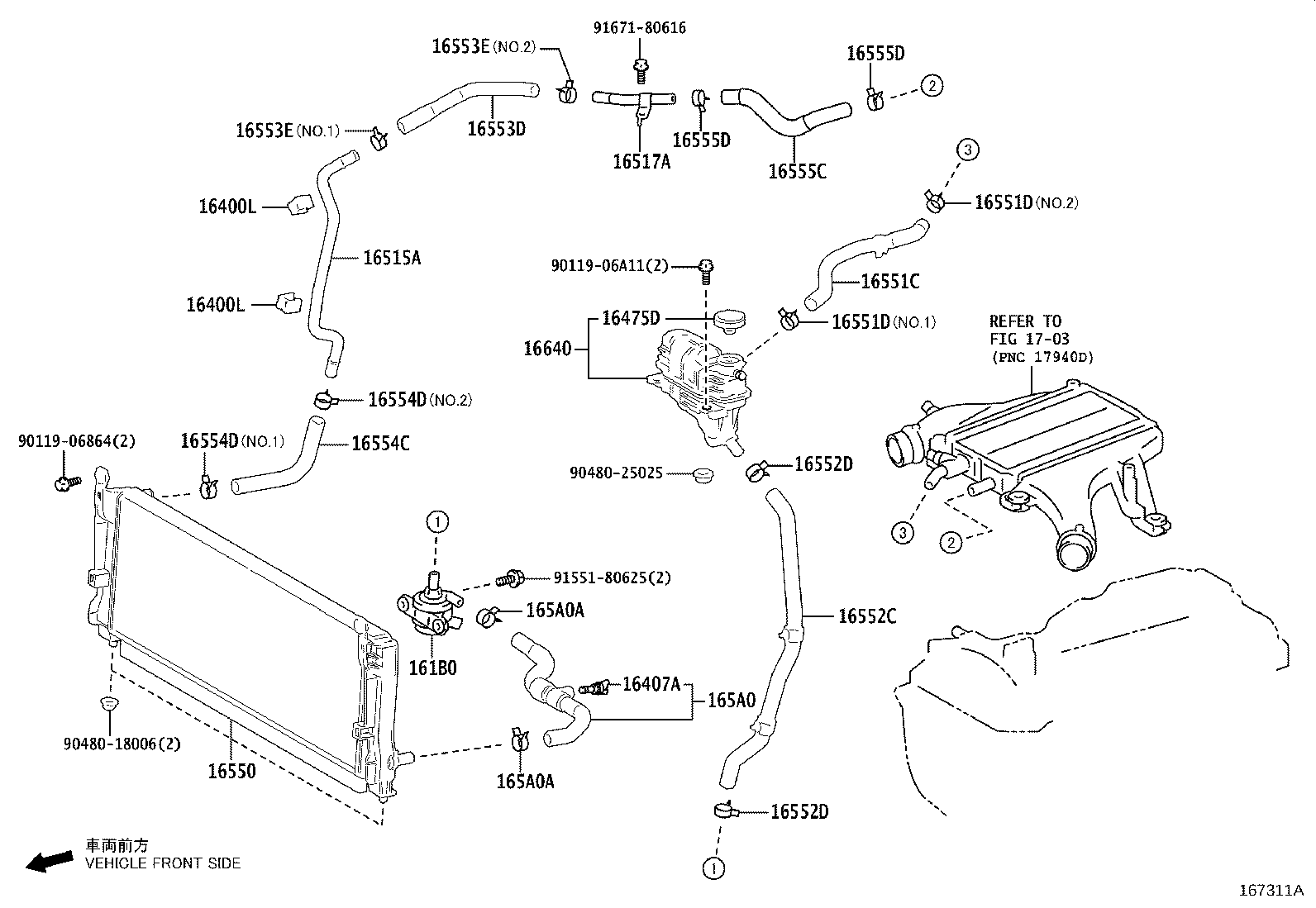

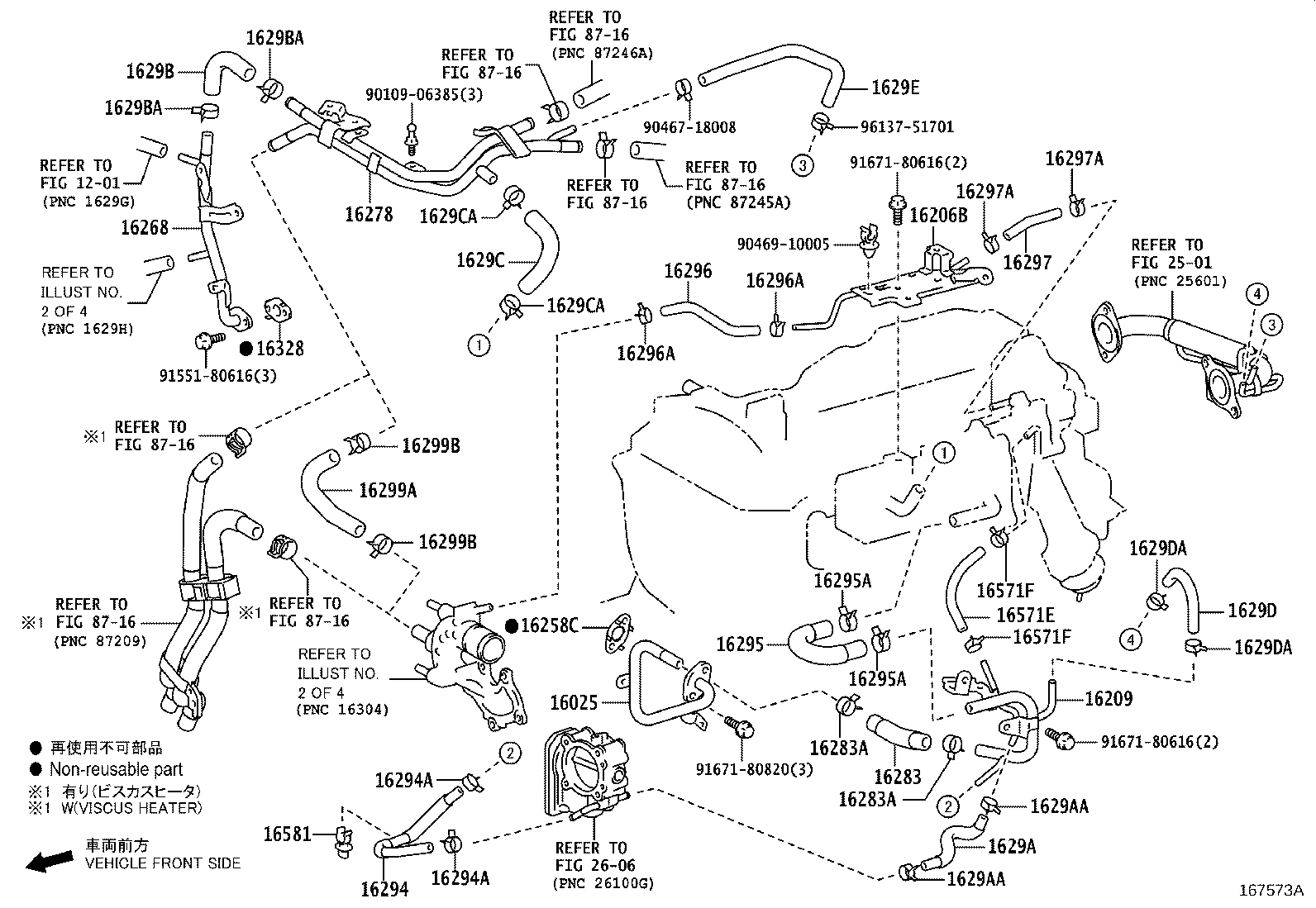

101 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16025 | Pipe Sub-assy, Water By-pass, NO.5 |
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 161B0 | Pump Assy, Electric Water |
| 16206B | Pipe Sub-assy, Water By-pass, NO.3 |
| 16207 | Pipe Sub-assy, Water By-pass, NO.2 |
| 16209 | Pipe Sub-assy, Water By-pass, NO.4 |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16286 | Hose, Turbo Water, NO.3 |
| 16286A | Clip(FOR TURBO WATER HOSE NO.3) |
| 16287 | Hose, Turbo Water, NO.4 |
| 16287A | Clip(FOR TURBO WATER HOSE NO.4) |
| 16293 | Hose, Water By-pass, NO.10 |
| 16293A | Clip(FOR WATER BY-PASS HOSE NO.10) |
| 16294 | Hose, Water By-pass, NO.11 |
| 16294A | Clip(FOR WATER BY-PASS HOSE NO.11) |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16299A | Hose, Water By-pass, NO.13 |
| 16299B | Clip(FOR WATER BY-PASS HOSE NO.13) |
| 1629A | Hose, Water By-pass, NO.14 |
| 1629AA | Clip(FOR WATER BY-PASS HOSE NO.14) |
| 1629B | Hose, Water By-pass, NO.15 |
| 1629BA | Clip(FOR WATER BY-PASS HOSE NO.15) |
| 1629C | Hose, Water By-pass, NO.16 |
| 1629CA | Clip(FOR WATER BY-PASS HOSE NO.16) |
| 1629D | Hose, Water By-pass, NO.17 |
| 1629DA | Clip(FOR WATER BY-PASS HOSE NO.17) |
| 1629E | Hose, Water By-pass, NO.18 |
| 1629H | Hose, Water By-pass, NO.21 |
| 1629HA | Clip(FOR WATER BY-PASS HOSE NO.21) |
| 16304 | Outlet Sub-assy, Water |
| 16321 | Inlet, Water |
| 16328 | Gasket, Water Inlet Pipe |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16346 | Gasket, Thermostat |
| 16347A | Gasket(FOR TURBO WATER PIPE) |
| 16361 | Fan |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16400L | Clamp, NO.1 |
| 16407A | Cock Sub-assy, Radiator Drain |
| 16470 | Tank Assy, Radiator Reserve |
| 16470M | Grommet |
| 16475A | Cap, Reserve Tank |
| 16475D | Cap, Reserve Tank |
| 16492 | Ring, O(FOR RADIATOR RESERVE TANK COCK) |
| 164A0 | Cock Assy, Reserve Tank |
| 16515A | Pipe, Intercooler Cooling Water, NO.1 |
| 16517A | Pipe, Intercooler Cooling Water, NO.3 |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16550 | Radiator Assy, Intercooler Cooling |
| 16551C | Hose, Intercooler Cooling Water, NO.1 |
| 16551D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1) |
| 16552C | Hose, Intercooler Cooling Water, NO.2 |
| 16552D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2) |
| 16553D | Hose, Intercooler Cooling Water, NO.3 |
| 16553E | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3) |
| 16554C | Hose, Intercooler Cooling Water, NO.4 |
| 16554D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4) |
| 16555C | Hose, Intercooler Cooling Water, NO.5 |
| 16555D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16571E | Hose, Water |
| 16571F | Clamp OR Clip(FOR WATER HOSE) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 165A0 | Hose Assy, Intercooler Cooling Water, NO.1 |
| 165A0A | Clip, Hose |
| 16640 | Tank Assy, Intercooler Reserve |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
