Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

23 part groups · 2 illustrations

Illustrations

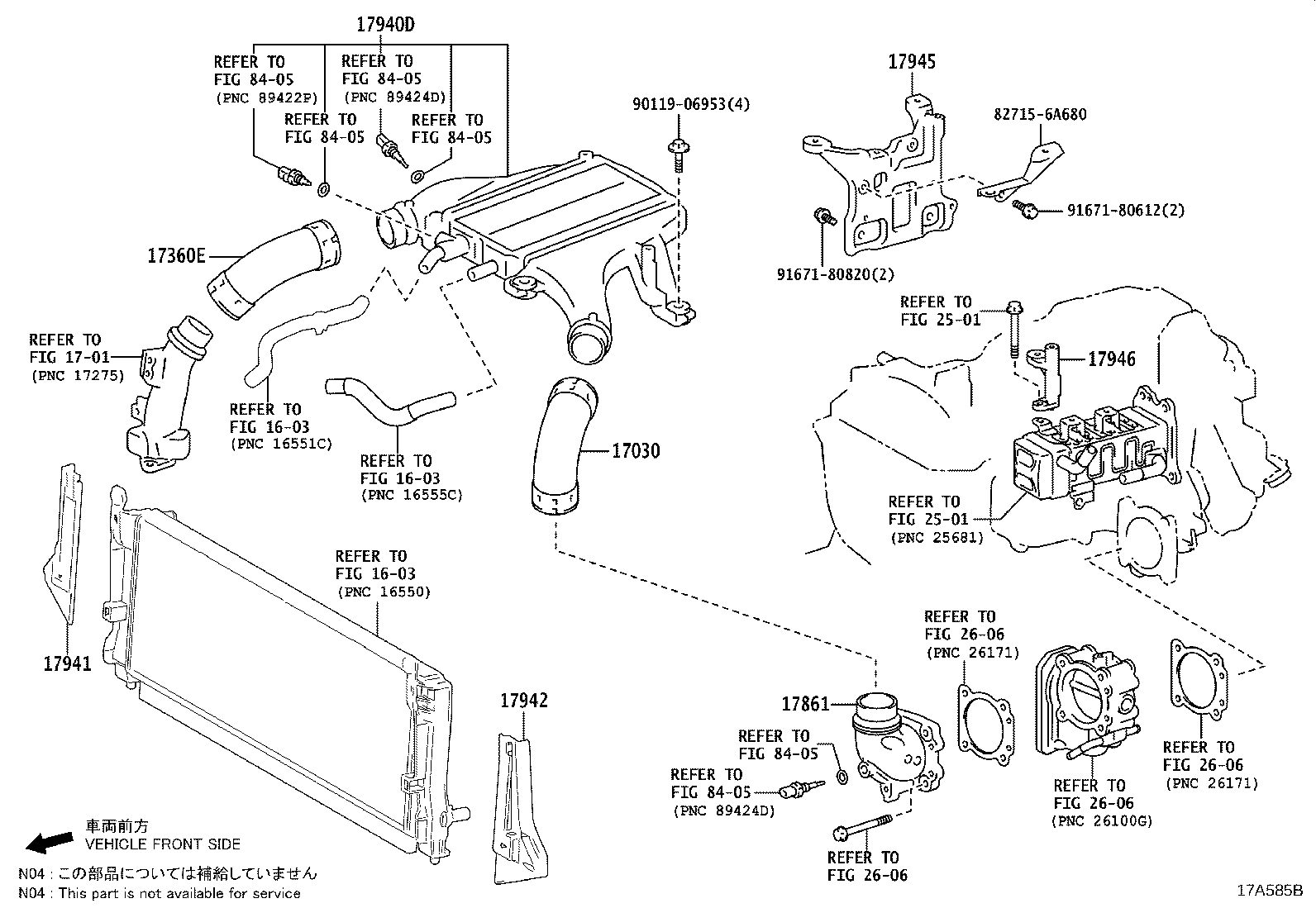

Figure 17A583B 17A583B 2019-12 → — Figure 17A585B 17A585B 2019-12 → —

Part groups

PNCDescription
17030 Hose Assy, Air
17360E Tube Assy, Air, NO.1
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17710K Collar(FOR AIR CLEANER)
17751 Inlet, Air Cleaner, NO.1
17769 Support, Air Cleaner
17769C Support, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17893 Resonator, Intake Air
17940D Intercooler Assy
17941 Guide, Intercooler Air, NO.1
17942 Guide, Intercooler Air, NO.2
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
