Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 2 illustrations

Illustrations

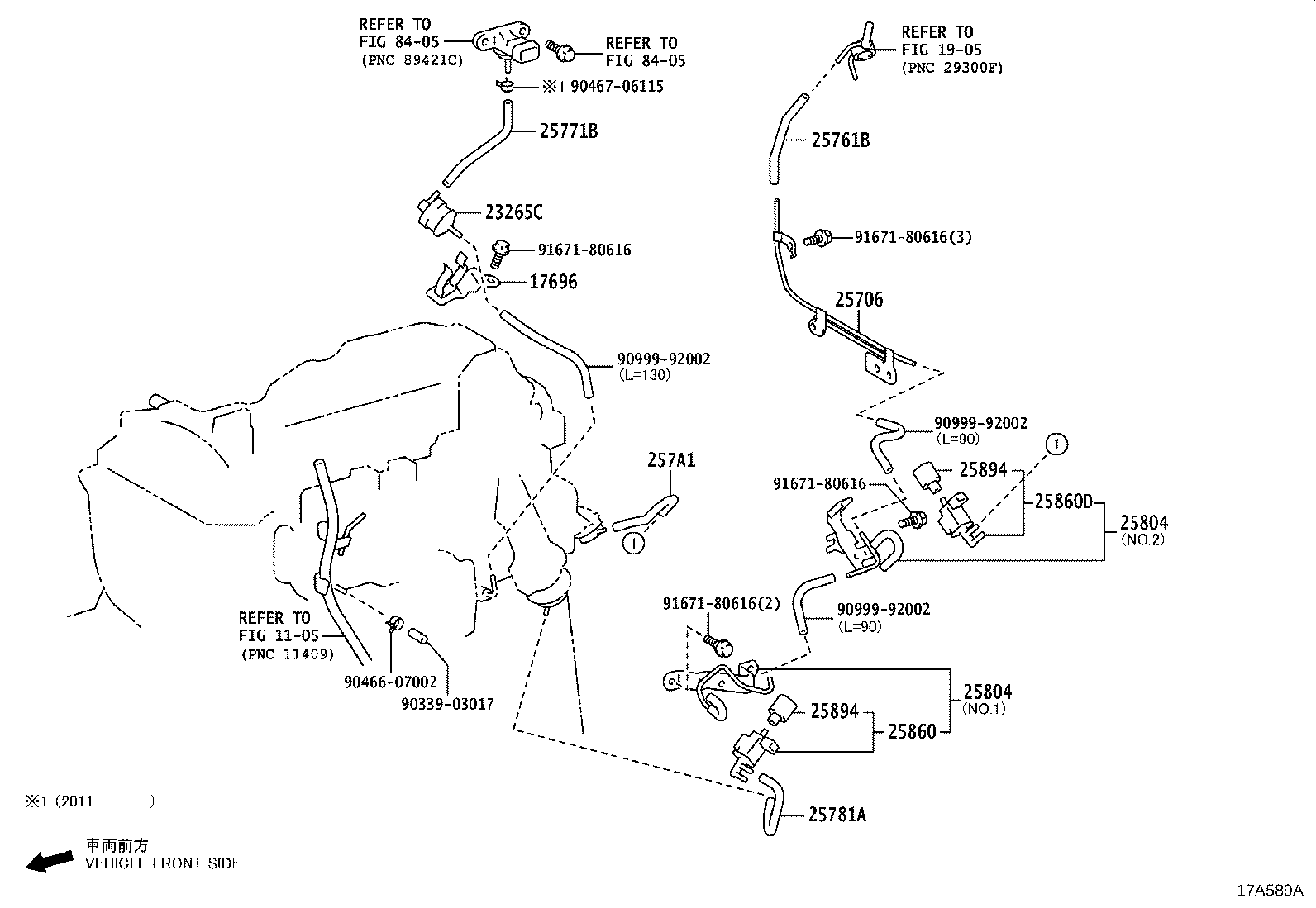

Figure 17B021C 17B021C 2019-12 → — Figure 17A589A 17A589A 2019-12 → —

Part groups

PNCDescription
17302A Clip, Hose
17341P Hose, Air
17578B Clamp, Pipe
17696 Bracket, Gas Filter
23265C Filter, Gas
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25761B Hose, Vaccum Transmitting, NO.1
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
257A1 Hose, Vacuum Transmitting, NO.5
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25894 Filter, NO.1
89639E Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
