Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12

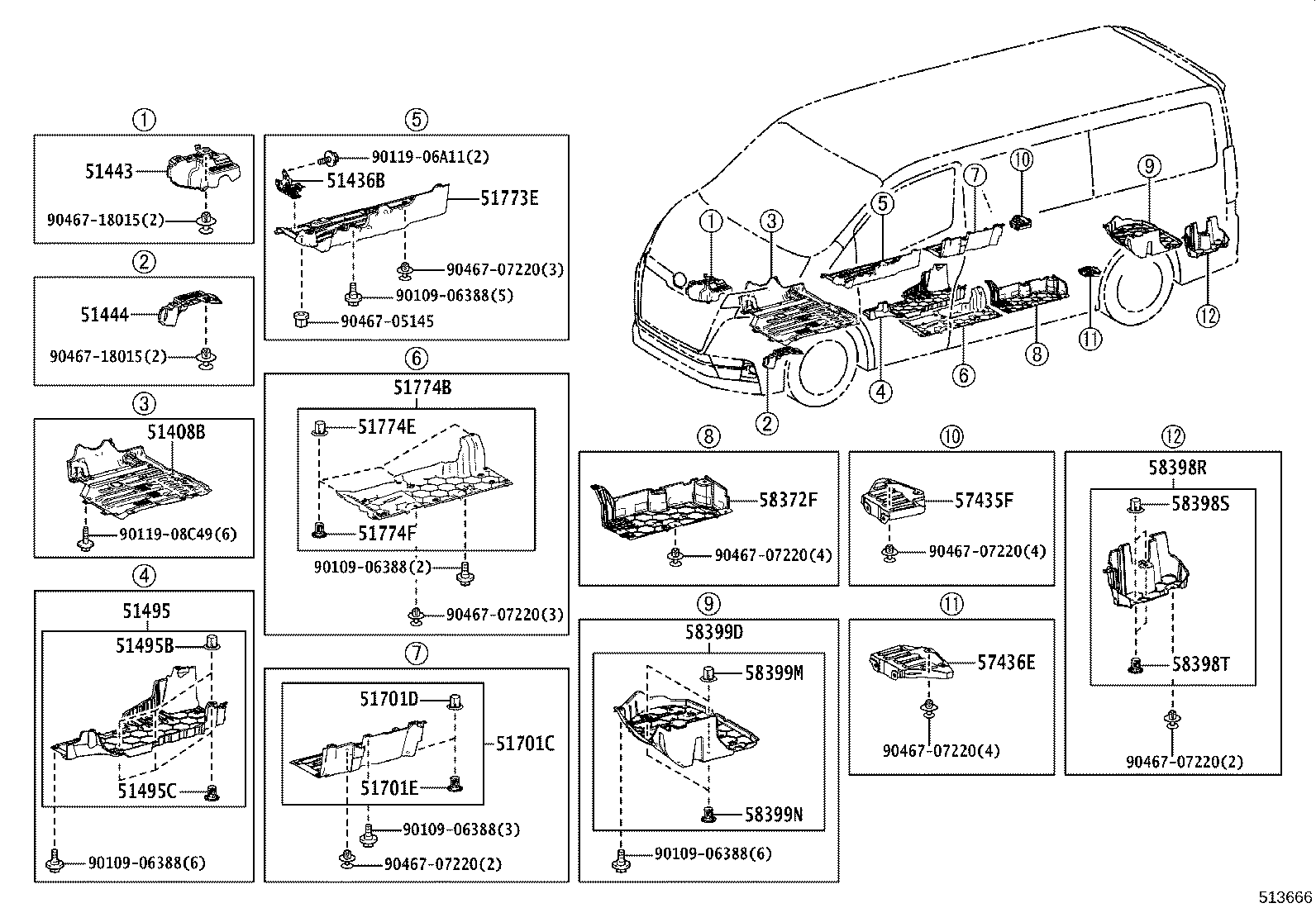

Suspension Crossmember & Under Cover
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100H | Frame Assy, Front |
| 51107D | Reinforcement Sub-assy, Side Rail, Rear RH |
| 51108C | Reinforcement Sub-assy, Side Rail, Rear LH |
| 51405A | Cover Sub-assy, Engine Under, NO.1 |
| 51406A | Cover Sub-assy, Engine Under, NO.2 |
| 51408B | Cover Sub-assy, Engine Under, RH |
| 51436B | Bracket, Engine Side Cover, NO.1 RH |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 51442H | Clip, Engine Under Cover, NO.2 |
| 51443 | Cover, Engine Under, Rear RH |
| 51444 | Cover, Engine Under, Rear LH |
| 51447D | Cover, Engine Under, NO.4 Center |
| 51495 | Cover, Transmission Under |
| 51495B | Clip, Transmission Under Cover |
| 51495C | Clip, Transmission Under Cover |
| 51701C | Cover Sub-assy, Step Plate, RH |
| 51701D | Clip, Step Plate Cover |
| 51701E | Clip, Step Plate Cover |
| 51773E | Cover, Step Plate, RH |
| 51774B | Cover, Step Plate, LH |
| 51774E | Clip, Step Plate Cover |
| 51774F | Clip, Step Plate Cover |
| 53689 | Brace, Front Suspension, Lower Center |
| 57435F | Plate, Rear Step, Lower RH |
| 57436E | Plate, Rear Step, Lower LH |
| 58372F | Cover, Rear Floor Step, NO.2 |
| 58398R | Cover, Body Lower Back, LH |
| 58398S | Clip, Body Lower Back Cover |
| 58398T | Clip, Body Lower Back Cover |
| 58399D | Cover, Floor Under, NO.2 |
| 58399M | Clip, Floor Under Cover, NO.1 |
| 58399N | Clip, Floor Under Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
