Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12

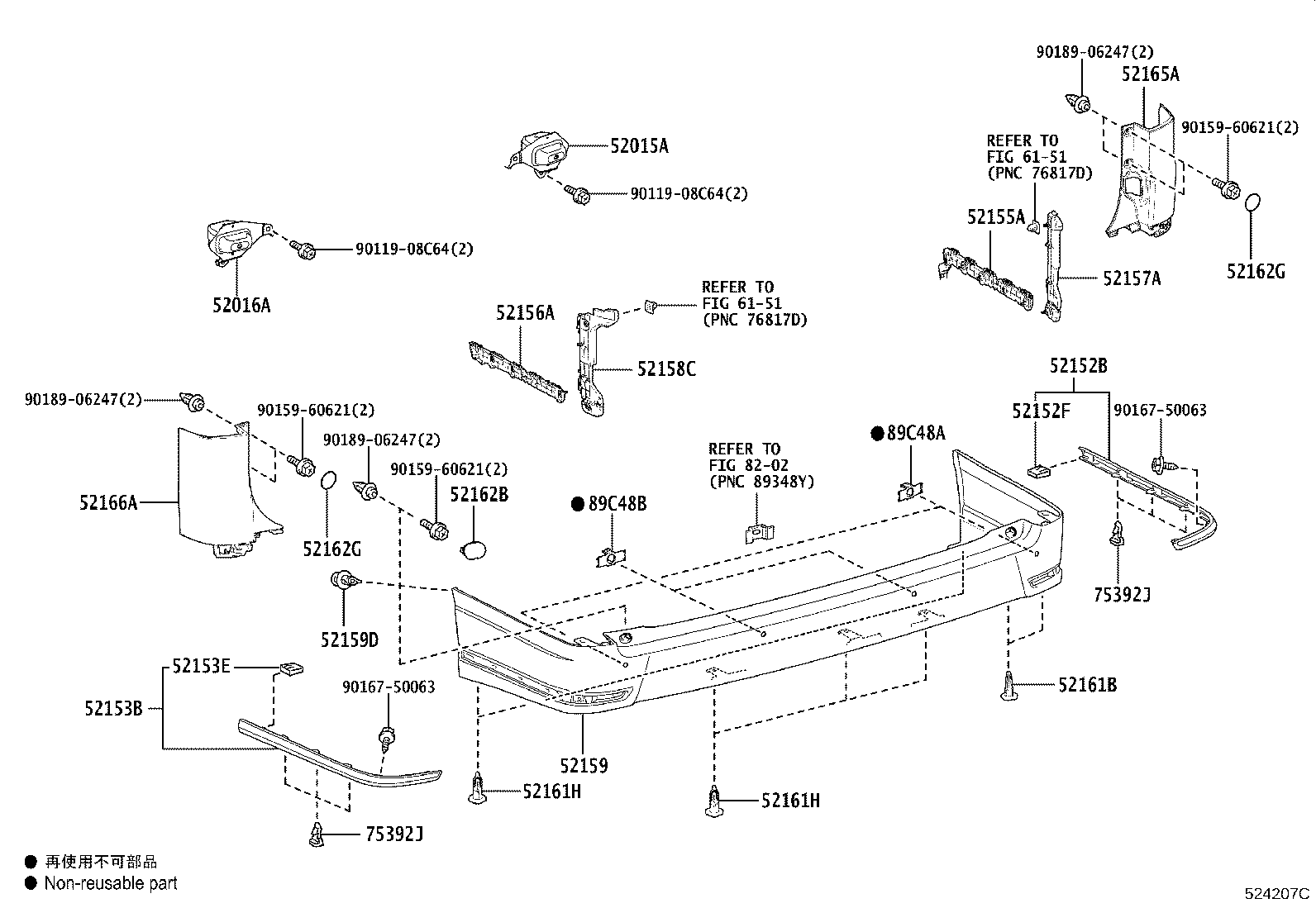

Rear Bumper & Bumper Stay
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52152B | Extension, Rear Bumper, RH |
| 52152F | Clip, Rear Bumper Extension |
| 52153B | Extension, Rear Bumper, LH |
| 52153E | Clip, Rear Bumper Extension |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52157A | Support, Rear Bumper Side, NO.2 RH |
| 52158C | Support, Rear Bumper Side, NO.2 LH |
| 52159 | Cover, Rear Bumper |
| 52159D | Clip, Rear Bumper Cover |
| 52161B | Piece, Rear Bumper |
| 52161H | Piece, Rear Bumper |
| 52162B | Plate, Rear Bumper, NO.1 |
| 52162G | Plate, Rear Bumper, NO.1 |
| 52165A | Cover, Rear Bumper, Upr RH |
| 52166A | Cover, Rear Bumper, Upr LH |
| 75392J | Retainer, Outside Moulding |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
