Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

17 part groups · 2 illustrations

Illustrations

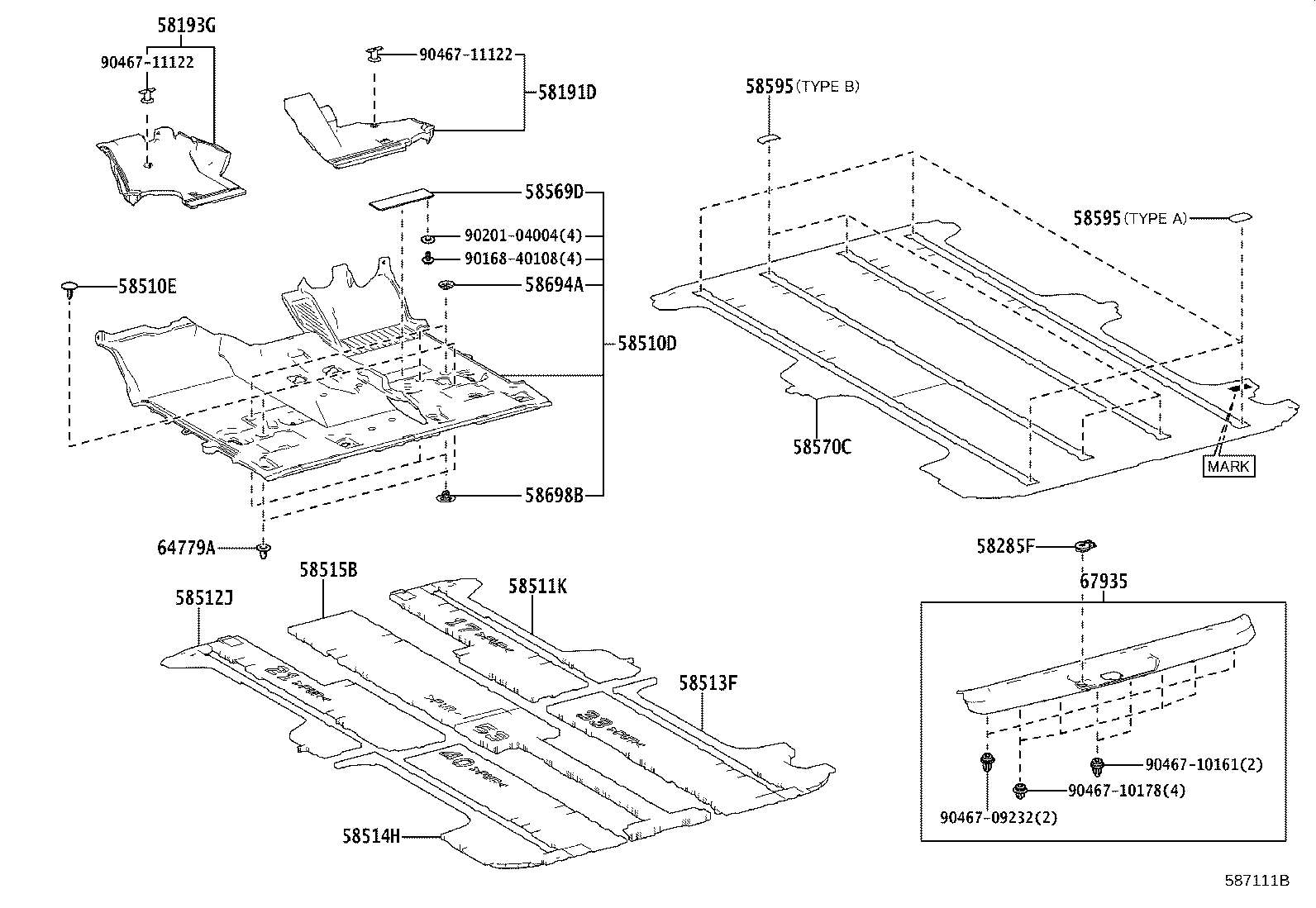

Figure 587108B 587108B 2019-12 → — Figure 587111B 587111B 2019-12 → —

Part groups

PNCDescription
58191D Footrest, Front Floor
58193G Footrest, Front Floor, NO.3
58285F Cover, Rear Floor Hole
58510D Carpet Assy, Floor, Front
58510E Retainer, Floor Carpet
58511K Mat, Floor, NO.1
58512J Mat, Floor, NO.2
58513F Mat, Floor, NO.3
58514H Mat, Floor, NO.4
58515B Mat, Floor, Rear LH
58569D Cover, Front Floor Caution Plate
58570C Carpet Assy, Rear Floor
58595 Moulding, Floor Carpet, NO.3
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
64779A Stopper, Spare Wheel Cover
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
