Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12
Inside Trim Board
65 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51794D | Plate, Step Bracket |
| 51798C | Bracket, Step Panel |
| 58076A | Cover Sub-assy, Jack Box Hole, RH |
| 58076B | Cover Sub-assy, Jack Box Hole, LH |
| 58445K | Lock, Battery Service Hole Cover |
| 58458H | Knob, Battery Service Hole Cover |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170B | Bolt, W/Washer |
| 62170D | Airbag Assy, Curtain Shield, Front RH |
| 62170E | Airbag Assy, Curtain Shield, Rear RH |
| 62180B | Bolt, W/Washer |
| 62180C | Clip, Curtain Shield Airbag |
| 62180D | Airbag Assy, Curtain Shield, Front LH |
| 62180E | Airbag Assy, Curtain Shield, Rear LH |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217K | Clip, Curtain Shield Airbag |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62414B | Clip (FOR CENTER LOWER GARNISH) |
| 62450A | Garnish Assy, Roof Side Rail, Rear RH |
| 62460A | Garnish Assy, Roof Side Rail, Rear LH |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62489B | Clip, Roof Side Inner Garnish |
| 62510M | Panel Assy, Quarter Trim, RH |
| 62520B | Panel Assy, Quarter Trim, LH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62638B | Clip |
| 62639A | Garnish, Quarter Pillar, LH |
| 62821B | Glille, Room Ventilation |
| 62822 | Grille, Room Ventilation, LH |
| 62931F | Duct, Quarter Vent |
| 62932F | Duct, Quarter Vent, NO.2 |
| 62933H | Duct, Quarter Panel Air Inlet |
| 65988A | Hook, Sunshade |
| 65991E | Curtain, Rear Window, RH |
| 65992C | Curtain, Rear Window, LH |

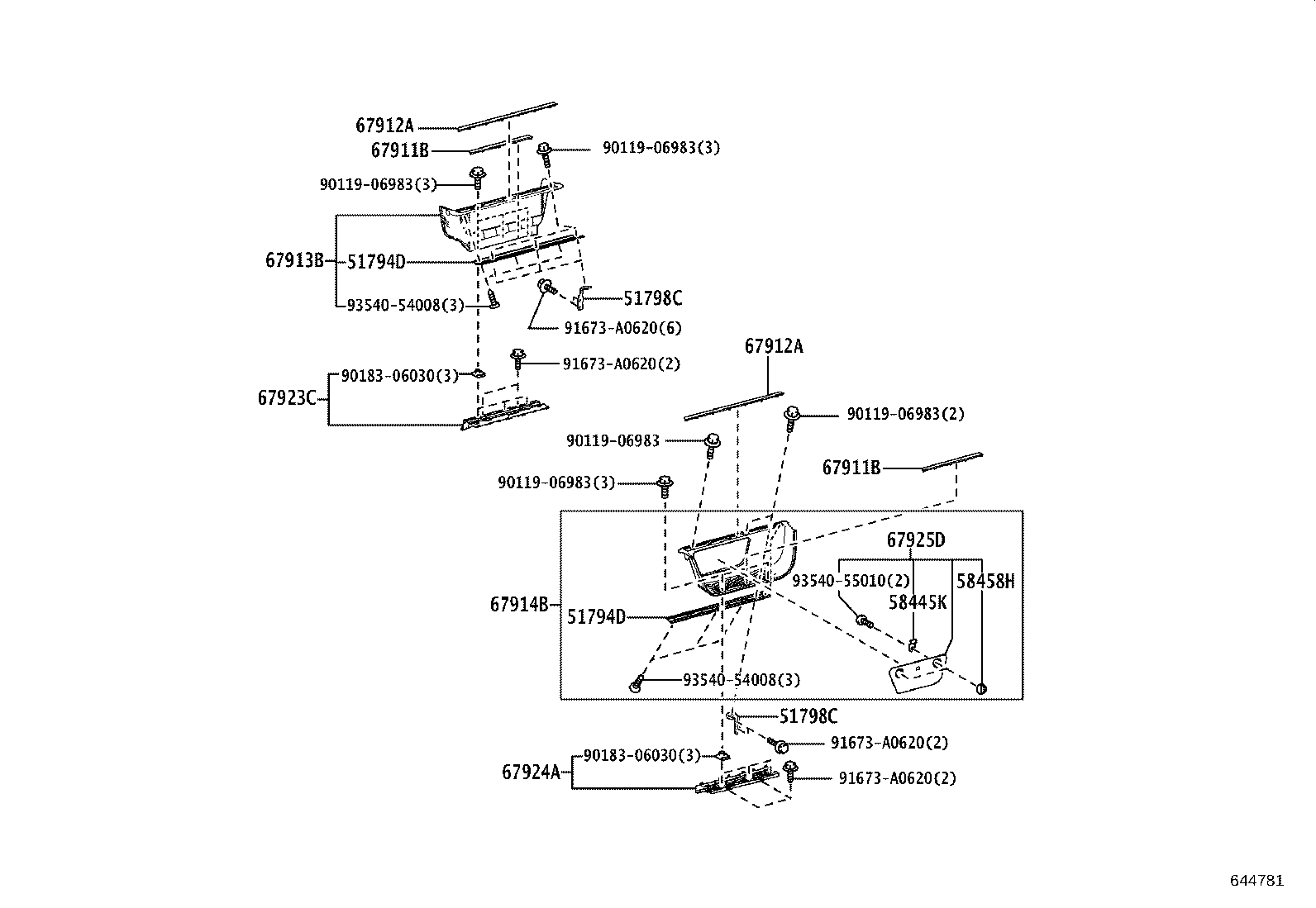

| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67917D | Clip, Rear Door Scuff Plate |
| 67918D | Plate, Rear Door Scuff, LH |
| 67923C | Clamp, Door Scuff Plate, NO.1 |
| 67923G | Clamp, Cowl Side Trim Board |
| 67924A | Clamp, Door Scuff Plate, NO.2 |
| 67925B | Panel, Rear Door Scuff, RH |
| 67925D | Cover, Door Scuff Plate |
| 67925E | Panel, Rear Door Scuff, RH NO.2 |
| 67926A | Panel, Rear Door Scuff, LH |
| 67926B | Panel, Rear Door Scuff, LH NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
