Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12
Roof Headlining & Silencer Pad
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63253D | Cover, Roof Antenna Bracket |
| 63304A | Trim Sub-assy, Roof Headlining, Front |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311D | Clip(HEADLINING, ROOF, FRONT) |

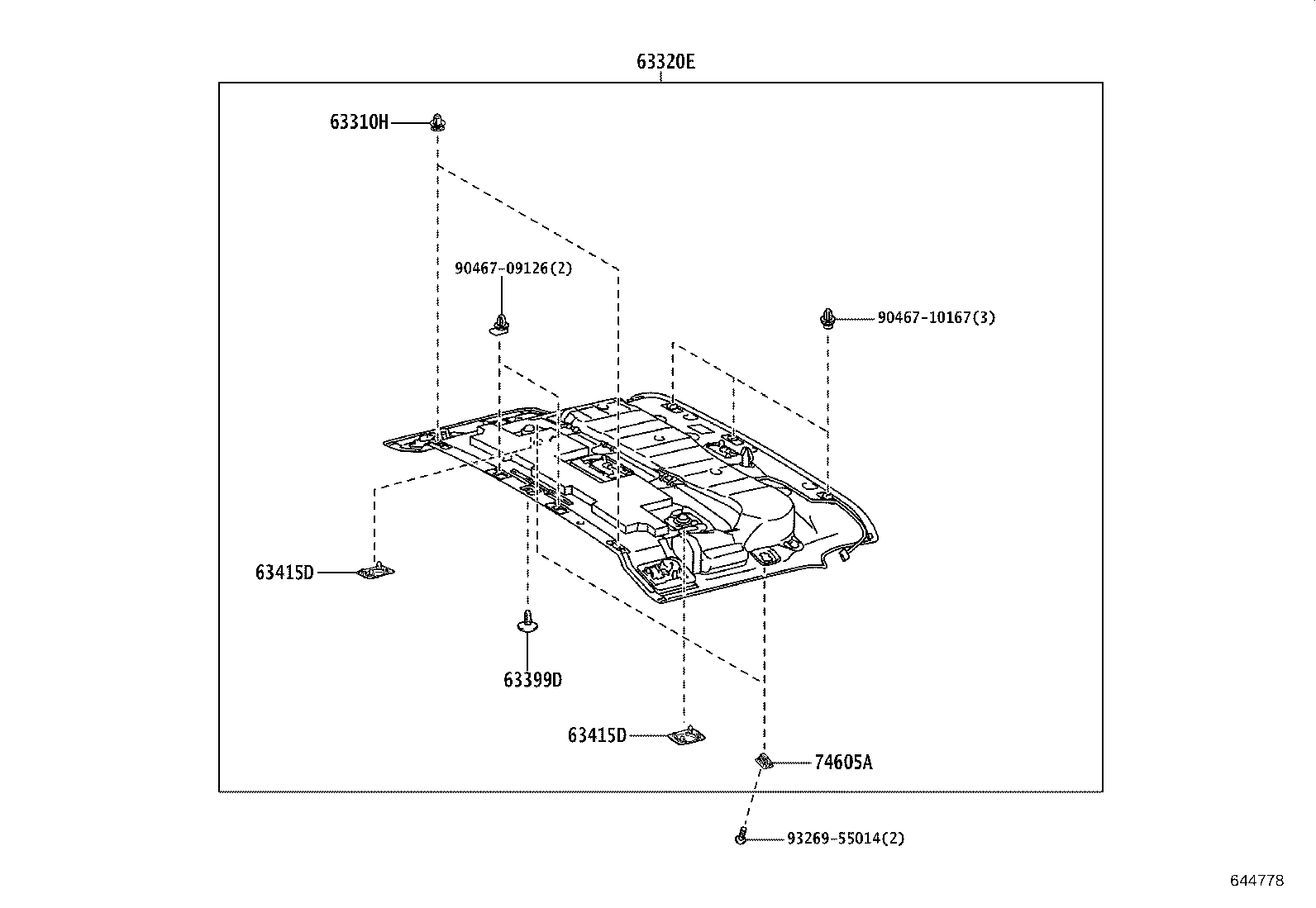

| 63320E | Headlining Assy, Roof, Rear |
| 63379A | Washer, Roof Headlining Setting |
| 63388A | Cover, Roof Headlining Holder |
| 63399C | Clip, Roof Headlining |
| 63399D | Clip, Roof Headlining |
| 63415B | Grille, Roof Speaker, RH |
| 63415D | Grille, Roof Speaker, Center |
| 63416B | Grille, Roof Speaker, LH |
| 74605A | Hook Sub-assy, Coat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
