Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12

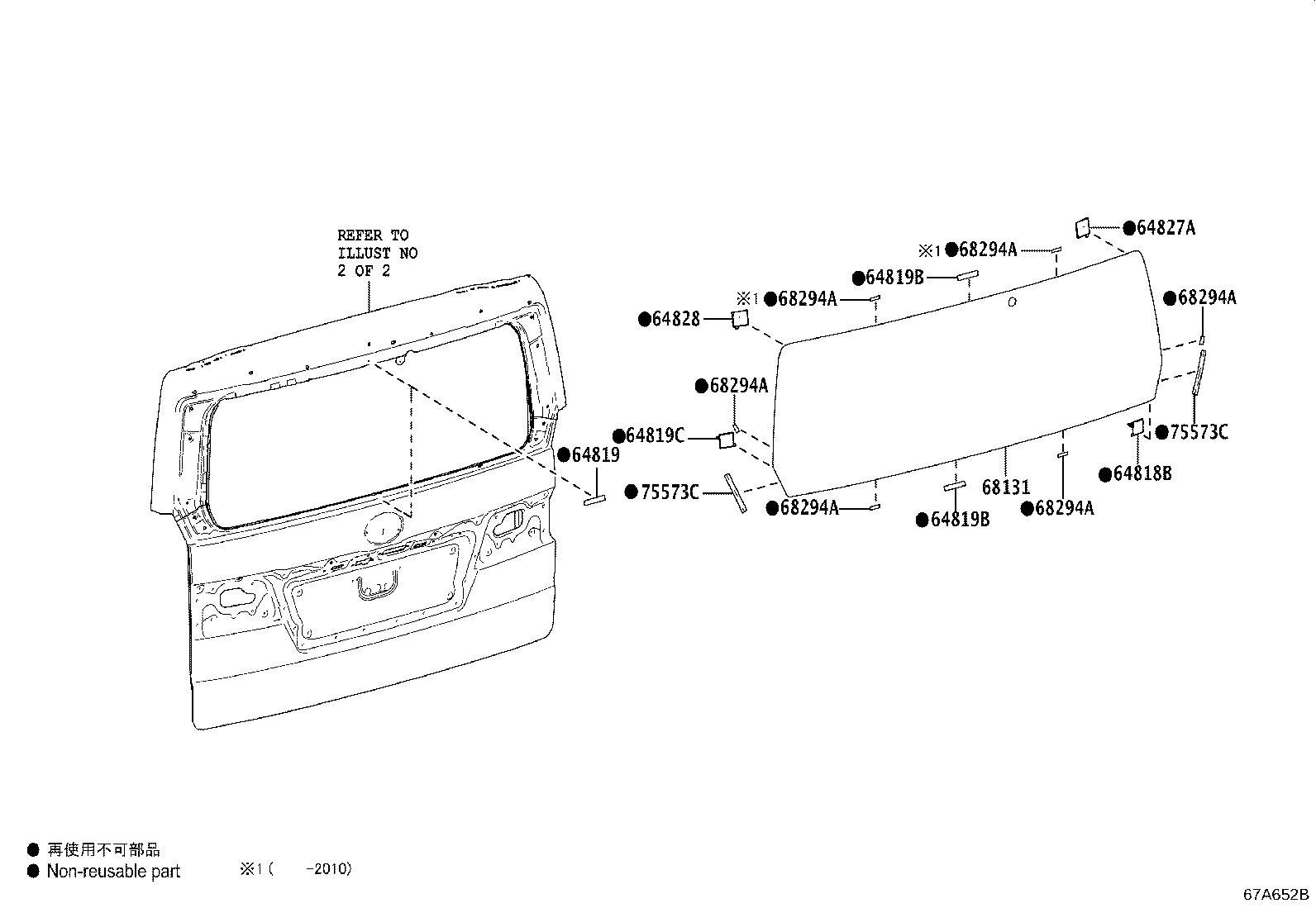

Back Door Panel & Glass
35 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 64819C | Spacer, Back Door Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67139A | Lining, Door Outside Panel Reinforcement |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67760A | Board Assy, Back Door Trim, Upper |
| 67837L | Seal, Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 68131 | Glass, Back Door |
| 68294A | Dam, Back Door Glass Adhesive |
| 75573C | Moulding, Back Window, Outside |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76802E | Garnish Sub-assy, Back Door, Outside Lower |
| 76803A | Garnish Sub-assy, Back Door, Outside Upper RH |
| 76804 | Garnish Sub-assy, Back Door, Outside Upper LH |
| 76812 | Garnish, Back Door, Outside Lower |
| 76821 | Protector, Back Door Garnish Moulding, Upper |
| 76821B | Protector, Back Door Garnish Side, RH |
| 76821C | Protector, Back Door Garnish Side, RH |
| 76822A | Protector, Back Door Garnish Moulding, Lwr |
| 76822B | Protector, Back Door Garnish Side, LH |
| 76822D | Protector, Back Door Garnish Side, LH |
| 76825 | Protector, Back Door Outside Garnish |
| 76825C | Protector, Back Door Outside Garnish |
| 76825H | Protector, Back Door Outside Garnish, NO.1 |
| 76825J | Protector, Back Door Outside Garnish, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
