Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

20 part groups · 2 illustrations

Illustrations

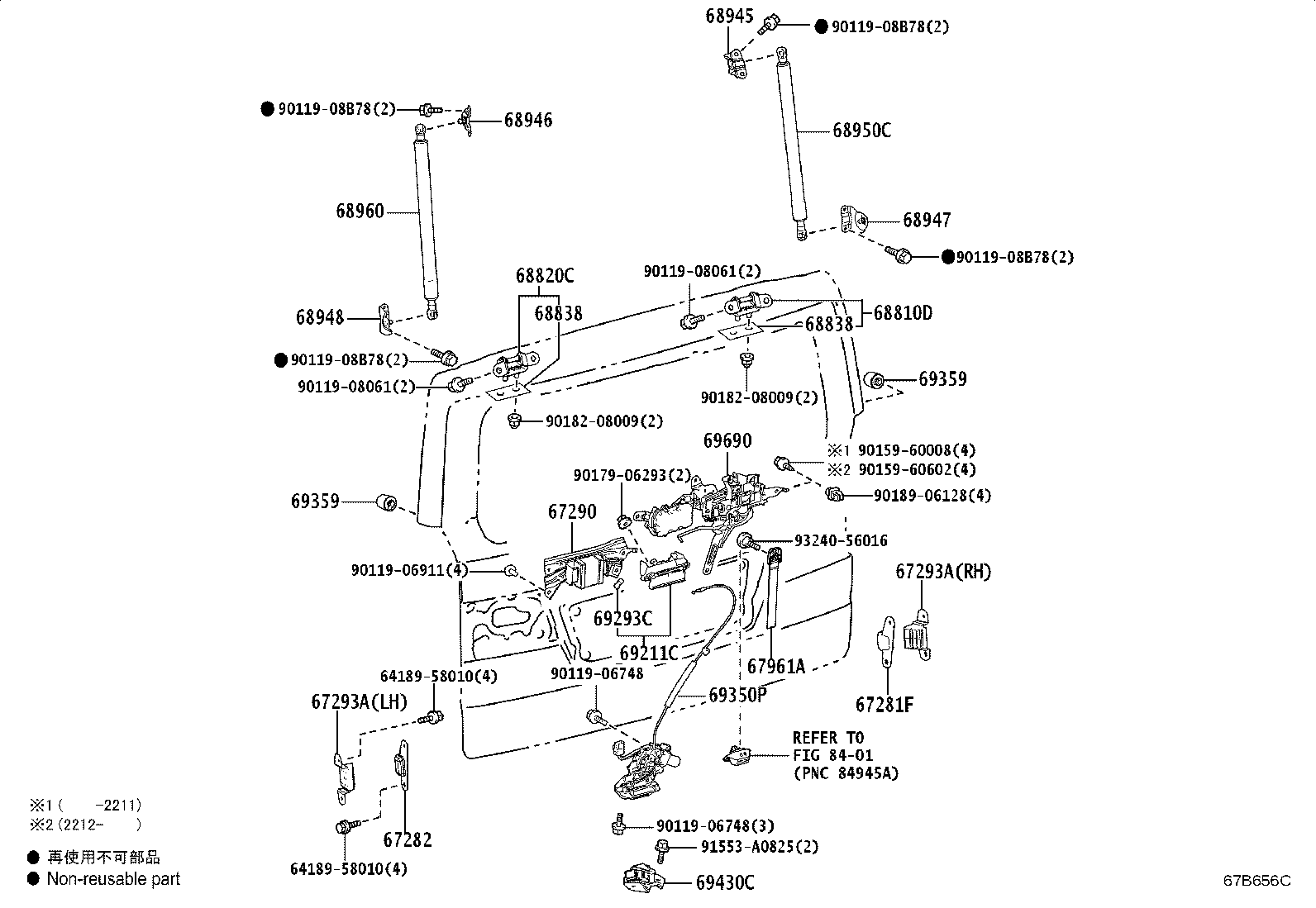

Figure 67A650D 67A650D 2019-12 → 2021-06 Figure 67B656C 67B656C 2021-06 → —

Part groups

PNCDescription
67281F Stopper, Back Door, Lower
67282 Stopper, Back Door, NO.1
67290 Damper Assy, Back Door
67293A Cushion, Back Door Stopper
67961A Strap, Back Door Pull
68810D Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69211C Handle, Back Door Outside
69293C Snap, Back Door Handle
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69359 Cushion, Back Door Lock
69430C Striker Assy, Back Door Lock
69690 Control Assy, Back Door Remote
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
