Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12
Rear Seat & Seat Track
346 part groups · 26 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 66990E | Holder Assy, Rear NO.1 Seat Cup, LH |
| 66990L | Holder Assy, Rear NO.1 Seat Cup, RH |
| 66990W | Holder Assy, Rear NO.2 Seat Cup, LH |
| 66990X | Holder Assy, Rear NO.2 Seat Cup, RH |
| 66993E | Plate, Rear NO.1 Seat Cup Holder, LH |
| 66993F | Plate, Rear NO.1 Seat Cup Holder, RH |
| 66993G | Plate, Rear NO.2 Seat Cup Holder, LH |
| 66993H | Plate, Rear NO.2 Seat Cup Holder, RH |
| 71324R | Cushion, Rear NO.1 Seat, LH |
| 71324S | Cushion, Rear NO.1 Seat, RH |
| 71396L | Cushion, NO.3 Seat Support, Rear RH |
| 71396M | Cushion, NO.3 Seat Support, Rear LH |

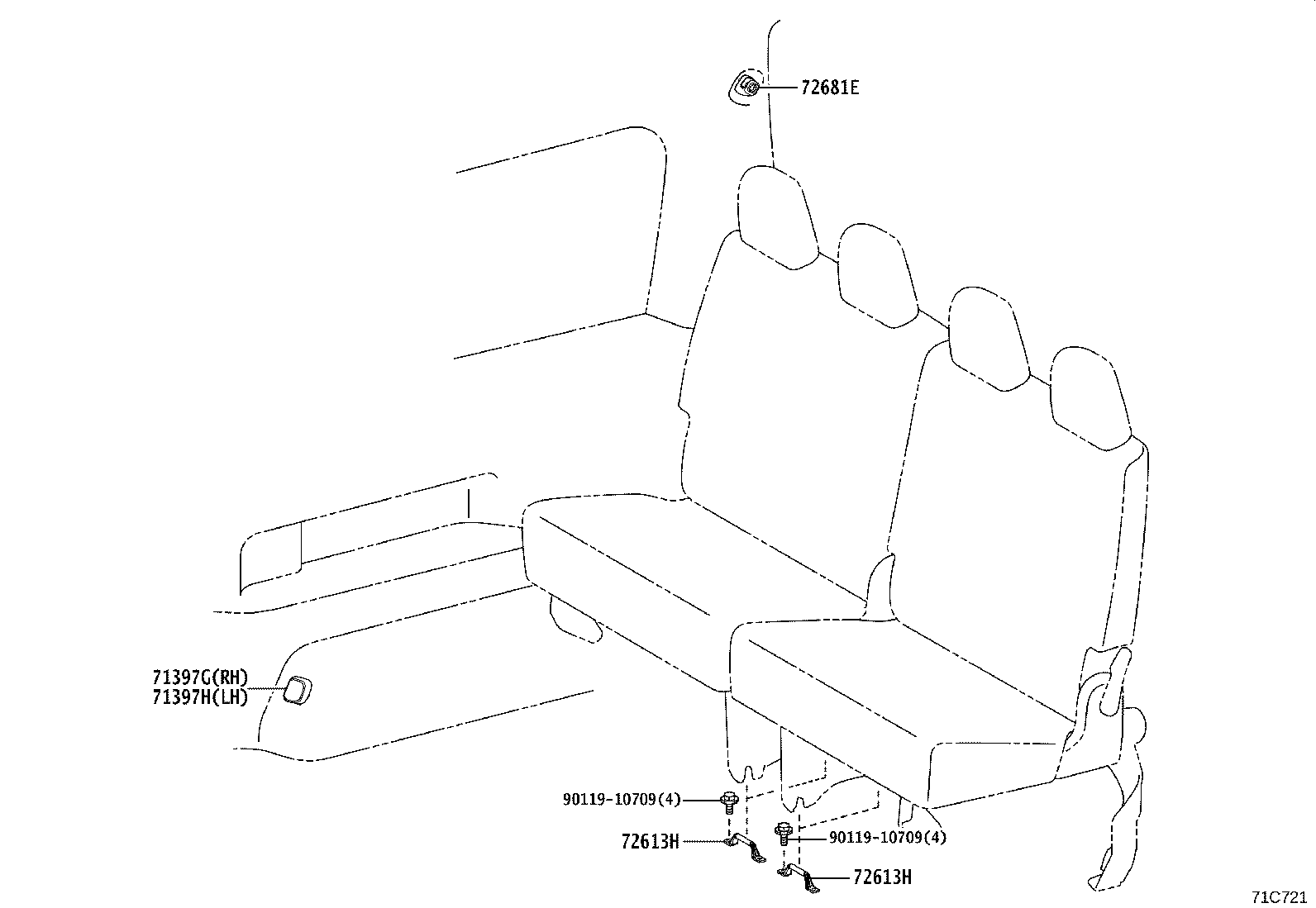

| 71397G | Stopper, Rear Seat, RH |
| 71397H | Stopper, Rear Seat, LH |
| 71499L | Damper, NO.1 Seatback Spring, RH |
| 71499M | Damper, NO.1 Seatback Spring, LH |
| 71499N | Damper, NO.2 Seatback Spring, RH NO.1 |
| 71499P | Damper, NO.2 Seatback Spring, RH NO.2 |
| 71499Q | Damper, NO.2 Seatback Spring, LH NO.1 |
| 71499R | Damper, NO.2 Seatback Spring, LH NO.2 |
| 71499V | Damper, NO.1 Seatback Spring, LH NO.2 |
| 71499W | Damper, NO.1 Seat Cushion Spring, RH NO.2 |
| 71537R | Protector, Rear NO.2 Seat Cushion, RH |
| 71537S | Protector, Rear NO.2 Seat Cushion, LH |
| 71695K | Protector, NO.1 Seatback, RH |
| 71695L | Protector, NO.1 Seatback, LH |
| 71695M | Clip, Rear NO.1 Seat Protector, NO.1 RH |
| 71695N | Clip, Rear NO.1 Seat Protector, NO.2 RH |
| 71695P | Clip, Rear NO.1 Seat Protector, NO.1 LH |
| 71695Q | Clip, Rear NO.1 Seat Protector, NO.2 LH |
| 71695R | Protector, Rear NO.2 Seatback Stay, RH |
| 71696F | Protector, NO.2 Seatback, RH |
| 71696G | Protector, NO.2 Seatback, LH |
| 71696H | Clip, NO.2 Seatback Protector, RH NO.2 |
| 71696J | Clip, NO.2 Seatback Protector, LH NO.2 |
| 71696K | Clip, NO.2 Seatback Protector, RH NO.1 |
| 71696L | Clip, NO.2 Seatback Protector, LH NO.1 |
| 71697D | Protector, NO.3 Seatback, RH |
| 71697E | Protector, NO.3 Seatback, LH |
| 71697F | Protector, Rear Seat Cushion, NO.3 RH |
| 71697G | Protector, Rear Seat Cushion, NO.3 LH |
| 71697H | Clip, NO.3 Seat Cushion Protector, RH |
| 71697J | Clip, NO.3 Seat Cushion Protector, LH |
| 71697K | Clip, NO.3 Seatback Protector, RH |
| 71801D | Cover Sub-assy, NO.3 Seat Reclining Adjuster, RH |
| 71825D | Moulding, Rear NO.1 Seat Cushion, RH |
| 71825E | Moulding, Rear NO.2 Seat Cushion, RH |
| 71826C | Moulding, Rear Seat Cushion, LH |
| 71826D | Moulding, Rear NO.2 Seat Cushion, LH |
| 71834P | Cover, Rear NO.3 Seat Reclining, NO.1 LH(FOR RH SEAT) |
| 71843H | Cover, NO.2 Seat Reclining, NO.2 RH Inner |
| 71843J | Cover, Rear NO.1 Seat Reclining, NO.2 RH |
| 71843K | Cover, Rear NO.2 Seat Reclining, NO.2 RH |
| 71844G | Cover, NO.2 Seat Reclining, NO.2 LH Outer |
| 71844J | Cover, Rear NO.1 Seat Reclining, NO.2 LH |
| 71844K | Cover, Rear NO.2 Seat Reclining, NO.2 LH |
| 71848T | Cap, NO.1 Seat Adjuster Cover, RH |
| 71848U | Cap, NO.2 Seat Adjuster Cover, RH |
| 71848W | Cap, NO.1 Seat Adjuster Cover, RH(FOR LH SEAT) |
| 71848X | Cap, NO.2 Seat Adjuster Cover, RH(FOR LH SEAT) |
| 71849L | Cap, NO.1 Seat Adjuster Cover, LH |
| 71849M | Cap, NO.2 Seat Adjuster Cover, LH |
| 71849N | Cap, NO.1 Seat Adjuster Cover, LH(FOR RH SEAT) |
| 71849P | Cap, NO.2 Seat Adjuster Cover, LH(FOR RH SEAT) |
| 71865B | Bezel, Rear NO.1 Seat Cover, NO.1(FOR RH SEAT) |
| 71865C | Bezel, Rear NO.2 Seat Cover, RH |
| 71866C | Bezel, Rear Seat Cover, NO.2 |
| 71866D | Bezel, Rear NO.1 Seat Cover, NO.2(FOR LH SEAT) |
| 71868R | Shield, NO.3 Seat Cushion, Inner NO.1 RH |
| 71868S | Shield, NO.3 Seat Cushion, Inner NO.1 LH |
| 71868T | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71875X | Cover, Reclining Adjuster Inside, RH |
| 71875Y | Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK) |
| 71878G | Cover, NO.3 Seat Reclining, Inner RH |
| 71878J | Cover, Rear NO.1 Seat Reclining, Inner RH |
| 71878K | Cover, Rear NO.2 Seat Reclining, Inner RH |
| 71878L | Clip, Rear NO.2 Seat Reclining Cover, RH |
| 71879G | Cover, NO.3 Seat Reclining, Inner LH |
| 71879J | Cover, Rear NO.1 Seat Reclining, Inner LH |
| 71879K | Cover, Rear NO.2 Seat Reclining, Inner LH |
| 71930H | Support Assy, NO.1 Seat Headrest, RH |
| 71930J | Support Assy, NO.1 Seat Headrest, LH |
| 71930K | Support Assy, NO.2 Seat Headrest, RH |
| 71930L | Support Assy, NO.2 Seat Headrest, LH |
| 71930M | Support Assy, NO.3 Seat Headrest, RH |
| 71930P | Support Assy, NO.3 Seat Headrest, LH |
| 71940F | Headrest Assy, NO.1 Seat, RH |
| 71940G | Headrest Assy, NO.1 Seat, LH |
| 71940H | Headrest Assy, NO.2 Seat, RH |
| 71940J | Headrest Assy, NO.2 Seat, LH |
| 71940K | Headrest Assy, NO.3 Seat, RH |
| 71940L | Headrest Assy, NO.3 Seat, LH |
| 71H67 | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H73 | Shield, Rear Seat Cushion, Lower RH |
| 71H73B | Shield, Rear NO.2 Seat Cushion, Lower |
| 71H74 | Shield, Rear Seat Cushion, Lower LH |
| 71H74B | Shield, NO.2 Seat Cushion, Lower LH |
| 71H75E | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT) |
| 71H75F | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT) |
| 71H75H | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 LH SEAT) |
| 71H75J | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.3 RH SEAT) |
| 71H75K | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.3 LH SEAT) |
| 71H75L | Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT) |
| 71H75M | Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT) |
| 71H75P | Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK) |
| 71H75Q | Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEATBACK) |
| 71H75R | Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT) |
| 71H75S | Cover, Reclining Adjuster Inside, RH NO.4(FOR RH SEAT) |
| 71H75T | Cover, Reclining Adjuster Inside, RH NO.5(FOR RH SEAT) |
| 71H75V | Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEATBACK) |
| 71H75W | Cover, Reclining Adjuster Inside, RH NO.4(FOR RH SEATBACK) |
| 71H75X | Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT) |
| 71H75Y | Clip, Rear Seat Reclining Cover |
| 71H76E | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT) |
| 71H76F | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT) |
| 71H76G | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 RH SEAT) |
| 71H76H | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT) |
| 71H76K | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.3 LH SEAT) |
| 71H76L | Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT) |
| 71H76N | Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT) |
| 71H76P | Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT) |
| 71H76Q | Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT) |
| 71H76R | Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT) |
| 71H76S | Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK) |
| 71H76U | Cover, Reclining Adjuster Inside, LH NO.3(FOR RH SEAT) |
| 71H76V | Cover, Reclining Adjuster Inside, LH NO.4(FOR RH SEAT) |
| 71H76W | Cover, Reclining Adjuster Inside, LH NO.5(FOR LH SEAT) |
| 71T75 | Cover, Reclining Adjuster Inside, RH |
| 71T75A | Cover, Reclining Adjuster Inside, RH NO.2 |
| 71T75B | Clip, Reclining Adjuster Inside Cover, RH |
| 71T75C | Cover, Reclining Adjuster Inside, RH NO.1(FOR NO.2 RH SEAT) |
| 71T75D | Cover, Reclining Adjuster Inside, RH NO.2(FOR NO.2 RH SEAT) |
| 71T75E | Cover, Reclining Adjuster Inside, RH NO.3(FOR NO.2 RH SEAT) |
| 71T75F | Cover, Reclining Adjuster Inside, RH |
| 71T75G | Cover, Reclining Adjuster Inside, RH(FOR NO.3 LH SEAT BACK) |
| 71T76 | Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT BACK) |
| 71T76A | Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT BACK) |
| 71T76B | Cover, Reclining Adjuster Inside, LH |
| 71T76D | Clip, Reclining Adjuster Inside Cover, LH |
| 71T76E | Cover, Reclining Adjuster Inside, LH NO.1(FOR NO.2 RH SEAT) |
| 71T76F | Cover, Reclining Adjuster Inside, LH NO.2(FOR NO.2 RH SEAT) |
| 71T76G | Cover, Reclining Adjuster Inside, LH |
| 71T76H | Cover, Reclining Adjuster Inside, RH |
| 71T76J | Cover, Reclining Adjuster Inside, LH(FOR NO.3 LH SEAT BACK) |
| 72046F | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR LH SEAT) |
| 72046G | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.2(FOR LH SEAT) |
| 72046H | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR RH SEAT) |
| 72046J | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.2(FOR RH SEAT) |
| 72057E | Lever Sub-assy, Rear Seat Lock Control, RH NO.1 |
| 72057F | Lever Sub-assy, Rear Seat Lock Control, RH NO.2 |
| 72057G | Lever Sub-assy, Rear Seat Lock Control, LH NO.1 |
| 72057H | Lever Sub-assy, Rear Seat Lock Control, LH NO.2 |
| 72075C | Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR LH SEAT) |
| 72075D | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Lower Inner RH |
| 72076D | Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR RH SEAT) |
| 72076E | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Lower Inner LH |
| 72210Q | Cable Assy, NO.1 Seat Slide, RH |
| 72210R | Cable Assy, NO.1 Seat Slide, LH |
| 72210S | Cable Assy, NO.2 Seat Slide, RH |
| 72210T | Cable Assy, NO.2 Seat Slide, LH |
| 72210U | Cable Assy, NO.1 Seat Track Control, LH |
| 72210V | Cable Assy, NO.1 Seat Track Control, LH NO.1 |
| 72210W | Cable Assy, NO.1 Seat Track Control, LH NO.2 |
| 72210X | Cable Assy, NO.1 Seat Track Control, RH |
| 72210Y | Cable Assy, NO.1 Seat Track Control, RH NO.1 |
| 72210Z | Cable Assy, NO.1 Seat Track Control, RH NO.2 |
| 72215B | Lever, NO.2 Seat Track Handle Control, RH |
| 72215C | Lever, NO.3 Seat Track Handle Control, RH |
| 72216C | Lever, NO.2 Seat Track Handle Control, LH |
| 72216D | Lever, NO.3 Seat Track Handle Control, LH |
| 72345R | Cap, Seat Stand Frame, LH NO.2 |
| 72345S | Cap, NO.2 Seat Stand Frame, RH |
| 72345T | Cap, NO.2 Seat Stand Frame, LH |
| 72345U | Cap, Seat Stand Frame, RH NO.3 |
| 72345V | Cap, Seat Stand Frame, RH NO.4 |
| 72345W | Cap, Seat Stand Frame, LH NO.3 |
| 72345X | Cap, Seat Stand Frame, LH NO.4 |
| 72345Y | Cap, NO.1 Seat Stand Frame, NO.1(FOR LH SEAT) |
| 72345Z | Cap, NO.1 Seat Stand Frame, NO.2(FOR LH SEAT) |
| 72525N | Handle, NO.1 Seat Reclining Adjuster Release, RH |
| 72525P | Handle, NO.2 Seat Reclining Adjuster Release, RH |
| 72525Q | Handle, NO.3 Seat Reclining Adjuster Release, RH |
| 72526J | Handle, NO.1 Seat Reclining Adjuster Release, LH |
| 72526K | Handle, NO.2 Seat Reclining Adjuster Release, LH |
| 72526M | Handle, NO.3 Seat Reclining Adjuster Release, LH |
| 72553E | Protector, Reclining Cover, RH NO.1 |
| 72553F | Protector, Reclining Cover, RH NO.2 |
| 72553G | Protector, Rear NO.2 Seat Reclining Cover, RH NO.1 |
| 72553H | Protector, Rear NO.2 Seat Reclining Cover, RH NO.2 |
| 72553J | Clip, Rear NO.2 Seat Reclining Cover Protector, RH |
| 72554E | Protector, Reclining Cover, LH NO.1 |
| 72554F | Protector, Reclining Cover, LH NO.2 |
| 72554G | Protector, Rear NO.2 Seat Reclining Cover, LH NO.1 |
| 72554H | Protector, Rear NO.2 Seat Reclining Cover, LH NO.2 |
| 72569B | Plate, Seatback Stopper |
| 72570G | Cable Assy, NO.2 Seat Reclining Adjusting, RH |
| 72570H | Cable Assy, NO.2 Seat Reclining Adjusting, LH |
| 72570J | Cable Assy, NO.3 Seat Reclining Adjusting, RH NO.1 |
| 72570K | Cable Assy, NO.3 Seat Reclining Adjusting, RH NO.2 |
| 72570L | Cable Assy, NO.3 Seat Reclining Adjusting, LH |
| 72573C | Lever, NO.3 Seat Reclining Control, RH |
| 72574A | Lever, Reclining Control, LH |
| 72620M | Cable Assy, NO.2 Seat Walk-in, RH |
| 72620N | Cable Assy, NO.2 Seat Walk-in, LH |
| 72620P | Cable Assy, NO.3 Seat Slide, RH |
| 72620Q | Cable Assy, NO.3 Seat Slide, LH |
| 72690F | Lever Assy, NO.2 Seat Cushion Lock Release, RH |
| 72690G | Lever Assy, NO.2 Seat Cushion Lock Release, LH |
| 72781E | Spring, Rear NO.1 Seat Plate, LH |
| 72781F | Spring, Rear NO.1 Seat Plate, RH |
| 72781G | Spring, Rear NO.2 Seat Plate, LH |
| 72781H | Spring, Rear NO.2 Seat Plate, RH |
| 72803H | Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR LH SEAT) |
| 72803J | Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT) |
| 72803K | Frame Sub-assy, Rear NO.2 Seat Armrest, RH(FOR LH SEAT) |
| 72803L | Frame Sub-assy, Rear NO.2 Seat Armrest, RH(FOR RH SEAT) |
| 72804E | Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT) |
| 72804F | Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR RH SEAT) |
| 72804G | Frame Sub-assy, Rear NO.2 Seat Armrest, LH(FOR LH SEAT) |
| 72804H | Frame Sub-assy, Rear NO.2 Seat Armrest, LH(FOR RH SEAT) |
| 72813B | Box, Rear Seat Cushion |
| 72830V | Armrest Assy, Rear NO.1 Seat, RH |
| 72830W | Armrest Assy, Rear NO.2 Seat, RH |
| 72840K | Armrest Assy, Rear NO.1 Seat, LH |
| 72840L | Armrest Assy, Rear NO.2 Seat, LH |
| 72848E | Cap, NO.2 Seat Armrest, NO.1 RH |
| 72848F | Cap, NO.2 Seat Armrest, NO.1 LH |
| 72848G | Cap, NO.3 Seat Armrest, NO.1 RH |
| 72848H | Cap, NO.3 Seat Armrest, NO.1 LH |
| 72880B | Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT) |
| 72880D | Armrest Assy, NO.2 Seat, C RH(FOR RH SEAT) |
| 72880E | Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT) |
| 72880G | Armrest Assy, NO.3 Seat, C RH(FOR RH SEAT) |
| 72890C | Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT) |
| 72890D | Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT) |
| 72890E | Armrest Assy, NO.2 Seat, C LH(FOR LH SEAT) |
| 72890F | Armrest Assy, NO.3 Seat, C LH(FOR LH SEAT) |
| 72B10 | Cable Assy, Rear NO.2 Seat Track Control(FOR LH SEAT) |
| 72B10A | Cable Assy, Rear NO.2 Seat Track Control(FOR RH SEAT) |
| 72C45 | Cap, NO.1 Seat Stand Frame, NO.3(FOR LH SEAT) |
| 72C45A | Cap, NO.1 Seat Stand Frame, NO.1(FOR RH SEAT) |
| 72C45B | Cap, NO.1 Seat Stand Frame, NO.2(FOR RH SEAT) |
| 72C45C | Cap, NO.1 Seat Stand Frame, NO.3(FOR RH SEAT) |
| 72C45D | Cap, Rear NO.2 Seat Stand Frame(FOR RH SEAT) |
| 73315B | Cover, Rear NO.3 Seat Belt, Inner RH |
| 73316B | Cover, Rear NO.3 Seat Belt, Inner LH |
| 73373U | Cover, NO.1 Seat Shoulder Belt, RH NO.1 |
| 73373V | Cover, NO.1 Seat Shoulder Belt, RH NO.2 |
| 73373W | Cover, NO.1 Seat Shoulder Belt, LH NO.2 |
| 73373X | Cover, NO.1 Seat Shoulder Belt, LH NO.1 |
| 73373Y | Cover, NO.2 Seat Shoulder Belt, RH NO.1 |
| 73373Z | Cover, NO.2 Seat Shoulder Belt, RH NO.2 |
| 73374A | Cover, NO.2 Seat Shoulder Belt, LH NO.1 |
| 73374B | Cover, NO.2 Seat Shoulder Belt, LH NO.2 |
| 78060C | Table Assy, NO.1 Seat Side |
| 78641A | Board, Rear NO.1 Seat Side Table |
| 78656J | Cover, Rear Seat Legrest, RH |
| 78656K | Cover, Rear Seat Legrest, LH |
| 78656L | Cover, Rear NO.2 Seat Legrest(FOR LH SEAT) |
| 78656M | Cover, Rear NO.2 Seat Legrest(FOR RH SEAT) |
| 78987B | Cover, Rear NO.1 Seat Footrest, NO.1 LH |
| 78987C | Cover, Rear NO.1 Seat Footrest, NO.1 RH |
| 78987D | Cover, Rear NO.2 Seat Footrest, NO.1(FOR LH SEAT) |
| 78987E | Cover, Rear NO.2 Seat Footrest, NO.1(FOR RH SEAT) |
| 79011B | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79011C | Clip, NO.1 Seat Cushion Cover, RH |
| 79011D | Clip, NO.1 Seat Cushion Cover, LH |
| 79012A | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013D | Cover Sub-assy, NO.1 Seatback, RH |
| 79014B | Cover Sub-assy, NO.1 Seatback, LH |
| 79015C | Pad Sub-assy, NO.1 Seat Cushion, RH |
| 79017 | Pad Sub-assy, NO.1 Seatback, RH |
| 79018 | Pad Sub-assy, NO.1 Seatback, LH |
| 79021C | Clip, NO.2 Seat Cushion Cover, RH |
| 79021D | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022B | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79022C | Clip, NO.2 Seat Cushion Cover, LH |
| 79023D | Cover Sub-assy, NO.2 Seatback, RH |
| 79024D | Cover Sub-assy, NO.2 Seatback, LH |
| 79027C | Pad Sub-assy, NO.2 Seatback, RH |
| 79028 | Pad Sub-assy, NO.2 Seatback, LH |
| 79031C | Cover, Sub-assy, NO.3 Seat Cushion, RH |
| 79032B | Cover, Sub-assy, NO.3 Seat Cushion, LH |
| 79033B | Cover Sub-assy, NO.3 Seatback, RH |
| 79034A | Cover Sub-assy, NO.3 Seatback, LH |
| 79076P | Cover Sub-assy, NO.3 Seat Leg, RH |
| 79076Q | Cover Sub-assy, NO.3 Seat Leg, Inner NO.1 |
| 79076R | Cover Sub-assy, NO.3 Seat Leg, Inner NO.2 |
| 79076S | Cover Sub-assy, NO.3 Seat Leg, LH |
| 79077E | Cover Sub-assy, NO.2 Seat Leg, RH Outer |
| 79077G | Cover Sub-assy, NO.2 Seat Leg, LH Outer |
| 79077H | Cover Sub-assy, NO.2 Seat Leg, RH Inner |
| 79078B | Cover Sub-assy, NO.3 Seat Leg, RH |
| 79078C | Cover Sub-assy, NO.3 Seat Leg, LH |
| 79101C | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102B | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79103B | Frame Sub-assy, NO.1 Seatback, RH |
| 79104A | Frame Sub-assy, NO.1 Seatback, LH |
| 79105G | Leg Sub-assy, NO.1 Seat, RH |
| 79106B | Leg Sub-assy, NO.1 Seat, LH |
| 79136C | Pad, NO.1 Seat Cushion, LH |
| 79201C | Frame Sub-assy, NO.2 Seat Cushion, RH |
| 79202B | Frame Sub-assy, NO.2 Seat Cushion, LH |
| 79203B | Frame Sub-assy, NO.2 Seatback, RH |
| 79204C | Frame Sub-assy, NO.2 Seatback, LH |
| 79205C | Leg Sub-assy, NO.2 Seat, RH |
| 79206D | Leg Sub-assy, NO.2 Seat, LH |
| 79235F | Pad, NO.2 Seat Cushion, RH |
| 79236G | Cover, NO.2 Seat Leg, RH |
| 79236H | Cover, NO.3 Seat Leg, RH |
| 79236J | Cover, NO.2 Seat Leg, RH Outer |
| 79245A | Pad, NO.2 Seat Cushion, LH |
| 79246H | Cover, NO.2 Seat Leg, LH |
| 79246J | Cover, NO.3 Seat Leg, LH |
| 79246K | Cover, NO.2 Seat Leg, LH Outer |
| 79275F | Pad, NO.2 Seatback, RH |
| 79285C | Pad, NO.2 Seatback, LH |
| 79301C | Frame Sub-assy, NO.3 Seat Cushion, RH |
| 79302B | Frame Sub-assy, NO.3 Seat Cushion, LH |
| 79303B | Frame Sub-assy, NO.3 Seatback, RH |
| 79304B | Frame Sub-assy, NO.3 Seatback, LH |
| 79305E | Leg Sub-assy, NO.3 Seat, RH |
| 79306A | Leg Sub-assy, NO.3 Seat, LH |
| 79335B | Pad, NO.3 Seat Cushion, RH |
| 79337A | Carpet, NO.2 Seat Cushion Under, RH |
| 79345B | Pad, NO.3 Seat Cushion, LH |
| 79375C | Pad, NO.3 Seatback, RH |
| 79385 | Pad, NO.3 Seatback, LH |
| 79959E | Cover, NO.1 Seat Leg, RH |
| 79959F | Cover, NO.1 Seat Leg, LH |
| 79959G | Cover, NO.2 Seat Leg, RH NO.1 |
| 79959H | Cover, NO.2 Seat Leg, RH NO.2 |
| 79959J | Cover, NO.2 Seat Leg, LH NO.1 |
| 79959K | Cover, NO.2 Seat Leg, LH NO.2 |
| 79968W | Cover, Rear NO.1 Seat Leg Side, NO.5(FOR LH SEAT) |
| 79968X | Cover, Rear NO.1 Seat Leg Side, NO.5(FOR RH SEAT) |
| 79968Y | Cover, Rear NO.2 Seat Leg Side, NO.5(FOR LH SEAT) |
| 79968Z | Cover, Rear NO.2 Seat Leg Side, NO.5(FOR RH SEAT) |
| 87510Y | Heater Assy, Rear NO.1 Seat Cushion, LH |
| 87510Z | Heater Assy, Rear NO.1 Seat Cushion, RH |
| 87530 | Heater Assy, Rear NO.1 Seatback, LH |
| 87530A | Heater Assy, Rear NO.1 Seatback, RH |
| 87530B | Heater Assy, Rear NO.2 Seatback, LH |
| 87530C | Heater Assy, Rear NO.2 Seatback, RH |
| 87E10 | Heater Assy, Rear NO.2 Seat, LH |
| 87E10A | Heater Assy, Rear NO.2 Seat, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
