Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

20 part groups · 4 illustrations

Illustrations

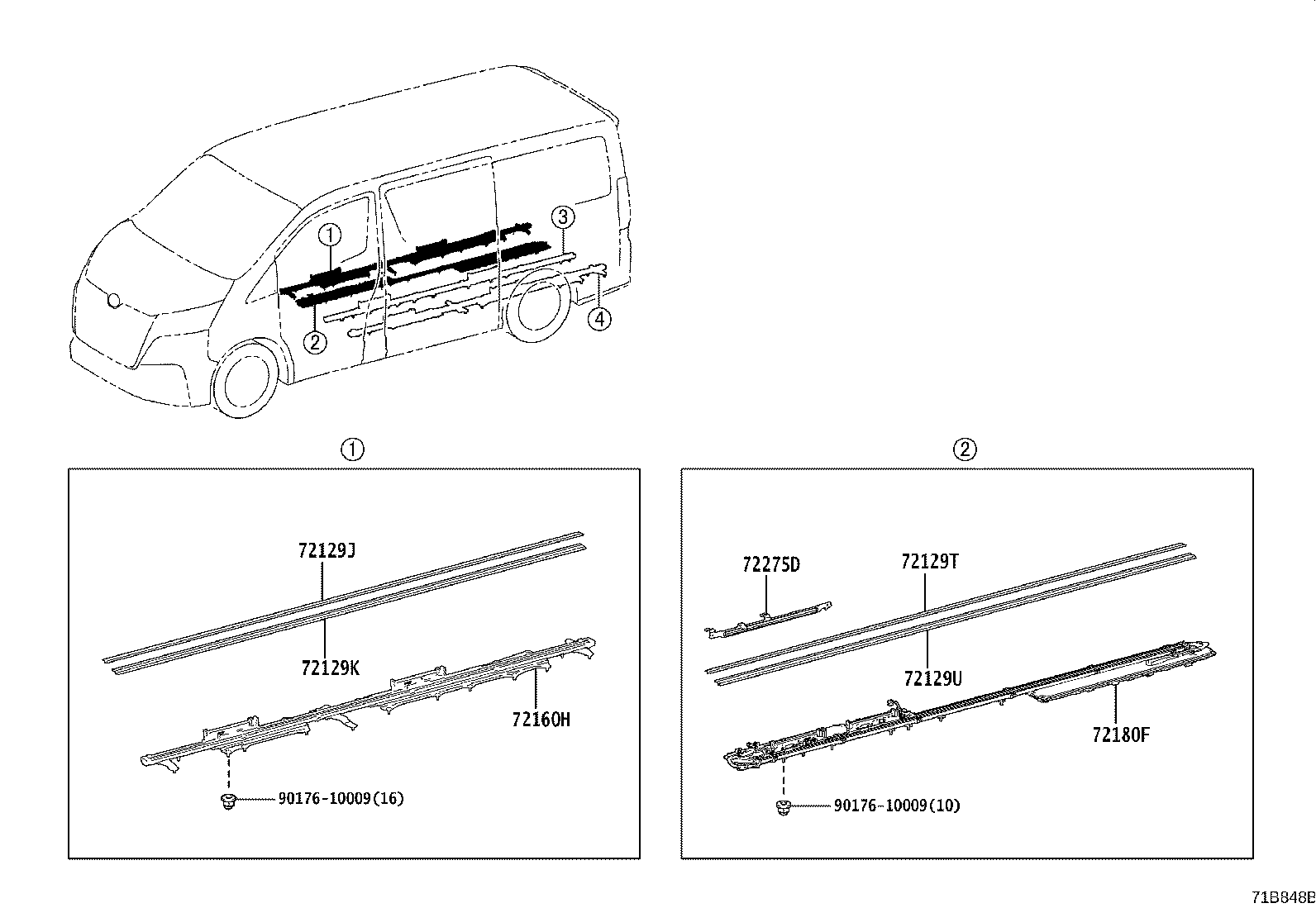

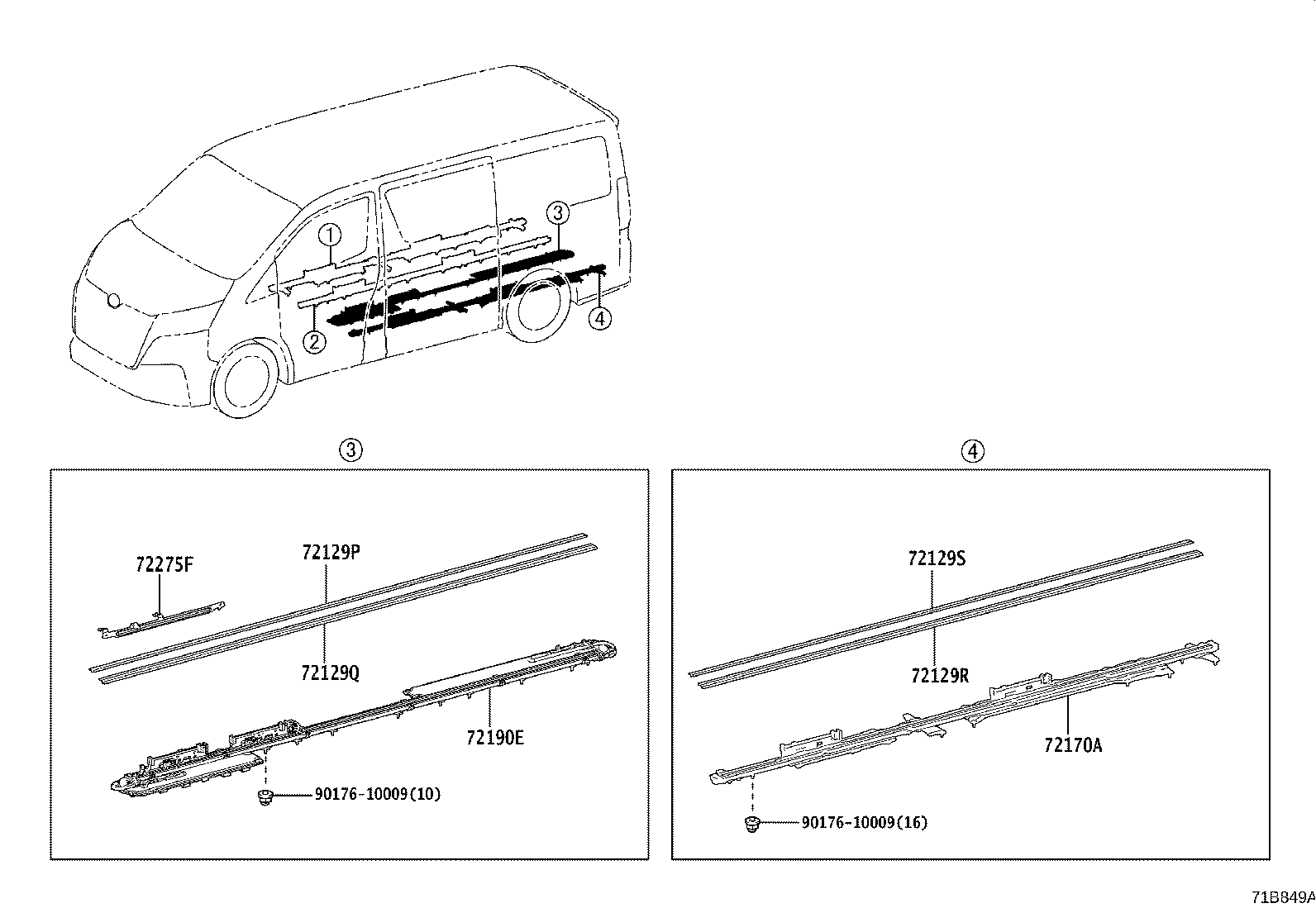

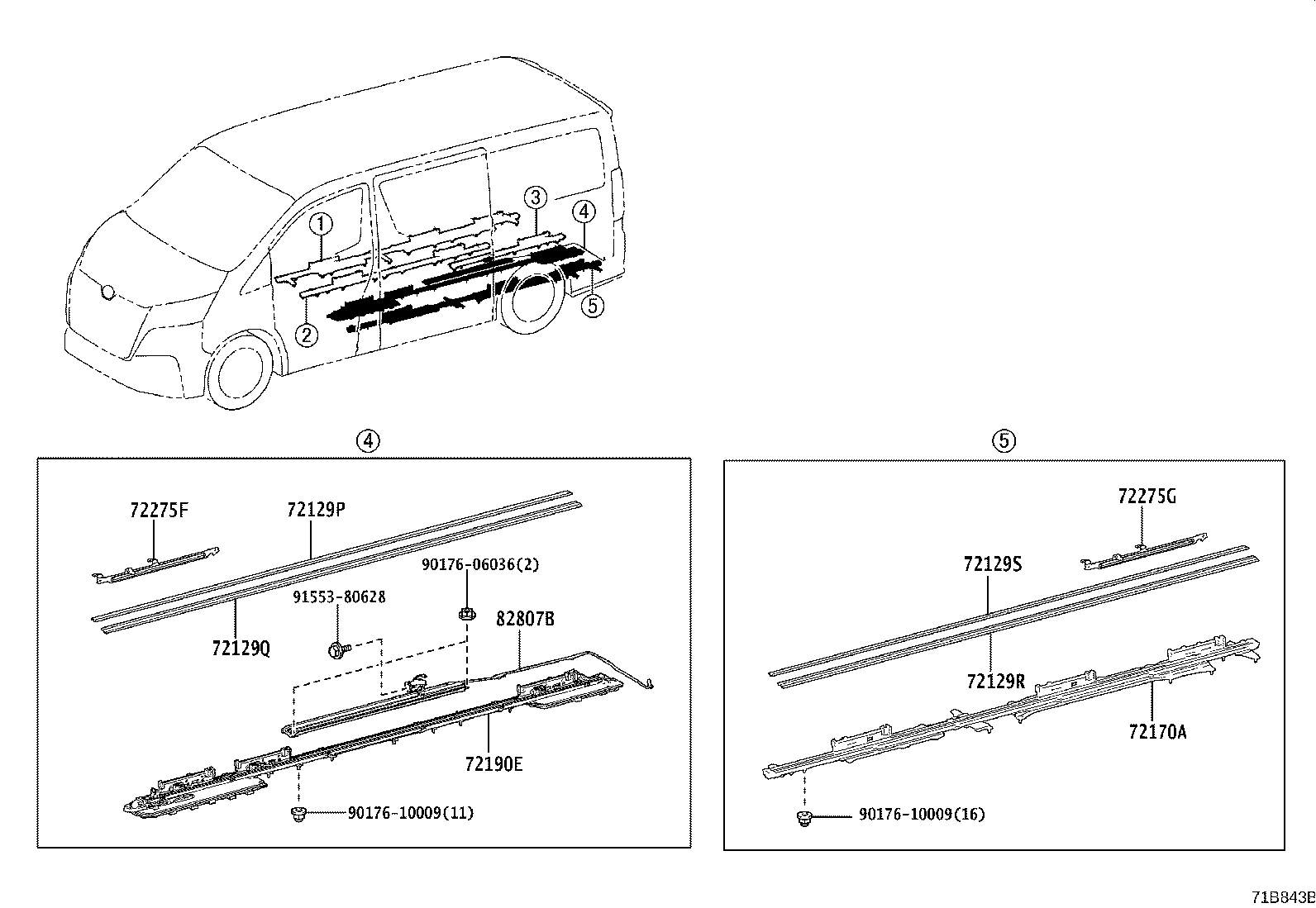

Figure 71B842B 71B842B 2019-12 → — Figure 71B843B 71B843B 2019-12 → — Figure 71B848B 71B848B 2019-12 → — Figure 71B849A 71B849A 2019-12 → —

Part groups

PNCDescription
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129K Protector, Seat Track Lower Rail, RH Outer NO.2
72129M Protector, Seat Track Lower Rail, RH Inner Rear NO.1
72129N Protector, Seat Track Lower Rail, RH Inner Rear NO.2
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129Q Protector, Seat Track Lower Rail, LH Inner NO.2
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129S Protector, Seat Track Lower Rail, LH Outer NO.2
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129U Protector, Seat Track Lower Rail, RH Inner NO.2
72160H Track Assy, Rear Seat, Outer RH
72170A Track Assy, Rear Seat, Outer LH
72180F Track Assy, Rear Seat, Inner RH
72180G Track Assy, Rear Seat, Inner RH Rear
72190E Track Assy, Rear Seat, Inner LH
72275D Stopper, Rear Seat Track Slide, RH NO.1
72275E Stopper, Rear Seat Track Slide, RH NO.2
72275F Stopper, Rear Seat Track Slide, LH NO.1
72275G Stopper, Rear Seat Track Slide, LH NO.2
82807B Protector Set, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
