Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12

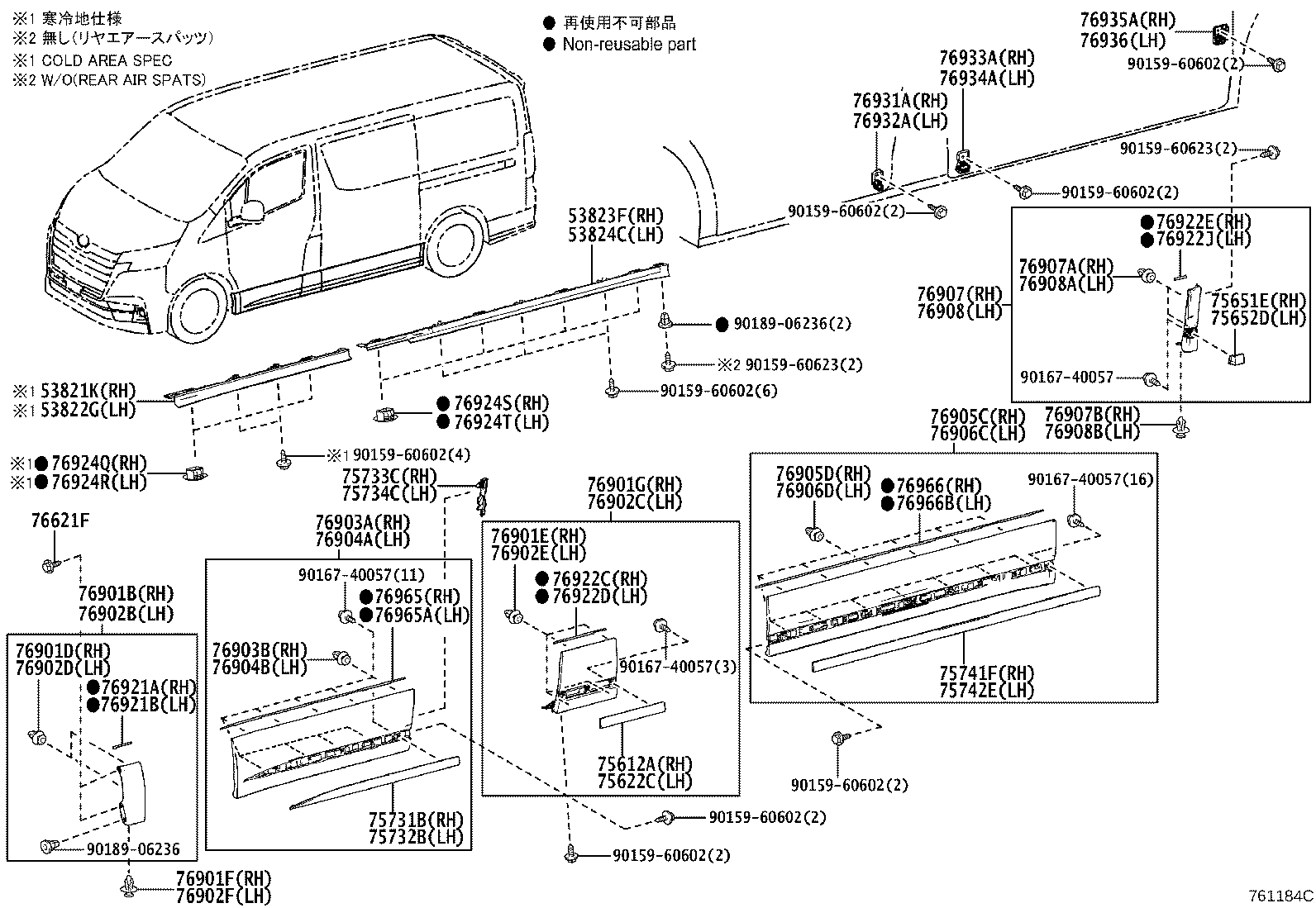

Spoiler & Side Mudguard
65 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53821K | Protector, Front Side Panel, NO.1 RH |
| 53822G | Protector, Front Side Panel, NO.1 LH |
| 53823F | Protector, Front Side Panel, NO.2 RH |
| 53824C | Protector, Front Side Panel, NO.2 LH |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75612A | Moulding, Side Panel, NO.2 RH |
| 75622C | Moulding, Side Panel, NO.2 LH |
| 75651E | Moulding, Quarter, Outside RH |
| 75652D | Moulding, Quarter, Outside LH |
| 75731B | Moulding, Front Door, Outside RH |
| 75732B | Moulding, Front Door, Outside LH |
| 75733C | Moulding, Front Door, Outside Rear RH |
| 75734C | Moulding, Front Door, Outside Rear LH |
| 75741F | Moulding, Rear Door, Outside RH |
| 75742E | Moulding, Rear Door, Outside LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76621F | Screw, NO.1 |
| 76866 | Retainer, Rear Spoiler, NO.2 |
| 76874C | Protector, Rear Spoiler, NO.3 |
| 76889D | Clip, Rear Spoiler, NO.2 |
| 76901B | Mudguard Sub-assy, Fender Panel, RH |
| 76901D | Clip, Fender Panel Mudguard |
| 76901E | Clip, Side Mudguard |
| 76901F | Clip, Fender Panel Mudguard |
| 76901G | Mudguard Sub-assy, Side, RH |
| 76902B | Mudguard Sub-assy, Fender Panel, LH |
| 76902C | Mudguard Sub-assy, Side, LH |
| 76902D | Clip, Fender Panel Mudguard |
| 76902E | Clip, Side Mudguard |
| 76902F | Clip, Fender Panel Mudguard |
| 76903A | Mudguard Sub-assy, Front Door, RH |
| 76903B | Clip, Front Door Mudguard |
| 76904A | Mudguard Sub-assy, Front Door, LH |
| 76904B | Clip, Front Door Mudguard |
| 76905C | Mudguard Sub-assy, Slide Door, RH |
| 76905D | Clip, Slide Door Mudguard |
| 76906C | Mudguard Sub-assy, Slide Door, LH |
| 76906D | Clip, Slide Door Mudguard |
| 76907 | Mudguard Sub-assy, Quarter Panel, RH |
| 76907A | Clip, Quarter Panel Mudguard |
| 76907B | Clip, Quarter Panel Mudguard |
| 76908 | Mudguard Sub-assy, Quarter Panel, LH |
| 76908A | Clip, Quarter Panel Mudguard |
| 76908B | Clip, Quarter Panel Mudguard |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76921B | Protector, Side Mudguard, NO.1 |
| 76922C | Protector, Side Mudguard, NO.2 |
| 76922D | Protector, Side Mudguard, NO.2 |
| 76922E | Protector, Side Mudguard, NO.2 |
| 76922J | Protector, Side Mudguard, NO.2 |
| 76924Q | Retainer, Front Side Panel Protector |
| 76924R | Retainer, Front Side Panel Protector |
| 76924S | Retainer, Front Side Panel Protector |
| 76924T | Retainer, Front Side Panel Protector |
| 76931A | Bracket, Side Mudguard, NO.1 RH |
| 76932A | Bracket, Side Mudguard, NO.1 LH |
| 76933A | Bracket, Side Mudguard, NO.2 RH |
| 76934A | Bracket, Side Mudguard, NO.2 LH |
| 76935A | Bracket, Side Mudguard, NO.3 RH |
| 76936 | Bracket, Side Mudguard, NO.3 LH |
| 76965 | Protector, Front Door Lower Mudguard |
| 76965A | Protector, Front Door Lower Mudguard |
| 76966 | Protector, Slide Door Lower Mudguard |
| 76966B | Protector, Slide Door Lower Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
