Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12

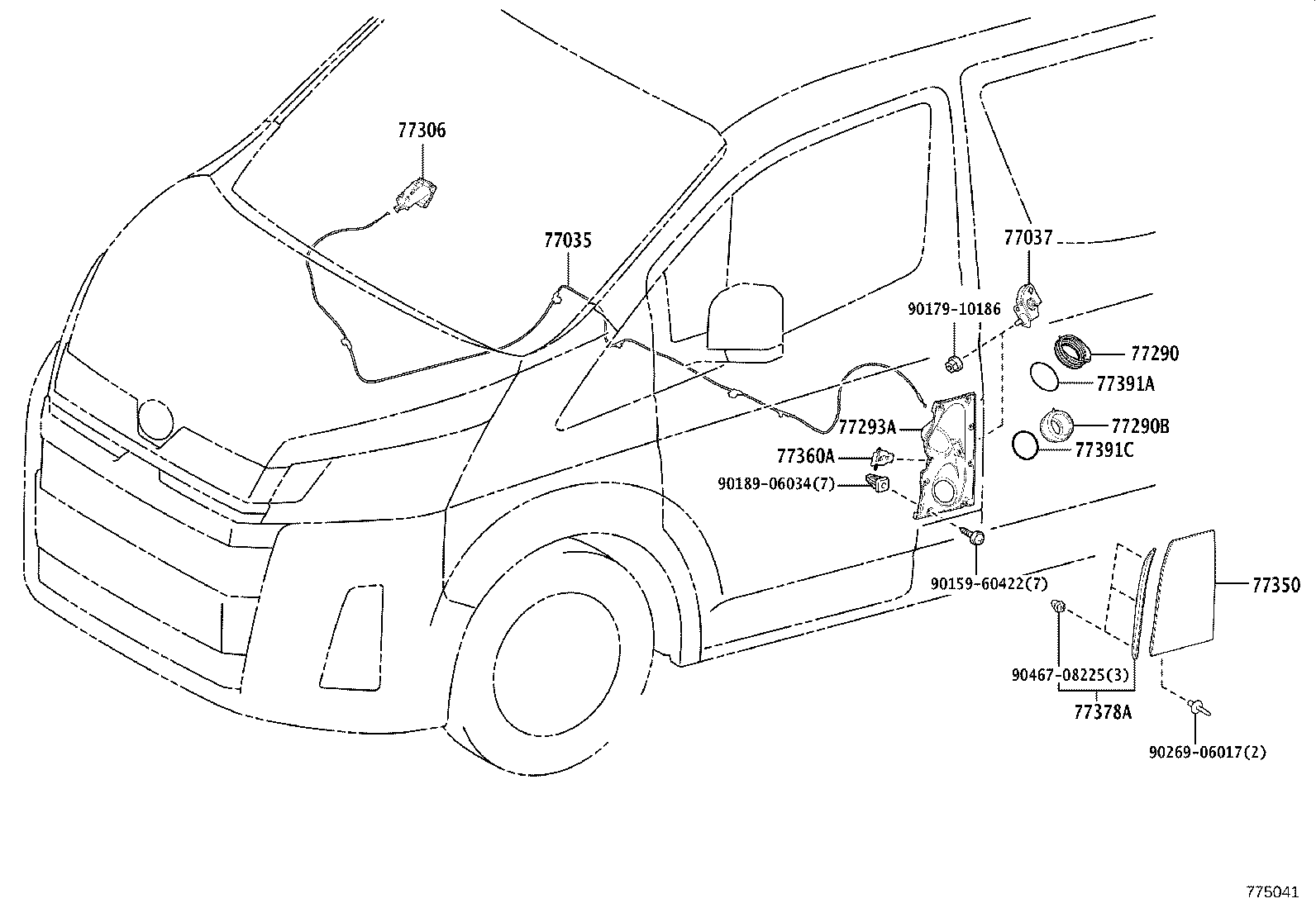

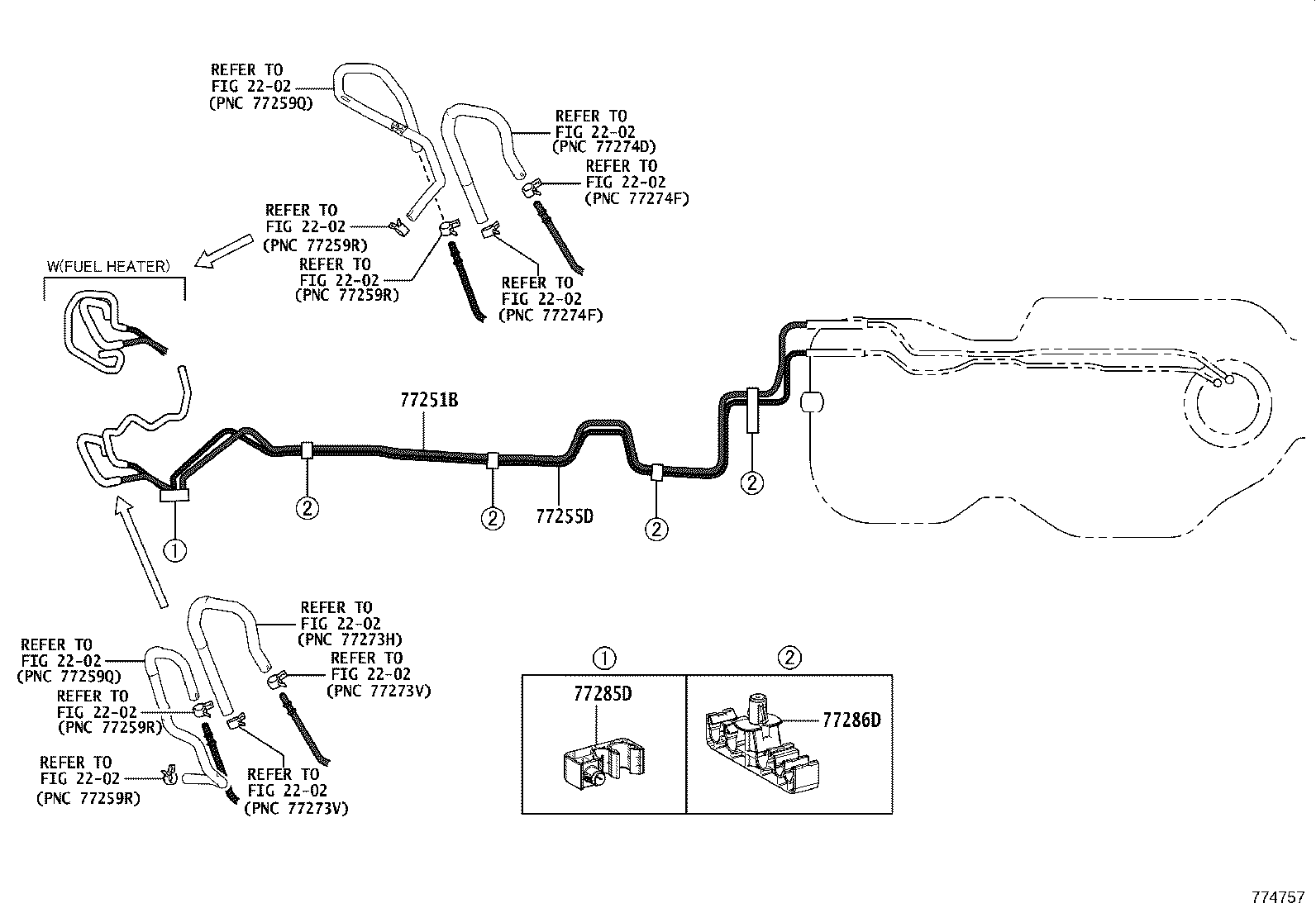

Fuel Tank & Tube

44 part groups · 3 illustrations

PNC	Description
77010	Tube Assy, Fuel Tank Vent
77023	Filter Sub-assy, Fuel Suction Tube
77035	Cable Sub-assy, Fuel Lid Lock Control
77037	Lock Sub-assy, Fuel Filler Opening Lid
77100	Tank Assy, Fuel
77144	Retainer, Fuel Pump Gauge
77169A	Gasket, Fuel Suction Tube Set
77201E	Pipe Sub-assy, Fuel Tank Filler
77204A	Tube, Fuel Tank Return
77209C	Tube Sub-assy, Fuel Tank Main
77213E	Hose, Fuel Tank TO Filler Pipe
77216A	Support, Fuel Tank Filler Pipe, NO.1
77217A	Support, Fuel Tank Filler Pipe, NO.2
77241V	Clip, Tube Joint
77241W	Clip, Tube Joint
77251B	Tube, Fuel Main
77255D	Tube, Fuel Return
77269A	Hose, Fuel Tank Breather
77272C	Support, Breather Tube, NO.3
77281R	Clamp, Fuel Filler Pipe, NO.2
77285D	Clamp, Fuel Tube, NO.1
77285R	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77290	Shield Assy, Fuel Tank Filler Pipe
77290B	Shield Assy, Urea Tank Filler Pipe
77293A	Shield, Fuel Tank Filler Pipe, NO.3
77295C	Grommet, Fuel Tube
77306	Lever Sub-assy, Fuel Lid Lock Open
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77360A	Spring Assy, Fuel Filler Opening Lid
77378A	Cover, Fuel Filler Opening Lid Lock
77391A	Ring, Fuel Inlet Box
77391C	Ring, Urea Inlet Box
77601A	Band Sub-assy, Fuel Tank, NO.1
77602B	Band Sub-assy, Fuel Tank, NO.1 LH
77644	Bolt, Fuel Tank
77651A	Cushion, Fuel Tank, NO.1
77653A	Cushion, Fuel Tank, NO.3
77681A	Seat, Fuel Tank Band
77682A	Seat, Fuel Tank Band, NO.2
77697	Insulator, Fuel Tank Heat, NO.1
77697A	Insulator, Fuel Tank Heat, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
