Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

18 part groups · 2 illustrations

Illustrations

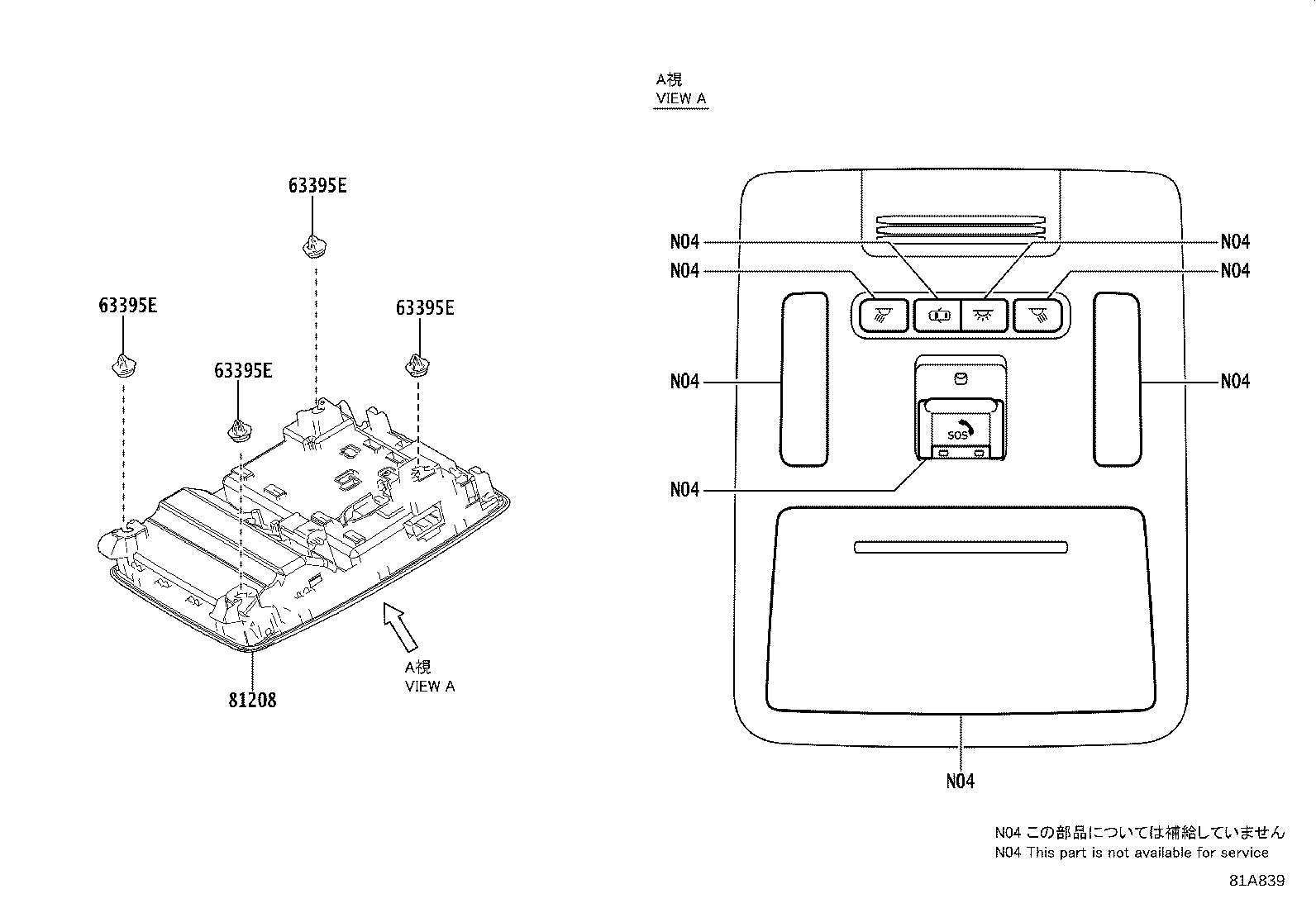

Figure 819259D 819259D 2019-12 → — Figure 81A839 81A839 2019-12 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080V Lamp Assy, Interior Illumination, NO.2
81090 Lamp Assy, Interior Illumination, NO.2
81208 Lamp Sub-assy, Map
81240 Lamp Assy, Room, NO.1
81240D Lamp Assy, Room, NO.2
81260 Lamp Assy, Glove Box
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81360V Lamp Assy, Spot, NO.2
81380D Lamp Assy, Step
81380H Lamp Assy, Step
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
