Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

90 part groups · 12 illustrations

Illustrations

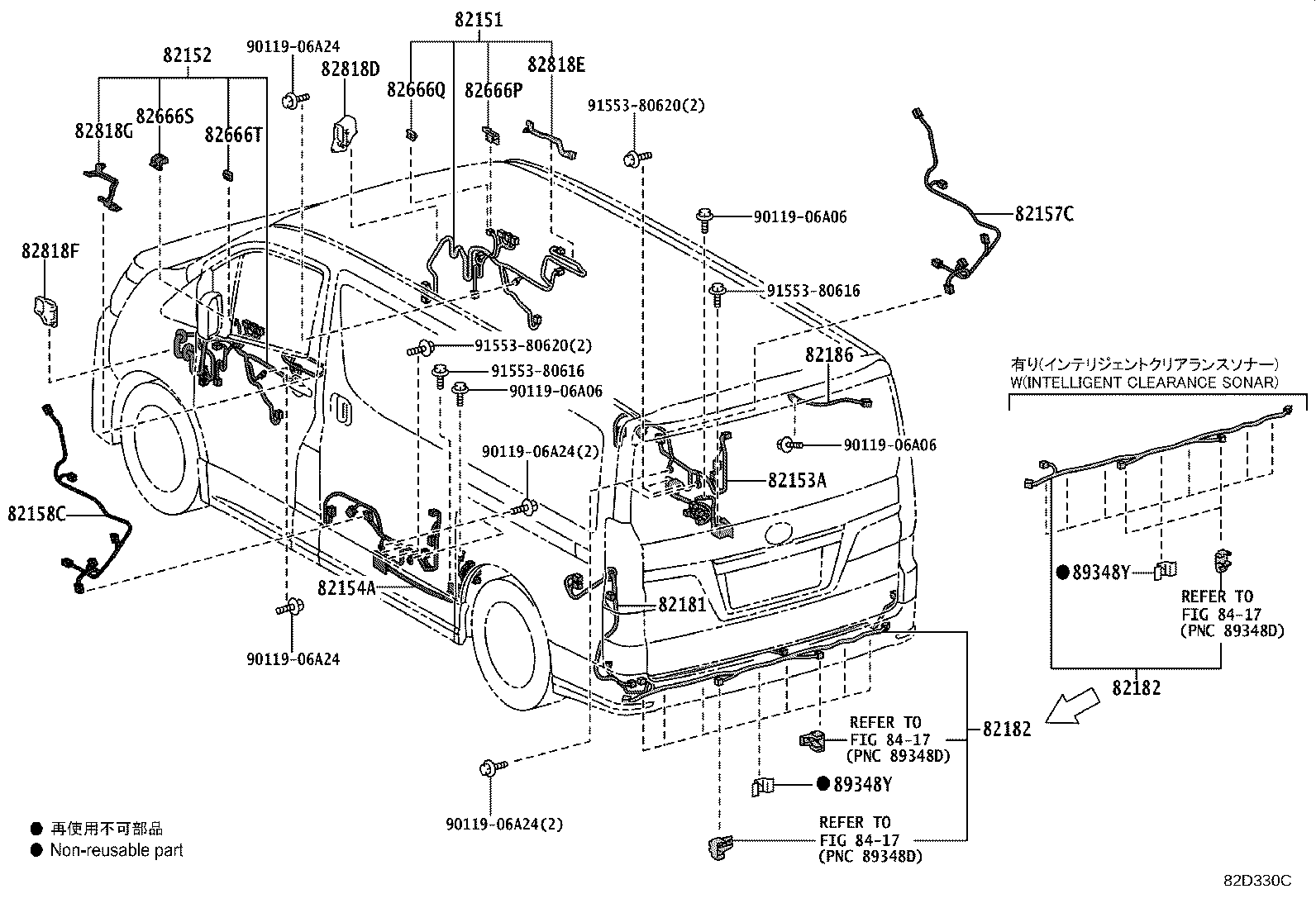

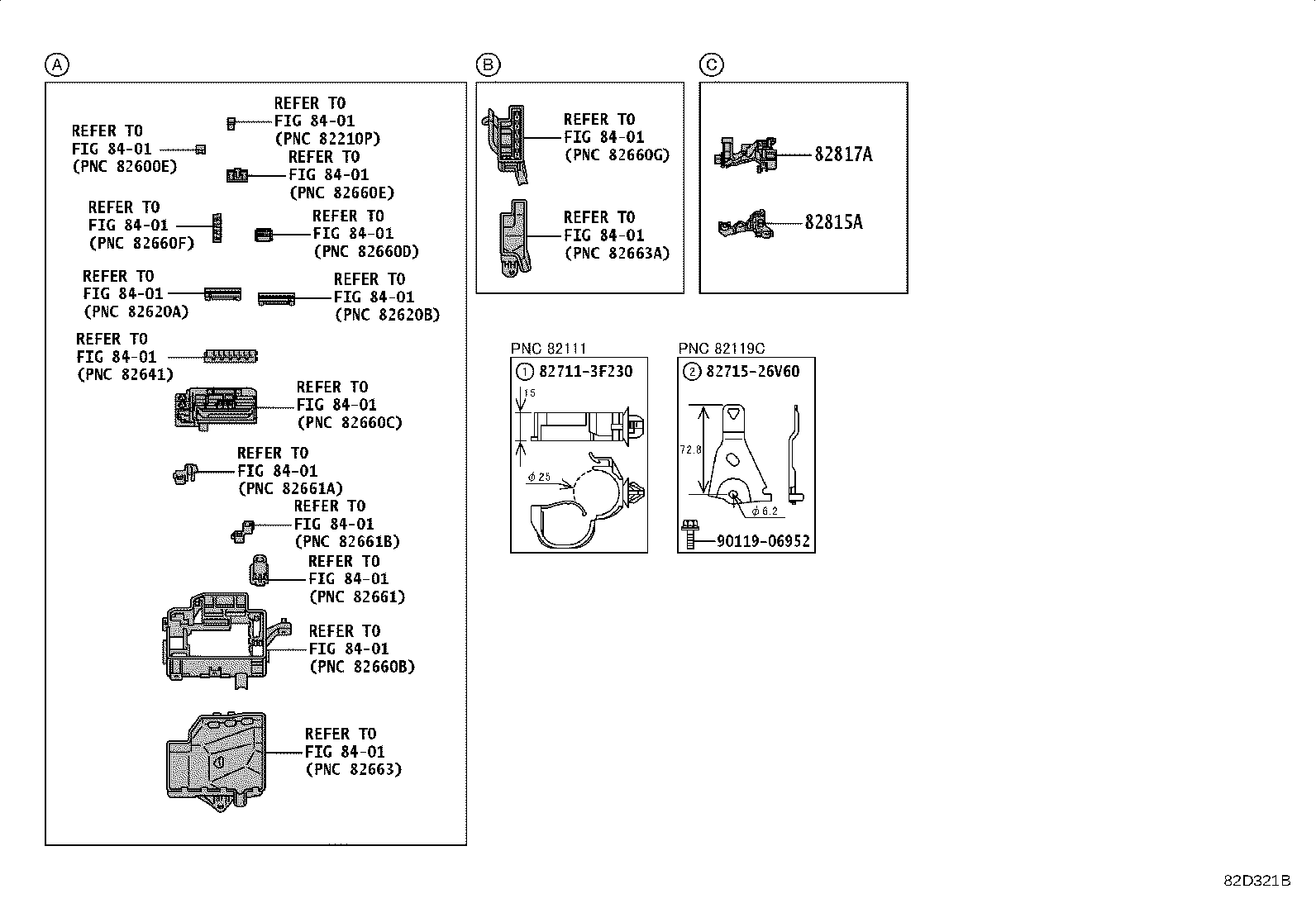

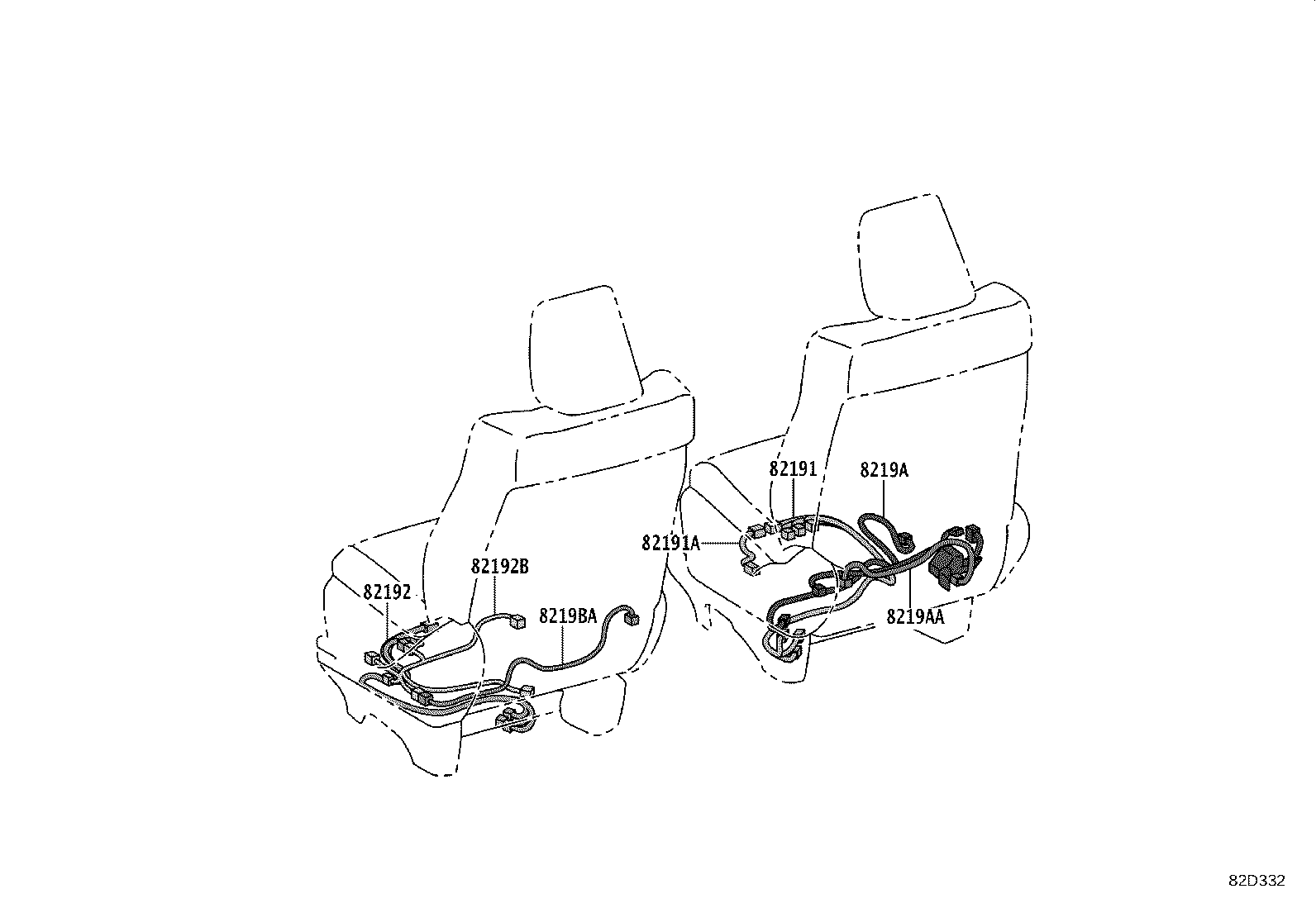

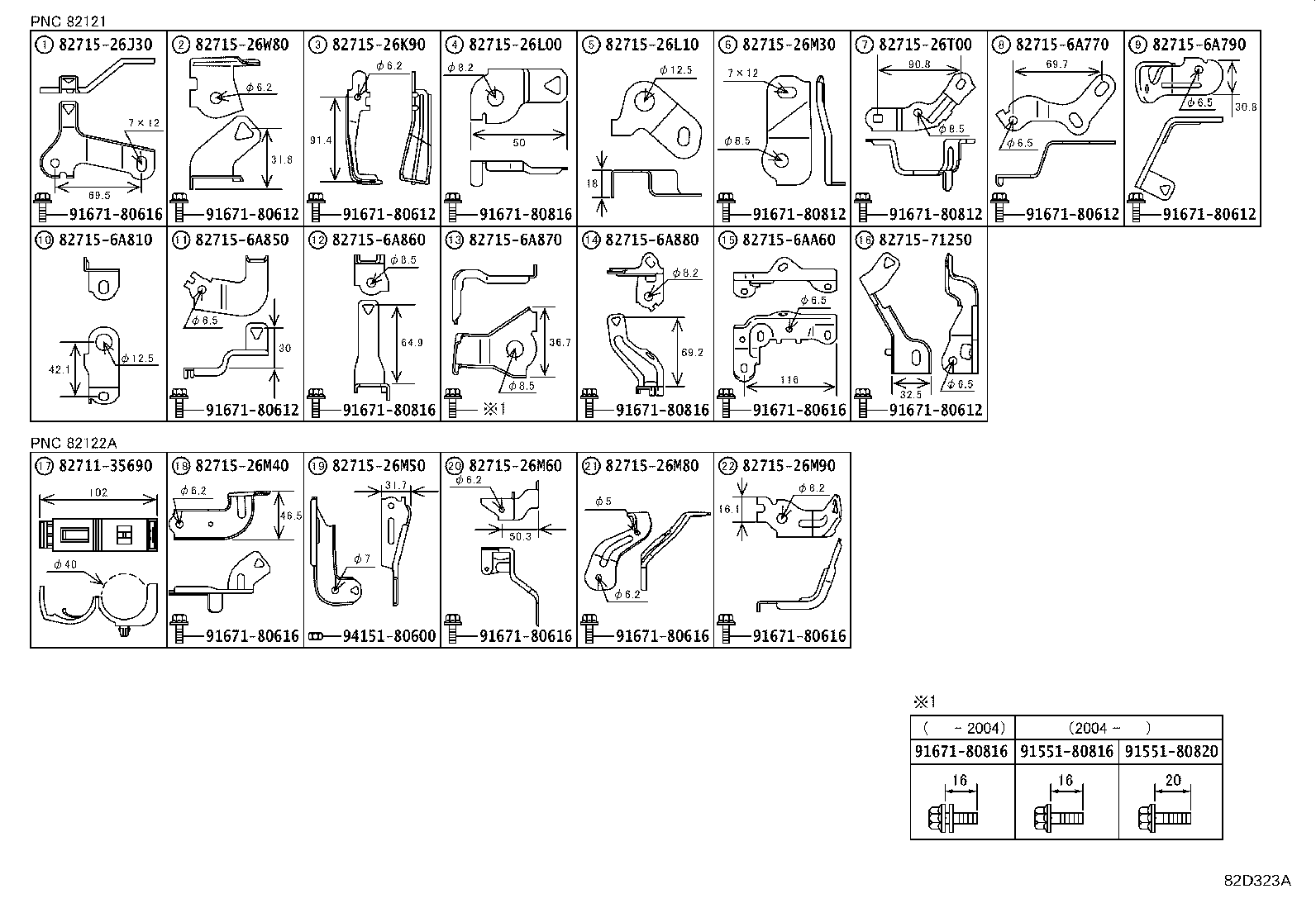

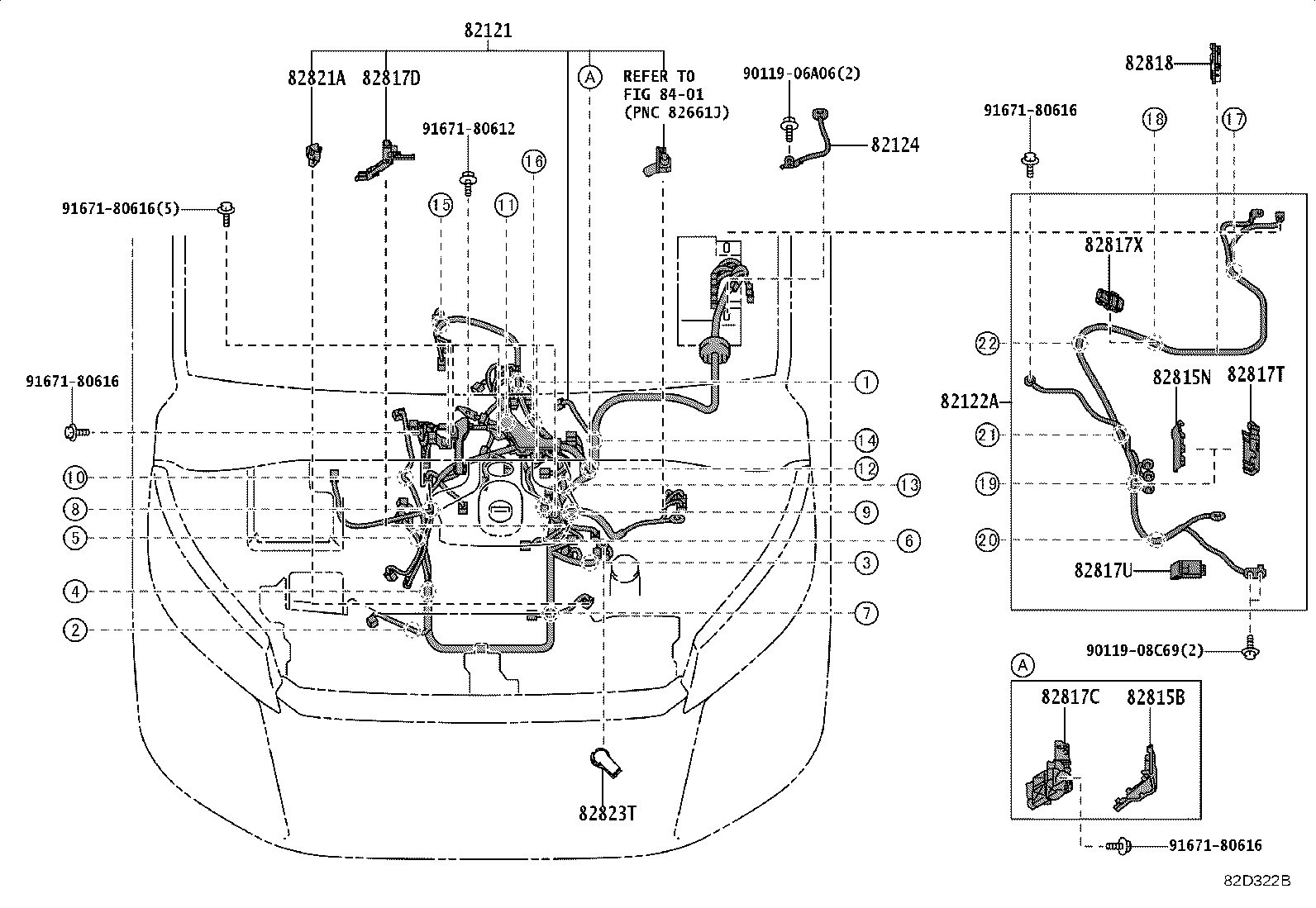

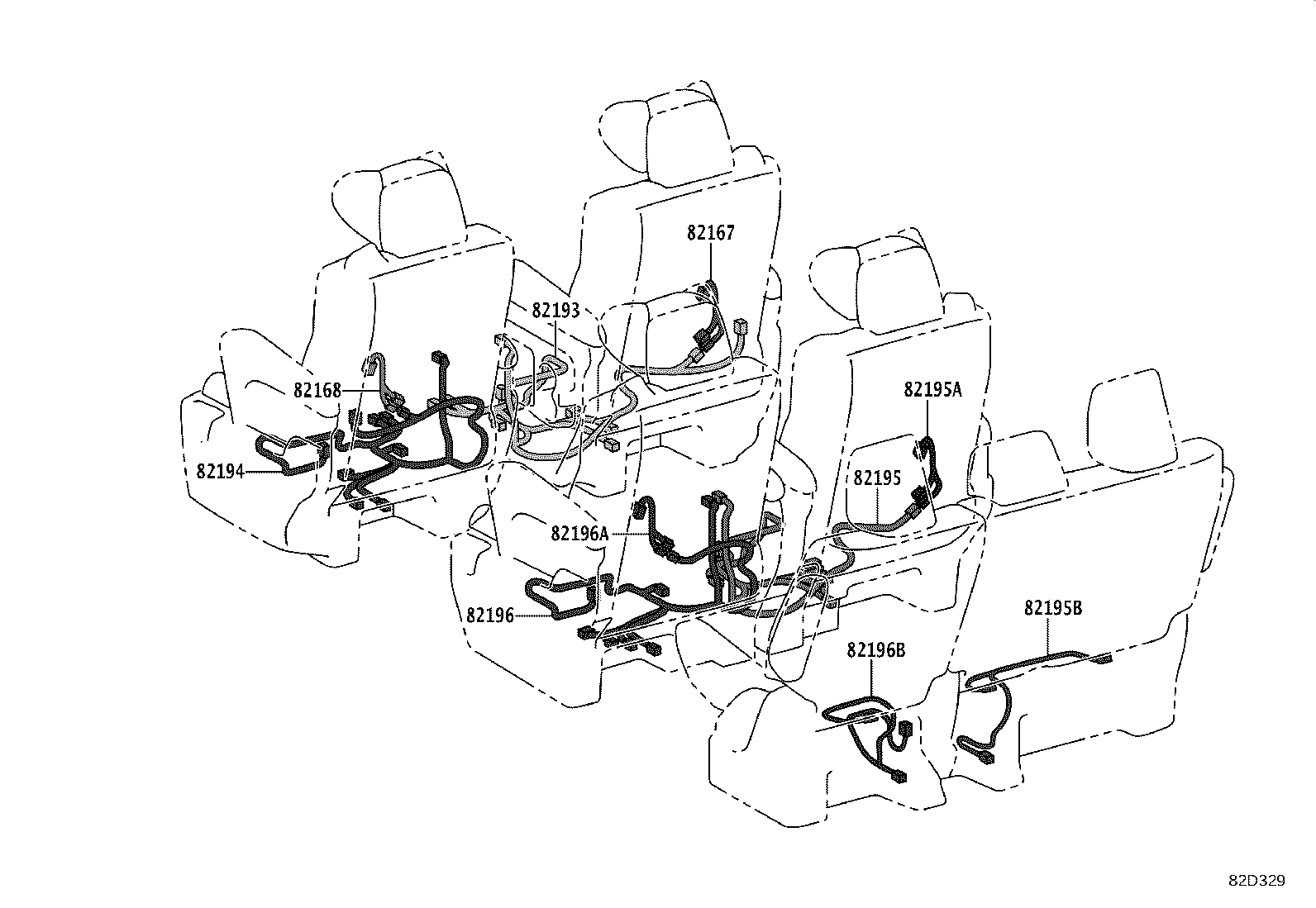

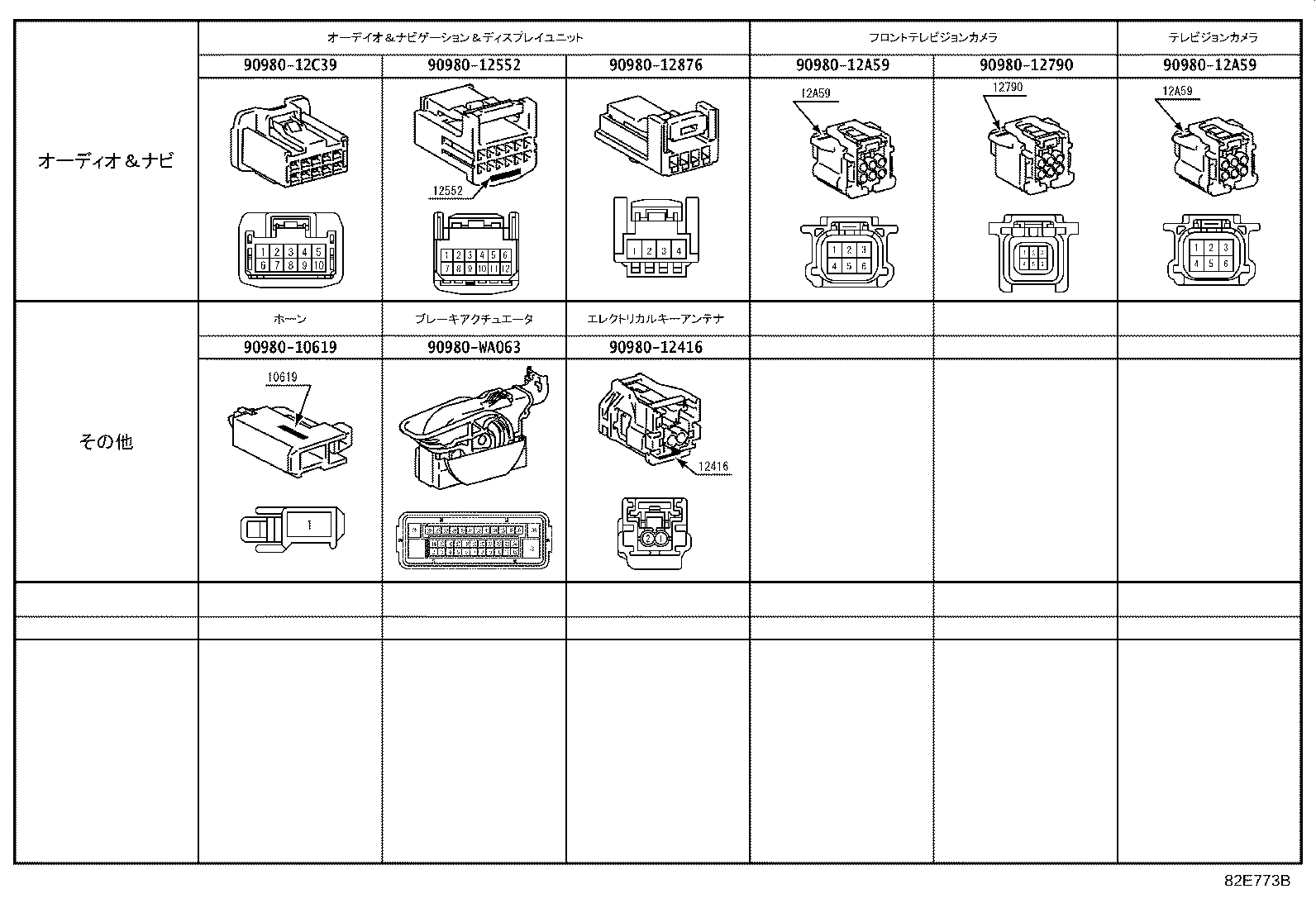

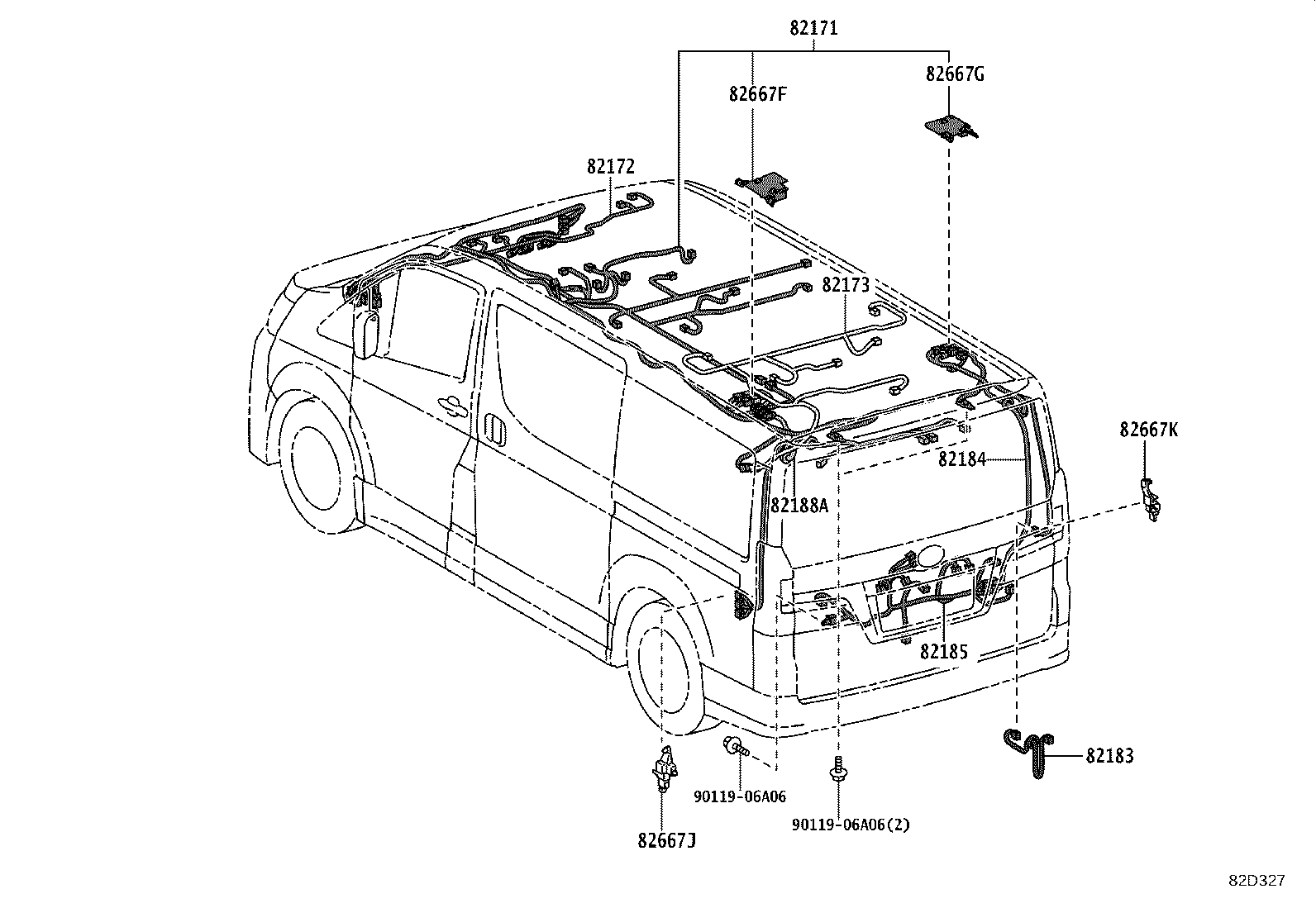

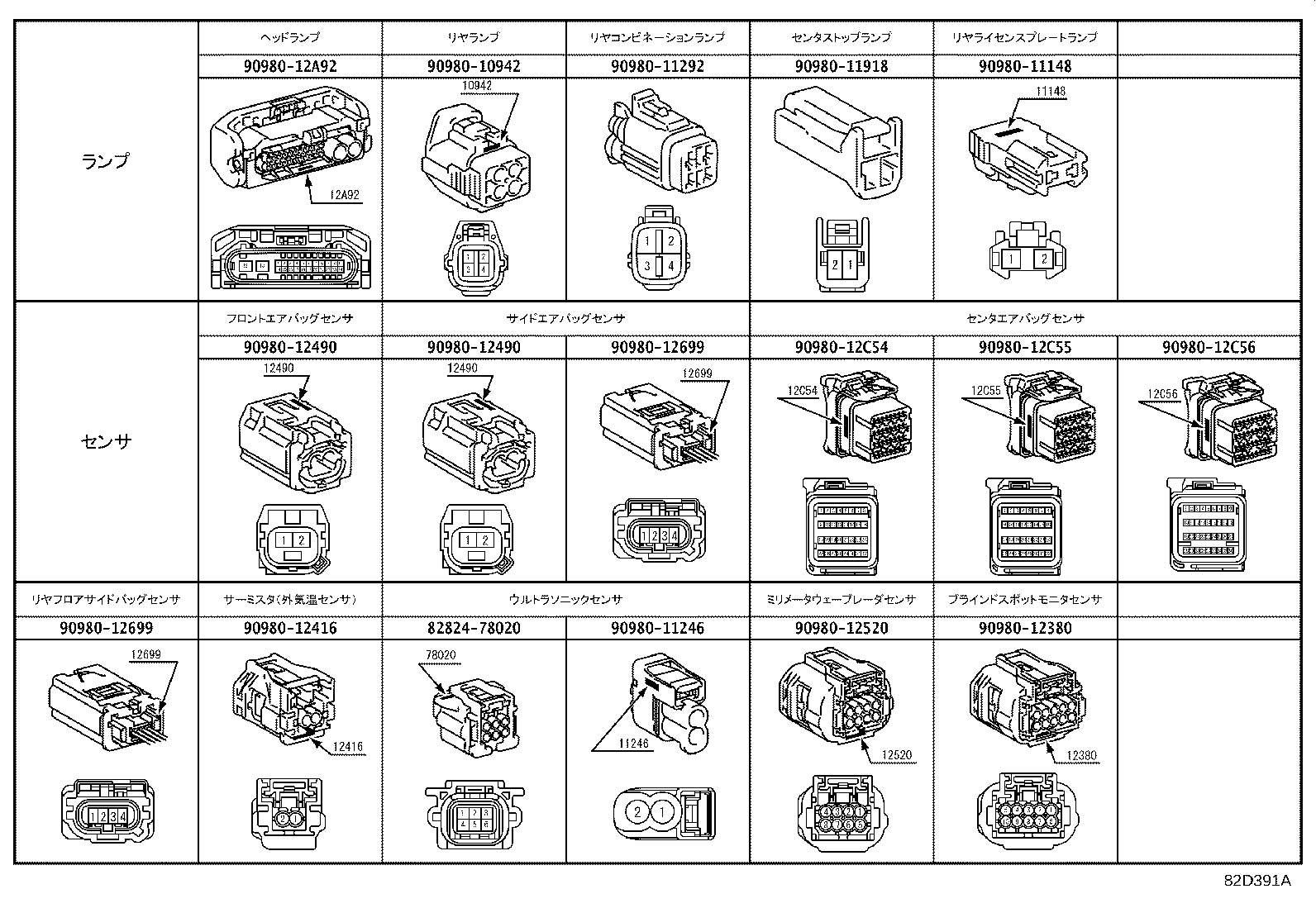

Figure 82D320 82D320 2019-12 → — Figure 82D321B 82D321B 2019-12 → — Figure 82D322B 82D322B 2019-12 → — Figure 82D323A 82D323A 2019-12 → — Figure 82D324 82D324 2019-12 → — Figure 82D330C 82D330C 2019-12 → — Figure 82D331 82D331 2019-12 → — Figure 82D327 82D327 2019-12 → — Figure 82D332 82D332 2019-12 → — Figure 82D329 82D329 2019-12 → — Figure 82D391A 82D391A 2019-12 → — Figure 82E773B 82E773B 2019-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82122A Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82136 Wire, Dash

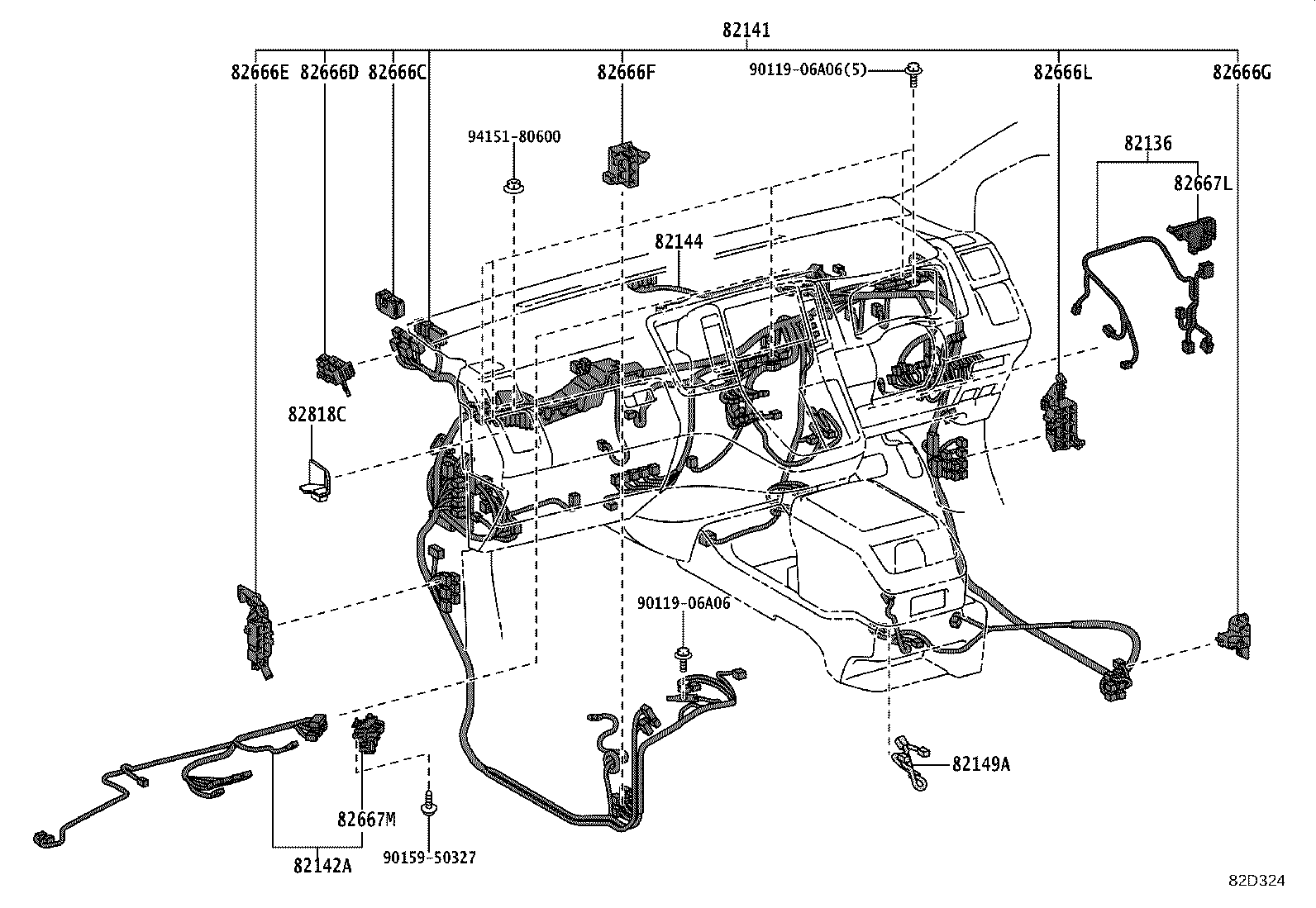

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4
82149A Wire, Instrument Panel, NO.5
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82157C Wire, Rear Door, RH NO.2
82158C Wire, Rear Door, LH NO.2

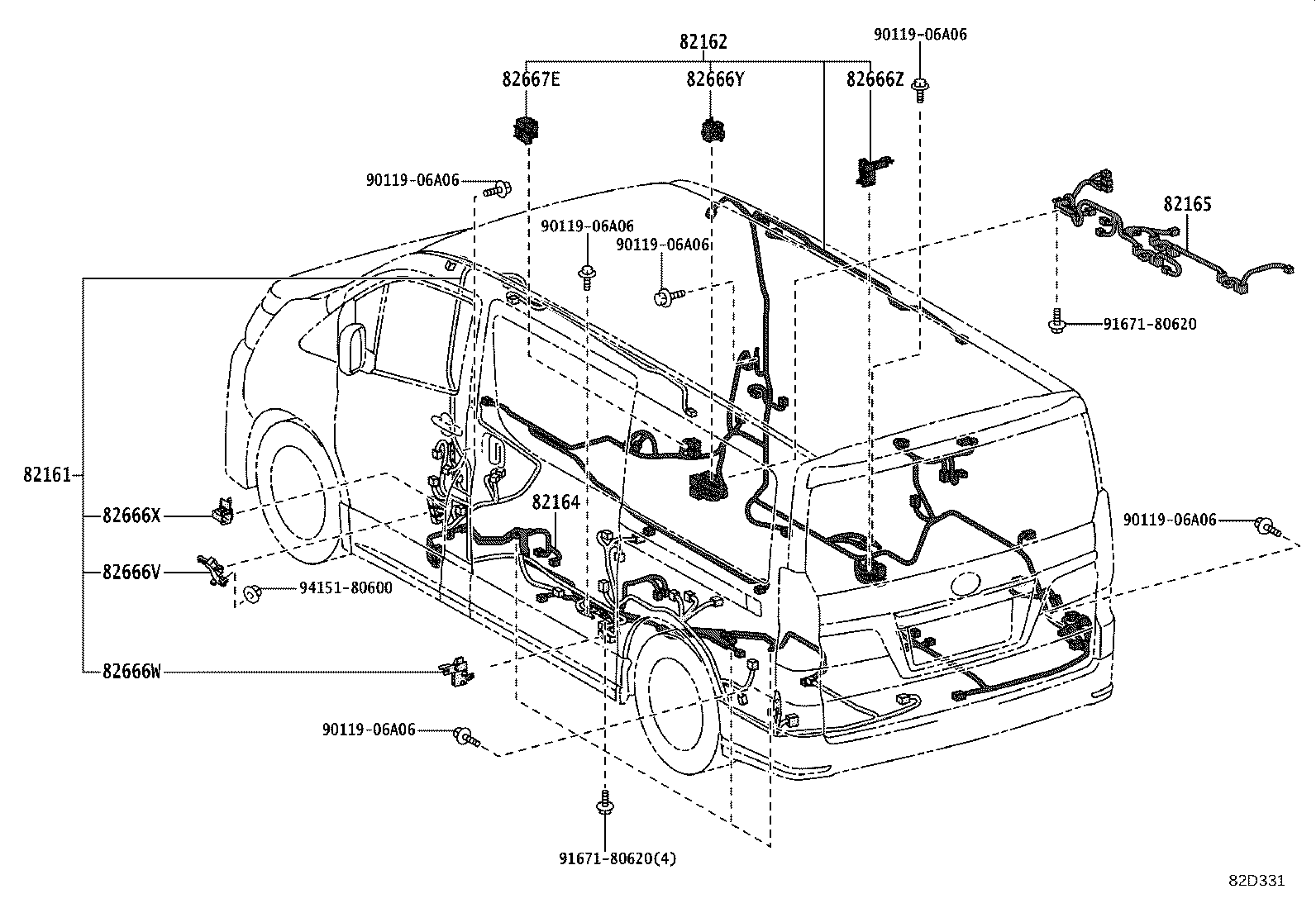

82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82195A Wire, Rear Seat, RH NO.3
82195B Wire, Rear Seat, RH NO.4
82196 Wire, Rear Seat, LH NO.2
82196A Wire, Rear Seat, LH NO.3
82196B Wire, Rear Seat, LH NO.4
8219A Wire, Front Seat, RH NO.2
8219AA Wire, Front Seat, RH NO.3
8219BA Wire, Front Seat, LH NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82667F Holder, Connector, NO.21
82667G Holder, Connector, NO.22
82667J Holder, Connector, NO.24
82667K Holder, Connector, NO.25
82667L Holder, Connector, NO.26
82667M Holder, Connector, NO.27
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815N Cover, Wiring Harness Protector, NO.11
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82823T Cap, Alternator Terminal
89348Y Clip, Ultrasonic Sensor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
