Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12
Switch & Relay & Computer
134 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28300F | Relay Assy, Starter, NO.2 |
| 28371E | Relay, Ignition, NO.4 |

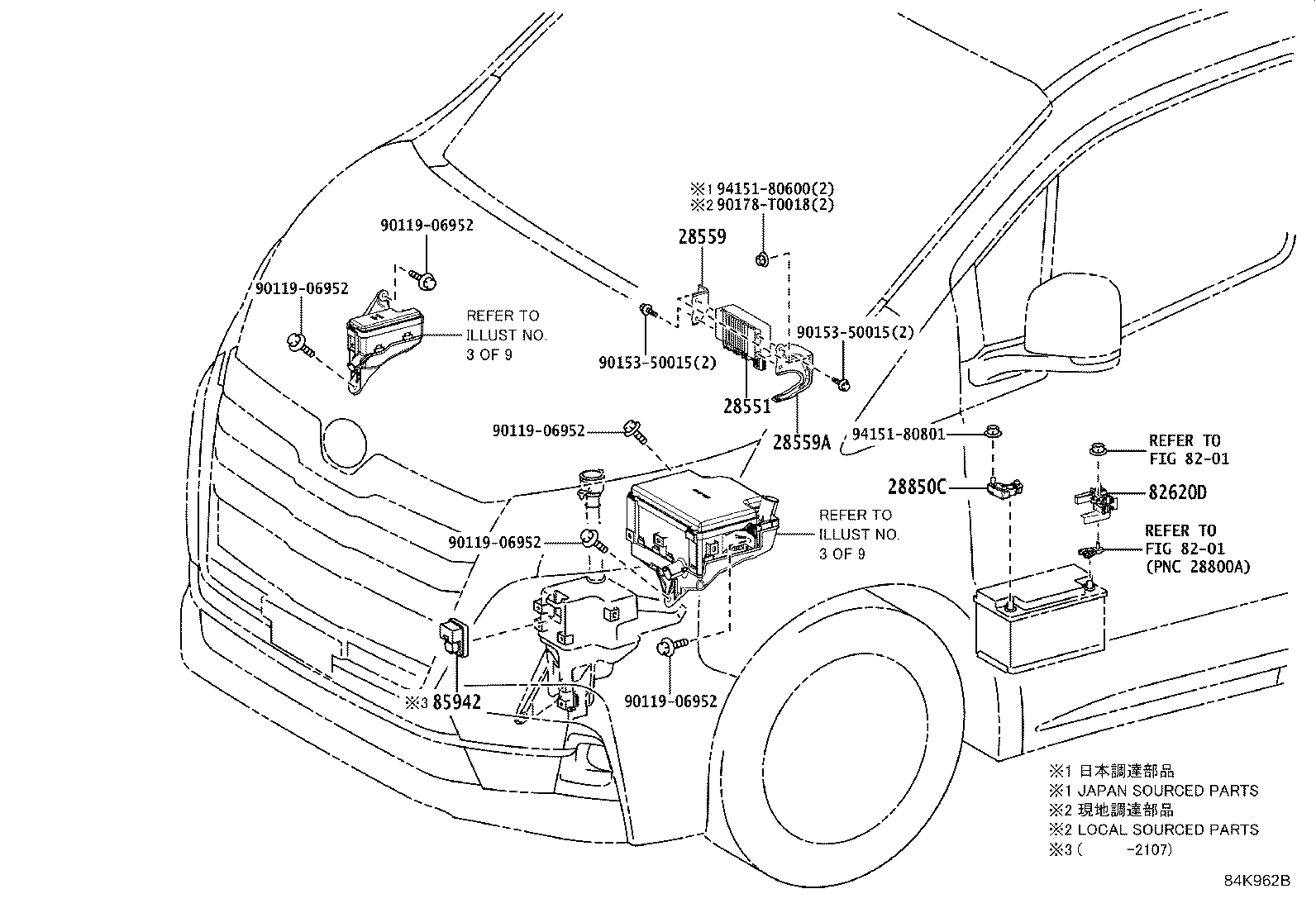

| 28551 | Controller, Glow Plug |
| 28559 | Bracket, Glow Plug Controller, NO.1 |
| 28559A | Bracket, Glow Plug Controller, NO.2 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28850C | Sensor Assy, Battery State |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82351B | Wire,Courtesy Lamp |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |

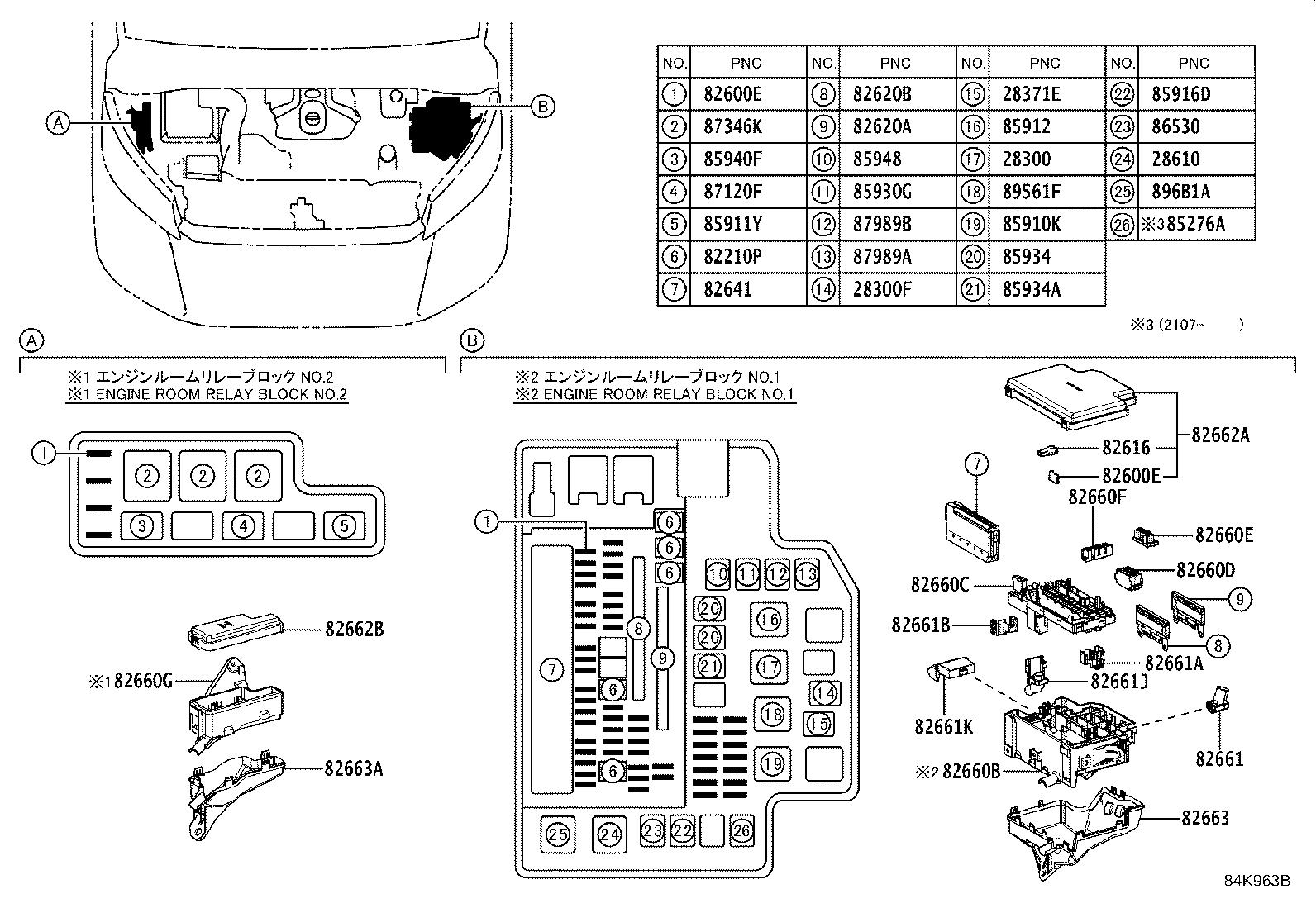

| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82661B | Cover, Relay Block, NO.3 |
| 82661J | Cover, Relay Block, NO.4 |
| 82661K | Cover, Relay Block, NO.5 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82716A | Bracket, Wiring Harness Clamp |

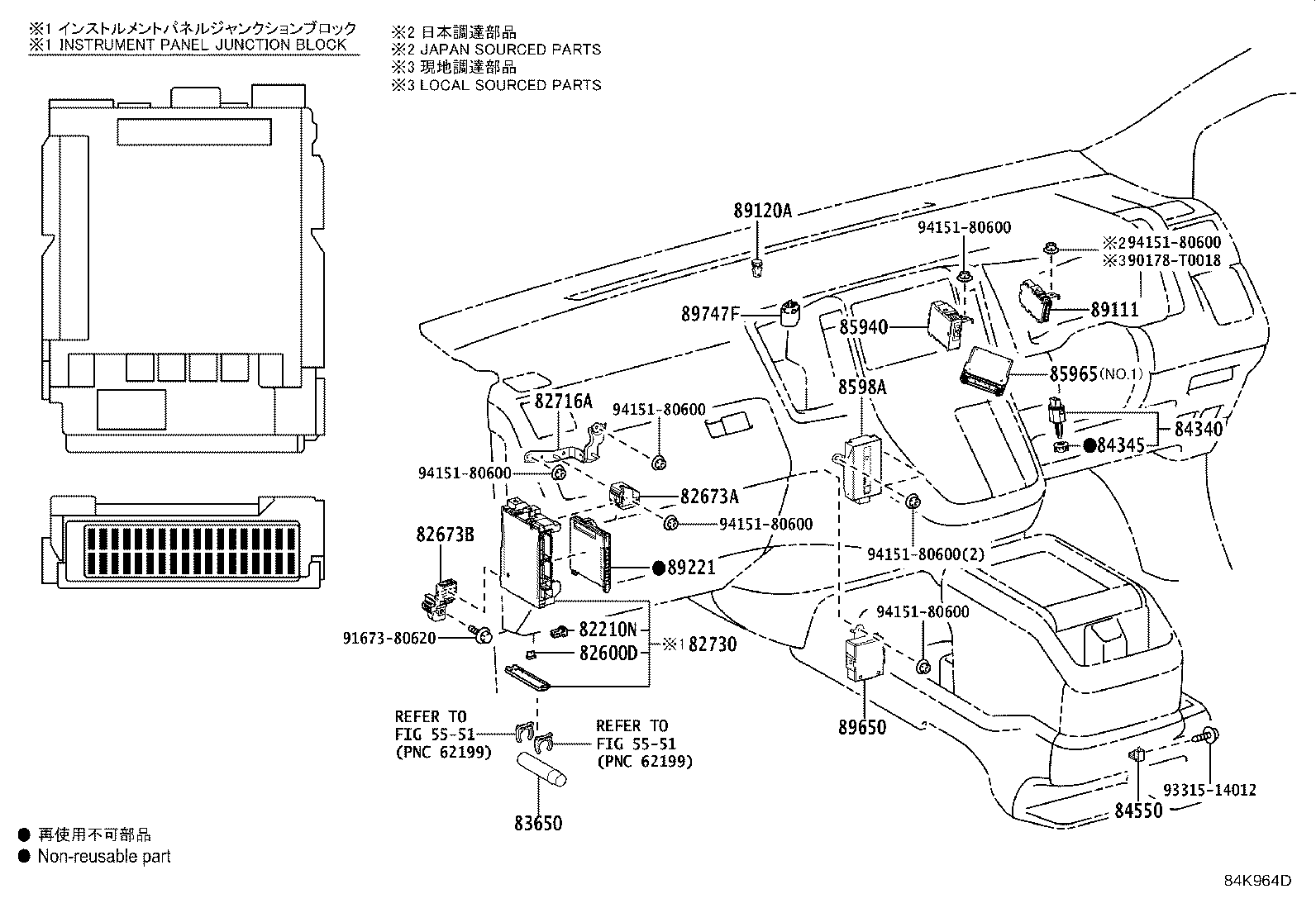

| 82730 | Block Assy, Instrument Panel Junction |
| 83150C | Indicator Assy |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |

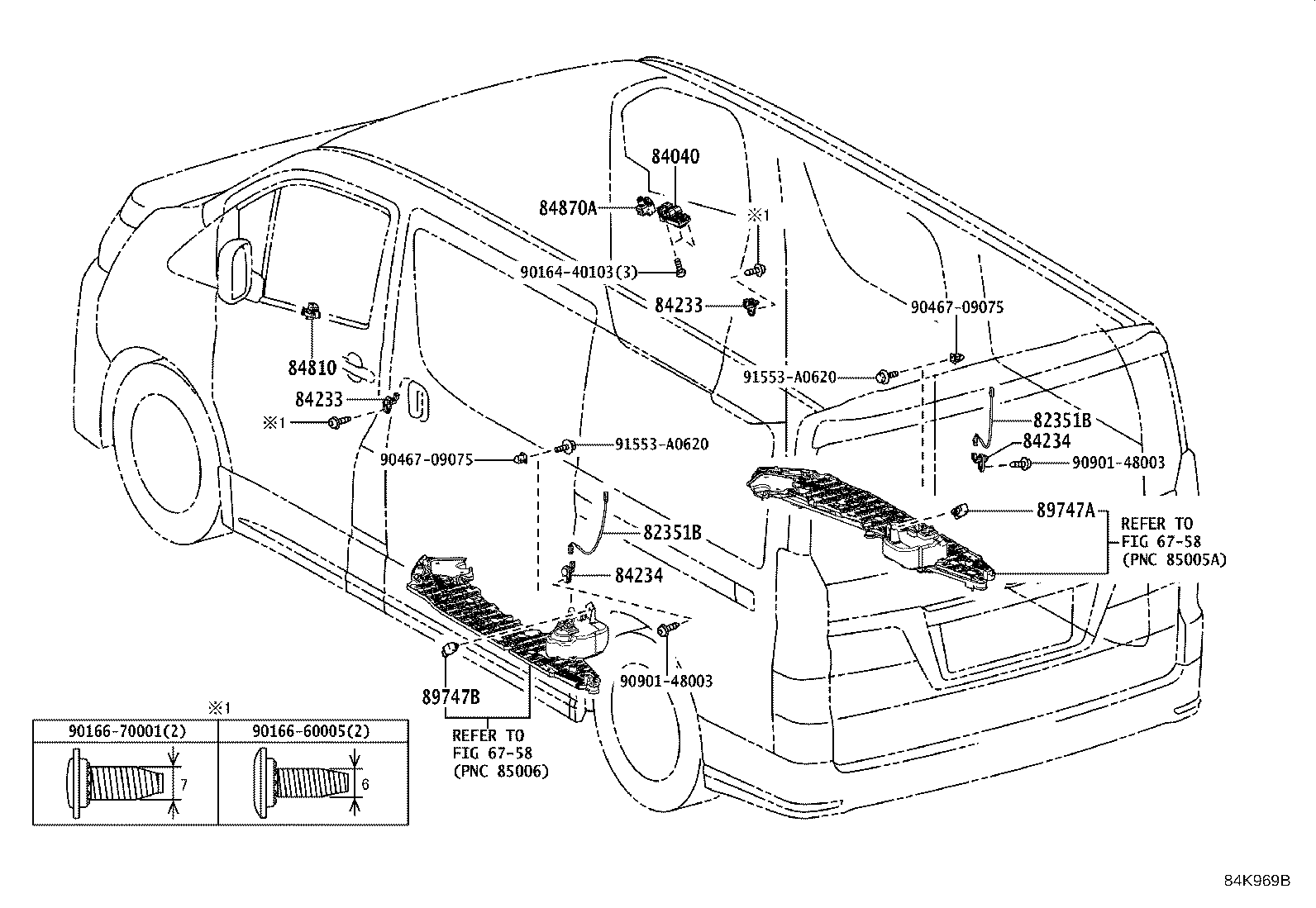

| 84040 | Master Switch Assy,Multiplex Network |
| 84153 | Switch, Auto High Beam |
| 84170B | Switch Assy, Room Lamp NO.2 |
| 84172 | Switch, Room Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

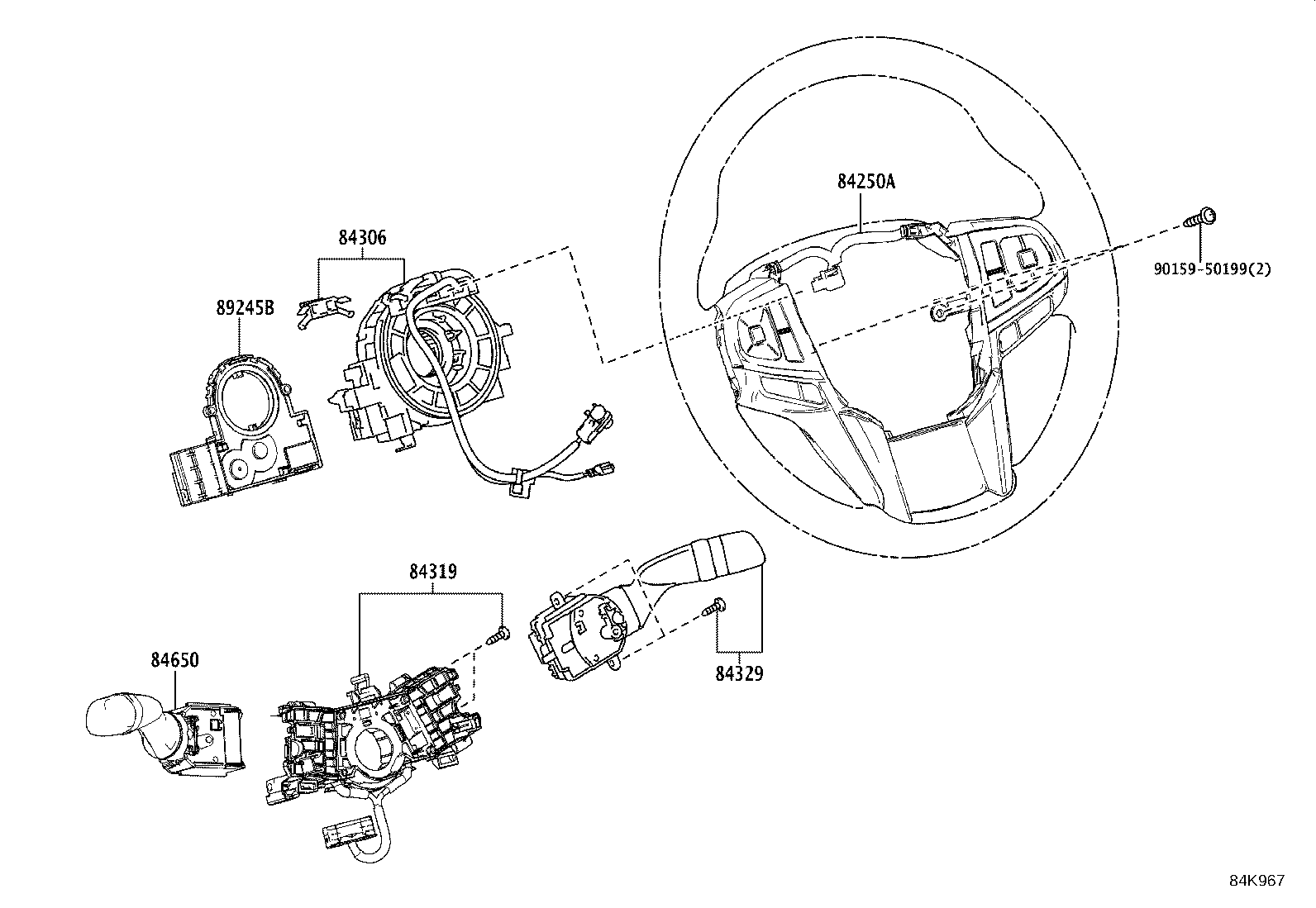

| 84250A | Switch Assy, Steering Pad |
| 84270K | Switch Assy, Dpr |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84453 | Switch, Idle UP |
| 84470 | Switch Assy, Warning Canceling |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |

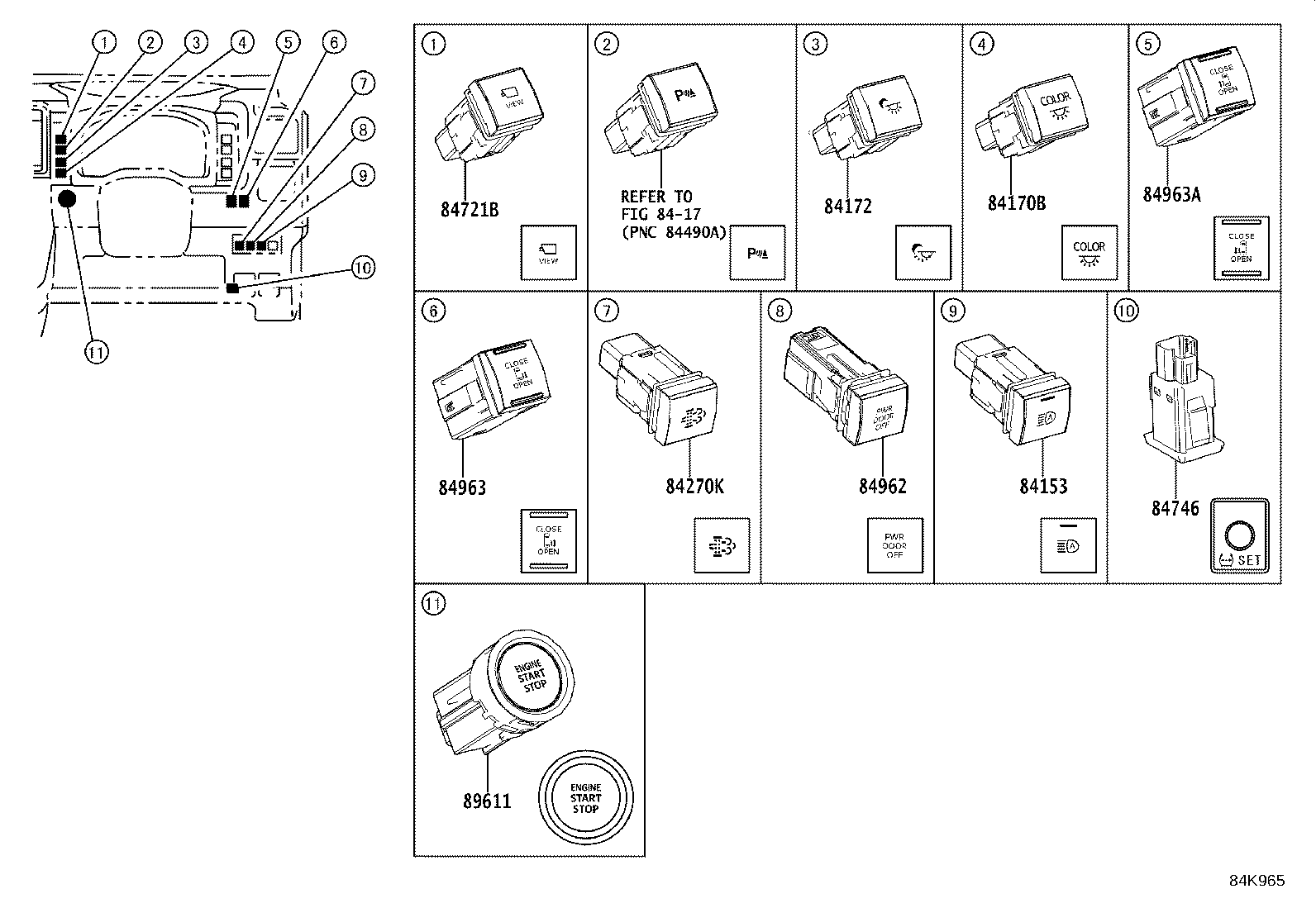

| 84721B | Switch, Panoramic View Monitor |
| 84746 | Switch, Tire Pressure Warning |
| 84751 | Switch, Seat Heater |
| 84751F | Switch, Seat Heater |
| 84794 | Switch, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |

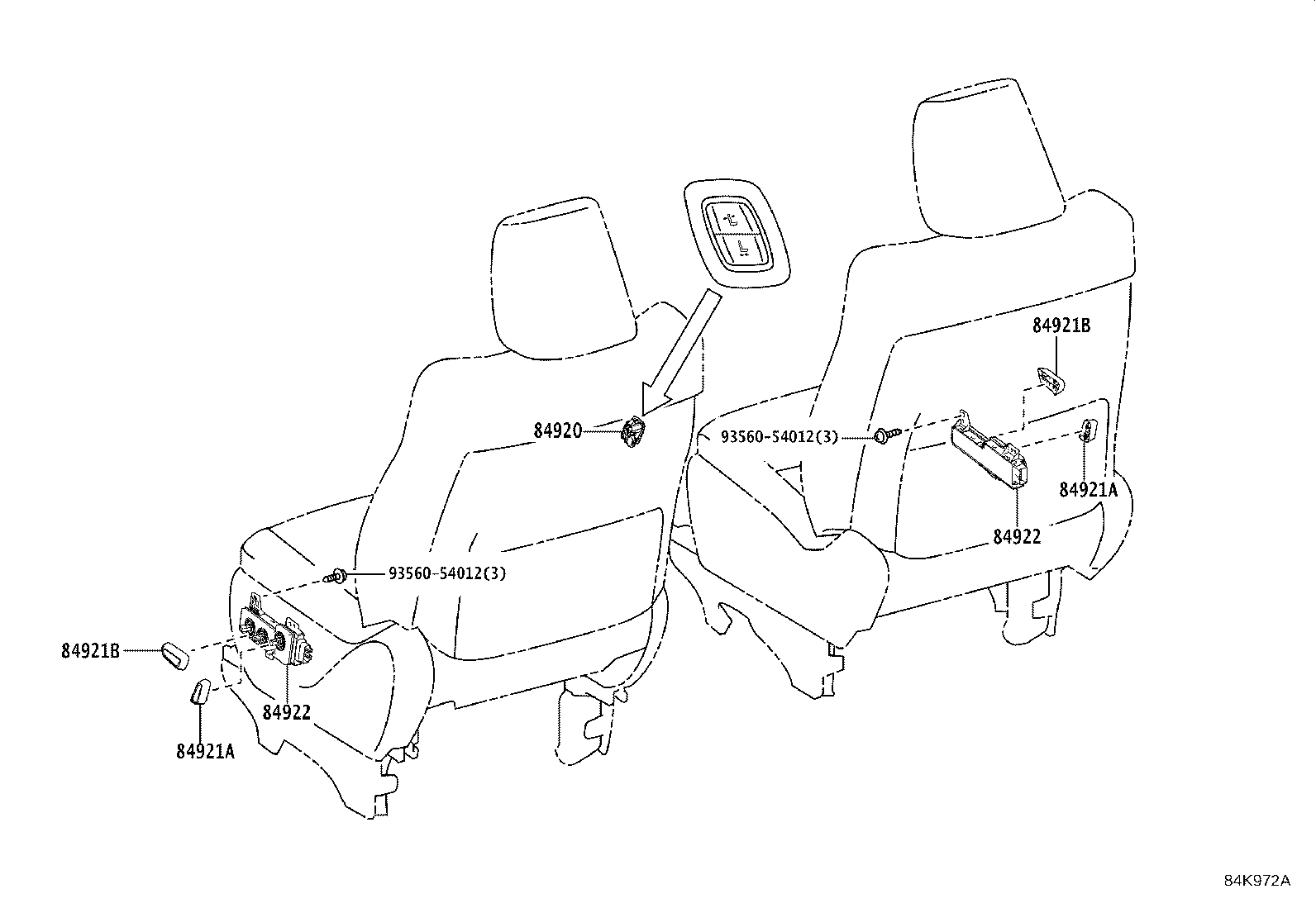

| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922 | Switch, Front Power Seat |
| 84923 | Switch, Rear Power Seat |
| 84945A | Switch, Luggage Electrical Key |
| 84962 | Switch, Power Slide Door Main |
| 84963 | Switch, Power Slide Door Control, NO.1 |
| 84963A | Switch, Power Slide Door Control, NO.2 |
| 84988L | Switch, Vsc Off |
| 85276A | Relay, Cleaner Control |

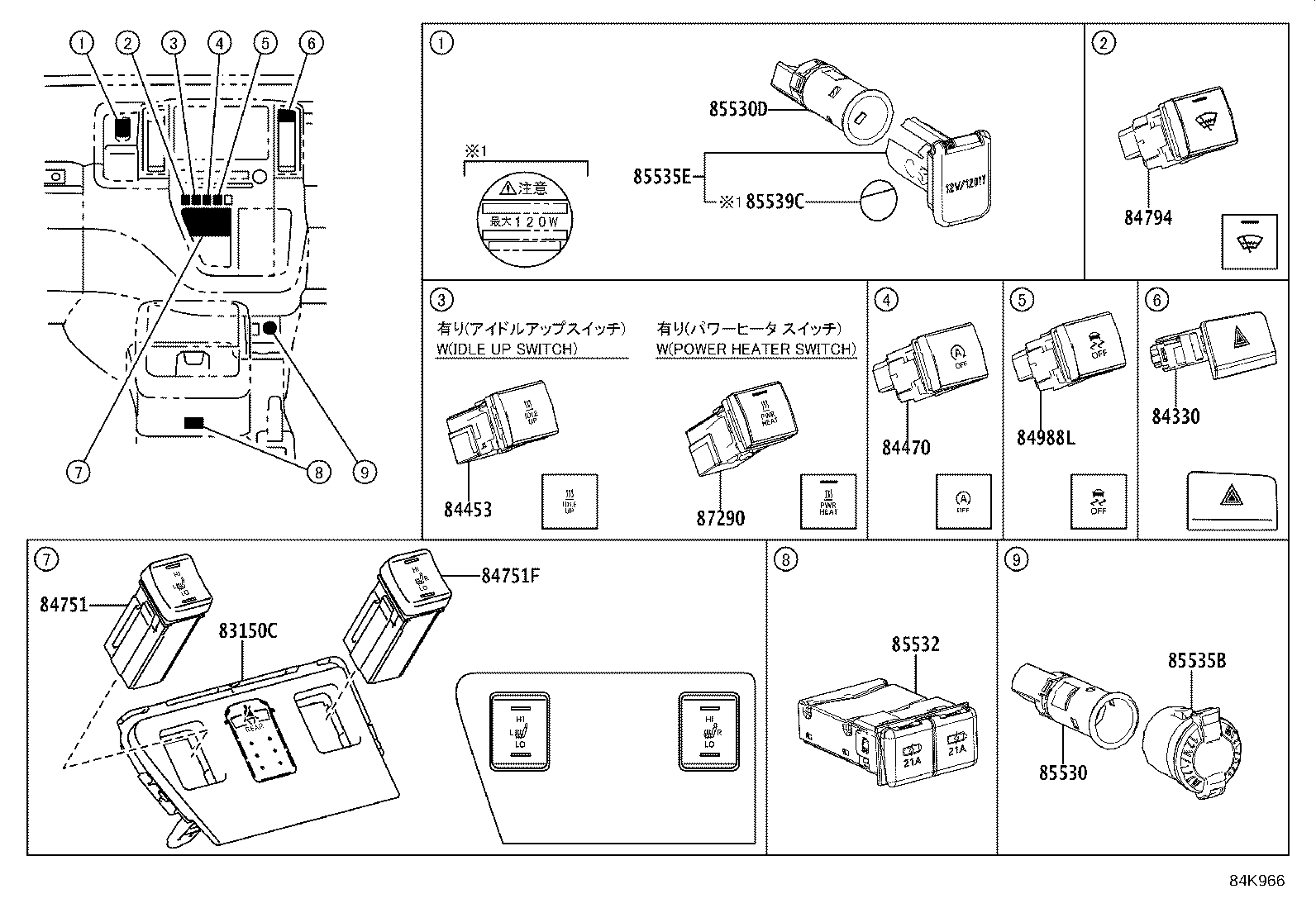

| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |

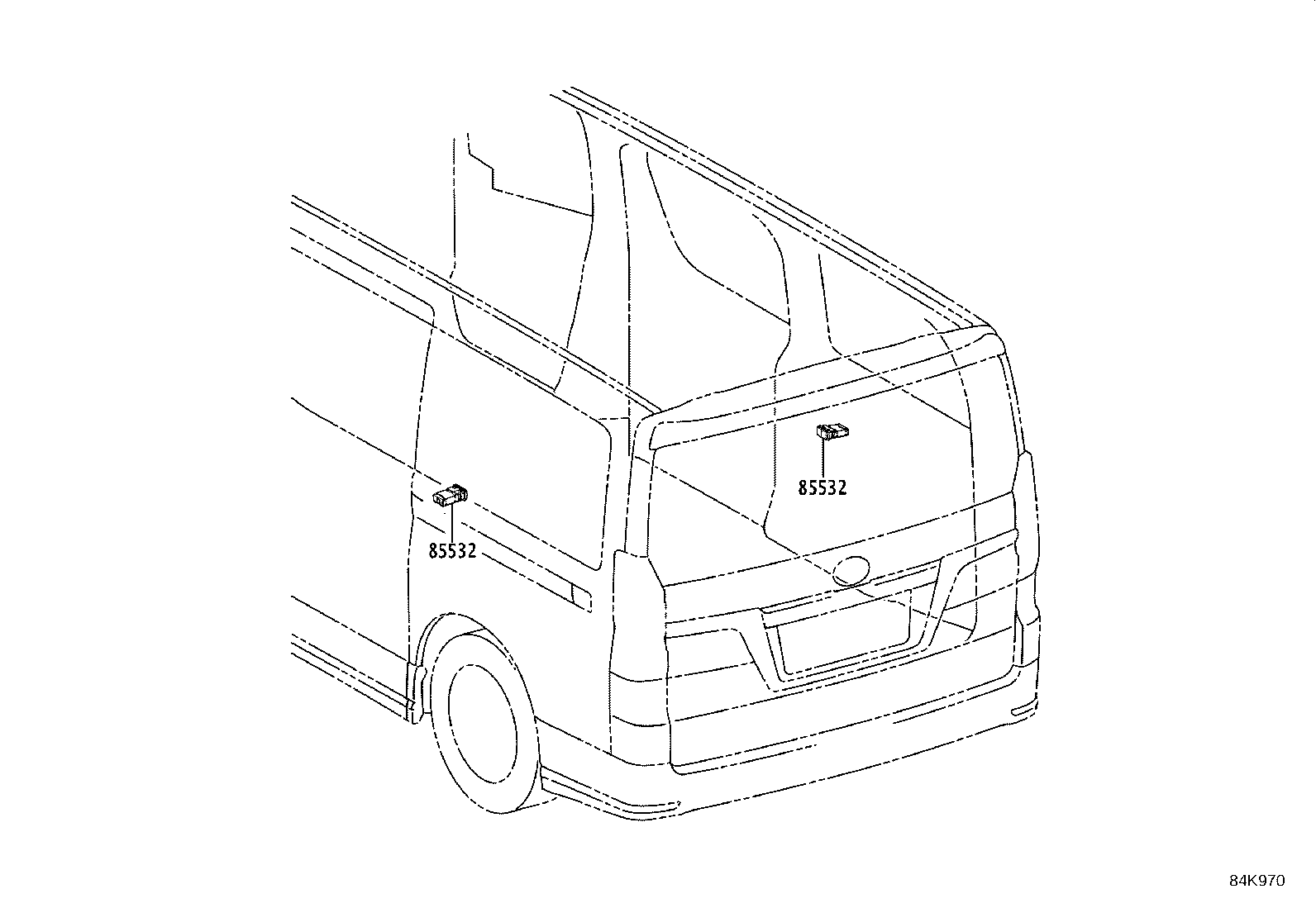

| 85532 | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85539C | Label, Power Outlet Notice |

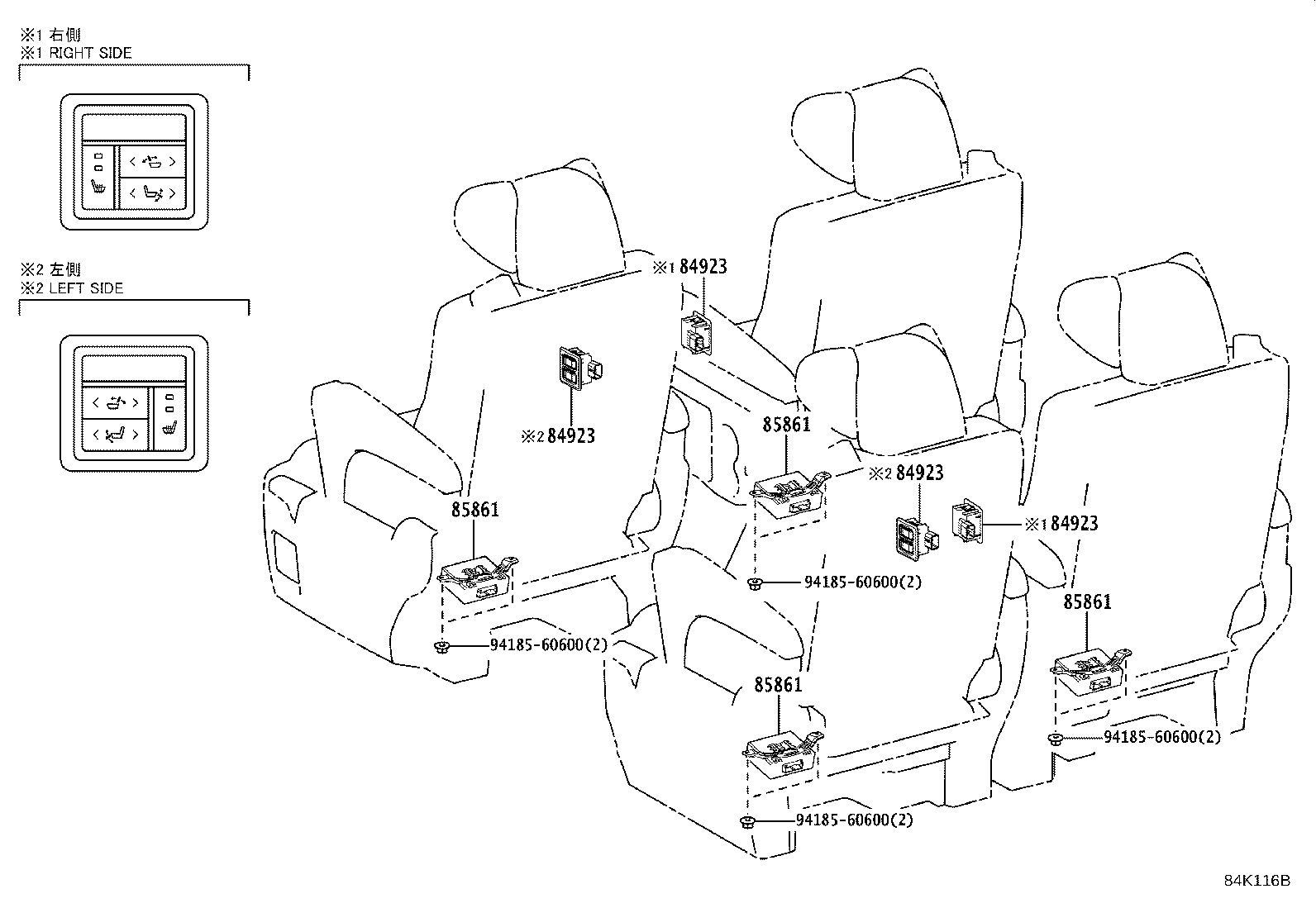

| 85861 | Computer, Seat Climate Control |
| 85910K | Relay, Rear Seat Heater |
| 85911Y | Relay, Front Seat Heater |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85930G | Relay, Acc |
| 85934 | Relay, Magnet-clutch |
| 85934A | Relay Condenser Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 85940F | Relay Assy, Windshield Deicer |
| 85942 | Relay, Headlamp Cleaner Control |
| 85948 | Relay, Windshield Wiper |
| 85965 | Relay, Room Lamp Control |
| 85976 | Relay, Back Door Closer |
| 8598A | Battery, Door Control |
| 86530 | Relay Assy, Horn |
| 87120F | Relay, Viscous Heater |
| 87290 | Switch Assy, Heater |
| 87346K | Relay, Ptc Heater |
| 87989A | Relay, Mirror NO.1 |
| 87989B | Relay, Mirror NO.2 |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88163 | Cover, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88173 | Cover, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89245B | Sensor, Steering |

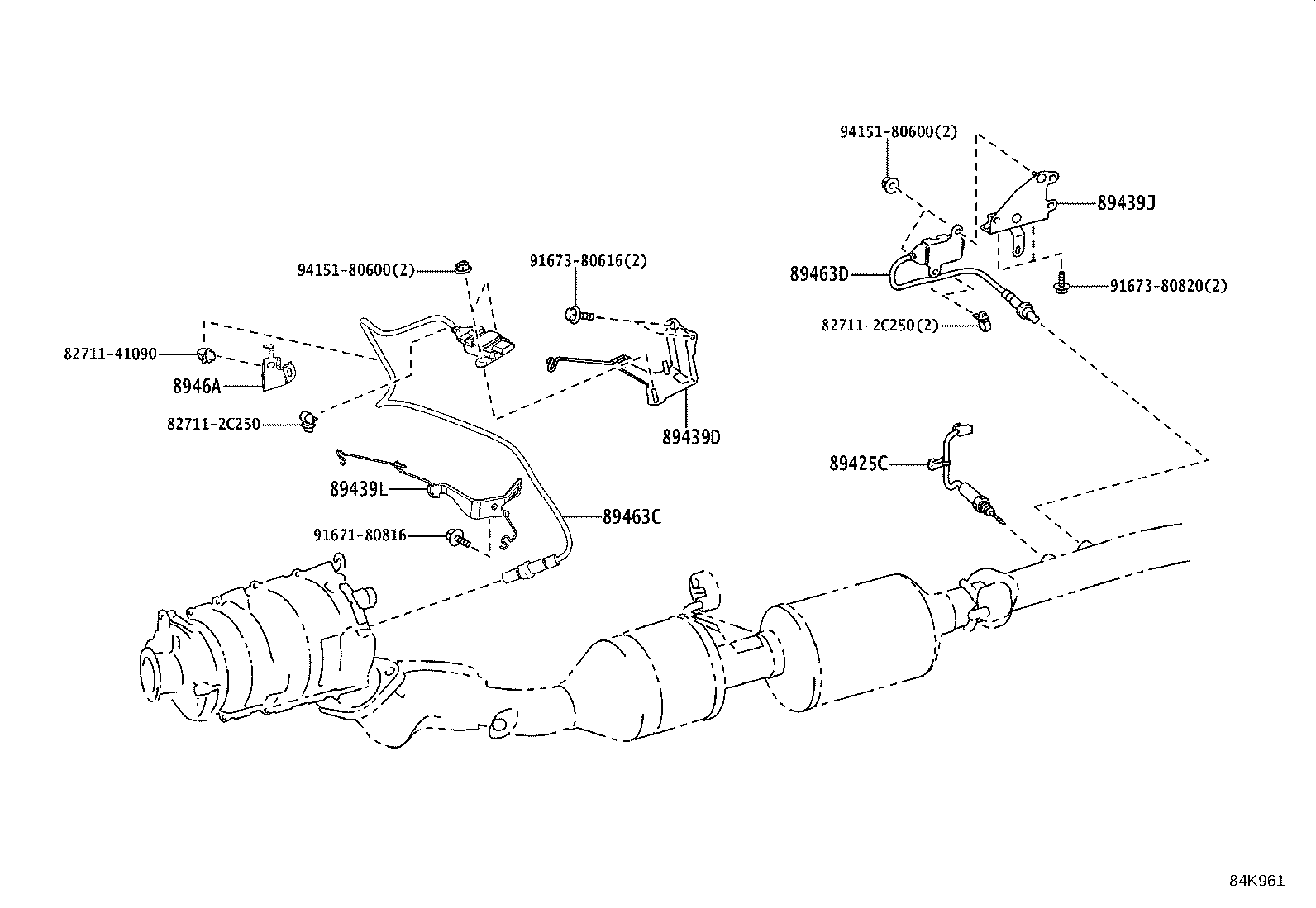

| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89425B | Sensor, Exhaust Gas Temperature, NO.3 |
| 89425C | Sensor, Exhaust Gas Temperature, NO.4 |
| 89439D | Bracket, Sensor, NO.1 |
| 89439J | Bracket, Sensor, NO.2 |
| 89439L | Bracket, Sensor, NO.4 |
| 89463C | Sensor, Nitrogen Oxides, NO.1 |
| 89463D | Sensor, Nitrogen Oxides, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89611 | Switch, Push Start |
| 89650 | Computer Assy, Power Steering |
| 89677A | Bracket, Urea Pump Control, NO.1 |

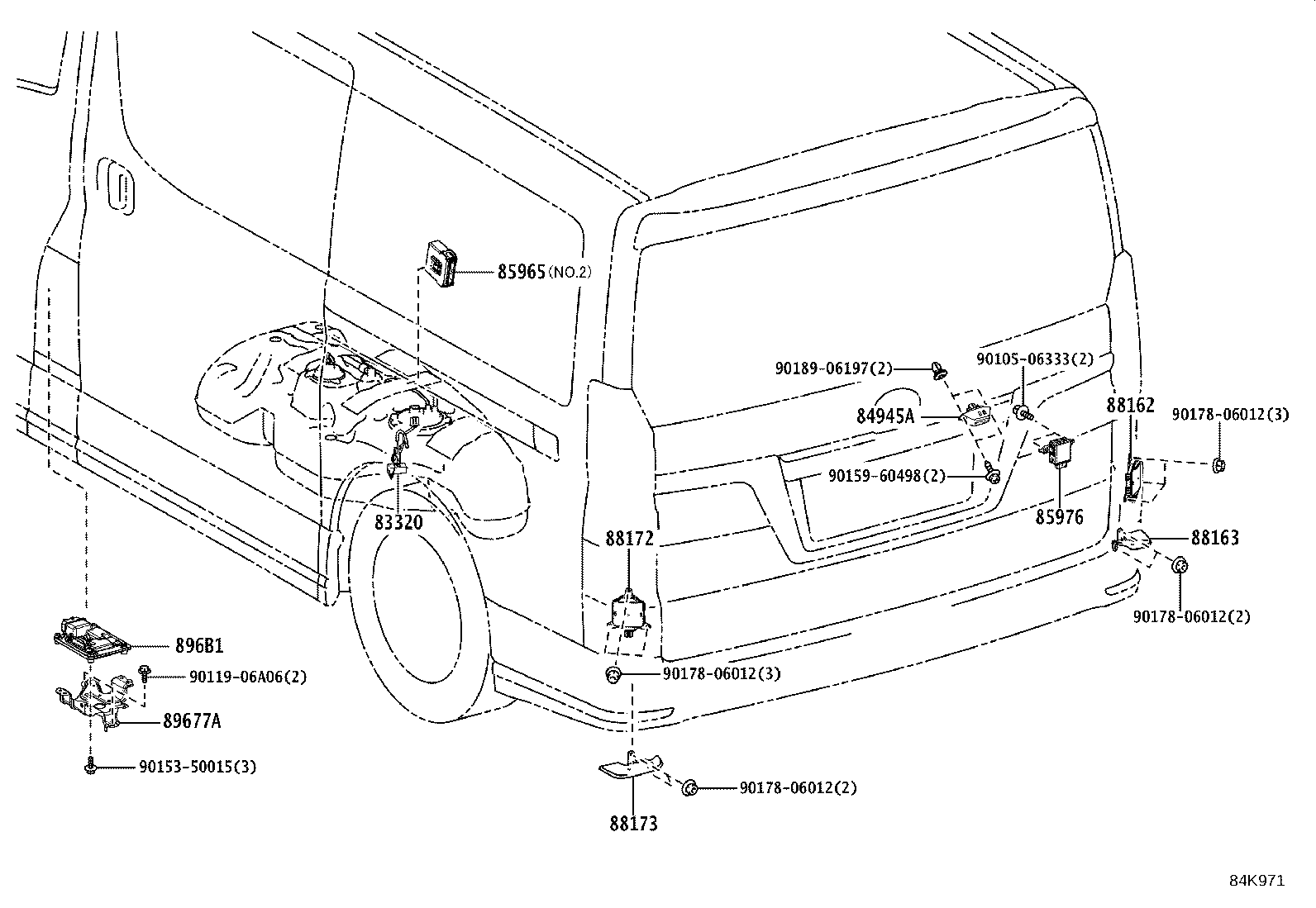

| 896B1 | Computer, Urea Pump Control |
| 896B1A | Relay, Dcu Main |
| 89747A | Buzzer, Power Slide Door Warning, RH |
| 89747B | Buzzer, Power Slide Door Warning, LH |
| 89747F | Buzzer, Blind Spot Monitor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
