Toyota Granace

2019-12 → present · chassis GDH303 · catalogue 711170 · Japan

Supported model Data version 2019-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 3 illustrations

Illustrations

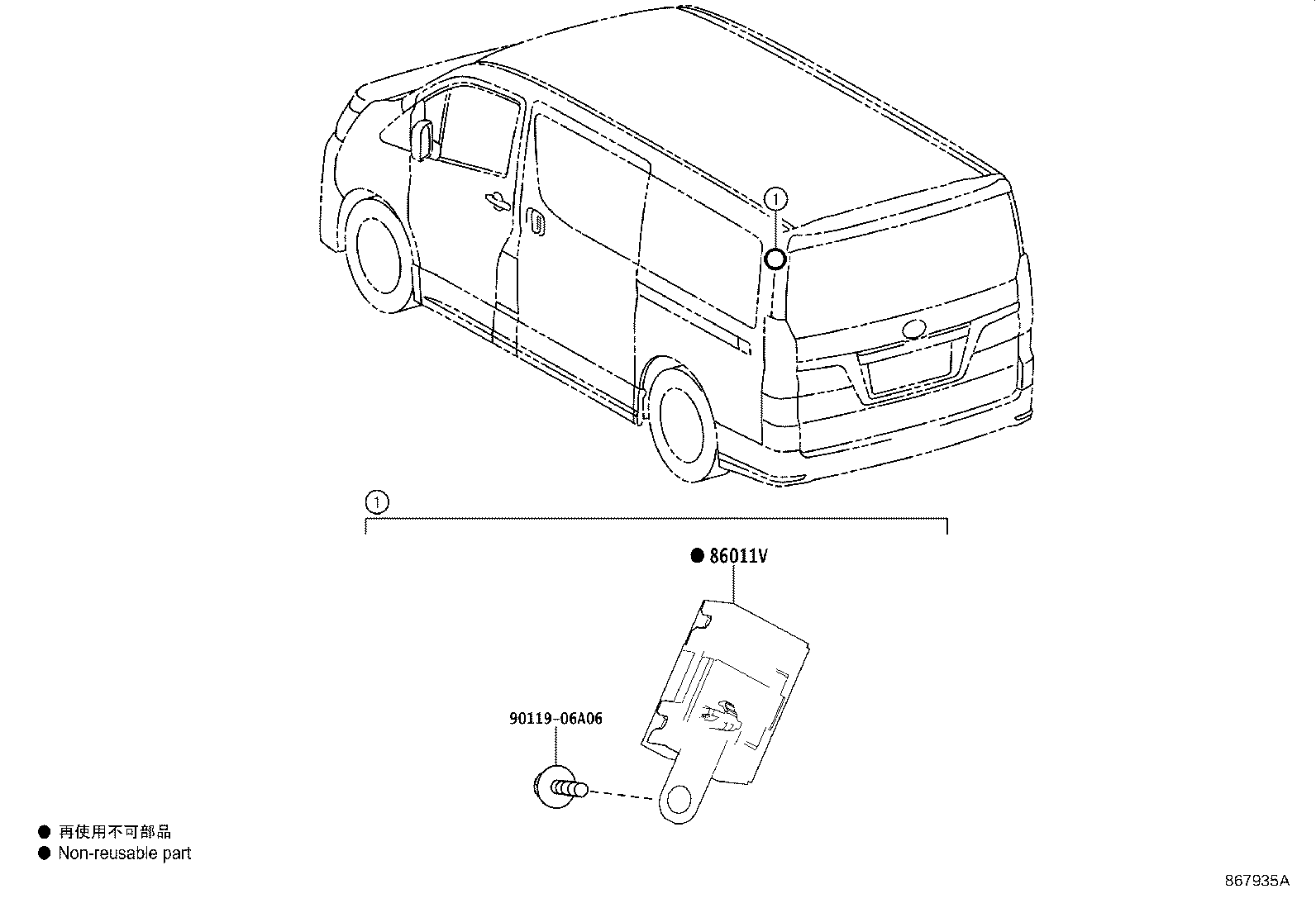

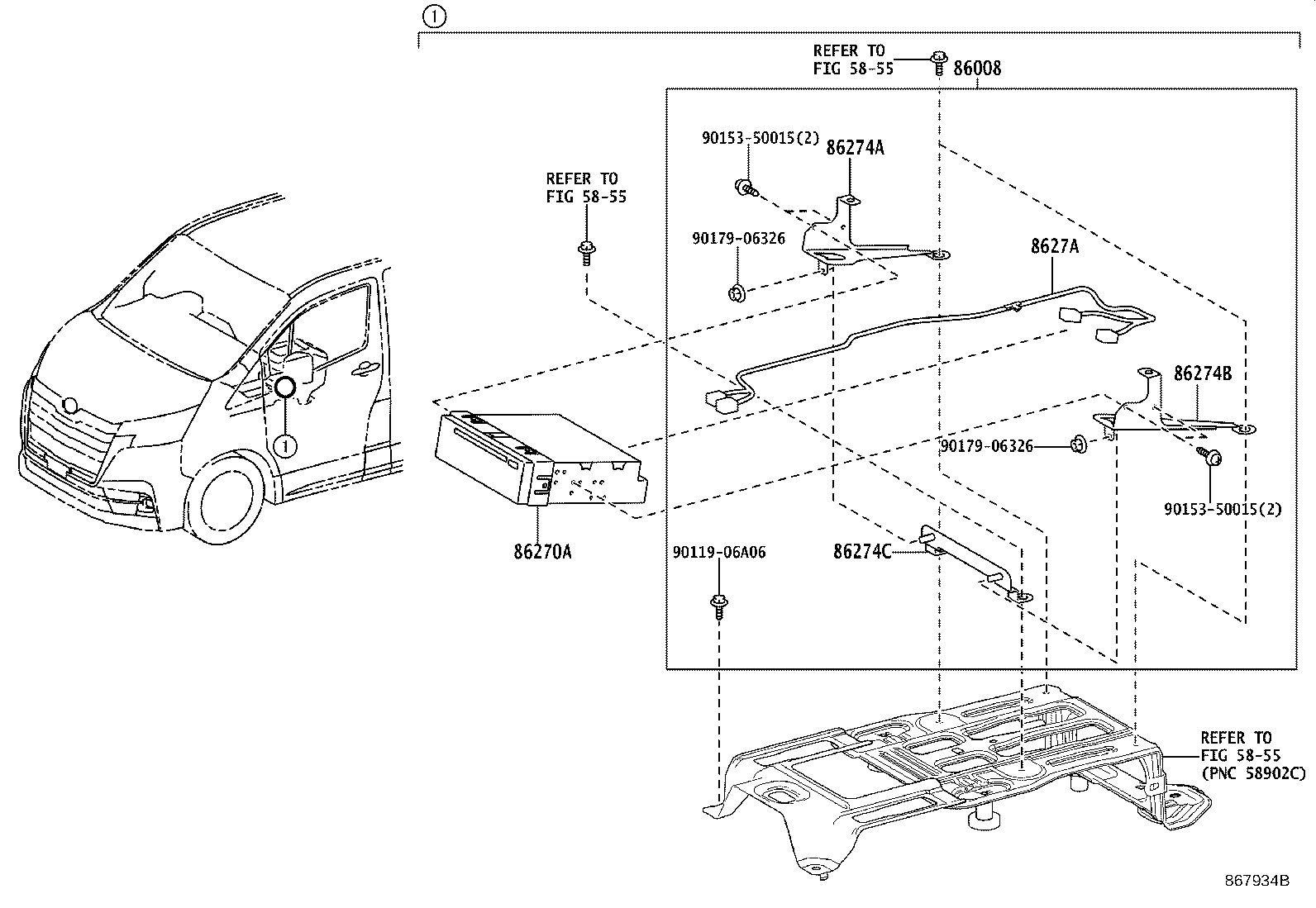

Figure 867933C 867933C 2019-12 → — Figure 867934B 867934B 2019-12 → — Figure 867935A 867935A 2019-12 → —

Part groups

PNCDescription
86008 Deck Set, Disc Player
86011V Condenser, Radio Setting
86183E Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86222A Clip, Radio Receiver Bracket NO.1
86270A Disc Player Assy
86274A Bracket, Disc Player
86274B Bracket, Disc Player
86274C Bracket, Disc Player
8627A Wire, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
