Toyota Granace
2019-12 → present · chassis GDH303 · catalogue 711170 · Japan
Supported model
Data version 2019-12
Heating & Air Conditioning - Control & Air Duct
28 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

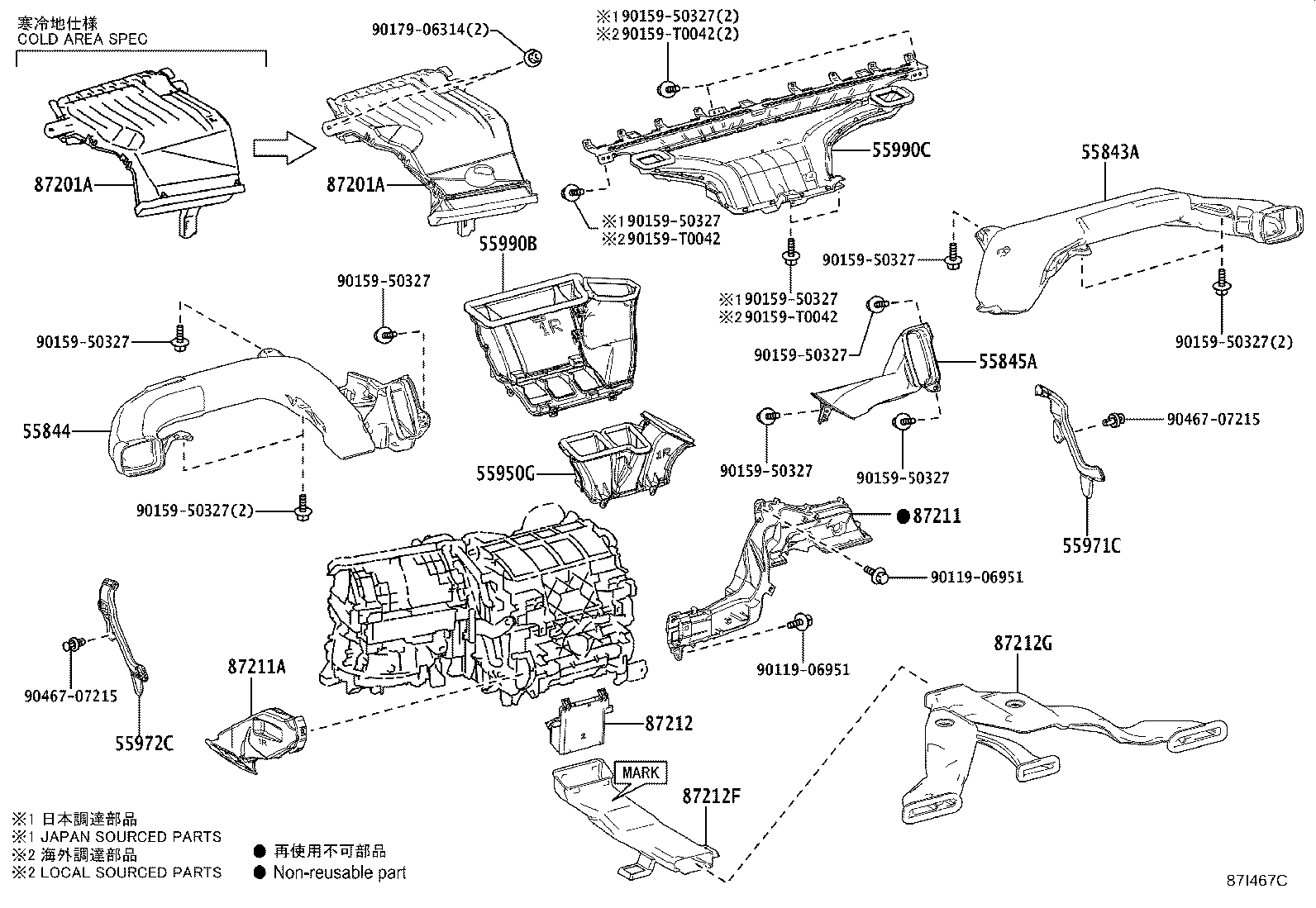

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55900 | Control Assy, Air Conditioner |
| 55930 | Control Assy, Center Cluster Module |
| 55942 | Guard, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 55990C | Nozzle Assy, Center Defroster |

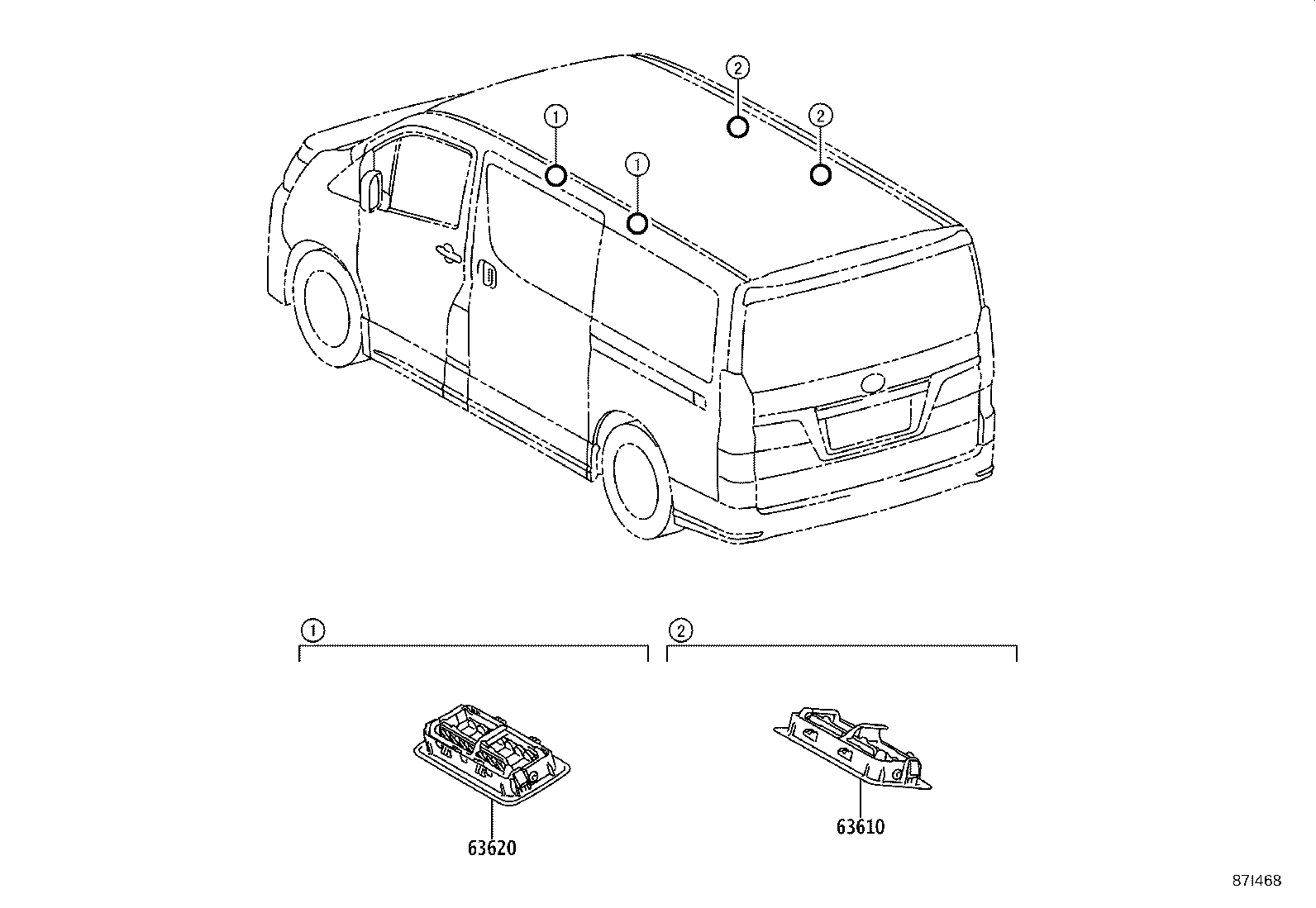

| 63610 | Register Assy, Air Outlet, NO.1 |
| 63620 | Register Assy, Air Outlet, NO.2 |

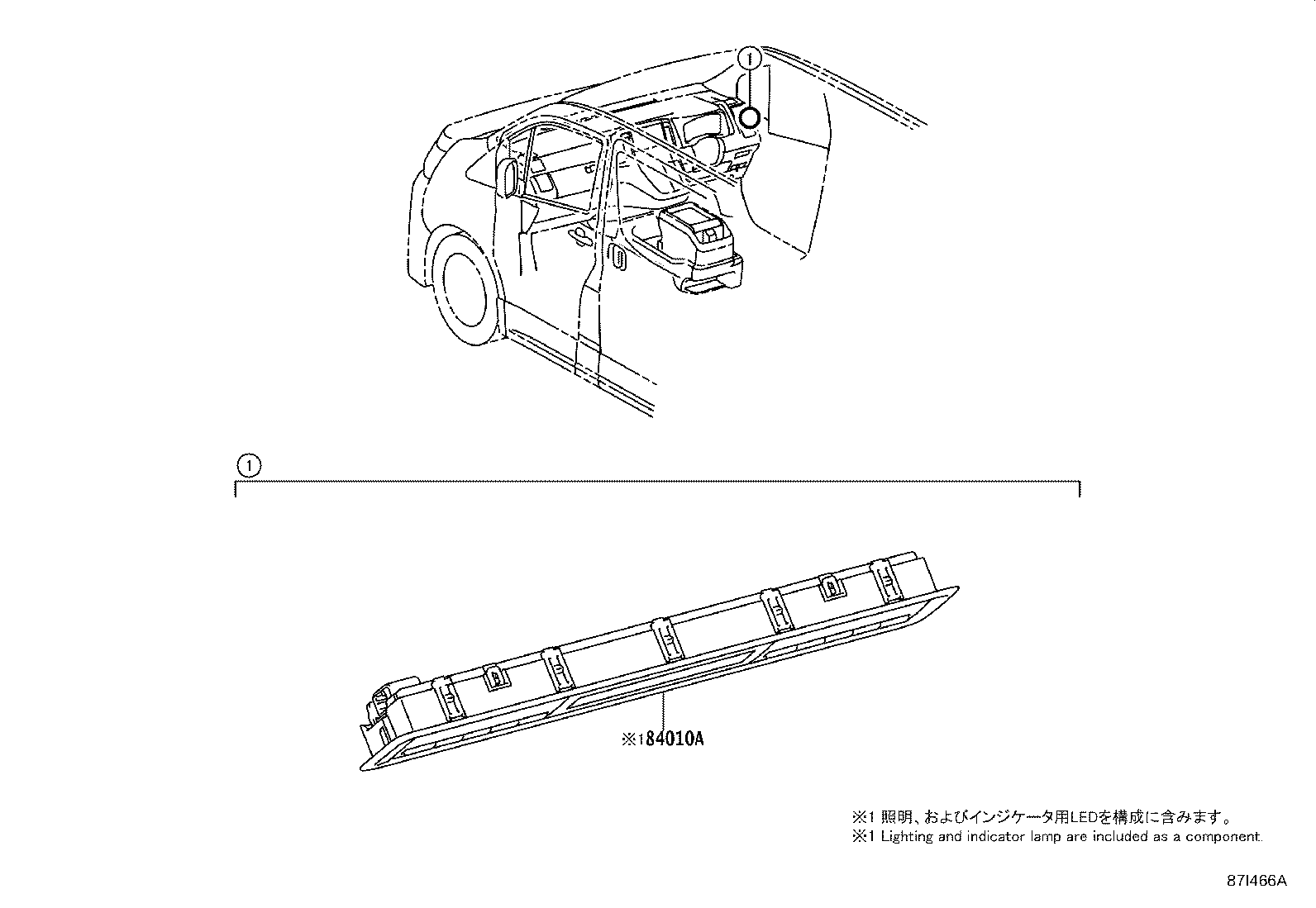

| 84010A | Control & Panel Assy, Integration |
| 87201A | Duct Sub-assy, Air |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |

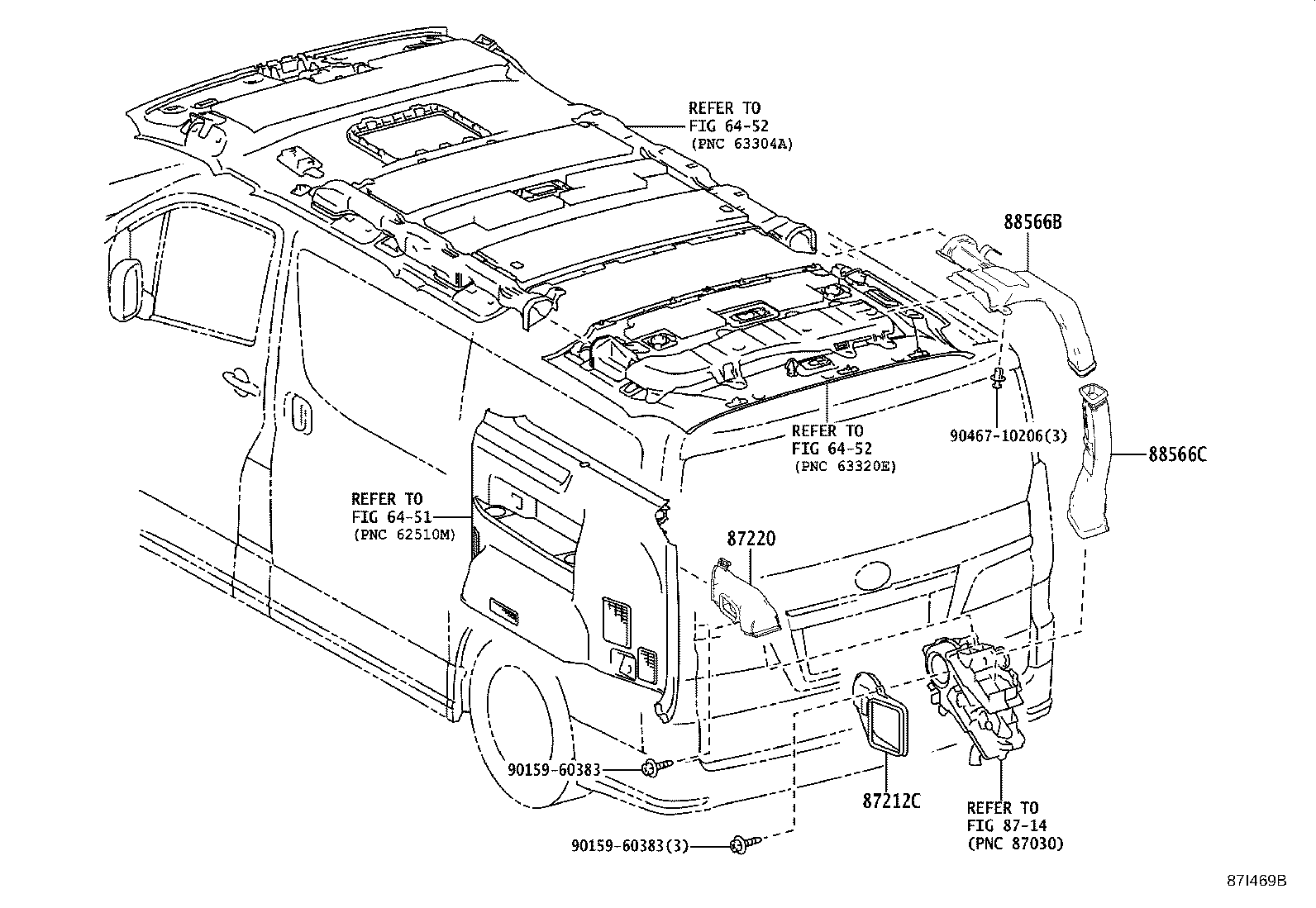

| 87212C | Duct, Air, RR |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87220 | Duct Assy, Air |
| 88566B | Duct, Cooler Air, NO.2 |
| 88566C | Duct, Cooler Air, NO.3 |

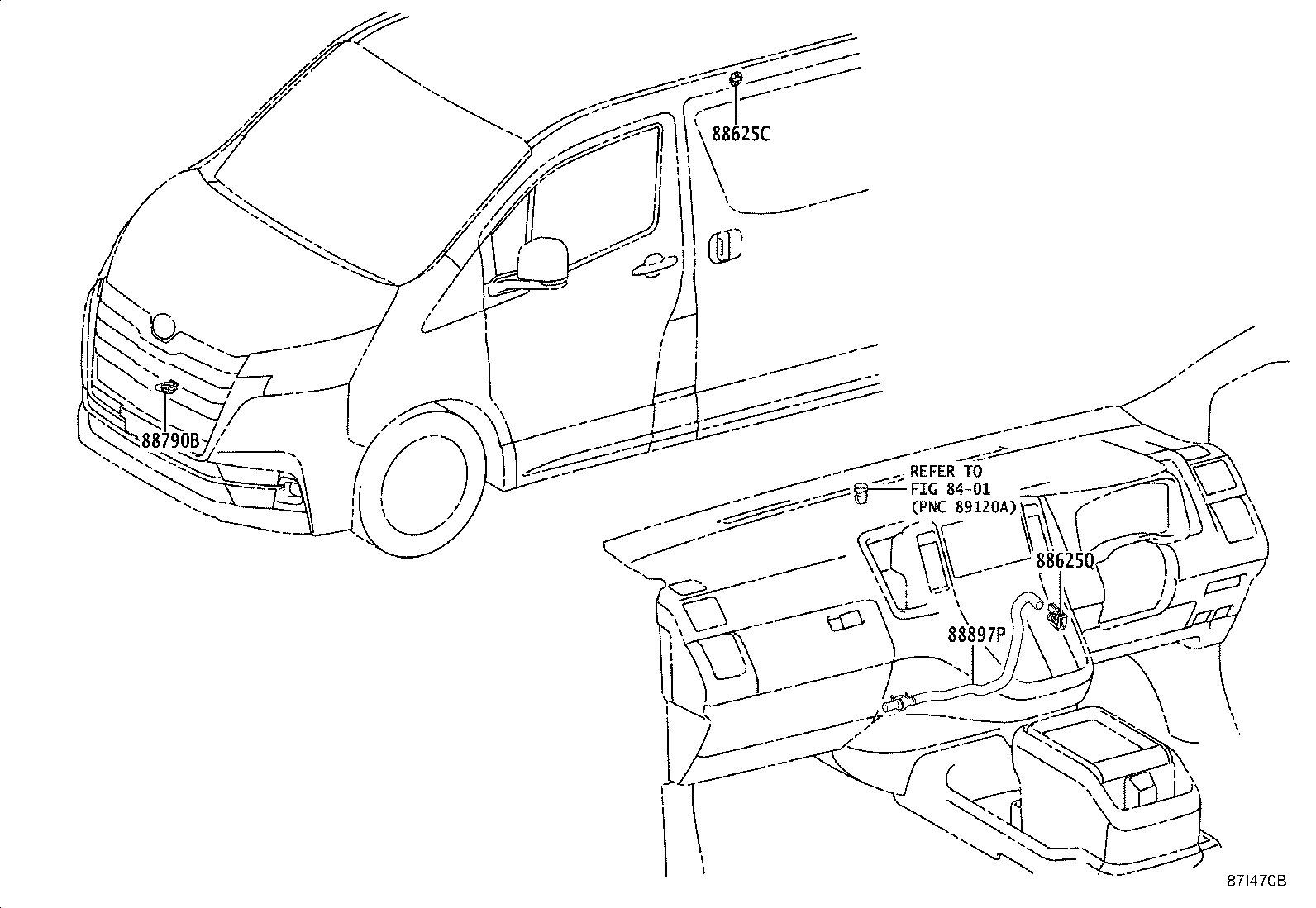

| 88625C | Thermistor, Cooler |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
