Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

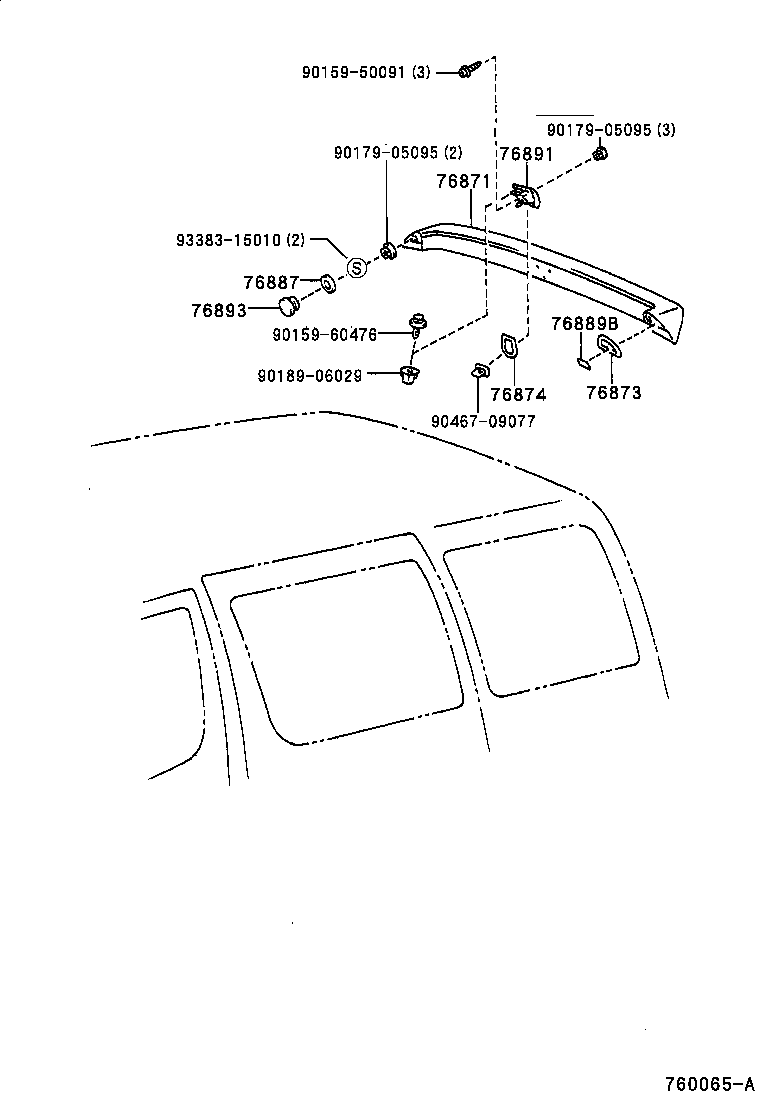

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

28 parts on this figure

Part number	Description	Fitment	Price
76871 — Spoiler, Rear
76871-26901 note	Spoiler, Rear 1998-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥49,400
76871-26901 note	Spoiler, Rear 1998-04 → 1999-08 ended	RCH41,47 STD	¥49,400
76871-26901	Spoiler, Rear 1997-04 → —	KCH4#,RCH41,47 G,STD,V	¥49,400
76871-26902	Spoiler, Rear 1997-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥49,400
76871-26904	Spoiler, Rear 1999-07 → —	KCH4#,RCH41,47 WISTD	¥49,400
76873 — Protector, Rear Spoiler, NO.2
76873-26030 note	Protector, Rear Spoiler, NO.2 1998-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥470
76873-26030 note	Protector, Rear Spoiler, NO.2 1998-04 → 1999-08 ended	RCH41,47 STD	¥470
76873-26030	Protector, Rear Spoiler, NO.2 1997-04 → —	KCH4#,RCH41,47 G,STD,V	¥470
76873-26060	Protector, Rear Spoiler, NO.2 1997-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥470
76874 — Protector, Rear Spoiler, NO.3
76874-26030 note	Protector, Rear Spoiler, NO.3 1998-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥470
76874-26030 note	Protector, Rear Spoiler, NO.3 1998-04 → 1999-08 ended	RCH41,47 STD	¥470
76874-26030	Protector, Rear Spoiler, NO.3 1997-04 → —	KCH4#,RCH41,47 G,STD,V	¥470
76887 — Seal, Rear Spoiler
76887-26010	Seal, Rear Spoiler 1997-04 → —	KCH4#,RCH41,47 G,STD,V,WISTD	¥680
76887-26010 note	Seal, Rear Spoiler 1998-04 → 1999-08 ended	RCH41,47 STD	¥680
76887-26010 note	Seal, Rear Spoiler 1998-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥680
76889B — Seal, Rear Spoiler, NO.1
76889-26010 note	Seal, Rear Spoiler, NO.1 1998-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥480
76889-26010 note	Seal, Rear Spoiler, NO.1 1998-04 → 1999-08 ended	RCH41,47 STD	¥480
76889-26010	Seal, Rear Spoiler, NO.1 1997-04 → —	KCH4#,RCH41,47 G,STD,V	¥480
76889-26030 note	Seal, Rear Spoiler, NO.1 1999-07 → —	KCH4#,RCH41,47 WISTD	¥220
76889-26040 note	Seal, Rear Spoiler, NO.1 1999-07 → —	KCH4#,RCH41,47 WISTD	¥220
76889-26050 note	Seal, Rear Spoiler, NO.1 1999-07 → —	KCH4#,RCH41,47 WISTD	¥210
76889-26060 note	Seal, Rear Spoiler, NO.1 1999-07 → —	KCH4#,RCH41,47 WISTD	¥210
76891 — Spoiler, Rear NO.1
76891-26901 note	Spoiler, Rear NO.1 1998-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥2,530
76891-26901 note	Spoiler, Rear NO.1 1998-04 → 1999-08 ended	RCH41,47 STD	¥2,530
76891-26901	Spoiler, Rear NO.1 1997-04 → —	KCH4#,RCH41,47 G,STD,V	¥2,530
76893 — Cover, Rear Spoiler, NO.1
76893-26020 note	Cover, Rear Spoiler, NO.1 1998-04 → 1999-07 ended	KCH4#,RCH41,47 WINT	¥120
76893-26020 note	Cover, Rear Spoiler, NO.1 1998-04 → 1999-08 ended	RCH41,47 STD	¥120
76893-26020	Cover, Rear Spoiler, NO.1 1997-04 → —	KCH4#,RCH41,47 G,STD,V,WISTD	¥120

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
