Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10
Mounting

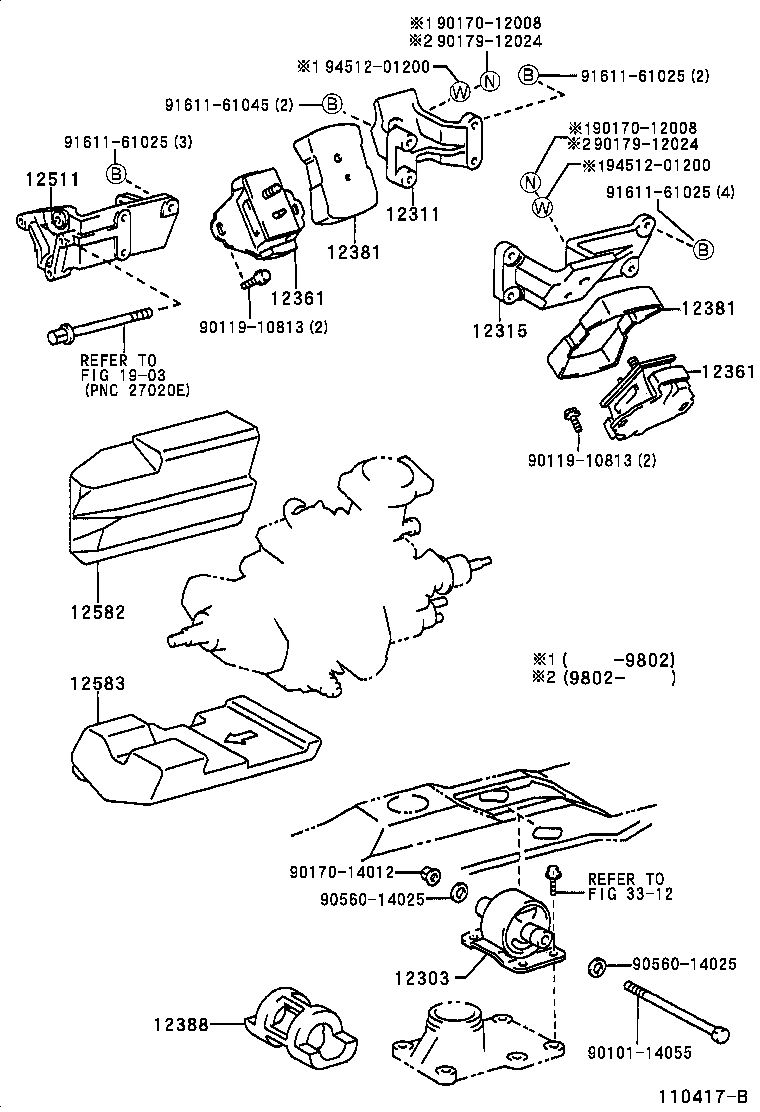

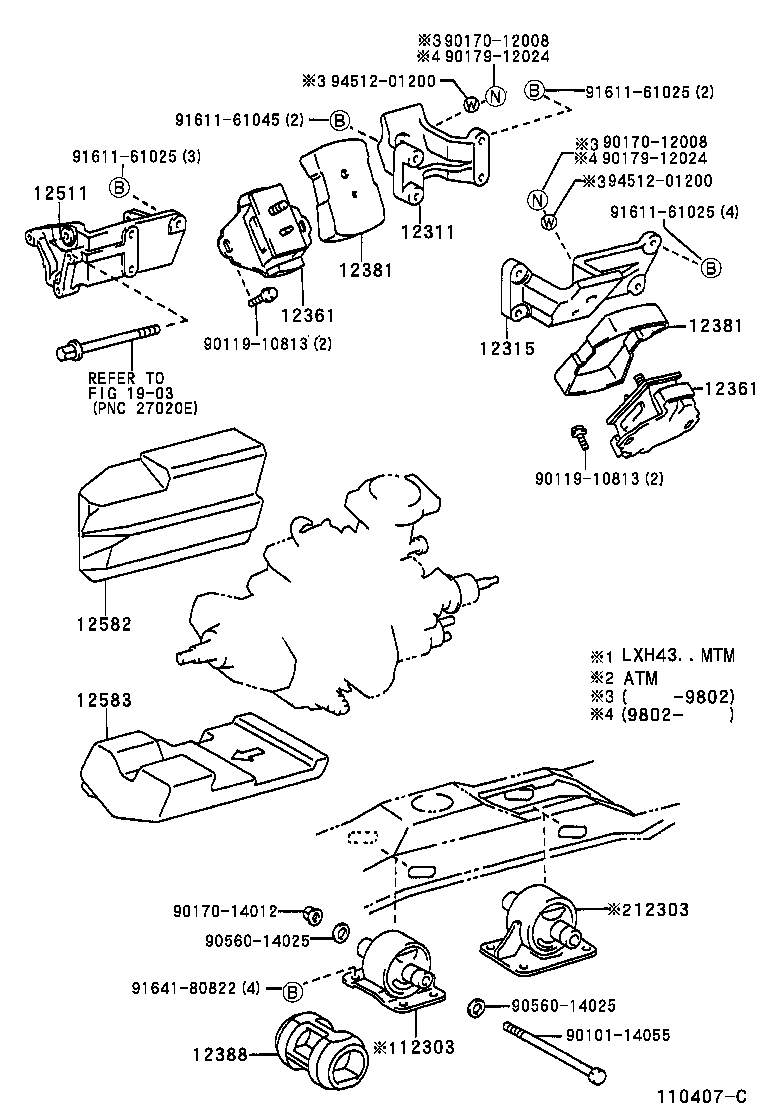

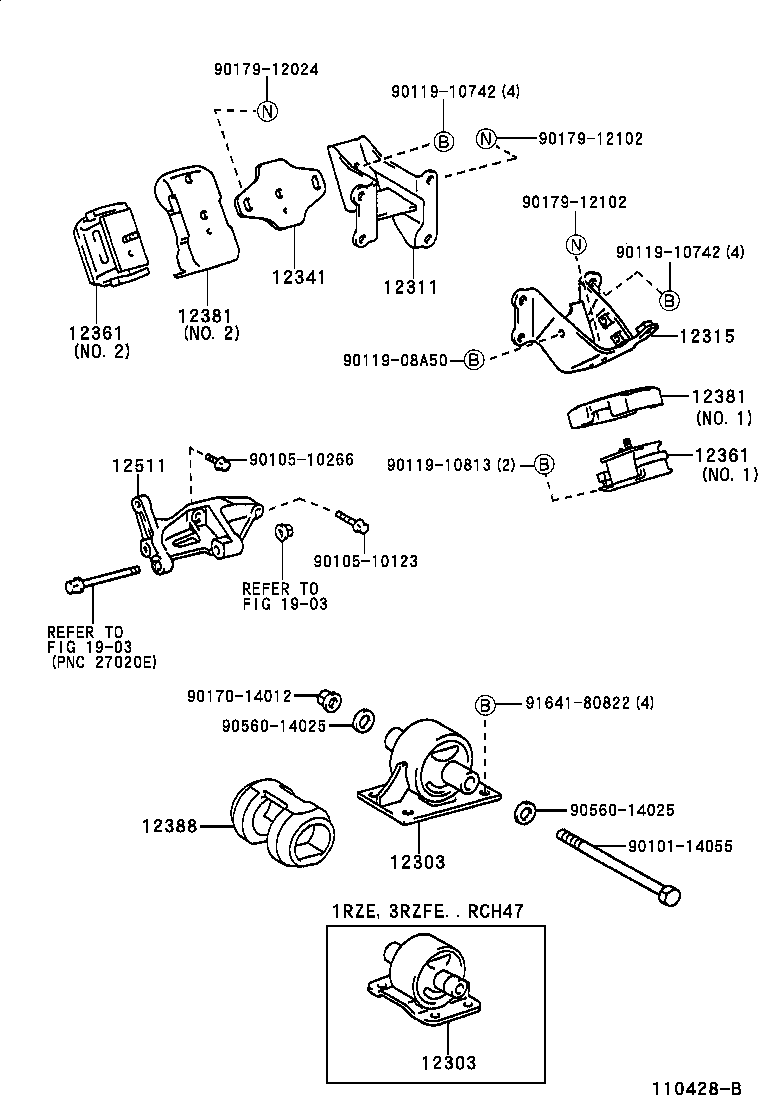

11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12303 | Bracket Sub-assy, Engine Mounting, Rear |
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12341 | Spacer, Engine Mounting |
| 12361 | Insulator, Engine Mounting, Front |
| 12381 | Stabilizer, Engine Mounting |
| 12388 | Stopper, Engine Mounting Bracket, Rear |
| 12511 | Bracket, Alternator, NO.1 |
| 12511A | Bush, Alternator Bracket |
| 12582 | Insulator, Cylinder Block, NO.2 |
| 12583 | Insulator, Cylinder Block, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
