Toyota Regius/Touring Hiace
1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan
Discontinued model
Data version 2002-10

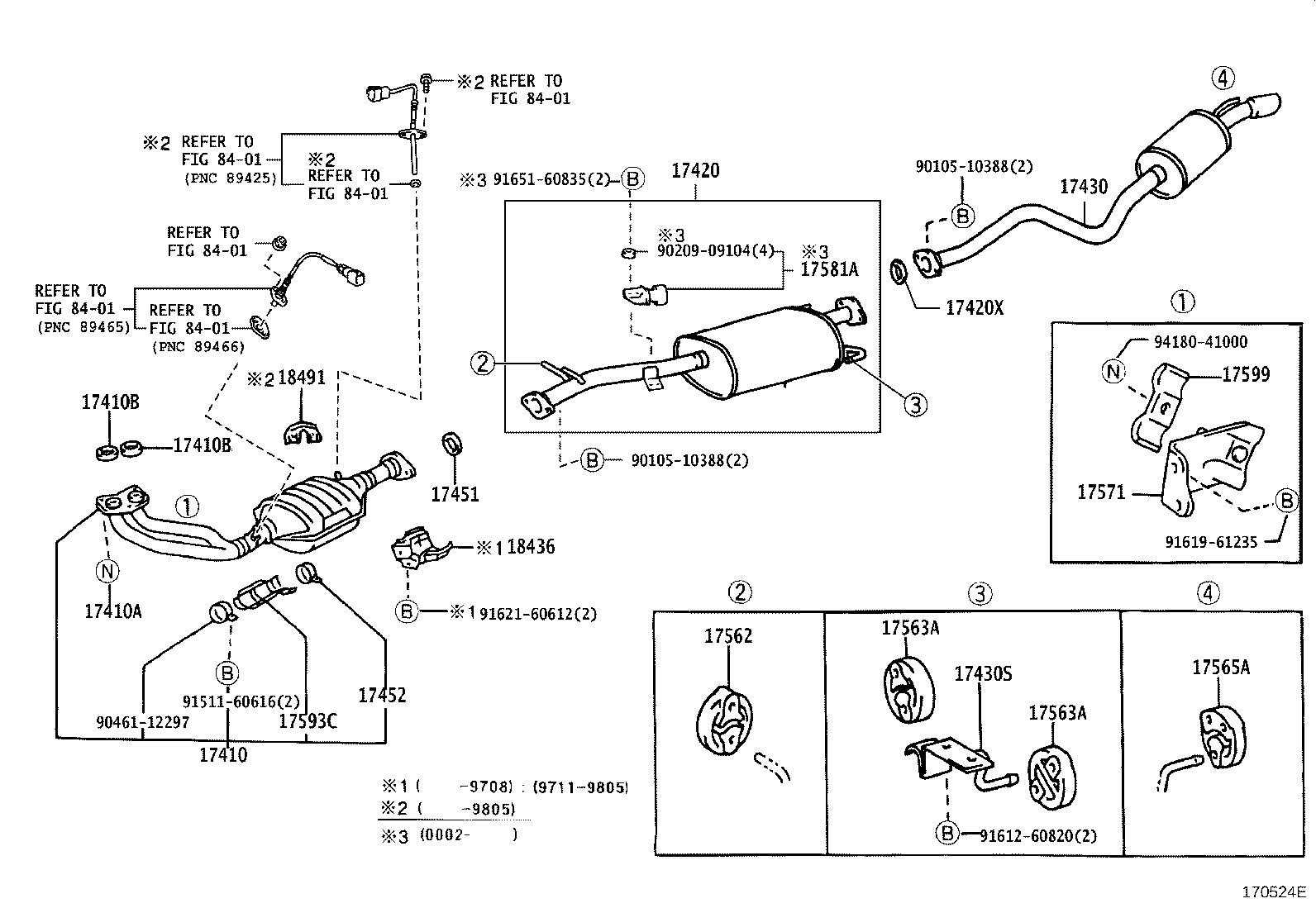

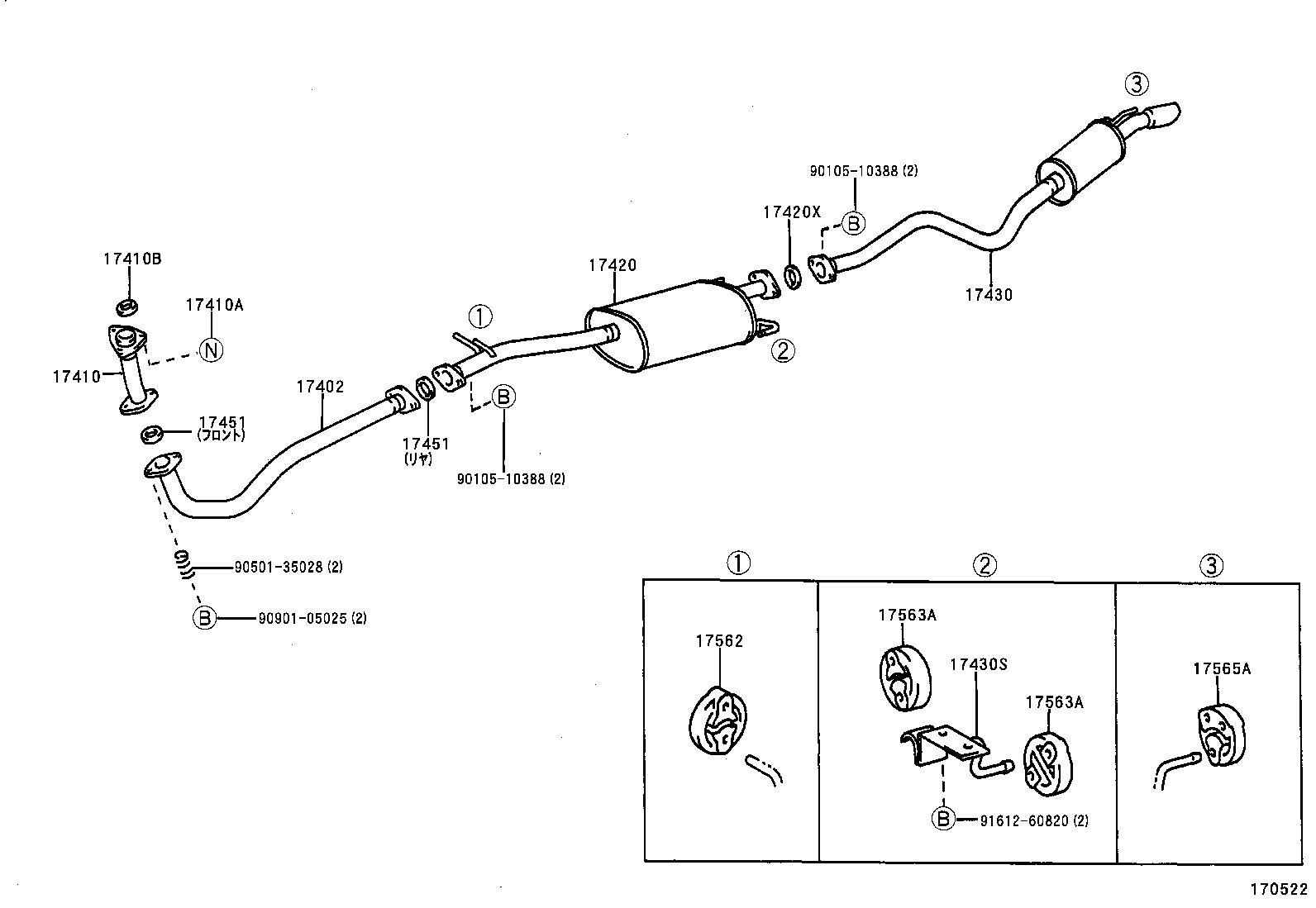

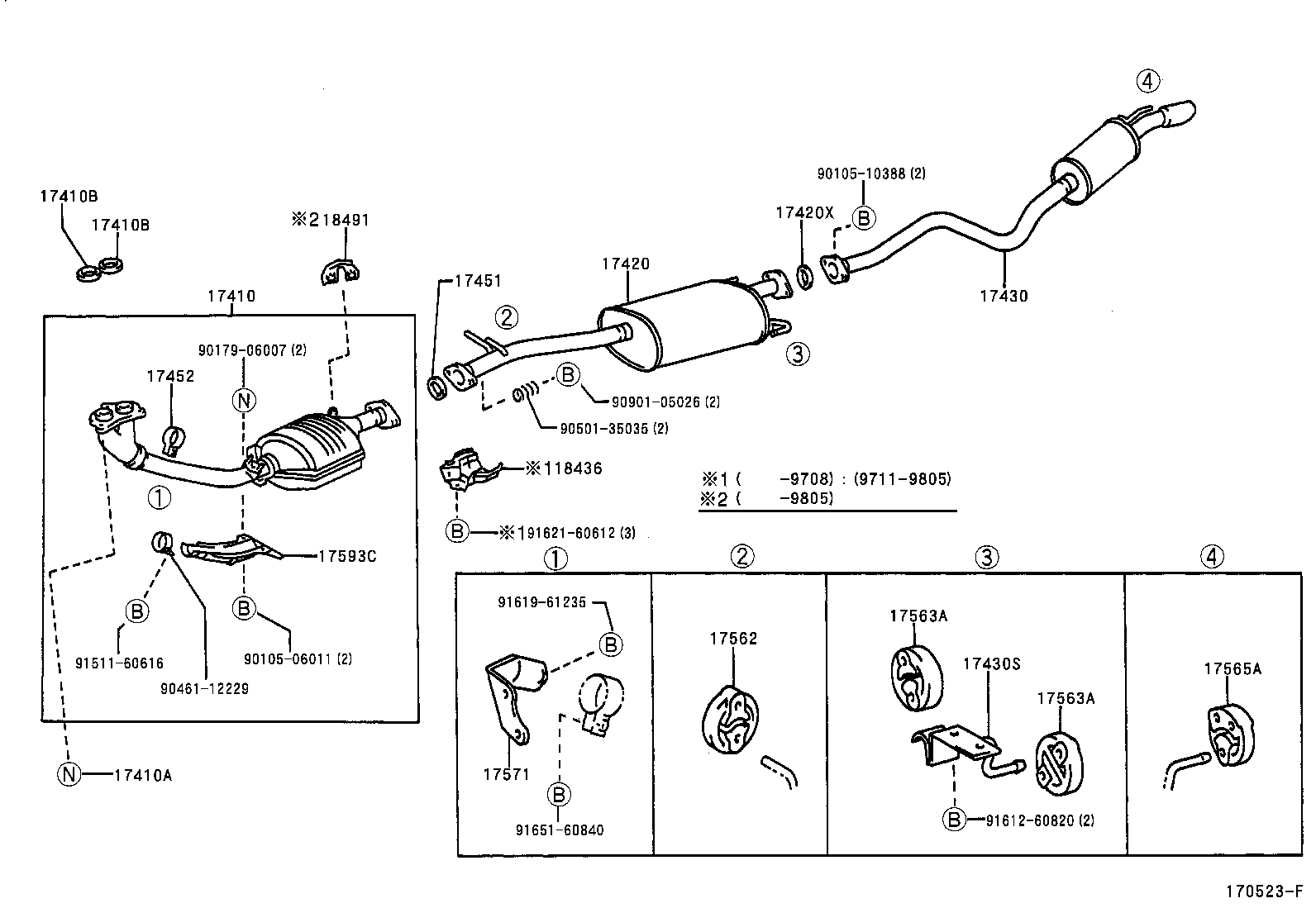

Exhaust Pipe
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17402 | Pipe Sub-assy, Exhaust, Front NO.2 |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17452 | Clamp, Exhaust Pipe |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17581A | Damper, Exhaust Pipe |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17599 | Holder, Exhaust Pipe Support Stopper |
| 18435A | Protector, Monolithic Converter |
| 18436 | Protector, Monolithic Converter, NO.1 |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
