Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 8 illustrations

Illustrations

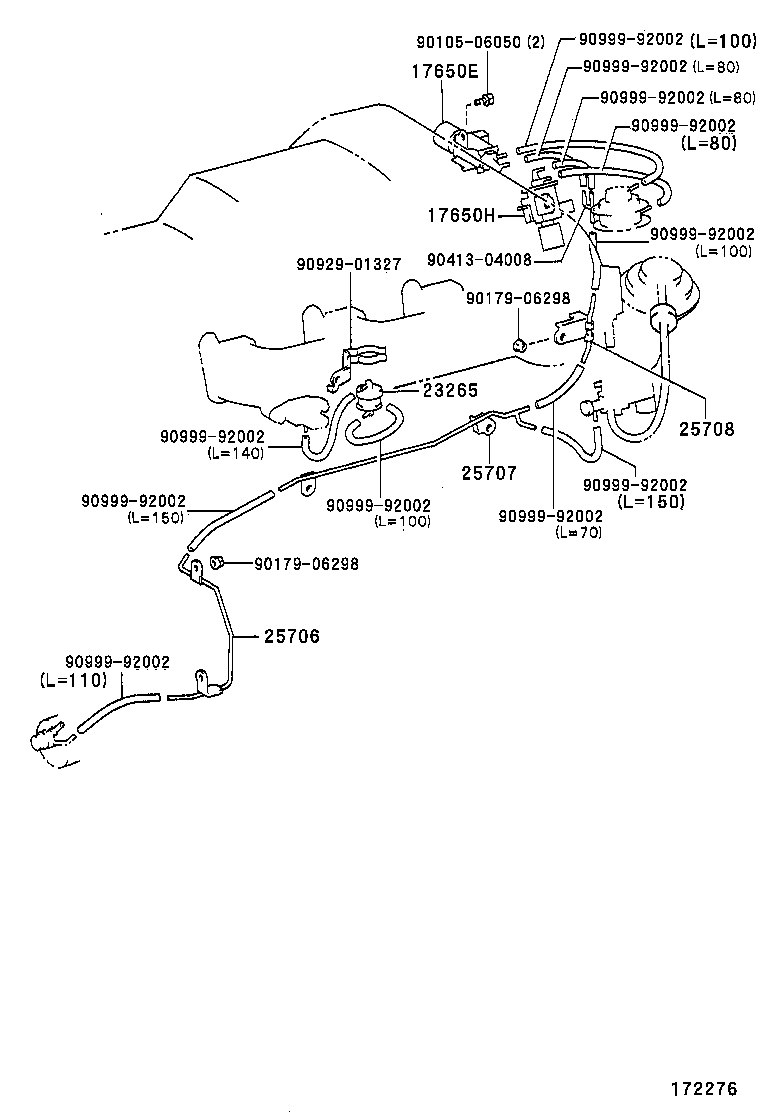

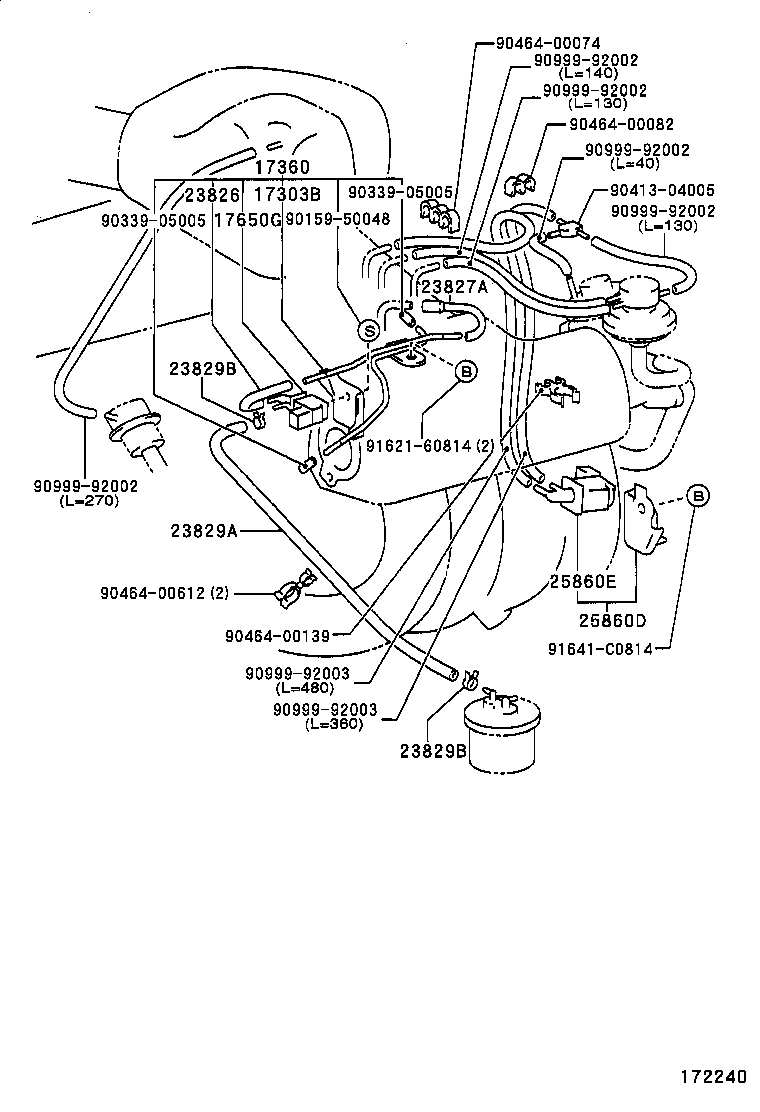

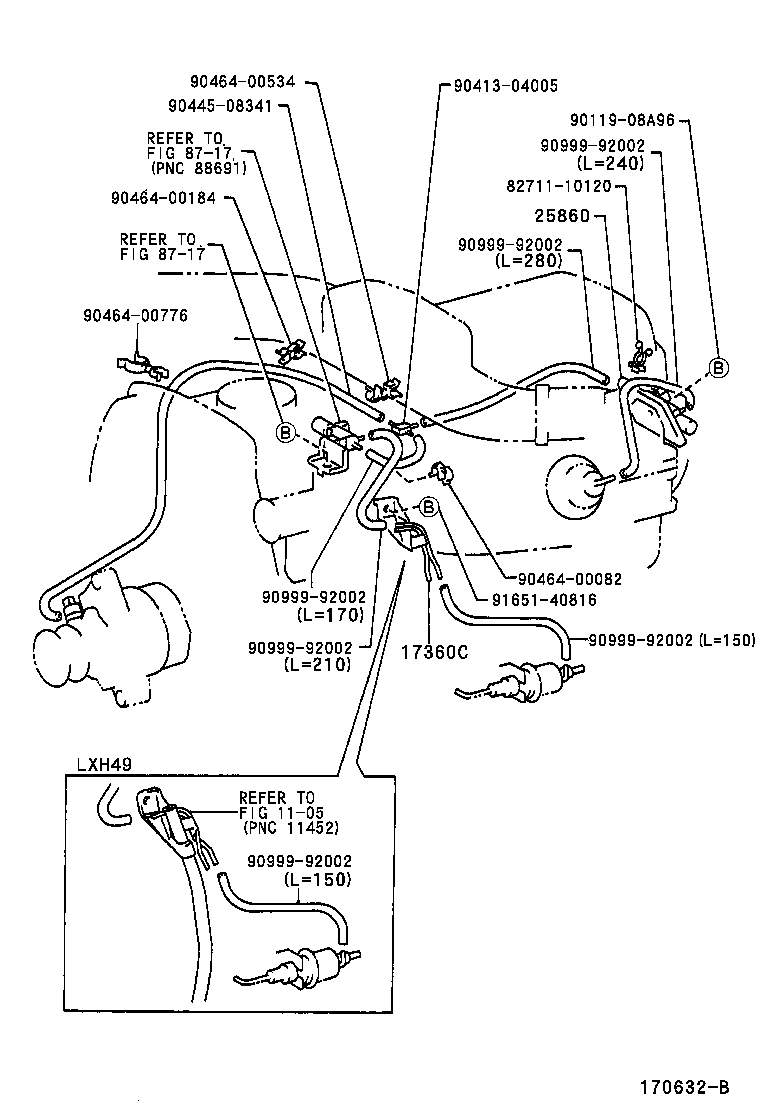

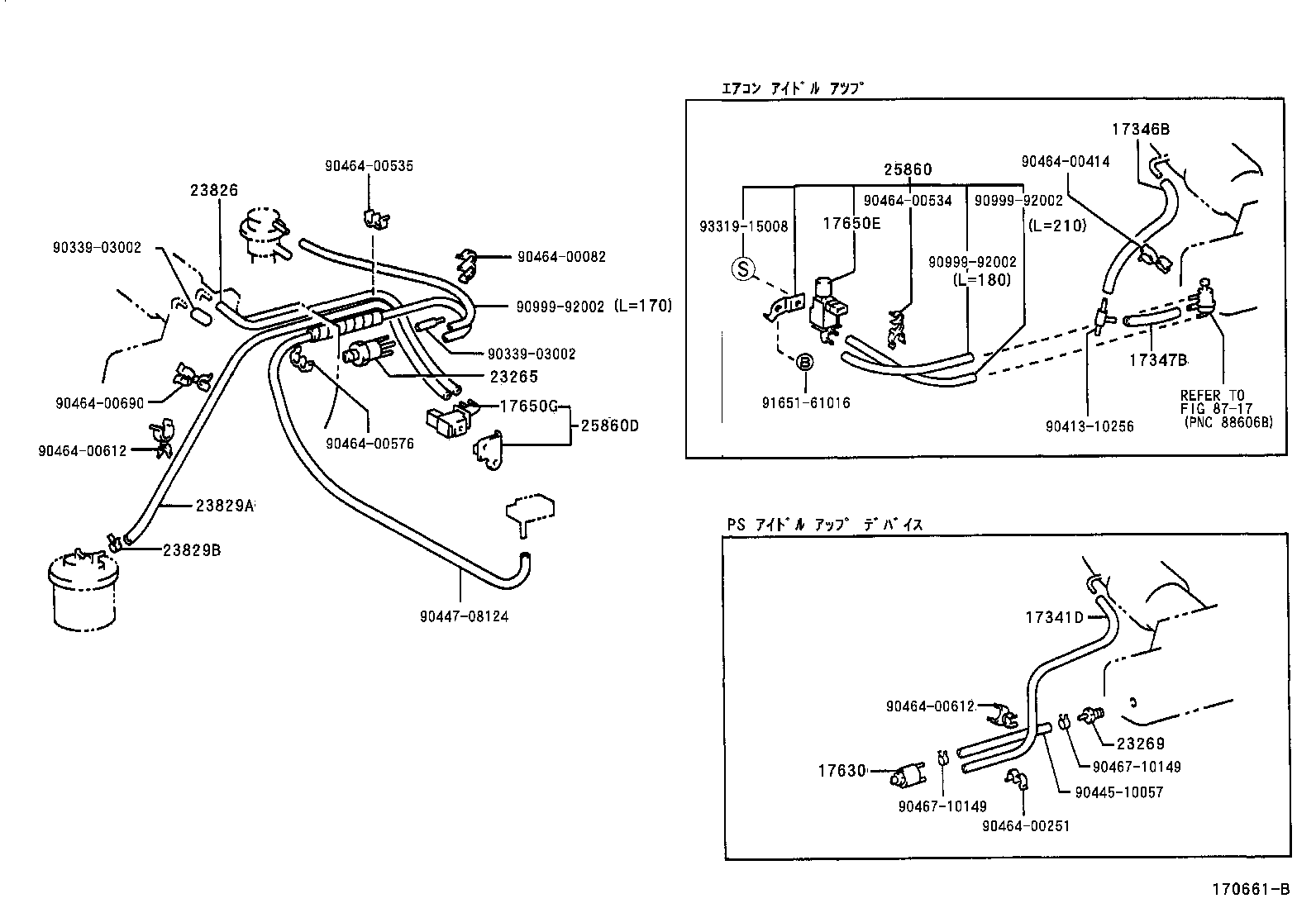

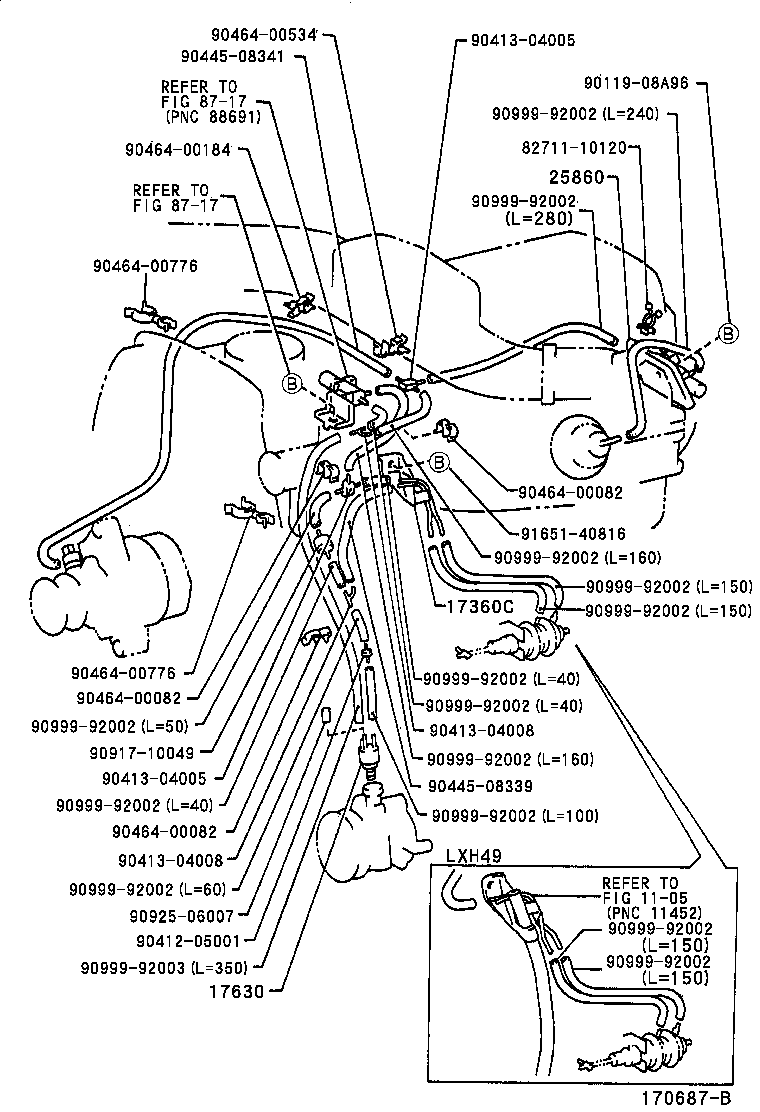

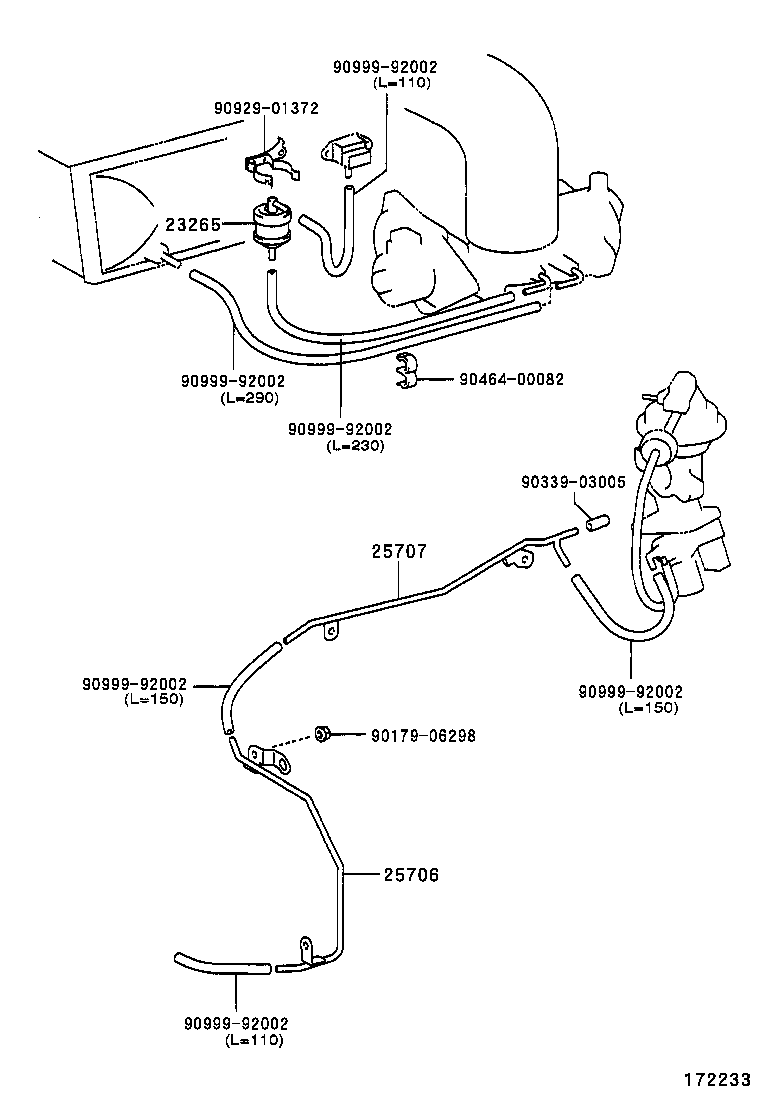

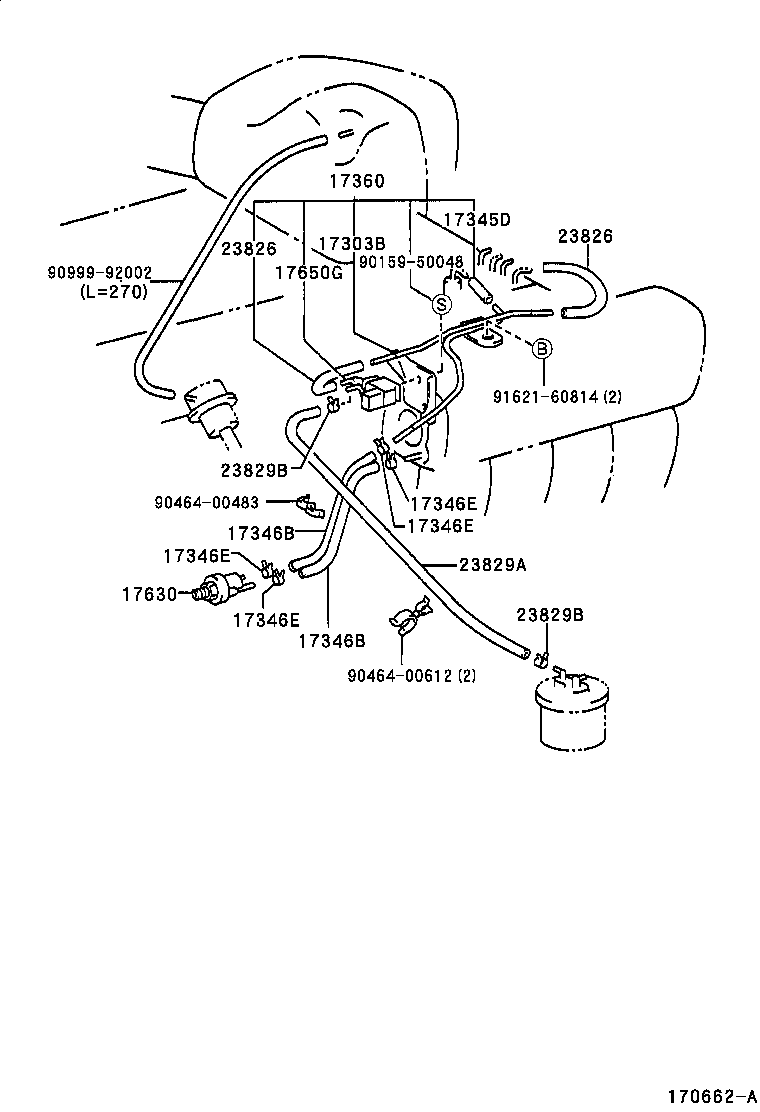

Figure 170020 170020 1997-04 → — Figure 172276 172276 1997-04 → 1999-07 Figure 172233 172233 1999-07 → — Figure 170687B 170687B 1997-06 → — Figure 170632B 170632B 1997-06 → — Figure 170661B 170661B 1997-06 → — Figure 170662A 170662A 1997-04 → 1999-07 Figure 172240 172240 1999-07 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347B Hose, Air, NO.7
17360 Tube Assy, Air
17360C Pipe Assy, Air
17630 Valve Assy, Air Control
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17650H Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
