Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

8 part groups · 2 illustrations

Illustrations

Figure 230032B

230032B 1997-04 → —

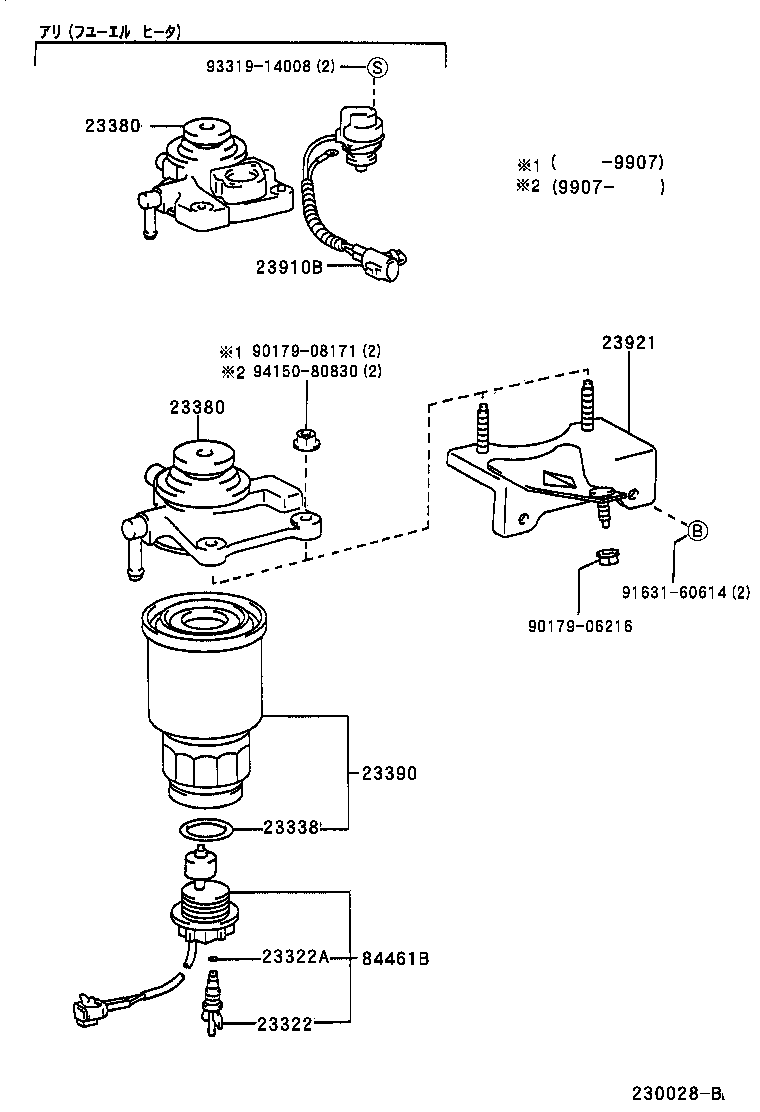

Figure 230028B

230028B 1997-06 → —

Part groups

PNC	Description
23322	Plug, Drain(FOR FUEL FILTER)
23322A	Ring, O(FOR DRAIN PLUG)
23338	Gasket(FOR WARNING SWITCH)
23380	Cap Assy, Fuel Filter
23390	Element Assy, Fuel Filter
23910B	Heater Assy, Fuel
23921	Support, Fuel Filter
84461B	Switch, Level Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
