Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 5 illustrations

Illustrations

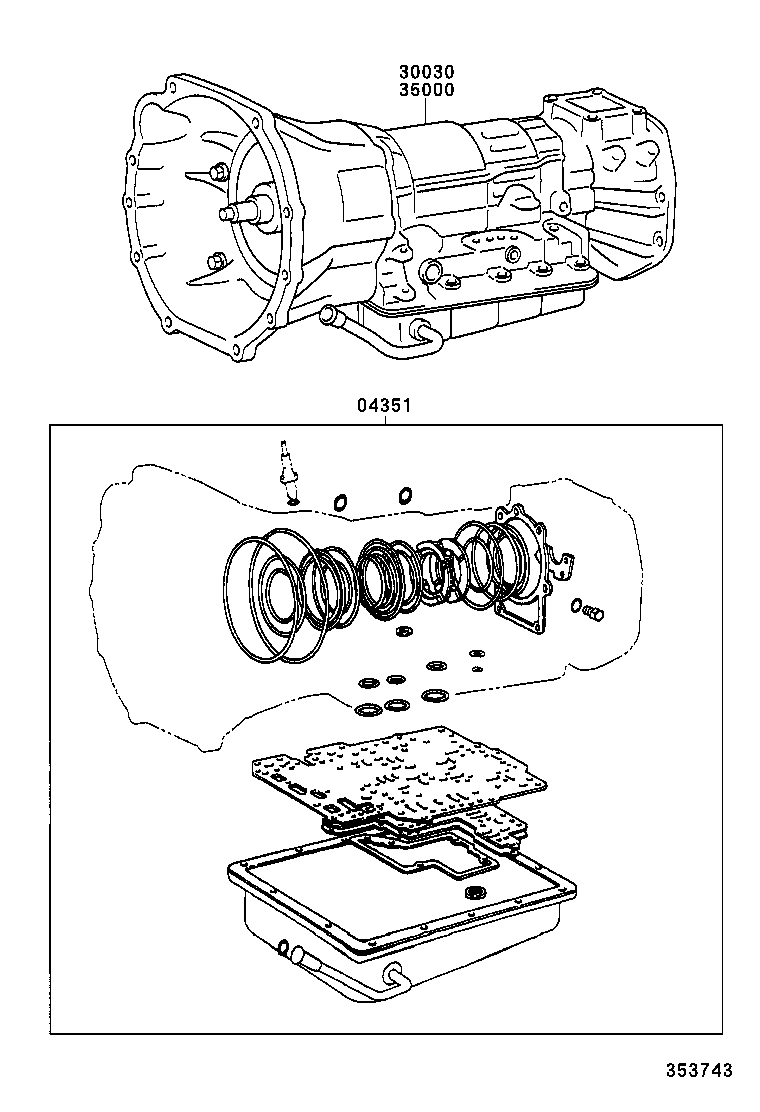

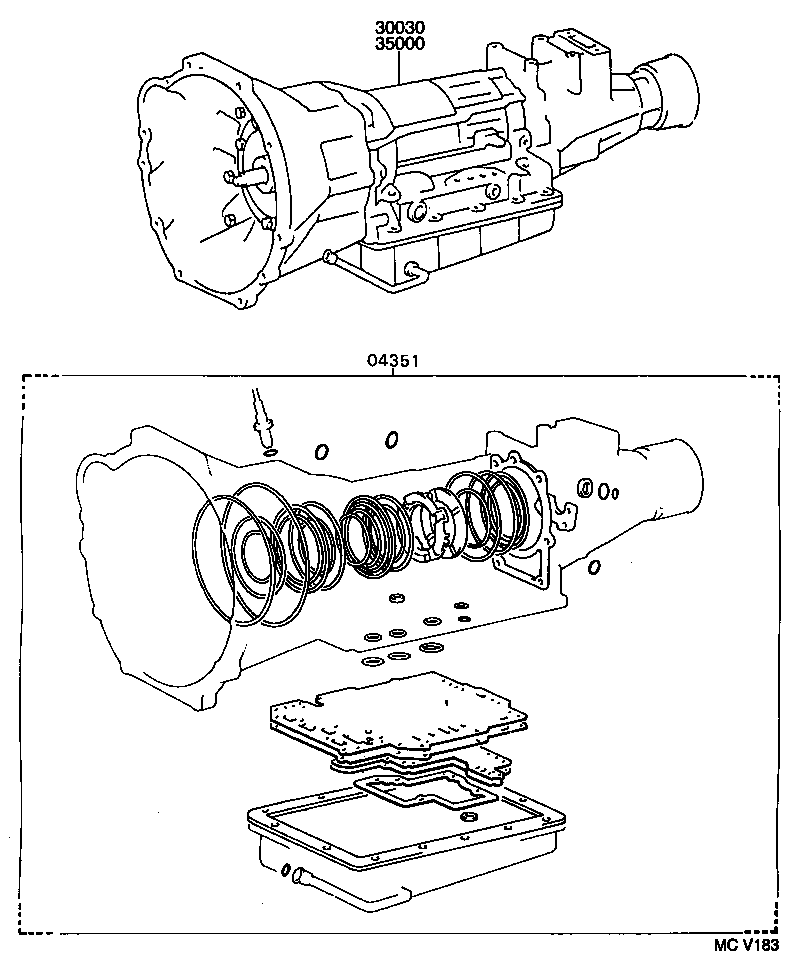

Figure MCT635A MCT635A 1997-04 → — Figure 350301 350301 1997-06 → 2000-07 Figure 350301 350301 2000-07 → — Figure 353743 353743 2000-07 → — Figure MCV183 MCV183 1997-04 → 1999-07

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
