Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (ATM)

14 part groups · 8 illustrations

Illustrations

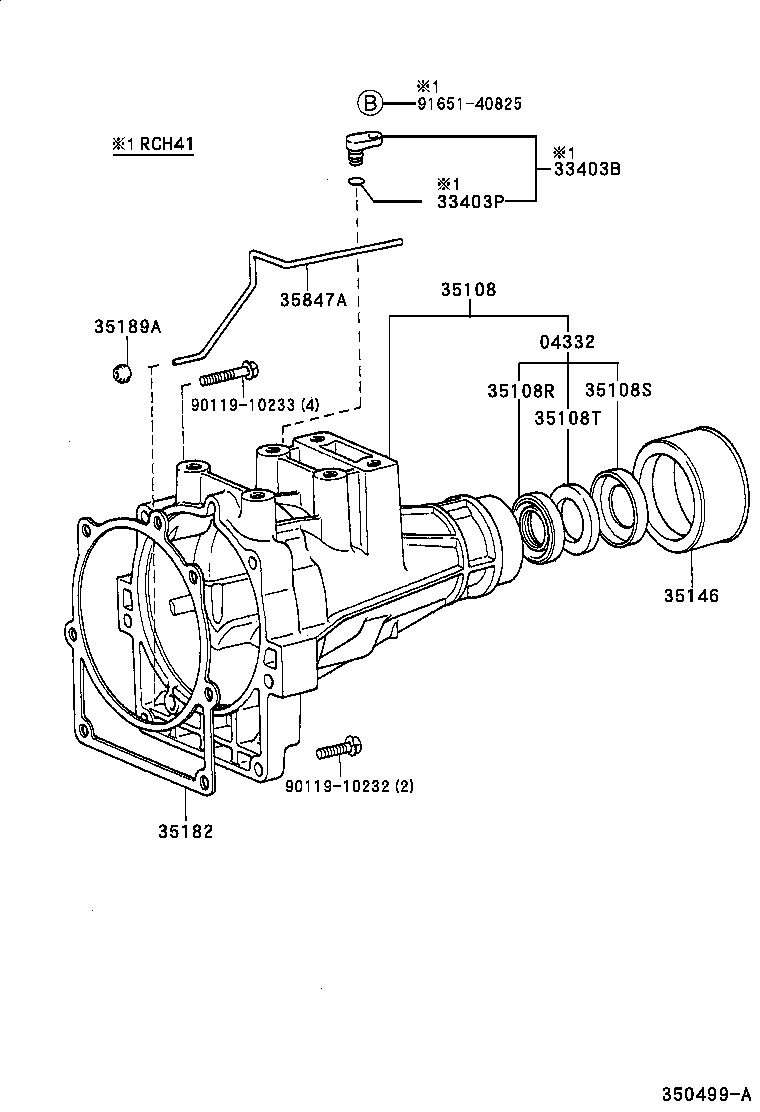

Figure 350533A 350533A 1997-04 → — Figure 350533A 350533A 1999-07 → — Figure 351519A 351519A 1997-04 → 1999-07 Figure 351519A 351519A 1999-07 → — Figure 350499A 350499A 1997-04 → 1999-07 Figure 350307 350307 1997-04 → 1999-07 Figure 350307 350307 1999-07 → — Figure 352163B 352163B 1999-07 → —

Part groups

PNCDescription
04332 Seal Kit, Oil(FOR AUTOMATIC EXTENSION HOUSING)
33403B Cover Sub-assy, Speedometer Driven Hole
33403P Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35015B Pin, Straight(FOR TRANSMISSION CASE ADAPTER)
35015C Seal, Oil(FOR TRANSMISSION CASE ADAPTER)
35015D Adapter Sub-assy, Transmission Case
35108 Housing Sub-assy, Extension (ATM)
35108R Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
35108S Retainer, Extension Housing Dust Seal (ATM)
35108T Seal, Dust (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
35146 Deflector, Extension Housing Dust (ATM)
35182 Gasket, Extension Housing (ATM)
35189A Gasket, Extension Housing Bush Apply Tube
35847A Tube, Extension Housing Bush Apply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
