Valve Body & Oil Strainer (ATM)

222 part groups · 26 illustrations

Illustrations

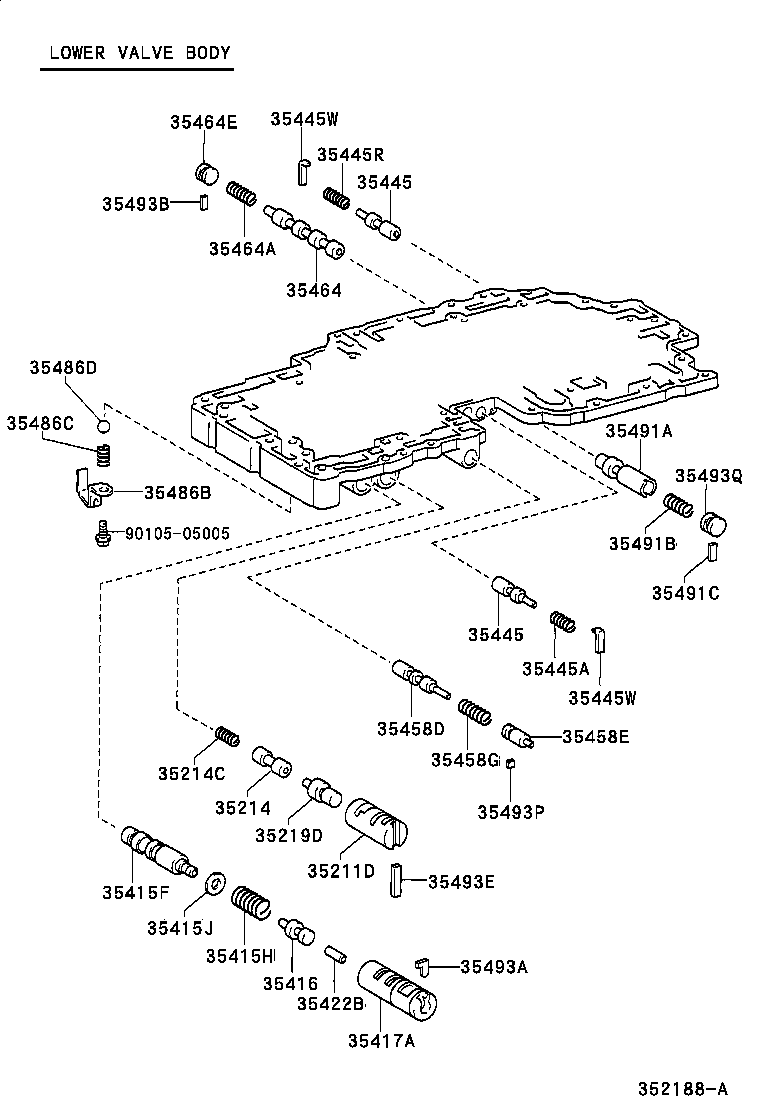

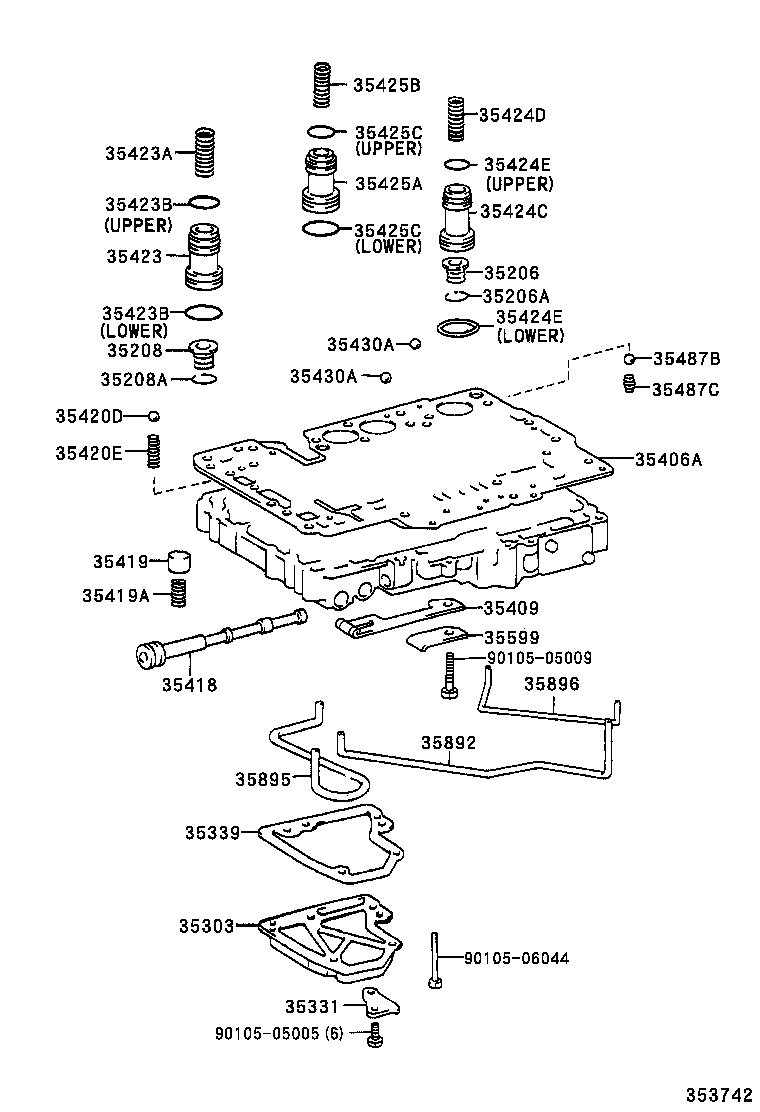

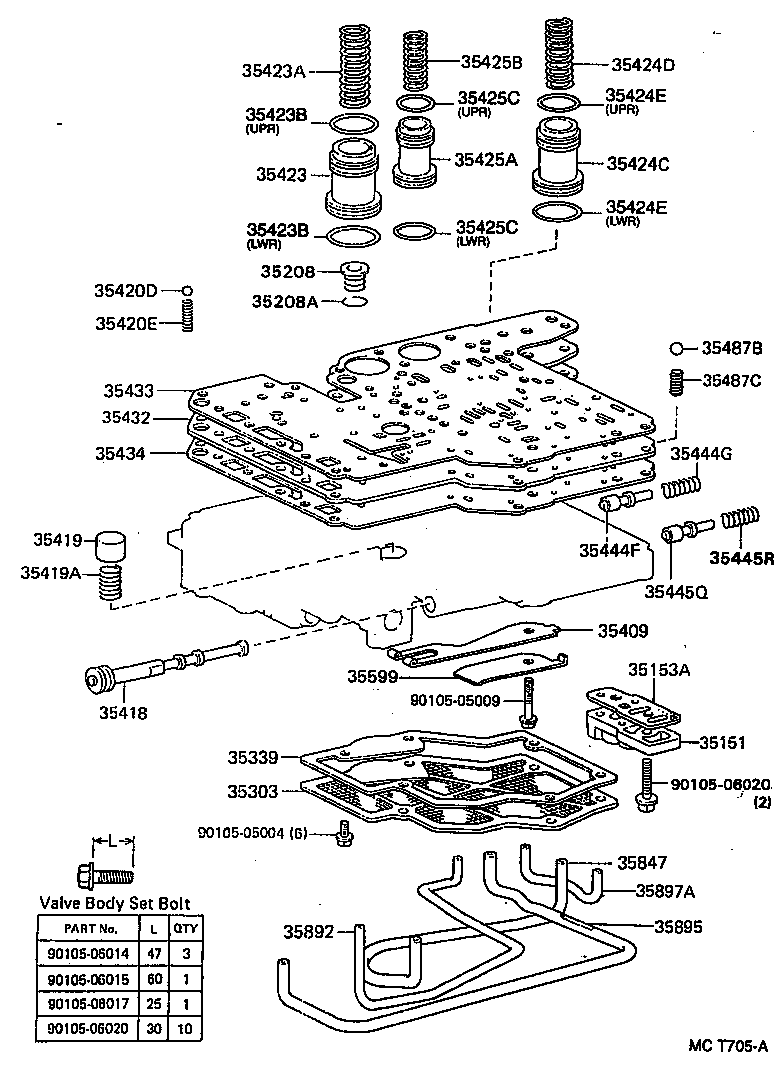

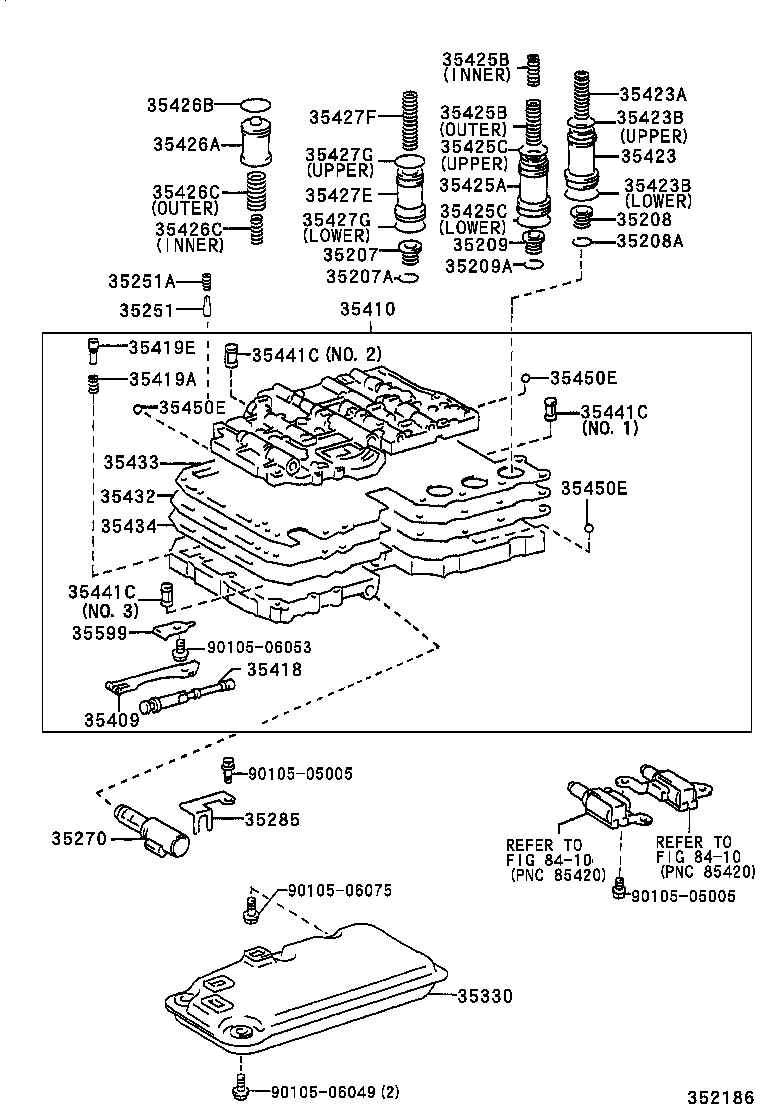

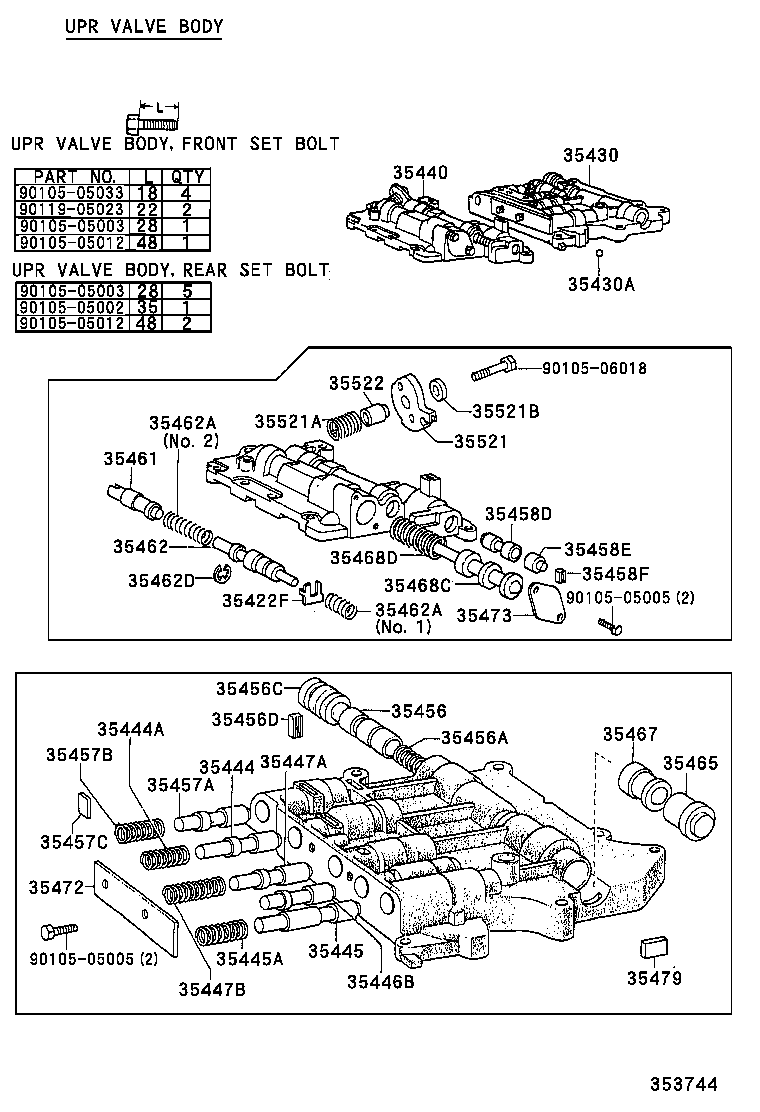

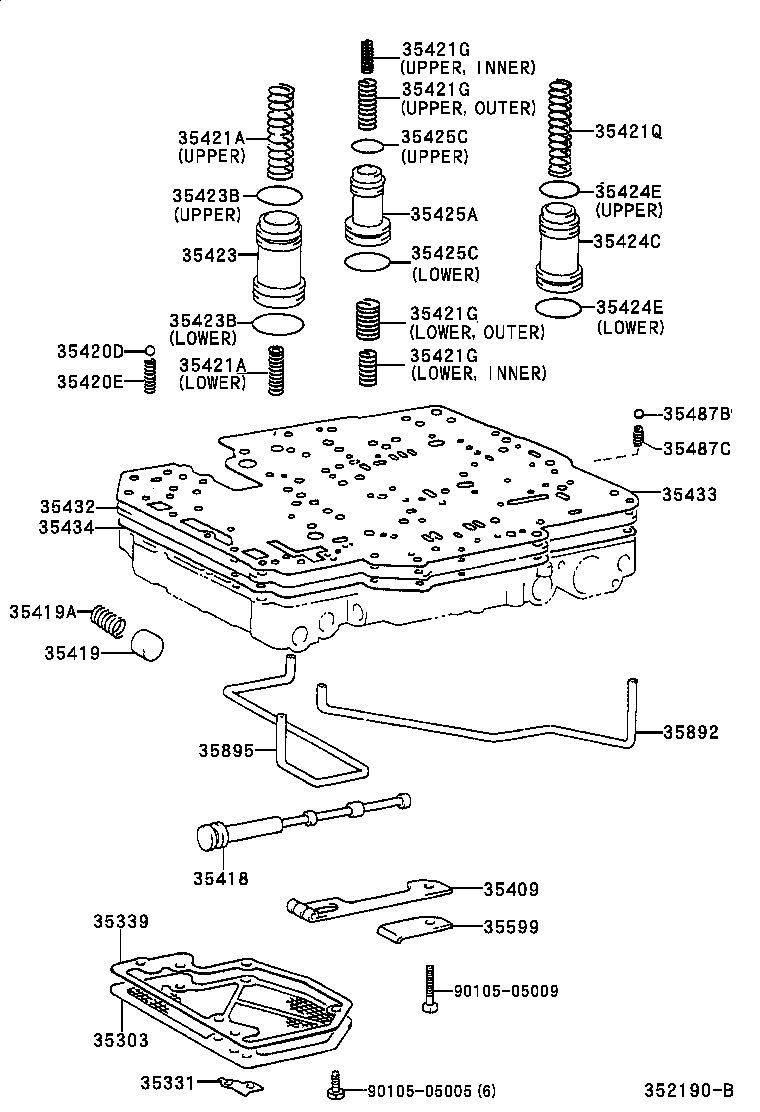

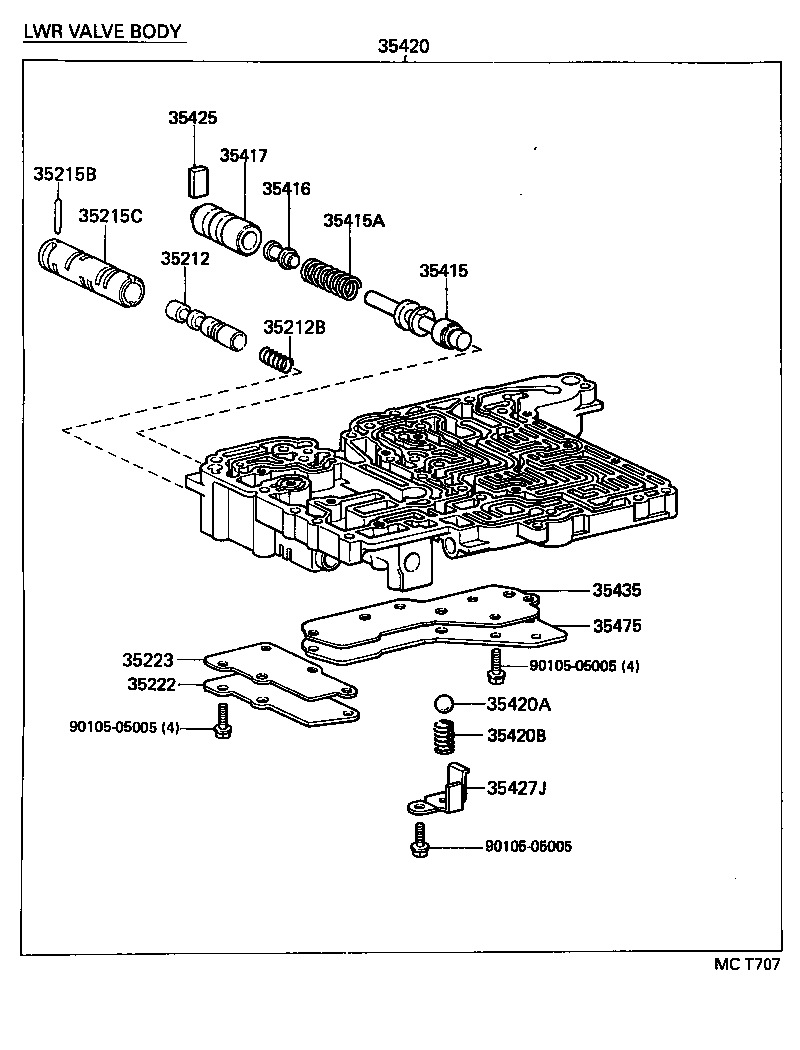

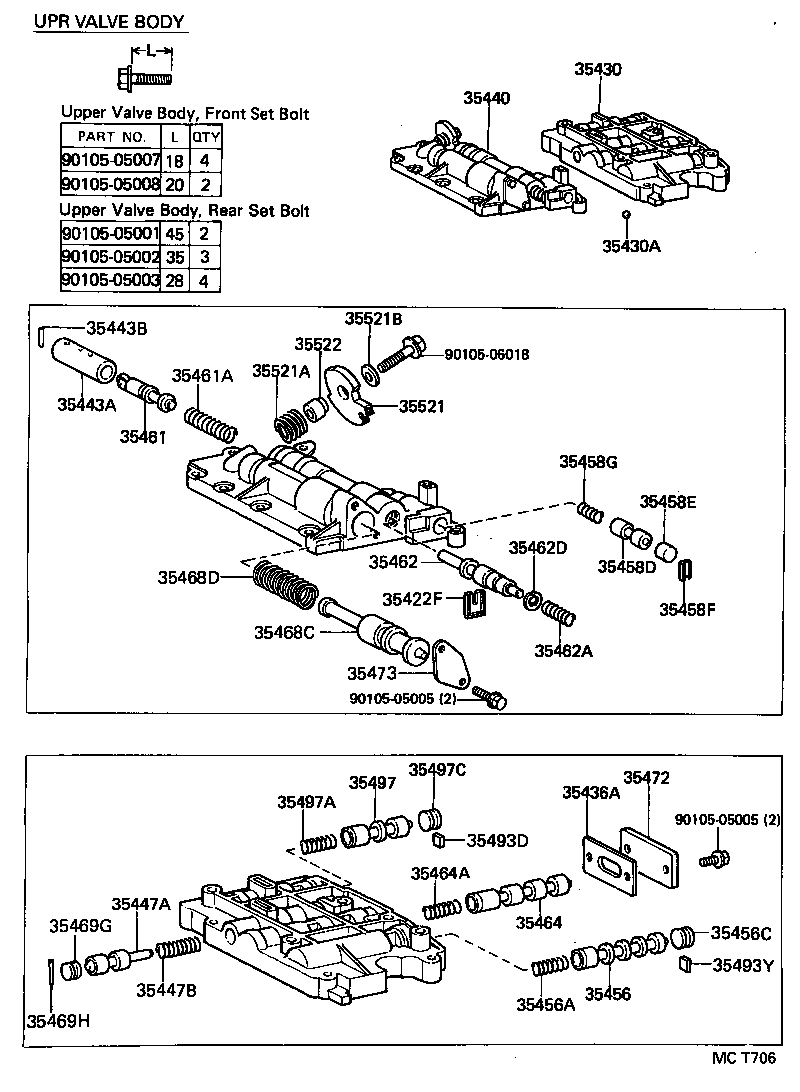

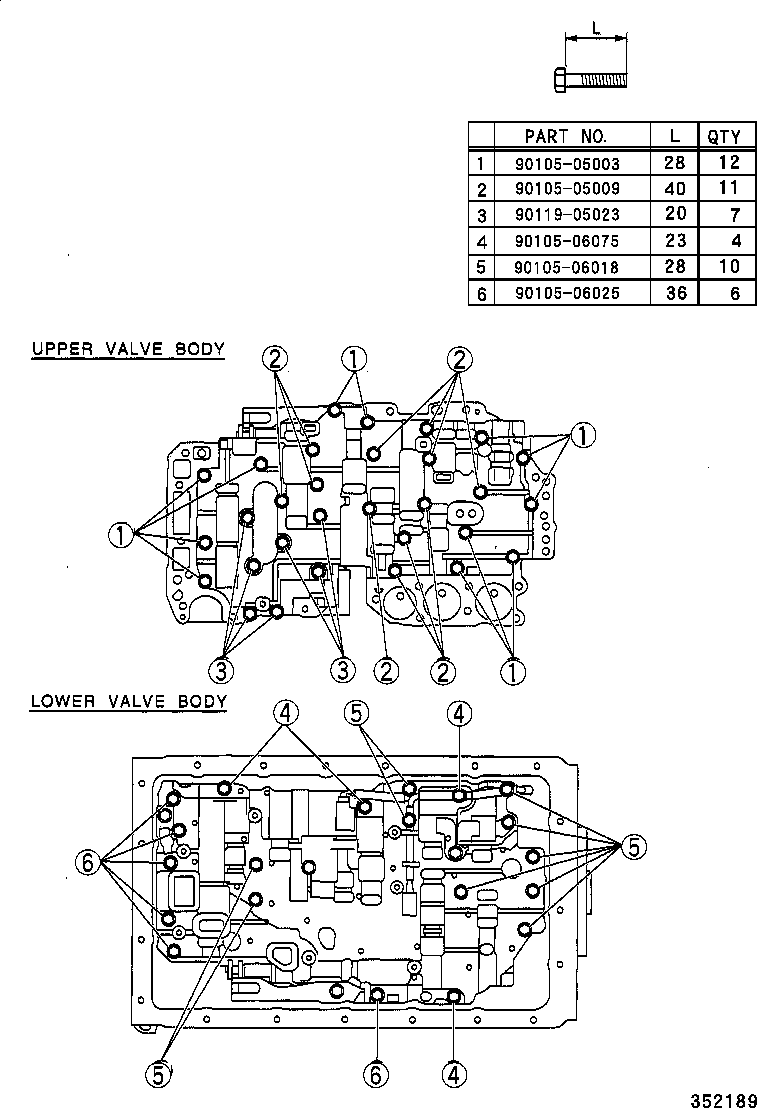

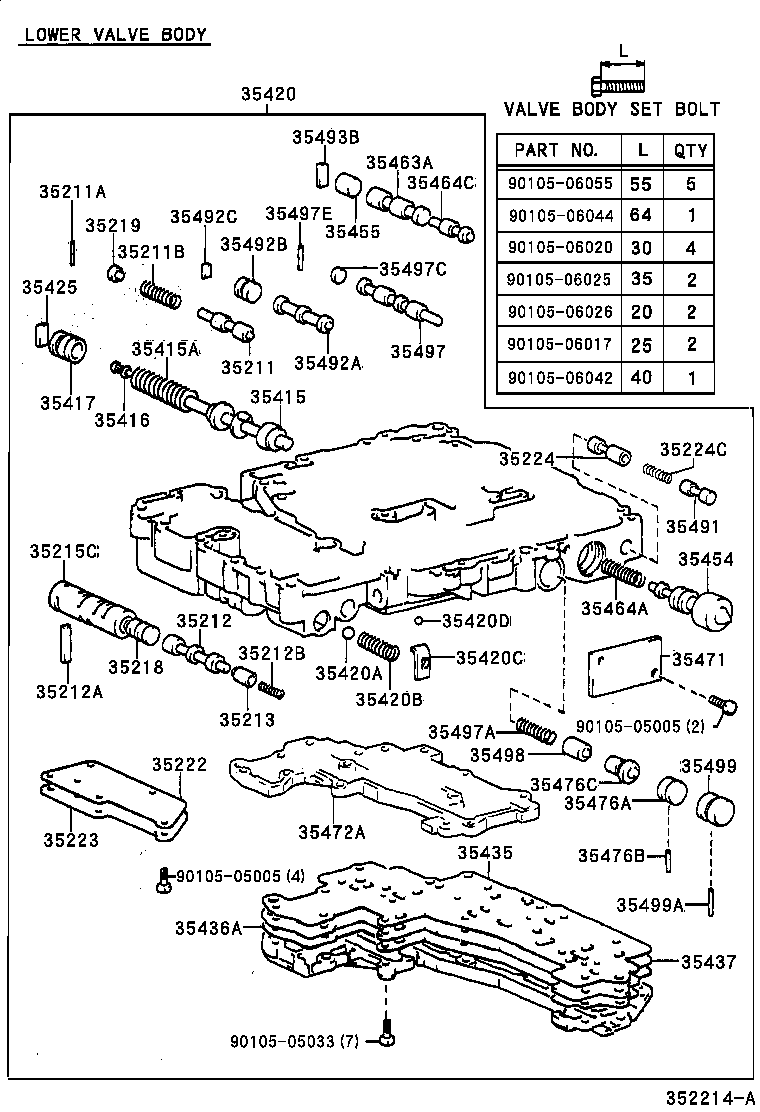

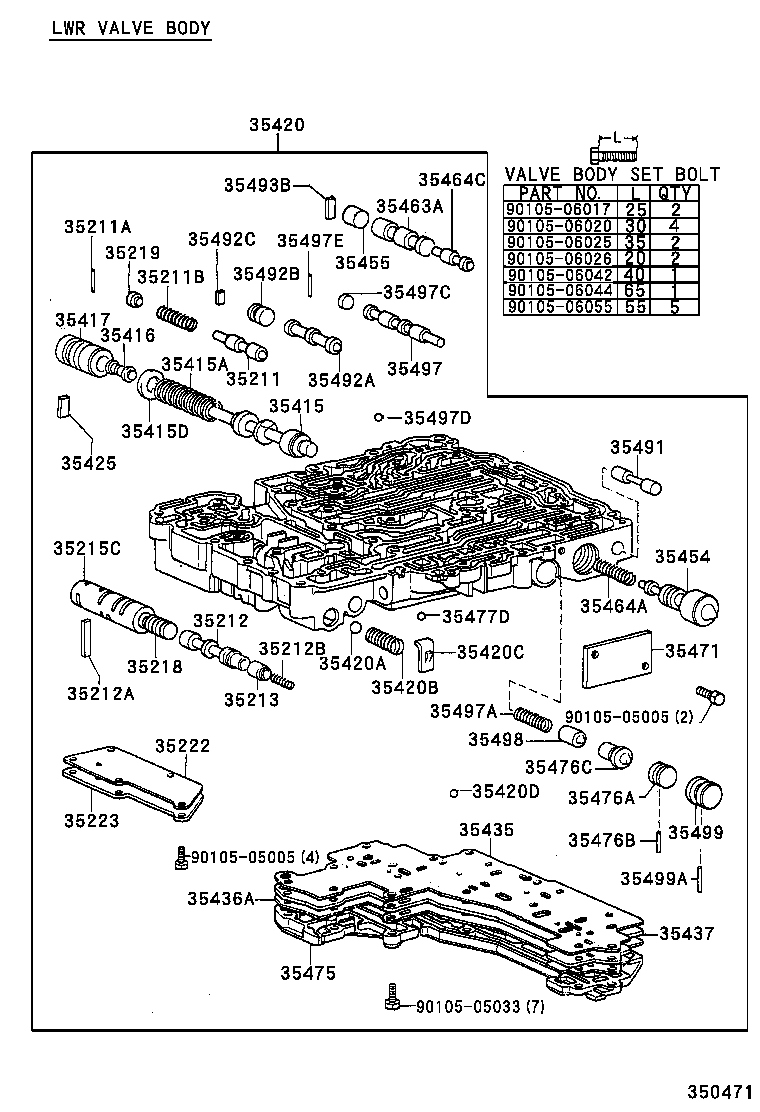

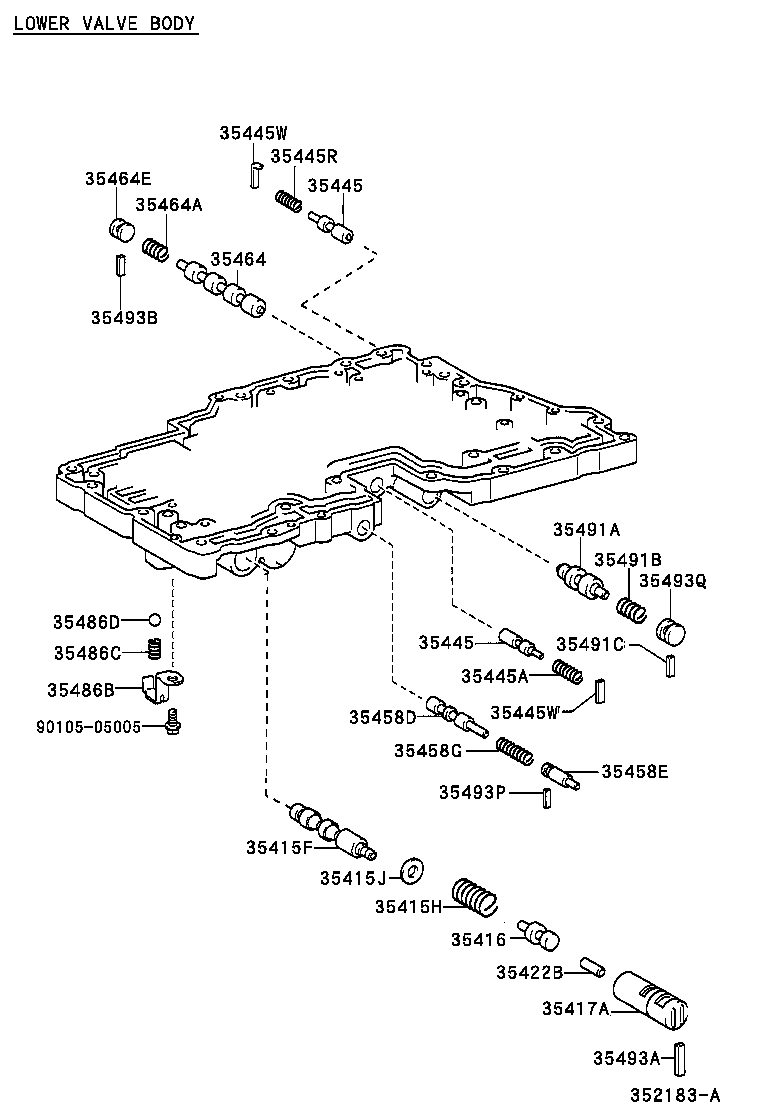

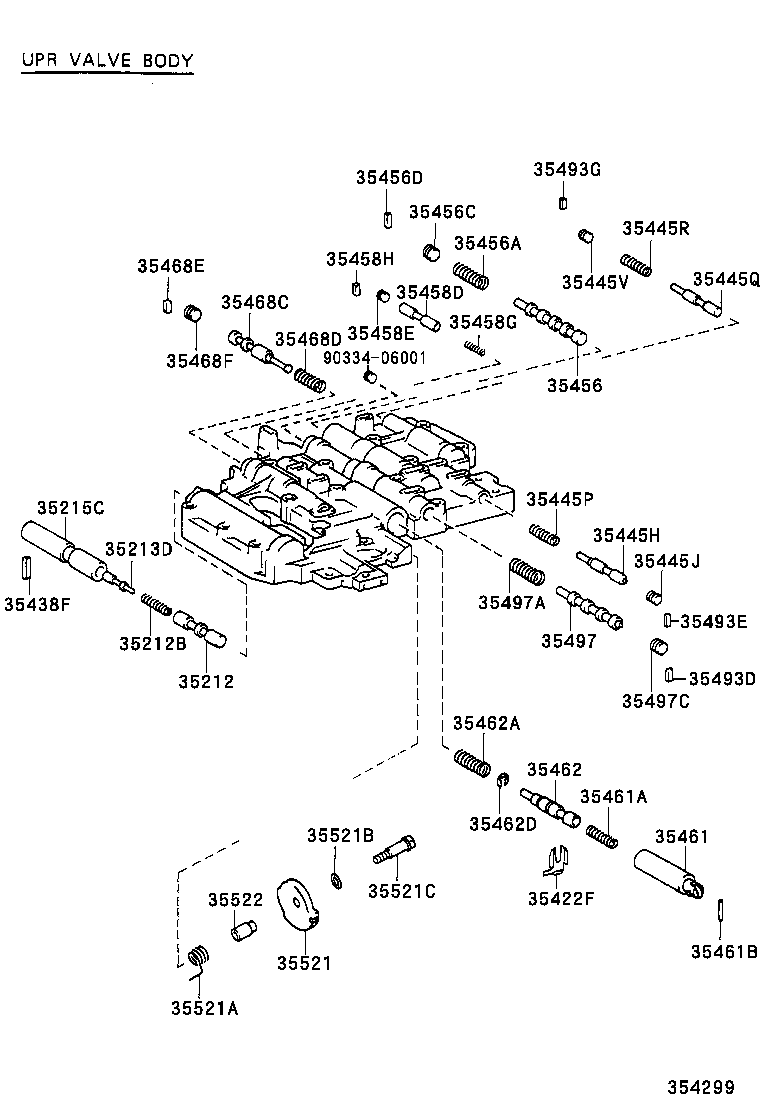

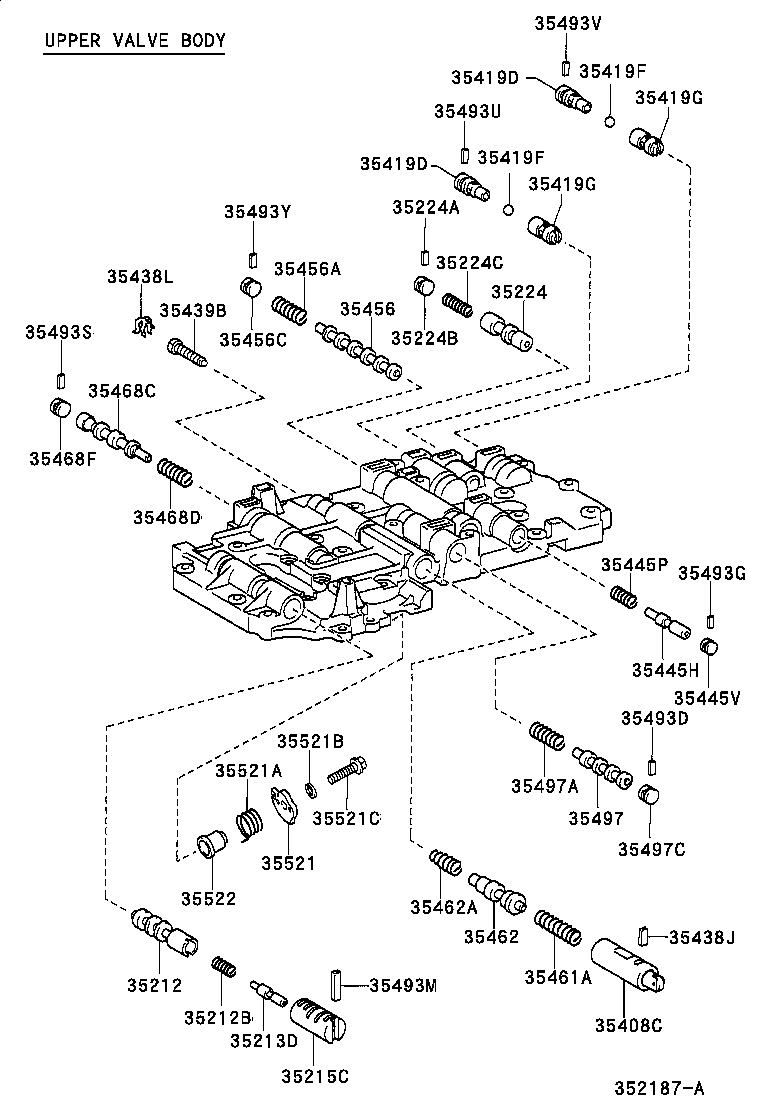

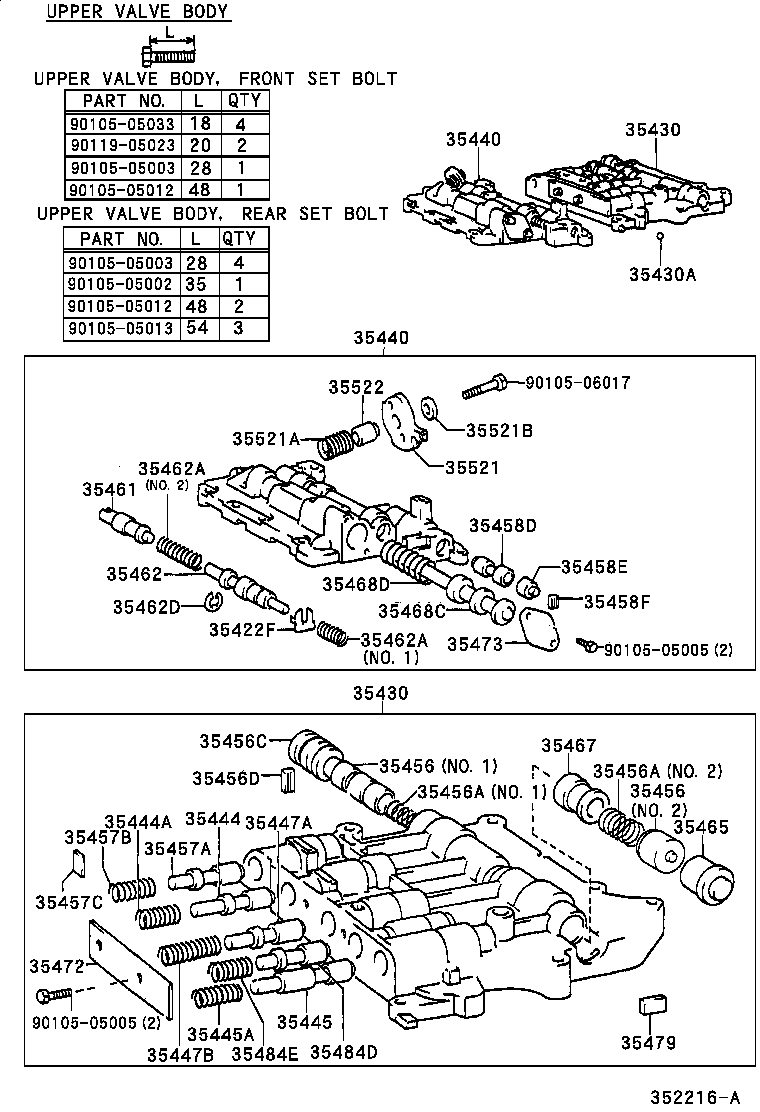

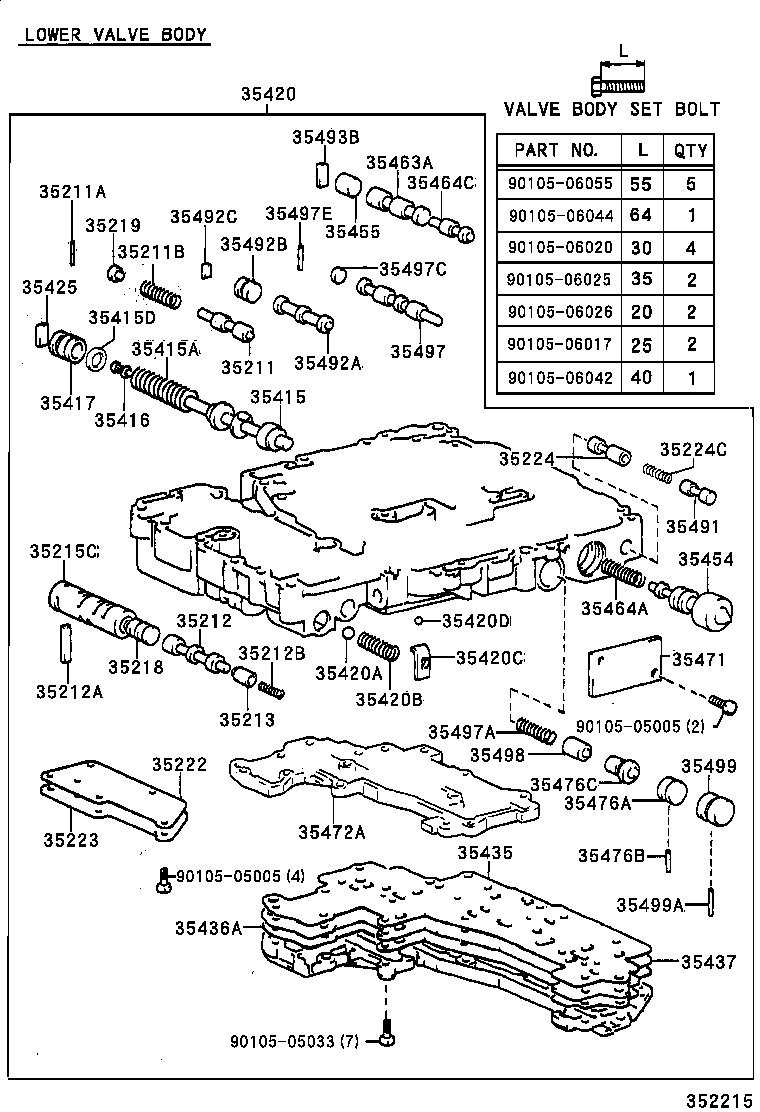

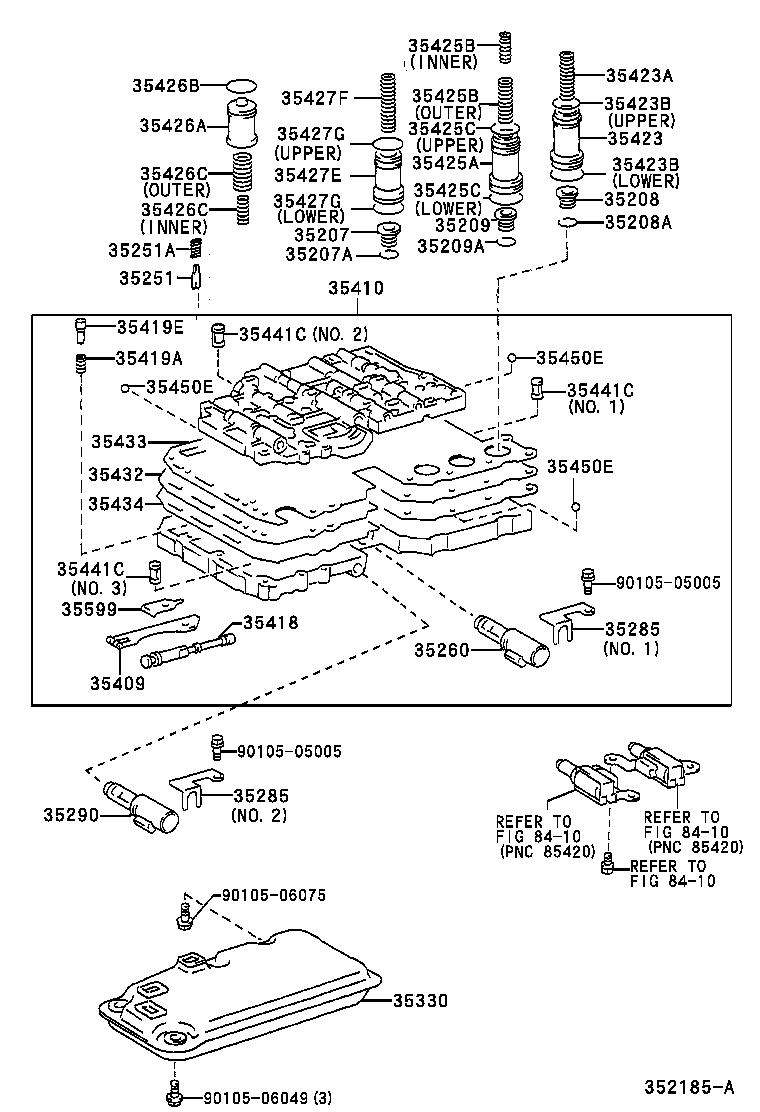

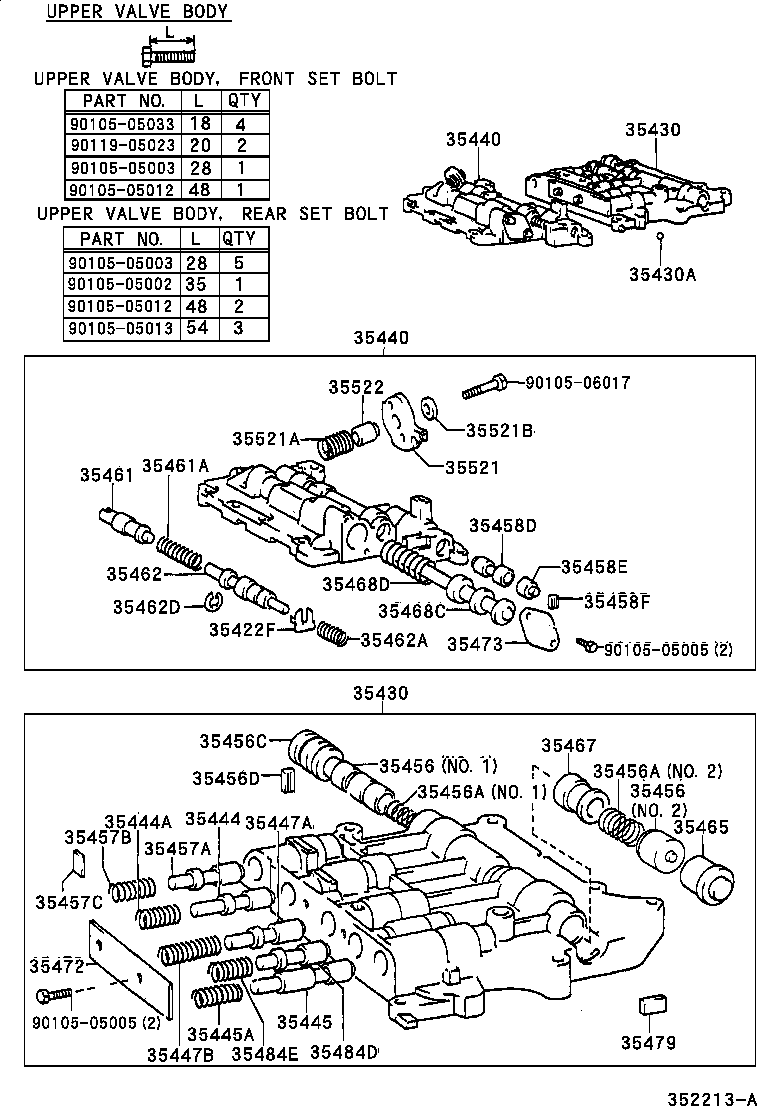

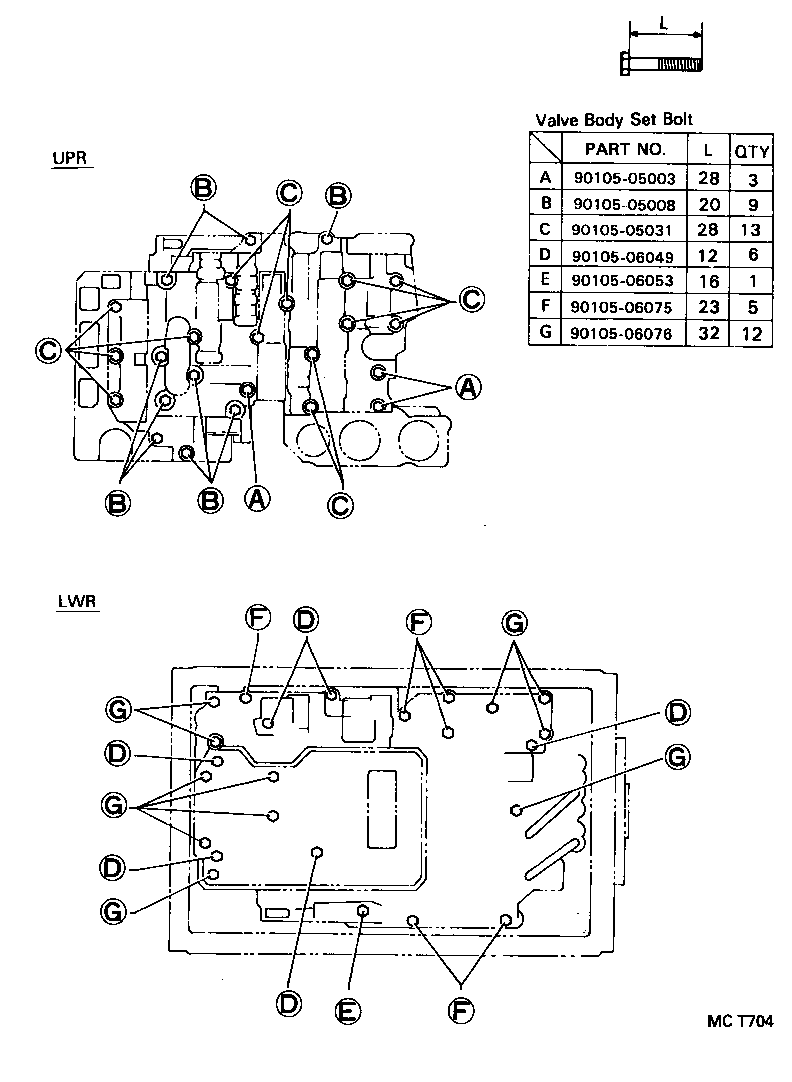

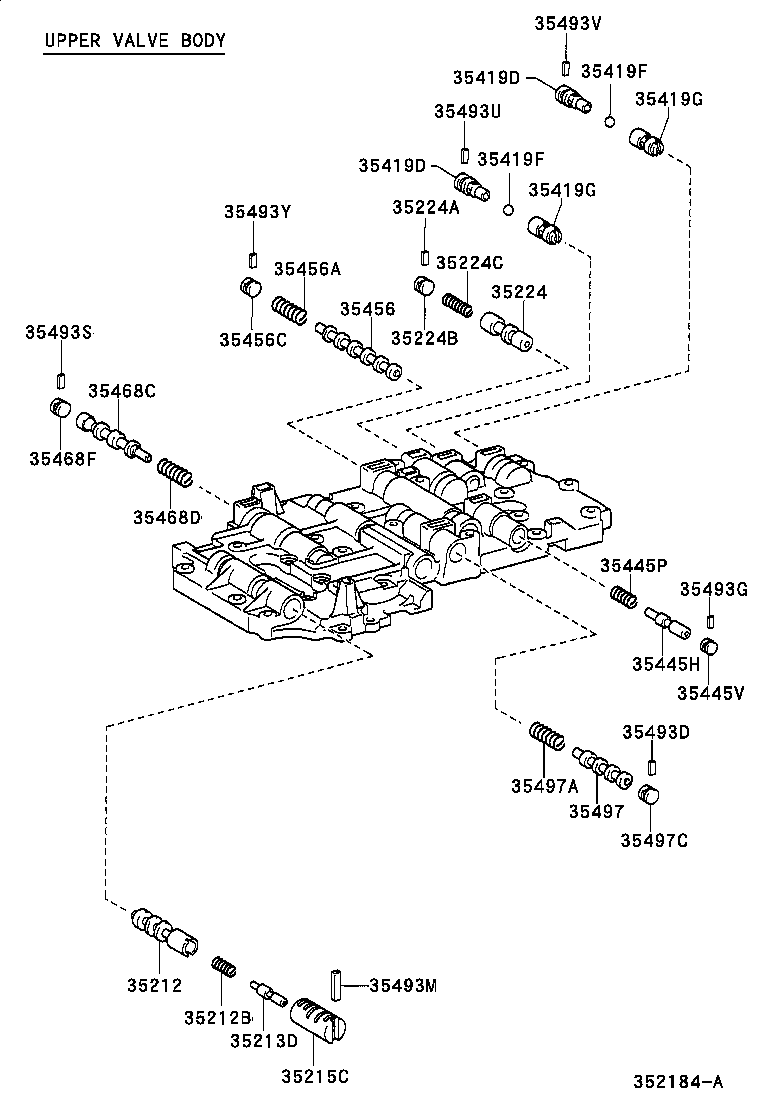

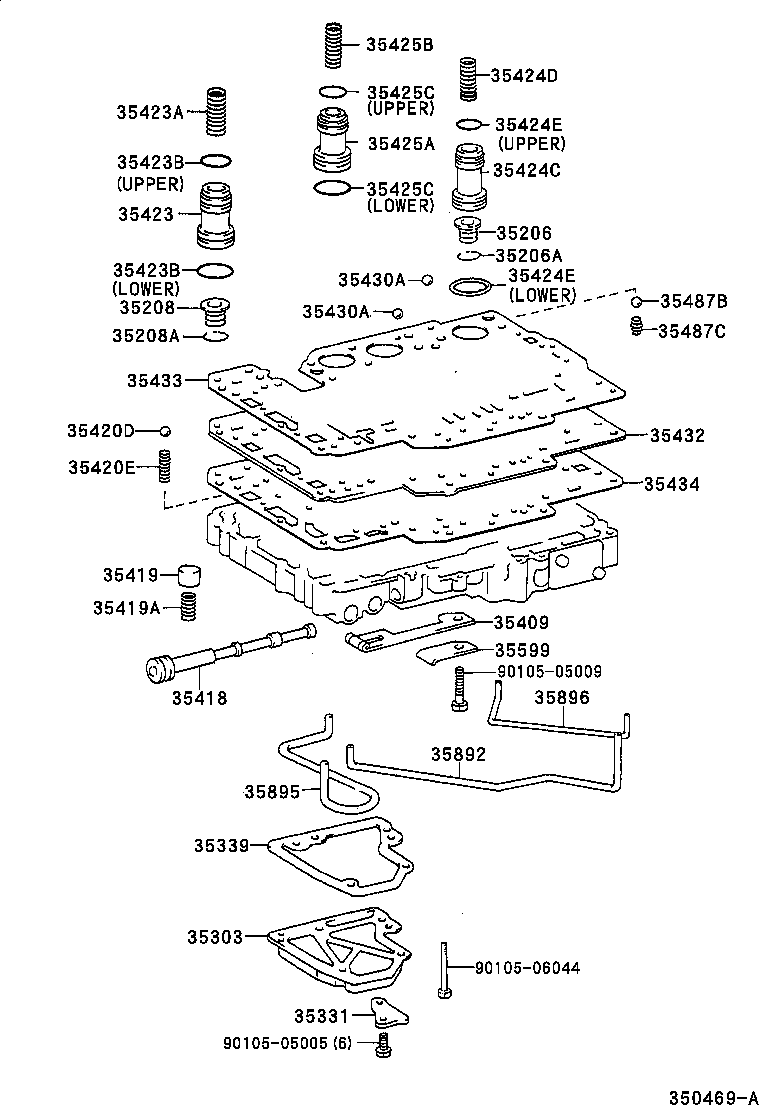

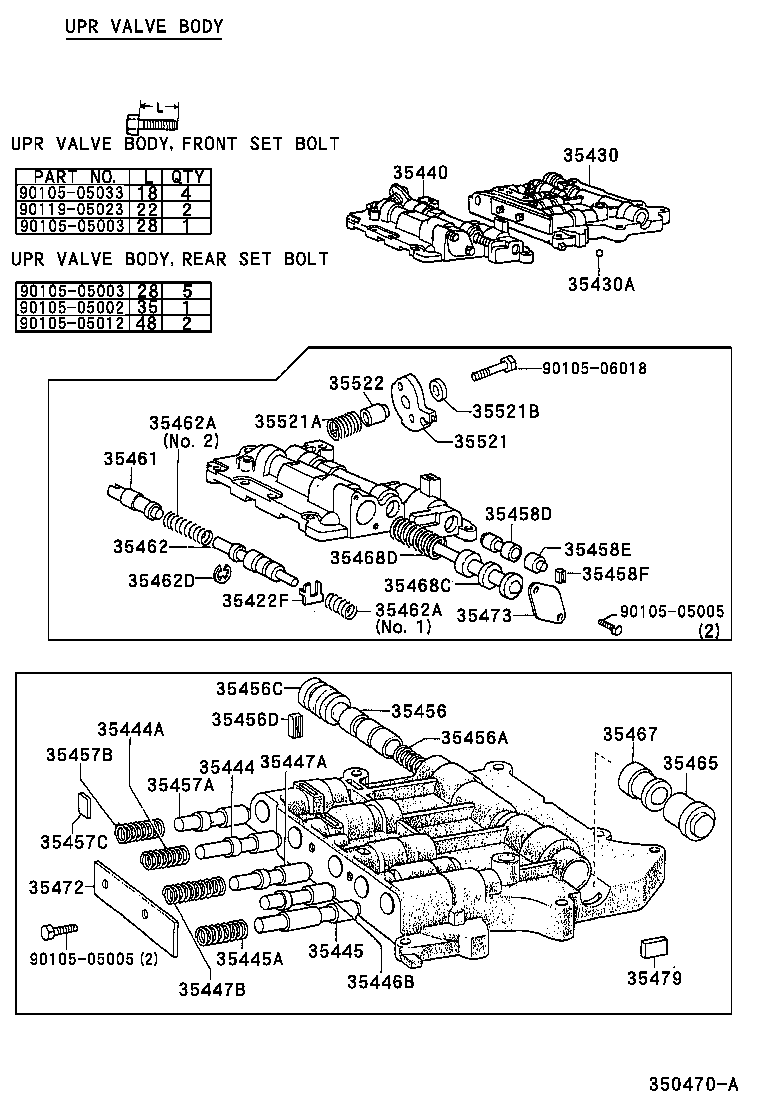

Figure 350400 350400 1997-04 → 1999-07 Figure 354299 354299 1997-04 → 1999-07 Figure MCT703 MCT703 1997-04 → 1999-07 Figure MCT704 MCT704 1997-04 → 1999-07 Figure MCT705A MCT705A 1997-04 → 1999-07 Figure MCT706 MCT706 1997-04 → 1999-07 Figure MCT707 MCT707 1997-04 → 1999-07 Figure 350469A 350469A 1997-06 → 2000-07 Figure 350469A 350469A 2000-07 → — Figure 353742 353742 2000-07 → — Figure 350470A 350470A 1997-06 → 1999-07 Figure 352216A 352216A 1999-07 → 2000-07 Figure 353744 353744 2000-07 → — Figure 350471 350471 1997-06 → 1999-07 Figure 350471 350471 2000-07 → — Figure 352215 352215 1999-07 → 2000-07 Figure 352185A 352185A 1999-07 → — Figure 352184A 352184A 1999-07 → — Figure 352183A 352183A 1999-07 → — Figure 352186 352186 1999-07 → — Figure 352187A 352187A 1999-07 → — Figure 352188A 352188A 1999-07 → — Figure 352189 352189 1999-07 → — Figure 352190B 352190B 1999-07 → — Figure 352213A 352213A 1999-07 → — Figure 352214A 352214A 1999-07 → —

Part groups

PNCDescription
35151 Cover, Transmission Case, Lower
35153A Gasket, Transmission Case Lower Cover
35206 Spring Sub-assy, C-1 Accumulator
35206A Ring, Hole Snap (FOR C-1 ACCUMULATOR SPRING)
35207 Spring Sub-assy, B-0 Accumulator
35207A Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211 Valve, Lock UP Signal
35211A Pin, Straight (FOR LOCK UP SIGNAL VALVE)
35211B Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211D Sleeve, Lock UP Control Valve
35212 Valve, Lock UP Relay
35212A Seat, Plug (FOR LOCK UP RELAY VALVE)
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213 Valve, Lock UP Relay Control
35213D Plunger, Lock UP Relay Valve
35214 Valve, Lock UP Control
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215B Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35218 Plug, Lock UP Relay Valve
35219 Plug, Lock UP Signal Valve
35219D Plunger, Lock UP Control Valve
35222 Plate, Lock UP Relay Valve Body
35223 Gasket, Lock UP Relay Valve Body
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35260 Accumlator Assy, Throttle Pressure
35270 Solenoid Assy, Shift Control
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35303 Strainer Sub-assy, Oil
35330 Strainer Assy, Valve Body Oil
35331 Cover, Oil Strainer
35339 Gasket, Oil Strainer
35339A Gasket, Oil Strainer, NO.1
35339B Gasket, Oil Strainer, NO.2
35396 Strainer, Throttle Oil
35406A Plate Sub-assy, Valve Body
35408C Plug Sub-assy, Throttle Valve
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35410D Valve, Check
35410F Ball (FOR CHECK VALVE)
35415 Valve, Pressure Regulator
35415A Spring, Compression (FOR PRESSURE REGULATOR VALVE)
35415D Shim (FOR PRESSURE REGULATOR VALVE)
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417 Sleeve, Pressure Regulator Valve
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35419E Valve, Check, NO.3
35419F Ball, Check Valve
35419G Valve, Check, NO.4
35420 Body Assy, Lower Valve
35420A Ball (FOR PRESSURE RELIEF)
35420B Spring (FOR PRESSURE RELIEF)
35420C Seat (FOR PRESSURE RELIEF)
35420D Ball (FOR LOWER VALVE BODY)
35420E Spring (FOR LOWER VALVE BODY)
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421Q Spring, Compression (FOR ACCUMULATOR PISTON NO.3)
35422B Plunger, Primary Regulator Valve, NO.2
35422F Stopper, Valve Vibrating
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425 Seat, Pressure Regulator Valve Sleeve
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35427J Seat, Check Valve Spring (FOR PRESSURE RELIEF)
35430 Body Assy, Rear Upper Valve
35430A Ball (FOR REAR UPPER VALVE BODY)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35435 Gasket, Valve Body Plate, NO.3
35436A Gasket, Valve Body Plate, NO.4
35437 Plate, 3-4 Shift Valve Separator
35438D Seat, Accumulator Control Valve Spring
35438F Seat, Detent Spring
35438J Seat, Throttle Valve Spring
35438L Retainer, Throttle Valve
35439B Screw, Throttle Valve
35440 Body Assy, Front Upper Valve
35441C Strainer, Solenoid Oil
35443A Sleeve, Down Shift Plug
35443B Pin (FOR DOWN SHIFT PLUG SLEEVE)
35444 Valve, Intermediate Modulator
35444A Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
35444D Valve, Release Control
35444F Valve, Intermediate Coast Modulator
35444G Spring (FOR INTERMEDIATE COAST MODULATOR VALVE)
35444H Pin,Straight(FOR INTERMEDIATE MODULATOR PLUG)
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35445H Valve, 2ND Coast Modulator
35445J Plug (FOR 2ND COAST MODULATOR VALVE)
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V Plug (FOR LOW COAST MODULATOR VALVE)
35445W Seat, Shift Valve Plug(FOR LOW MODULATOR VALVE)
35446B Plug, Governor Modulator Valve
35447A Valve, Reverse Clutch Sequence
35447B Spring, Compression (FOR REVERSE CLUTCH SEQUENCE VALVE)
35449B Valve, Pressure Relief
35449C Spring, Compression (FOR VALVE PRESSURE RELIEF)
35450E Ball (FOR UPPER VALVE BODY)
35454 Valve, Low Coast Shift
35455 Plug, 1-2 Shift Valve Low
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456D Seat (FOR 2-3 SHIFT VALVE)
35457A Valve, Detent Regulator
35457B Spring, Compression (FOR DETENT REGULATOR VALVE)
35457C Seat (FOR DETENT REGULATOR VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458F Seat (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35461A Spring, Compression (FOR DOWN SHIFT PLUG)
35461B Pin, Straight (FOR DOWN SHIFT PLUG)
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462D Ring, E (FOR THROTTLE VALVE)
35463A Valve, 1-2 Shift, Lower
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C Valve, 1-2 Shift, Upper
35464E Plug (FOR 1-2 SHIFT VALVE)
35465 Plug, Intermediate Shift Valve
35467 Valve, Intermediate Shift
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35469G Plug, Reverse Clutch Sequence Valve
35469H Roller (FOR REVERSE CLUTCH SEQUENCE VALVE)
35471 Cover, Valve Body, NO.1
35472 Cover, Valve Body, NO.2
35472A Cover, Lower Valve Body
35473 Cover, Transmission Valve Body
35475 Cover, Valve Body, NO.5
35476A Plug, Straight (FOR 3RD COAST SHIFT)
35476B Pin, Locating (FOR 3RD COAST SHIFT)
35476C Valve, 3RD Coast
35477D Ball, Check (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35479 Seat, Intermediate Shift Valve
35484D Valve, B-3 Control
35484E Spring, Compression (FOR B-3 CONTROL VALVE)
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D Ball (FOR PRESSURE RELIFE VALVE)
35487B Ball, Check, NO.4
35487C Spring, Compression (FOR CHECK BALL)
35491 Plug, Reverse Brake
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492A Valve, Manual Down Timing
35492B Plug (FOR MANUAL DOWN TIMING VALVE)
35492C Seat, Valve (FOR MANUAL DOWN TIMING VALVE)
35492E Sleeve, Accumulator Control Valve
35493A Seat, Primary Regulator Valve Plug
35493B Seat, 1-2 Shift Valve Plug
35493D Seat, 3-4 Shift Valve Plug
35493E Seat, 2ND Coast Modulator Valve Plug
35493G Seat, Low Coast Modulator Valve Plug
35493M Seat, Lock UP Control Valve Plug
35493P Seat, Cut Back Valve Plug
35493Q Seat, Accumulator Control Valve Plug, NO.1
35493S Seat, Secondary Regulator Valve Plug
35493U Seat, Check Valve, NO.1
35493V Seat, Check Valve, NO.2
35493Y Seat, 2-3 Shift Valve Plug
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497D Ball, Check (FOR 3-4 SHIFT VALVE)
35497E Roller, Needle (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35499 Plug, 3-4 Shift Valve
35499A Pin, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35521C Bolt (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35847 Tube, Transmission Lube Apply
35892 Tube, Overdrive Brake
35895 Tube, Front Clutch Apply
35896 Tube, Overdrive Switch Apply
35897A Tube, 1ST & Reverse Brake, NO.1
