Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

29 part groups · 3 illustrations

Illustrations

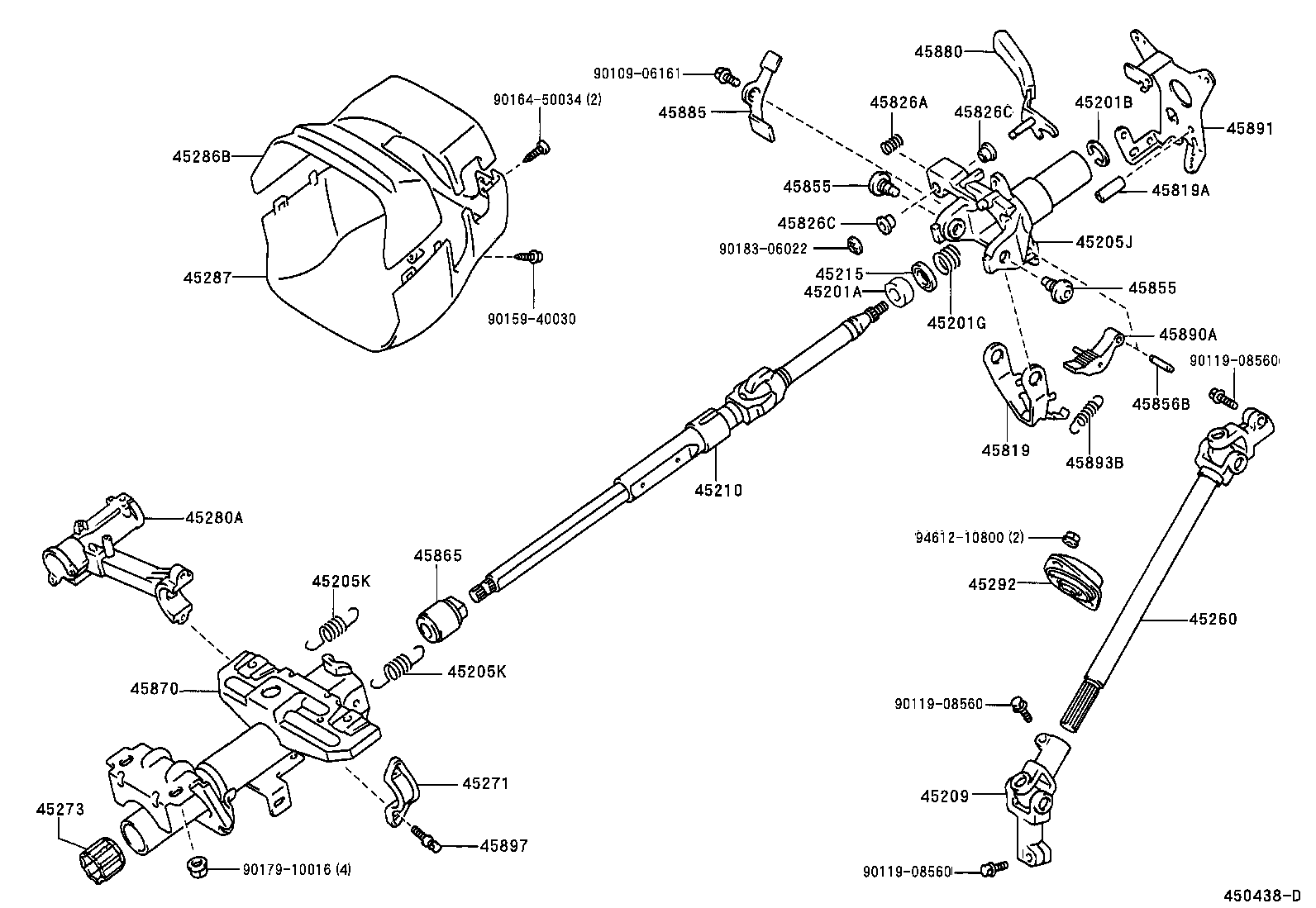

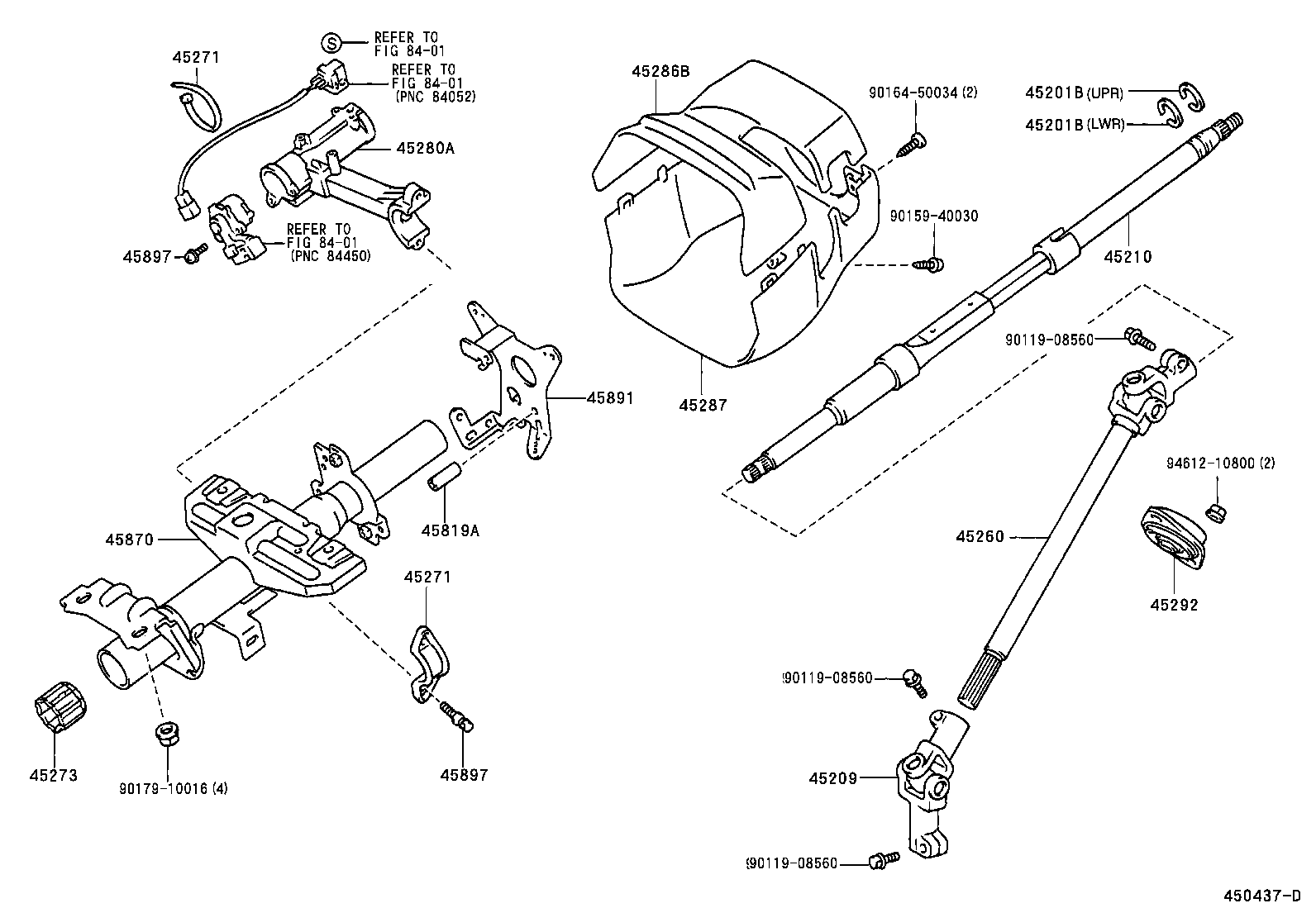

Figure 450436C 450436C 1997-04 → — Figure 450437D 450437D 1997-06 → — Figure 450438D 450438D 1997-04 → —

Part groups

PNCDescription
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45205J Tube Sub-assy, Steering Column, Upper
45205K Spring(FOR STEERING COLUMN TUBE)
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45215 Collar, Main Shaft Bearing Thrust
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45292 Seal, Main Shaft Lower Dust
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826C Bush(FOR STEERING TILT LEVER)
45855 Bolt, Tilt Steering, NO.1
45856B Shaft, T1LT Steering, NO.2
45865 Collar, Steering Main Shaft
45870 Tube Assy, Steering Column
45880 Lever Assy, Steering Tilt
45885 Link, Tilt Lever
45890A Pawl Assy, Tilt Steering
45891 Bracket, Turn Signal
45893B Spring, Tension(FOR TILT STEERING PAWL STOPPER)
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
