Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 4 illustrations

Illustrations

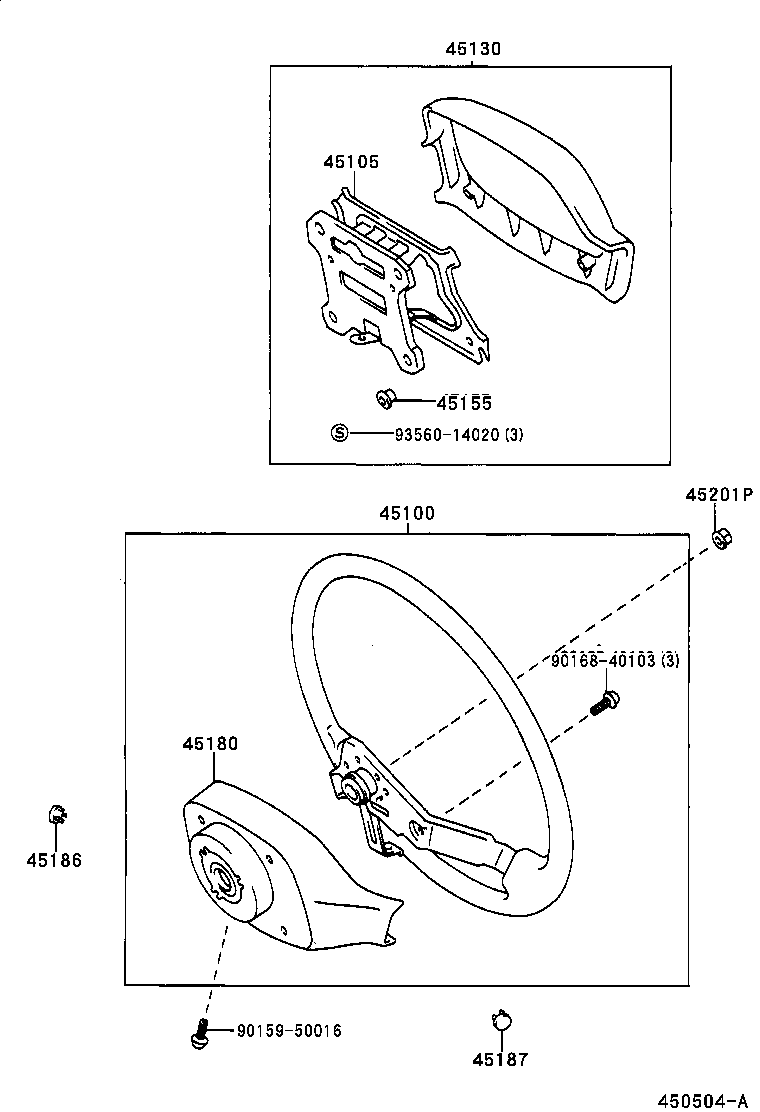

Figure 450503C 450503C 1997-04 → 1999-07 Figure 450503C 450503C 1997-06 → 1999-07 Figure 450504A 450504A 1997-04 → — Figure 451952 451952 1999-07 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45130 Button Assy, Horn
45155 Spacer, Horn Button Contact Plate
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
