Toyota Regius/Touring Hiace

1997-04 → 2002-05 · chassis KCH4#,LXH4#,RCH4# · catalogue 712110 · Japan

Discontinued model Data version 2002-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 2 illustrations

Illustrations

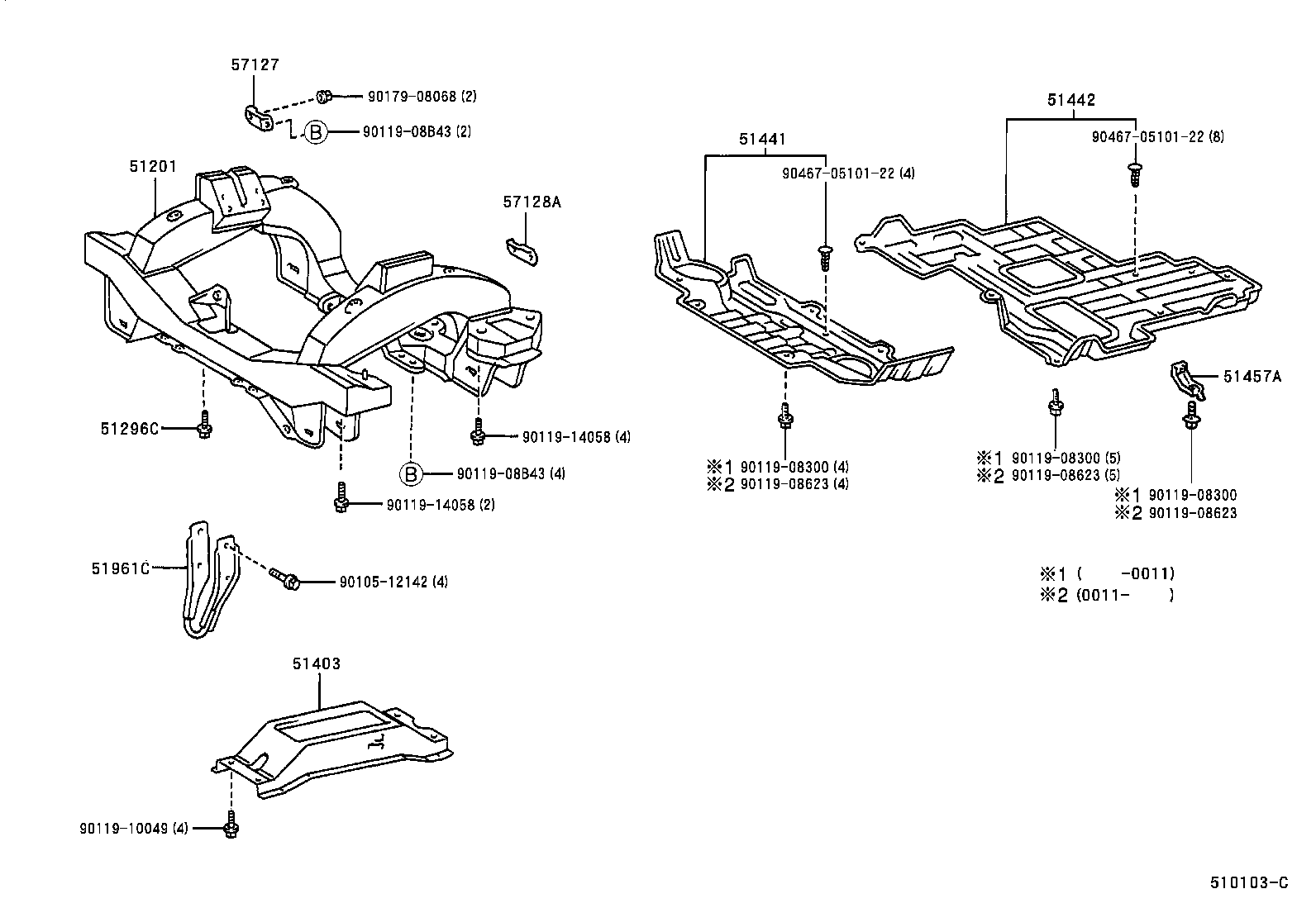

Figure 510102C 510102C 1997-04 → — Figure 510103C 510103C 1997-04 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51296C Bolt, Front Suspension Member Mounting
51403 Bracket Sub-assy, Engine Rear Mounting
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51457A Bracket, Engine Under Cover, NO.3
51961C Hook, Front
57127 Plate, Front Suspension Member Mounting, RH
57128A Plate, Front Suspension Member Mounting, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
